ASTM E1557-09(2020)e1

(Classification)

Standard Classification for Building Elements and Related Sitework—UNIFORMAT II

Standard Classification for Building Elements and Related Sitework—UNIFORMAT II

SIGNIFICANCE AND USE
4.1 This classification defines building elements as major components common to most buildings. The classification is the common thread linking activities and participants in a building project from initial planning through operations, maintenance, and disposal.
4.2 The users of UNIFORMAT II include owners, developers, facilities programmers, cost planners, estimators, schedulers, architects and engineers, specification writers, operating and maintenance staff, manufacturers, and educators.
4.3 Use this classification when doing the following:5
4.3.1 Structuring costs on an elemental basis for economic evaluations (Practices E917, E964, E1057, E1074, E1121, and E1804) early in the design process. Using UNIFORMAT II helps reduce the cost of early analysis and contributes to substantial design and operational savings before decisions have been made that limit options for potential savings.
4.3.2 Estimating and controlling costs during planning, design, and construction. Use UNIFORMAT II to prepare budgets and to establish elemental cost plans before design begins. The project manager uses these to control project cost, time, and quality, and to set design-to-cost targets. See Appendix X2 for an example of a UNIFORMAT II building elemental design cost estimate.
4.3.3 Conducting value engineering workshops. Use UNIFORMAT II as a checklist to ensure that alternatives for all elements of significant cost in the building project are analyzed in the creativity phase of the job plan. Also, use the elemental cost data to expedite the development of cost models for building systems.
4.3.4 Developing initial project master schedules. Since projects are built element by element, UNIFORMAT II is an appropriate basis for preparing construction schedules at the start of the design process.
4.3.5 Performing risk analyses. Simulation is one technique (Practice E1369) for developing probability distributions of building costs when evaluating the economic risk in u...
SCOPE
1.1 This classification establishes a classification of building elements and related sitework. Elements, as defined here, are major components common to most buildings. Elements usually perform a given function, regardless of the design specification, construction method, or materials used. The classification serves as a consistent reference for analysis, evaluation, and monitoring during the feasibility, planning, and design stages of buildings. Using UNIFORMAT II ensures consistency in the economic evaluation of buildings projects over time and from project to project. It also enhances reporting at all stages in construction—from feasibility and planning through the preparation of working documents, construction, maintenance, rehabilitation, and disposal.
1.2 This classification applies to buildings and related site work. It excludes specialized process equipment related to a building’s functional use but does include furnishings and equipment.
1.3 The classification incorporates three hierarchical levels described as Levels 1, 2, and 3. Appendix X1 presents a more detailed suggested Level 4 classification of sub-elements.
1.4 UNIFORMAT II is an elemental format similar to the original UNIFORMAT2 elemental classification. UNIFORMAT II differs from the original UNIFORMAT, however, in that it takes into consideration a broader range of building types and has been updated to categorize building elements as they are in current building practice.
1.5 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
31-Mar-2020
ICS
91.060.01 - Elements of buildings in general
Technical Committee
E06 - Performance of Buildings
Drafting Committee
E06.81 - Building Economics
Current Stage
Ref Project

Relations

Replaces
ASTM E1557-09(2015) - Standard Classification for Building Elements and Related Sitework—UNIFORMAT II
Effective Date
01-Apr-2020
Refers
ASTM E1074-15(2020)e1 - Standard Practice for Measuring Net Benefits and Net Savings for Investments in Buildings and Building Systems
Effective Date
01-Apr-2020
Refers
ASTM E964-15(2020)e1 - Standard Practice for Measuring Benefit-to-Cost and Savings-to-Investment Ratios for Buildings and Building Systems
Effective Date
01-Apr-2020
Refers
ASTM E1121-15(2020)e1 - Standard Practice for Measuring Payback for Investments in Buildings and Building Systems
Effective Date
01-Apr-2020
Refers
ASTM E1185-15(2020)e1 - Standard Guide for Selecting Economic Methods for Evaluating Investments in Buildings and Building Systems
Effective Date
01-Apr-2020
Refers
ASTM E1057-15(2020)e1 - Standard Practice for Measuring Internal Rate of Return and Adjusted Internal Rate of Return for Investments in Buildings and Building Systems
Effective Date
01-Apr-2020
Refers
ASTM E1369-15(2020)e1 - Standard Guide for Selecting Techniques for Treating Uncertainty and Risk in the Economic Evaluation of Buildings and Building Systems
Effective Date
01-Apr-2020
Refers
ASTM E917-17 - Standard Practice for Measuring Life-Cycle Costs of Buildings and Building Systems
Effective Date
01-Sep-2017
Refers
ASTM E2083-05(2016) - Standard Classification for Building Construction Field Requirements, and Office Overhead & Profit
Effective Date
01-May-2016
Refers
ASTM E1185-15 - Standard Guide for Selecting Economic Methods for Evaluating Investments in Buildings and Building Systems
Effective Date
01-Oct-2015
Refers
ASTM E1121-15 - Standard Practice for Measuring Payback for Investments in Buildings and Building Systems
Effective Date
01-Oct-2015
Refers
ASTM E1369-15 - Standard Guide for Selecting Techniques for Treating Uncertainty and Risk in the Economic Evaluation of Buildings and Building Systems
Effective Date
01-Oct-2015
Refers
ASTM E917-15 - Standard Practice for Measuring Life-Cycle Costs of Buildings and Building Systems
Effective Date
01-Oct-2015
Refers
ASTM E964-15 - Standard Practice for Measuring Benefit-to-Cost and Savings-to-Investment Ratios for Buildings and Building Systems
Effective Date
01-May-2015
Refers
ASTM E1057-15 - Standard Practice for Measuring Internal Rate of Return and Adjusted Internal Rate of Return for Investments in Buildings and Building Systems
Effective Date
01-May-2015

Buy Standard

ASTM E1557-09(2020)e1 - Standard Classification for Building Elements and Related Sitework—UNIFORMAT IIASTM E1557-09(2020)e1 - Standard Classification for Building Elements and Related Sitework—UNIFORMAT II
PreviousNext
Standard
ASTM E1557-09(2020)e1 - Standard Classification for Building Elements and Related Sitework—UNIFORMAT II
English language
45 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ϵ1

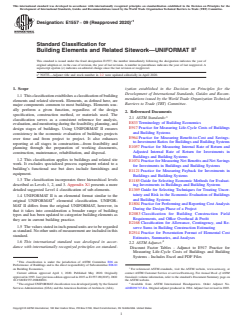

Designation:E1557 −09 (Reapproved 2020)
Standard Classification for
Building Elements and Related Sitework—UNIFORMAT II
This standard is issued under the fixed designation E1557; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
ε NOTE—Adjunct title and stock number in 2.2 were updated editorially in April 2020.
1. Scope ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
1.1 Thisclassificationestablishesaclassificationofbuilding
mendations issued by the World Trade Organization Technical
elements and related sitework. Elements, as defined here, are
Barriers to Trade (TBT) Committee.
major components common to most buildings. Elements usu-
ally perform a given function, regardless of the design
2. Referenced Documents
specification, construction method, or materials used. The
2.1 ASTM Standards:
classification serves as a consistent reference for analysis,
E833 Terminology of Building Economics
evaluation, and monitoring during the feasibility, planning, and
E917 Practice for Measuring Life-Cycle Costs of Buildings
design stages of buildings. Using UNIFORMAT II ensures
and Building Systems
consistency in the economic evaluation of buildings projects
E964 Practice for Measuring Benefit-to-Cost and Savings-
over time and from project to project. It also enhances
to-Investment Ratios for Buildings and Building Systems
reporting at all stages in construction—from feasibility and
E1057 Practice for Measuring Internal Rate of Return and
planning through the preparation of working documents,
Adjusted Internal Rate of Return for Investments in
construction, maintenance, rehabilitation, and disposal.
Buildings and Building Systems
1.2 This classification applies to buildings and related site
E1074 Practice for Measuring Net Benefits and Net Savings
work. It excludes specialized process equipment related to a
for Investments in Buildings and Building Systems
building’s functional use but does include furnishings and
E1121 Practice for Measuring Payback for Investments in
equipment.
Buildings and Building Systems
1.3 The classification incorporates three hierarchical levels E1185 Guide for Selecting Economic Methods for Evaluat-
described as Levels 1, 2, and 3. Appendix X1 presents a more
ing Investments in Buildings and Building Systems
detailed suggested Level 4 classification of sub-elements.
E1369 Guide for Selecting Techniques for Treating Uncer-
tainty and Risk in the Economic Evaluation of Buildings
1.4 UNIFORMAT II is an elemental format similar to the
and Building Systems
original UNIFORMAT elemental classification. UNIFOR-
E1804 Practice for Performing and Reporting CostAnalysis
MAT II differs from the original UNIFORMAT, however, in
During the Design Phase of a Project
that it takes into consideration a broader range of building
E2083 Classification for Building Construction Field
types and has been updated to categorize building elements as
Requirements, and Office Overhead & Profit
they are in current building practice.
E2168 Classification for Allowance, Contingency, and Re-
1.5 The values stated in inch-pound units are to be regarded
serve Sums in Building Construction Estimating
as standard. No other units of measurement are included in this
E2514 Practice for Presentation Format of Elemental Cost
standard.
Estimates, Summaries, and Analyses
1.6 This international standard was developed in accor-
2.2 ASTM Adjunct:
dance with internationally recognized principles on standard-
Discount Factor Tables - Adjunct to E917 Practice for
Measuring Life-Cycle Costs of Buildings and Building
Systems - Includes Excel and PDF Files
This classification is under the jurisdiction of ASTM Committee E06 on
Performance of Buildings and is the direct responsibility of Subcommittee E06.81
on Building Economics. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved April 1, 2020. Published May 2020. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 1993. Last previous edition approved in 2015 as E1557-09(2015). DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/E1557-09R20E01. the ASTM website.
2 4
The original UNIFORMAT classification was developed jointly by the General Available from ASTM International Headquarters. Order Adjunct No.
Services Administration (GSA) and the American Institute of Architects (AIA). ADJE091717-EA. Original adjunct produced in 1984.Adjunct last revised in 2003.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
ϵ1
E1557−09 (2020)
3. Terminology manual or database in an elemental format helps you perform
economic analysis early in the design stage and at reasonable
3.1 Definitions—For definitions of terms used in this
cost.
classification, refer to Terminology E833.
4.3.7 Structuringpreliminaryprojectdescriptionsduringthe
conceptual design phase. It facilitates the description of the
4. Significance and Use
scopeoftheprojectfortheclientinaclear,concise,andlogical
4.1 This classification defines building elements as major
sequence; it provides the basis for the preparation of more
components common to most buildings. The classification is
detailed elemental estimates during the early concept and
the common thread linking activities and participants in a
preliminary design phases, and it enhances communications
building project from initial planning through operations,
among designers and other building professionals by providing
maintenance, and disposal.
a clear statement of the designer’s intent. See Appendix X3 for
4.2 The users of UNIFORMAT II include owners,
a sample preliminary project description (PPD) based on
developers, facilities programmers, cost planners, estimators,
UNIFORMAT II.
schedulers, architects and engineers, specification writers,
4.3.8 Coding and referencing standard details in computer-
operating and maintenance staff, manufacturers, and educators.
aided design systems. This allows an architect, for example, to
reference an exterior wall assembly according to UNIFOR-
4.3 Use this classification when doing the following:
MAT II element designations and build up a database of
4.3.1 Structuring costs on an elemental basis for economic
standard details structured according to the classification.
evaluations (Practices E917, E964, E1057, E1074, E1121, and
E1804) early in the design process. Using UNIFORMAT II
4.4 UNIFORMAT II, as described in this classification,
helps reduce the cost of early analysis and contributes to
includes sitework normally related to buildings but does not
substantial design and operational savings before decisions
apply to major civil works. It is also unsuitable for process
have been made that limit options for potential savings.
applications or for preparing trade estimates.
4.3.2 Estimating and controlling costs during planning,
5. Basis of Classification
design, and construction. Use UNIFORMAT II to prepare
budgets and to establish elemental cost plans before design
5.1 What part of the built environment is included? The
begins. The project manager uses these to control project cost,
framework in Fig. 1 shows how buildings and related sitework
time, and quality, and to set design-to-cost targets. See Appen-
fit in with the rest of the built environment. This classification
dixX2foranexampleofaUNIFORMATIIbuildingelemental
describes exclusively the elements that make up the blocks
design cost estimate.
shaded under the building block, that is, construction of
4.3.3 Conducting value engineering workshops. Use UNI-
buildings and related sitework. UNIFORMAT II does not treat
FORMAT II as a checklist to ensure that alternatives for all
other aspects of buildings or other features of the built
elementsofsignificantcostinthebuildingprojectareanalyzed
environment, which are indicated by the non-shaded blocks.
in the creativity phase of the job plan. Also, use the elemental
NOTE 1—The other features of the built environment in Fig. 1 are listed
cost data to expedite the development of cost models for
for illustrative purposes and are not intended to be a comprehensive list of
building systems.
other features.
4.3.4 Developing initial project master schedules. Since
5.2 Criteria for the Classification—The selected
projects are built element by element, UNIFORMAT II is an
classification, what items to include in it, and in which parts of
appropriate basis for preparing construction schedules at the
the classification to include them are based on the following
start of the design process.
criteria:
4.3.5 Performing risk analyses. Simulation is one technique
5.2.1 The classification will be applicable to any building
(Practice E1369) for developing probability distributions of
type, while at the same time allowing for details desirable for
building costs when evaluating the economic risk in undertak-
specialized buildings. The classification of building elements
ing a building project. Use individual elements and group
will be separate from the classification of building-related
elements in UNIFORMAT II for developing probability distri-
sitework. The classifications will be hierarchical to allow
butions of elemental costs. From these distributions, build up
different levels of aggregation and summarization. And they
probability distributions of total project costs to establish
acceptable project contingencies or to serve as inputs to an
economic analysis. (See Practice E1185 for guidance as to
what economic method to use.)
4.3.6 Structuring cost manuals and recording construction,
operating, and maintenance costs in a database. Having a
For a more comprehensive discussion of the uses of UNIFORMAT II, see
Bowen, Charette, and Marshall, UNIFORMAT II—A Recommended Classification
for Building Elements and Related Sitework, National Institute of Standards and
Technology Special Publication 841, Gaithersburg, MD, 1992, and Charette and
Marshall, UNIFORMAT II Elemental Classification for Building Specifications,
Cost Estimating, and Cost Analysis, National Institute of Standards and Technology

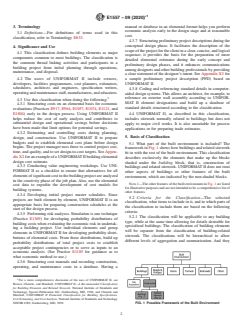

NISTIR 6389, Gaithersburg, MD, 1999. FIG. 1 Possible Framework of the Built Environment
ϵ1
E1557−09 (2020)

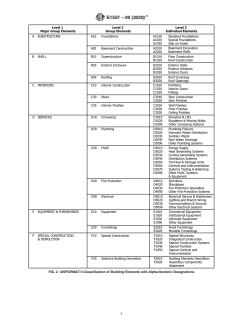

FIG. 2 UNIFORMAT II Classification of Building Elements with Alpha-Numeric Designations
ϵ1
E1557−09 (2020)
will relate to other elemental classifications such as UNIFOR- building-relatedsiteworkprovidesguidancesothatplannersdo
MAT and the classification of the Canadian Institute of not have to resort to multiple elemental classifications for one
Quantity Surveyors. project.
5.2.2 Items in the classification will have significant influ-
ence on cost and a high frequency of occurrence. Categories
6. Description of Building Elements
will be defined so as to provide a framework for cost control.
6.1 The following lists show what items are included and
The decision as to where among the classification elements to
excluded in the recommended classification at Level 3. Note
include specific items is to rely on professional judgment as to
thatthelistingsofinclusionsandexclusionsarenotintendedto
where building professionals in current practice normally look
be an exhaustive listing. Rather, they provide a general outline
for such items.
of what to expect in that element consistent with the selection
5.2.3 Classification of Building Elements—Fig. 2 presents
criteria outlined in 5.2. Exclusions are listed to help readers
the UNIFORMAT II classification of building elements. It
find items quickly. For example, an elemental format might
comprises three hierarchical levels: Major Group Elements for
show exterior load bearing walls under Exterior Walls or
Level 1, Group Elements for Level 2, and Individual Elements
Superstructure. UNIFORMAT II puts them under Exterior
for Level 3. See Section 6 for detailed lists of specific items
Walls based on technical judgment and current practice.
that are included and excluded under each individual element
Putting under Superstructure a cross-reference to Exterior
listed in the Level 3 category. A list of suggested level 4
WallsdirectsthepersonwholooksfirstunderSuperstructureto
building sub-elements is presented in Table X1.1.
the appropriate element. Note that the table in Fig. 2 incorpo-
5.2.4 Classification of Building-Related Sitework—Fig. 3
rates an alphanumeric designation for the classification: a
presents the UNIFORMAT II classification of building-related
single character letter code for Level 1 Major Group Elements,
sitework. See Section 7 for detailed lists of specific items that
a three character alphanumeric code for Level 2 Group
are included and excluded under each individual element listed
Elements, and a five character alphanumeric code for Level 3
in the Level 3 category. A list of suggested Level 4 building-
Individual Elements.
related sitework sub-elements is presented in Table X1.1.
6.2 Foundations (A10):
5.2.4.1 UNIFORMATII is not intended to classify elements
of major civil works. Rather, it is provided for exclusive use in 6.2.1 Standard Foundations (A1010):
support of the construction of buildings. Buildings are usually 6.2.1.1 Includes:
constructed with roads, utilities, parking areas, and other (1) Wall and column foundations;
non-building features. The UNIFORMAT II classification of (2) Foundation walls up to level of top of slab on grade;
(3) Pile caps;
(4) Foundation excavation, backfill, and compaction;
(5) Footings and bases;
For more information on other elemental classifications, see Brian Bowen and
(6) Perimeter insulation;
Robert Charette, “Elemental Cost Classification Standard for Building Design,”
(7) Perimeter drainage;
1991 AACE Transactions, 1991.
7 (8) Anchor plates; and
Available from the Canadian Institute of Quantity Surveyors (CIQS), 90 Nolan
Court, Unit 19, Markham, ON, Canada, L3R 4L9, http://www.ciqs.org.

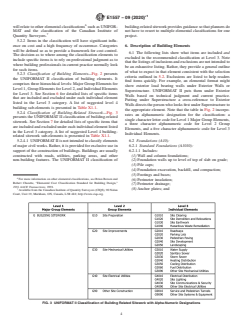

FIG. 3 UNIFORMAT II Classification of Building Related Sitework with Alpha-Numeric Designations
ϵ1
E1557−09 (2020)
(9) Dewatering. 6.4.1.1 Includes:
6.2.1.2 Excludes: (1) Floor structural frame,
(1) General excavation to reduce levels (see G1030, Site (2) Interior structural walls,
Earthwor
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM E754-80(2022)(Test Method)
Standard Test Method for Pullout Resistance of Ties and Anchors Embedded in Masonry Mortar Joints

SIGNIFICANCE AND USE
5.1 This test method is intended to provide a simple inexpensive means of generating conservative, comparative data on pullout strengths of various ties and anchors used with different types of masonry units and mortars. This test method is recommended for such use until economical, improved methods can be developed to simulate service conditions more inclusively.
SCOPE
1.1 This test method provides procedures for determining the ability of individual masonry ties and anchors to resist extraction from a masonry mortar joint.
1.2 Two laboratory testing procedures are provided for use with test specimens which consist of a masonry tie or anchor embedded in mortar between twin stack-bonded masonry units.
1.2.1 Procedure A—For use with small (brick-size) masonry units.
1.2.2 Procedure B—For use with large (block-size) masonry units.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 This standard does not purport to address the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    8 pages
    English language
    sale 15% off
ASTM
ASTM E695-22(Test Method)
Standard Test Method of Measuring Relative Resistance of Wall, Floor, and Roof Construction to Impact Loading

SIGNIFICANCE AND USE
4.1 The procedures outlined will provide data that can be used to evaluate the relative performance of wall, floor, and roof constructions under conditions representative of those sustained in actual service when subjected to impact by a heavy blunt object. See Test Method E661 for evaluation of floor and roof sheathing and Practice E73 for evaluation of roof trusses.
4.2 The method is intended to be applied to relatively light construction, including, but not limited to, wood floor and roof systems, partitions framed with wood or steel studs, steel floor or roof decking systems, steel siding and wall panels, or thin concrete and masonry walls or slabs and similar assemblies.
SCOPE
1.1 This test method covers the measurement of the relative resistance of wall, floor, and roof construction to impact loading. The test is not applicable to doors.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM E488/E488M-22(Test Method)
Standard Test Methods for Strength of Anchors in Concrete Elements

SIGNIFICANCE AND USE
4.1 These test methods are intended to provide reproducible data from which acceptance criteria, design data, and specifications can be developed for anchors intended to be installed in concrete.
SCOPE
1.1 These test methods address the tensile and shear strengths of post-installed and cast-in-place anchors in test members made of cracked or uncracked concrete. Loadings include quasi-static, seismic, fatigue and shock. Environmental exposures include freezing and thawing, moisture, decreased and elevated temperatures and corrosion. These test methods provide basic testing procedures for use with product-specific evaluation and acceptance standards and are intended to be performed in a testing laboratory. Product-specific evaluation and acceptance standards may add specific details and appropriate parameters as needed to accomplish the testing. Only those tests required by the specifying authority need to be performed.
1.2 These test methods are intended for use with post-installed and cast-in-place anchors designed for installation perpendicular to a plane surface of a test member.
1.3 This standard prescribes separate procedures for static, seismic, fatigue and shock testing. Nothing in this standard, however, shall preclude combined tests incorporating two or more of these types of loading (such as seismic, fatigue and shock tests in series).
1.4 Both inch-pound and SI units are provided in this standard. The testing may be performed in either system and reported in that system, and the results converted to the other. However, anchor diameters, threads, and related testing equipment shall be in accordance with either inch-pound or SI provisions.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    21 pages
    English language
    sale 15% off
  • Standard
    21 pages
    English language
    sale 15% off
ASTM
ASTM E2947-21a(Guide)
Standard Guide for Building Enclosure Commissioning

SIGNIFICANCE AND USE
5.1 This guide provides recommendations for the enclosure commissioning process from its project planning through design, construction and occupancy and operation phases. This guide is intended for various building types. Although Practice E2813 defines two levels of enclosure commissioning, fundamental and enhanced, complex buildings and Owners seeking a higher level of assurance may require more intensified enclosure commissioning than the minimum requirements described in this guide and Practice E2813.13
5.2 The process uses performance-oriented practices and procedures to verify that the project is achieving the expectations described in the OPR and defined by the contract documents throughout the delivery of the project.
5.3 The BECx process is recommended to begin during the pre-design phase and continues through the occupancy and operations phase. The process includes specific tasks during each project phase.
5.4 The commissioning process is outlined in ANSI/ASHRAE/IES Standard 202. It is recommended that the reader understand the process provided in that document. This standard guide and Practice E2813 provide a specific process related to the building enclosure commissioning.
5.5 Note that the enclosure commissioning process should not infringe upon the authority or responsibility of the Owner, the project’s designers or contractors. The CxG and BECxG can identify areas of concern relative to the OPR, which are discussed with the Owner and other stakeholders; however it is the Owner who directs the project, Cx team, and BECx team. It is recommended that the BECxP be engaged in pre-design phase to define the scope of BECx so that the Owner’s agreements with the project team (including the contractor) clearly define the scope of contracted tasks that interface with BECx process.
5.6 BECx does not replace a traditional design/construction process but is meant to enhance and be an integral part of that process by validating the design and verifyi...
SCOPE
1.1 Purpose—This guide provides procedures, methods and documentation techniques that may be used in the application of the building enclosure commissioning (BECx) process. This guide is complementary to Practice E2813 and is aligned with ANSI/ASHRAE/IES Standard 202 and ASHRAE Guideline 0.
1.2 Extent—The process outlined in this standard guide applies to each building delivery phase from pre-design through occupancy and operation. The specific application of this guide may vary to suit the Owner, the project delivery method and the building project as described in the Owner’s Project Requirements (OPR), and as defined by the contract documents.
1.3 Primary Focus—The primary focus of this process includes, but may not be limited to, new construction of building enclosures, existing building enclosures undergoing substantial renovation or alteration, and continuous commissioning of enclosure systems.
1.4 Contractual and Regulatory Obligations—The methods described in this guide are not intended to supersede or otherwise replace the contractual obligations reserved specifically for the parties responsible for the design and construction of a building or structure, nor to alter the roles, responsibilities and duties that may otherwise be assigned to those parties by applicable regulatory or statutory law.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) C...

  • Guide
    23 pages
    English language
    sale 15% off
  • Guide
    23 pages
    English language
    sale 15% off
ASTM
ASTM E2813-18(Practice)
Standard Practice for Building Enclosure Commissioning

SIGNIFICANCE AND USE
6.1 This practice is intended to serve as a concise, authoritative, and technically sound practice for Building Enclosure Commissioning (BECx) that is based upon:
6.1.1 The Owner Project Requirements;
6.1.2 Clearly defined and enforceable levels of BECx; and
6.1.3 Minimum core competencies required of the BECxP and associated service-providers28 (see 4.2) to qualify as Fundamental or Enhanced BECx under this practice.
6.2 This practice is suitable for use as an independently applied standard for new buildings and structures, or as part of a more broadly based Total (or “Whole”) Building Commissioning Program.
SCOPE
1.1 This practice is intended to serve as a concise, authoritative, and technically sound practice for Building Enclosure Commissioning (BECx) that establishes two levels of BECx: Fundamental and Enhanced (refer also to Section 4).
1.2 The BECx process as defined in this practice includes the following phases and sub-phases:
1.2.1 Pre-design,
1.2.2 Design,
1.2.2.1 Schematic Design,
1.2.2.2 Design Development,
1.2.2.3 Construction Documentation,
1.2.3 Bidding and Negotiation Phase,
1.2.4 Construction,
1.2.4.1 Pre-Construction,
1.2.4.2 Construction Administration, and
1.2.5 Occupancy and Operations.
1.3 This practice includes a mandatory OPR Development Guideline (Annex A1) and requires the development of an OPR for both Fundamental and Enhanced BECx that addresses, at a minimum, the performance attributes and metrics included in Annex A1 of this practice.
1.4 This practice includes mandatory BECx Performance Testing Requirements (Annex A2) approved for use with this practice to evaluate the performance and durability of enclosure materials, components, systems, and assemblies.
1.5 This practice mandates independent design review during the Design Phase of both Fundamental and Enhanced BECx.
1.6 This practice recognizes that the OPR for exterior enclosure performance and environmental separation may exceed the baseline requirements of applicable building codes and standards and provides guidance for the development of an OPR based on the following attributes as defined in Annex A1 of this practice:
1.6.1 Energy,
1.6.2 Environment,
1.6.3 Safety,
1.6.4 Security,
1.6.5 Durability,
1.6.6 Sustainability, and
1.6.7 Operation.
1.7 The terms “building enclosure” and “enclosure” as they appear in this practice refer collectively to all materials, components, systems, and assemblies intended to provide shelter and environmental separation between interior and exterior, or between two or more environmentally distinct interior spaces in a building or structure.
1.8 This practice establishes that the Building Enclosure Commissioning Provider (BECxP) refers specifically to the individual retained by the Owner to develop, manage, and be in responsible charge of the BECx process, including individual members and technical specialists that may comprise the BECx group (see 4.2).
1.9 The role and responsibilities of the BECxP as defined by this practice are not intended to supersede or otherwise replace the contractual obligations reserved specifically for the parties responsible for the design and construction of a building or structure, nor the duties that may otherwise be assigned to those parties by applicable regulatory or statutory law.
1.10 This practice is not intended to warrant or otherwise guarantee the as-built or in-service durability, or both, and performance of enclosure materials, components, systems, and assemblies.
1.11 The values stated in SI units are to be regarded as standard. The values given in parentheses are mathematical conversions to inch-pound units that are provided for information only and are not considered standard.
1.12 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to e...

  • Standard
    19 pages
    English language
    sale 15% off
  • Standard
    19 pages
    English language
    sale 15% off
ASTM
ASTM E575-05(2018)(Practice)
Standard Practice for Reporting Data from Structural Tests of Building Constructions, Elements, Connections, and Assemblies

SIGNIFICANCE AND USE
4.1 This practice provides a standard procedure for reporting data and results of structural tests used for building constructions, elements, corrections, and assemblies. It enumerates and discusses the report sections required to report data from test methods and practices. The written reports will describe the products tested, method of testing, and results.
SCOPE
1.1 This practice covers general use in reporting structural performance tests of building constructions, elements, connections, and assemblies. A comprehensive report describing the conditions under which the structural data were recorded will enable other workers to reproduce the test methods and, as nearly as possible, the results for each material or assembly, and to reconcile differences that might be found in tests by others.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM E529-04(2018)(Guide)
Standard Guide for Conducting Flexural Tests on Beams and Girders for Building Construction

SCOPE
1.1 This guide covers the flexural testing of beams and girders under simulated service conditions to determine their structural performance characteristics. Methods following this guide are intended primarily for constructions that may not conform with the relatively simple assumptions upon which well-known flexural theories are based. In some cases, they are also suitable for determining the structural adequacy of the design, materials, connections, and fabrication techniques. The methods are not intended for use in routine quality control tests.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific precautionary statement, see 7.1.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    3 pages
    English language
    sale 15% off
ASTM
ASTM D7052/D7052M-17(2022)(Test Method)
Standard Test Method for Determining Impact Resistance of New Low Slope Roof Membranes Using Steel Balls (Z8295Z)

SIGNIFICANCE AND USE
6.1 This test method provides a means of evaluating new roof membranes for resistance to specific impact energies. The method evaluates new roof membranes when first applied and also after simulated deterioration caused by the ultraviolet radiation and moisture.
6.2 Use Class 2 for an impact resistance of 11.0 ± 0.3 J [8.1 ± 0.2 ft-lb] and Class 3 for an impact resistance of 19.4 ± 0.4 J [14.3 ± 0.3 ft-lb].
SCOPE
1.1 This test method covers the determination of impact resistance of new low slope roof membranes when applied directly over rigid insulation or cover board, or structural concrete, lightweight insulating concrete, gypsum, cementitious wood fiber, or wood roof decks. The procedures were developed to determine the potential for puncture or fracture of the new roof membrane resulting from impacts by free-falling steel balls resulting in specific impact energies when the new roof membrane is applied over its tested substrate within an assembly.
1.2 This test method is intended to verify that products as described will meet a specific stated condition of impact resistance performance. Testing of asphalt shingles is beyond the scope of this test method. The tests yield classification identified as Class 2 and Class 3.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    7 pages
    English language
    sale 15% off
ASTM
ASTM E754-80(2022)(Test Method)
Standard Test Method for Pullout Resistance of Ties and Anchors Embedded in Masonry Mortar Joints

SIGNIFICANCE AND USE
5.1 This test method is intended to provide a simple inexpensive means of generating conservative, comparative data on pullout strengths of various ties and anchors used with different types of masonry units and mortars. This test method is recommended for such use until economical, improved methods can be developed to simulate service conditions more inclusively.
SCOPE
1.1 This test method provides procedures for determining the ability of individual masonry ties and anchors to resist extraction from a masonry mortar joint.
1.2 Two laboratory testing procedures are provided for use with test specimens which consist of a masonry tie or anchor embedded in mortar between twin stack-bonded masonry units.
1.2.1 Procedure A—For use with small (brick-size) masonry units.
1.2.2 Procedure B—For use with large (block-size) masonry units.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 This standard does not purport to address the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    8 pages
    English language
    sale 15% off
ASTM
ASTM E695-22(Test Method)
Standard Test Method of Measuring Relative Resistance of Wall, Floor, and Roof Construction to Impact Loading

SIGNIFICANCE AND USE
4.1 The procedures outlined will provide data that can be used to evaluate the relative performance of wall, floor, and roof constructions under conditions representative of those sustained in actual service when subjected to impact by a heavy blunt object. See Test Method E661 for evaluation of floor and roof sheathing and Practice E73 for evaluation of roof trusses.
4.2 The method is intended to be applied to relatively light construction, including, but not limited to, wood floor and roof systems, partitions framed with wood or steel studs, steel floor or roof decking systems, steel siding and wall panels, or thin concrete and masonry walls or slabs and similar assemblies.
SCOPE
1.1 This test method covers the measurement of the relative resistance of wall, floor, and roof construction to impact loading. The test is not applicable to doors.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
