ASTM D5140-95

Standard Guide for Testing Polyurethane "Poured in Place" Thermal Break Materials (Withdrawn 2004)

SCOPE
1.1 This guide covers the preparation of a standard-size test sample and basic tests for physical property determinations of solid thermal break materials.
1.2 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only. Note 1-There is no similar or equivalent ISO standard.
1.3 The following precautionary caveat pertains only to the test method portion, Sections 6 through 14, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
WITHDRAWN RATIONALE
This guide covers the preparation of a standard-size test sample and basic tests for physical property determinations of solid thermal break materials.
Formerly under the jurisdiction of Committee D20 on Plastics, this guide was withdrawn in July 2004. This guide was withdrawn in accordance with section 10.5.3.1 of the Regulations Governing ASTM Technical Committees, which requires that standards shall be updated by the end of the eighth year since the last approval date.

General Information

• Status: Withdrawn
• Publication Date: 31-Dec-1994
• Withdrawal Date: 19-Jul-2004
• ICS: 27.220 - Heat recovery. Thermal insulation
• Technical Committee: D20 - Plastics
• Drafting Committee: D20.24 - Plastic Building Products

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

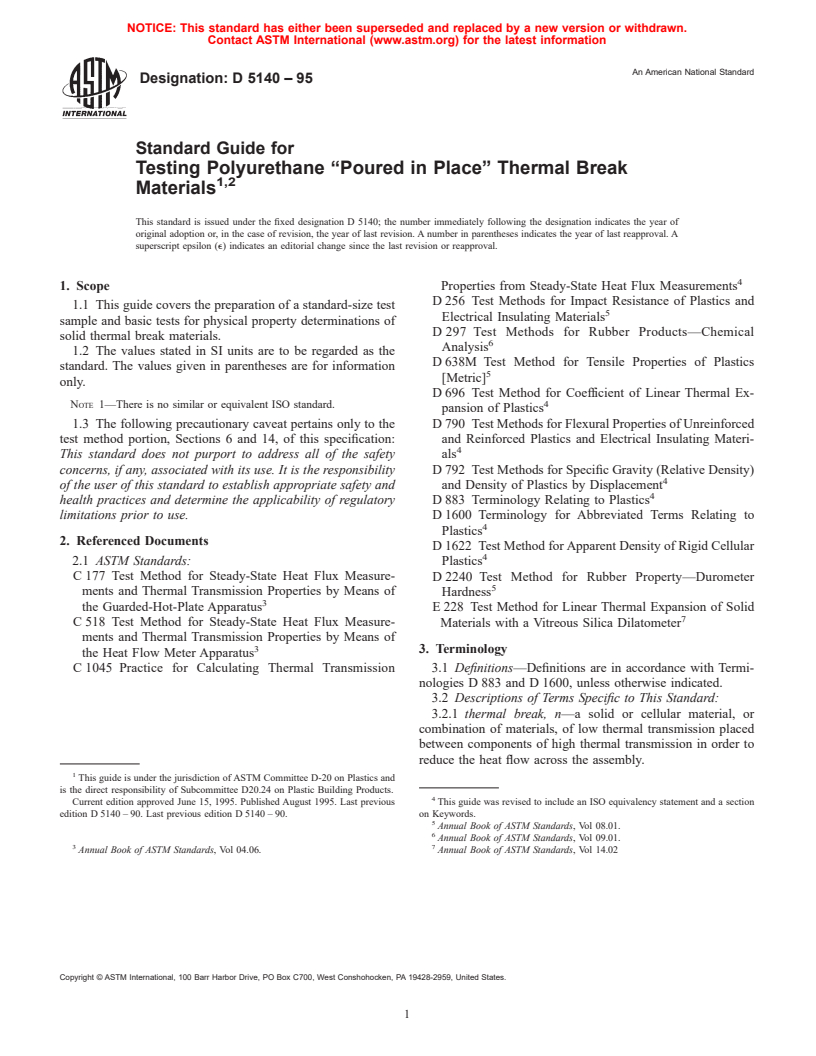

An American National Standard
Designation: D 5140 – 95
Standard Guide for
Testing Polyurethane “Poured in Place” Thermal Break
1,2
Materials
This standard is issued under the fixed designation D 5140; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (e) indicates an editorial change since the last revision or reapproval.
1. Scope Properties from Steady-State Heat Flux Measurements
D 256 Test Methods for Impact Resistance of Plastics and
1.1 This guide covers the preparation of a standard-size test
Electrical Insulating Materials
sample and basic tests for physical property determinations of
D 297 Test Methods for Rubber Products—Chemical
solid thermal break materials.
Analysis
1.2 The values stated in SI units are to be regarded as the
D 638M Test Method for Tensile Properties of Plastics
standard. The values given in parentheses are for information
[Metric]
only.
D 696 Test Method for Coefficient of Linear Thermal Ex-
NOTE 1—There is no similar or equivalent ISO standard. 4
pansion of Plastics
1.3 The following precautionary caveat pertains only to the D 790 Test Methods for Flexural Properties of Unreinforced
test method portion, Sections 6 and 14, of this specification: and Reinforced Plastics and Electrical Insulating Materi-
This standard does not purport to address all of the safety als
concerns, if any, associated with its use. It is the responsibility D 792 Test Methods for Specific Gravity (Relative Density)
of the user of this standard to establish appropriate safety and and Density of Plastics by Displacement
health practices and determine the applicability of regulatory D 883 Terminology Relating to Plastics
limitations prior to use. D 1600 Terminology for Abbreviated Terms Relating to
Plastics
2. Referenced Documents
D 1622 Test Method for Apparent Density of Rigid Cellular
2.1 ASTM Standards:
Plastics
C 177 Test Method for Steady-State Heat Flux Measure- D 2240 Test Method for Rubber Property—Durometer
ments and Thermal Transmission Properties by Means of Hardness
the Guarded-Hot-Plate Apparatus
E 228 Test Method for Linear Thermal Expansion of Solid
C 518 Test Method for Steady-State Heat Flux Measure- Materials with a Vitreous Silica Dilatometer
ments and Thermal Transmission Properties by Means of
3. Terminology
the Heat Flow Meter Apparatus
C 1045 Practice for Calculating Thermal Transmission 3.1 Definitions—Definitions are in accordance with Termi-
nologies D 883 and D 1600, unless otherwise indicated.
3.2 Descriptions of Terms Specific to This Standard:
3.2.1 thermal break, n—a solid or cellular material, or
combination of materials, of low thermal transmission placed
between components of high thermal transmission in order to
reduce the heat flow across the assembly.
This guide is under the jurisdiction of ASTM Committee D-20 on Plastics and
is the direct responsibility of Subcommittee D20.24 on Plastic Building Products.
Current edition approved June 15, 1995. Published August 1995. Last previous This guide was revised to include an ISO equivalency statement and a section
edition D 5140 – 90. Last previous edition D 5140 – 90. on Keywords.
Annual Book of ASTM Standards, Vol 08.01.
Annual Book of ASTM Standards, Vol 09.01.
3 7
Annual Book of ASTM Standards, Vol 04.06. Annual Book of ASTM Standards, Vol 14.02
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
D 5140
4. Significance and Use 11. Flexural Modulus
4.1 Tests made on thermal break materials can be of 11.1 Determine flexural modulus using the general proce-
considerable value in comparing physical properties of differ- dure in Test Methods D 790, Method I.
ent materials, in controlling manufacturing processes, and as a 11.2 The following test parameters are recommended for
basis for writing specifications. thermal break materials:
11.2.1 Specimen Size:
5. Sampling
Length—130 mm (5 in.)
5.1 Test samples can be made in an aluminum mold in
Width—13 mm ( ⁄2 in.)
accordance with the manufacturer’s recommended procedures.
Thickness—6.4 mm ( ⁄4in.)
The recommended mold sizes are 305 by 152 by 6.2 mm (12
Sp
...
