EN 4604-010:2018

Aerospace series - Cable, electrical, for signal transmission - Part 010 : Cable, coaxial, light weight, 50 Ohms, 200 °C, type KX (light WD) - Product standard

This European Standard specifies the required characteristics of a light weight coaxial cable, 50 Ω, type KX
for use in aircraft electrical systems at operating temperature between − 55 °C and 200 °C and specially for
high frequency up to 6 GHz. Nevertheless, if needed, − 65 °C is also acceptable as shown by rapid change of
temperature test.

Luft- und Raumfahrt - Elektrische Leitungen für Signalübertragungen - Teil 010: Koaxialkabel, Leichtbauweise, 50 Ohm, 200 °C, Typ KX (WD Leichtbauweise) - Produktnorm

Série aérospatiale - Câbles électriques pour transmission de signaux - Partie 010 : Câble, coaxial, allégé, 50 ohms, 200 °C, type KX (WD allégé) - Norme de produit

Aeronavtika - Kabli, električni, za prenos signala - 010. del: Kabli, koaksialni, lahki, 50 ohmov, 200 °C, tip KX (lahki WD) - Standard za proizvod

Ta evropski standard določa zahtevane lastnosti lahkega koaksialnega kabla, 50 Ω, tipa KX za uporabo v letalskih električnih sistemih pri obratovalni temperaturi med −55 °C in 200 °C ter posebej za visoko frekvenco do 6 GHz. Vseeno je po potrebi sprejemljiva tudi temperatura −65 °C, kot prikazuje preskus s hitro spremembo temperature.

General Information

• Status: Published
• Publication Date: 14-Aug-2018
• Withdrawal Date: 27-Feb-2019
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 2/S 2 - Cables & Stripping Tools
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 15-Aug-2018
• Completion Date: 15-Aug-2018
• Ref Project: SIST EN 4604-010:2018 - Aerospace series - Cable, electrical, for signal transmission - Part 010 : Cable, coaxial, light weight, 50 Ohms, 200 °C, type KX (light WD) - Product standard

Relations

• Replaces: EN 4604-010:2017 - Aerospace series - Cable, electrical, for signal transmission - Part 010 : Cable, coaxial, light weight, 50 Ohms, 200 °C, type KX (light WD) - Product standard
• Effective Date: 04-Apr-2017
• Revised: FprEN 4604-010 - Aerospace series - Cable, electrical, for signal transmission - Part 010: Cable, coaxial, light weight, 50 ohms, 200 °C, type KX (light WD) - Product standard
• Effective Date: 05-Apr-2023

Overview

EN 4604-010:2018 is a CEN aerospace product standard that specifies the required characteristics for a light weight 50 Ω coaxial cable, type KX, intended for aircraft electrical systems. The standard covers material, construction, electrical performance and test requirements for a coaxial cable designed for operating temperatures from −55 °C to 200 °C (−65 °C acceptable in rapid-change tests) and for high‑frequency signal transmission up to 6 GHz.

Key topics and technical requirements

• Cable type and purpose: Light weight coaxial cable, 50 Ω, Type KX (light WD) for signal transmission in aerospace/avionics applications.
• Materials:
  • Conductor: single‑strand copper, 1 µm silver‑plated (per ASTM‑B298).
  • Dielectric and jacket: fluorocarbon materials; jacket colour specified as light green.
  • Screen: silver‑plated tape and braided silver‑plated copper (per ASTM‑B298).
• Electrical performance:
  • Characteristic impedance: 50 ± 2 Ω at 200 MHz.
  • Capacitance: ≤ 88 pF/m.
  • Performance guaranteed to 6 GHz; attenuation, VSWR and power handling defined in tabulated frequency ranges.
  • Operating voltage: 1 000 V rms max.
  • Transfer impedance limits provided across frequency bands.
• Mechanical / environmental:
  • Operating temperature range: −55 °C to 200 °C (rapid change test allows −65 °C).
  • Minimum bend radius: 30 mm (static), 50 mm (dynamic).
  • Delivery lengths typically on drums (~175 m), minimum piece 50 m.
• Testing and quality:
  • Extensive test suite referenced to EN 3475 series (visual, dimensional, ohmic resistance, voltage proof, insulation resistance, transfer impedance, attenuation, thermal and mechanical tests).
  • Quality assurance and identification requirements reference EN 4604‑001 and EN 4604‑002.

Applications and who uses it

• Used by aerospace and defence OEMs, avionics designers, harness manufacturers, procurement/specification engineers and maintenance/repair organizations requiring reliable RF signal transmission in aircraft.
• Typical applications: onboard RF and data links, antenna feeder lines, instrumentation and high‑frequency signal routing where low mass, high temperature tolerance and controlled impedance are critical.

Related standards

• EN 4604‑001 (technical specification), EN 4604‑002 (identification/marking)
• EN 3475‑100 (aerospace cable test methods)
• TR 6058 (cable code and identification)
• IEC 60096‑0‑1 (RF cable design guidelines)
• ASTM‑B298 (silver plating on copper wire)

Keywords: EN 4604-010:2018, aerospace coaxial cable, 50 Ohm cable, type KX, 200 °C, light weight coaxial, avionics cable standard, coax cable 6 GHz.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische Leitungen für Signalübertragungen - Teil 010: Koaxialkabel, Leichtbauweise, 50 Ohm, 200 °C, Typ KX (WD Leichtbauweise) - ProduktnormSérie aérospatiale - Câbles électriques pour transmission de signaux - Partie 010 : Câble, coaxial, allégé, 50 ohms, 200 °C, type KX (WD allégé) - Norme de produitAerospace series - Cable, electrical, for signal transmission - Part 010 : Cable, coaxial, light weight, 50 Ohms, 200 °C, type KX (light WD) - Product standard49.060Aerospace electric equipment and systems33.120.10Koaksialni kabli. ValovodiCoaxial cables. WaveguidesICS:Ta slovenski standard je istoveten z:EN 4604-010:2018SIST EN 4604-010:2018en,fr,de01-november-2018SIST EN 4604-010:2018SLOVENSKI
STANDARDSIST EN 4604-010:20171DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4604-010
August
t r s z ICS
v {ä r x r Supersedes EN
v x r væ r s rã t r s yEnglish Version
Aerospace series æ Cableá electricalá for signal transmission æ Part
r s r ã Cableá coaxialá light weightá
w r Ohmsá
t r r
¹Cá Série aérospatiale æ Câbles électriques pour transmission de signaux æ Partie
r s r ã Câbleá coaxialá de produit
Luftæ und Raumfahrt æ Elektrische Leitungen für Signalübertragungen æ Teil
r s rã Koaxialkabelá This European Standard was approved by CEN on
s y December
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
v x r væ r s rã t r s z ESIST EN 4604-010:2018

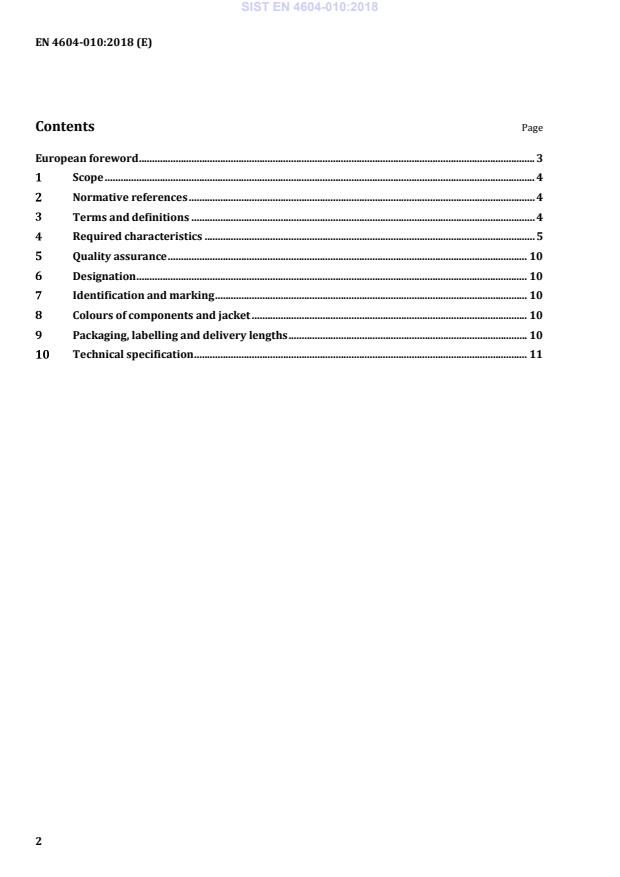

Scope . 4
Normative references . 4
Terms and definitions . 4
Required characteristics . 5
Quality assurance . 10
Designation . 10
Identification and marking . 10
Colours of components and jacket . 10
Packaging, labelling and delivery lengths . 10
Technical specification . 11
Scope This European Standard specifies the required characteristics of a light weight coaxial cable, 50 Ω, type KX for use in aircraft electrical systems at operating temperature between − 55 °C and 200 °C and specially for high frequency up to 6 GHz. Nevertheless, if needed, − 65 °C is also acceptable as shown by rapid change of temperature test.
Normative references The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies. EN 3475-100 (all parts), Aerospace series — Cables, electrical, aircraft use — Test methods — Part 100: General EN 4604-001, Aerospace series — Cable, electrical, for signal transmission — Part 001: Technical specification EN 4604-002, Aerospace series — Cable, electrical, for signal transmission — Part 002: General TR 6058, Aerospace series — Cable code and identification list 1) IEC 60096-0-1: 2012+AMD1:2017 CSV, Radio frequency cables — Part 0-1: Guidelines to the design of detail specifications — Coaxial cables 2) ASTM-B298-07, Standard specification for silver-coated soft or annealed copper wire 3) ASTM-B298-12, Standard specification for silver-coated soft or annealed copper wire 3)
Terms and definitions For the purposes of this document, the terms and definitions given in EN 3475-100 apply. ISO and IEC maintain terminological databases for use in standardization at the followi
...
