EUROPEAN STANDARD
EN 930:1997+A2
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2009
ICS 59.140.40; 61.060 Supersedes EN 930:1997
English Version
Footwear, leather and imitation leather goods manufacturing
machines - Roughing, scouring, polishing and trimming
machines - Safety requirements
Machines pour la fabrication de chaussures et d'articles en Maschinen zur Herstellung von Schuhen, Leder- und
cuir et matériaux similaires - Machines à carder, à verrer, à Kunstlederwaren - Aufrauh-, Ausglas-, Polier- und
polir et à fraiser - Prescriptions de sécurité Kantenbearbeitungsmaschinen - Sicherheitsanforderungen
This European Standard was approved by CEN on 16 July 1997 and includes Amendment 1 approved by CEN on 16 August 2004, and
Amendment 2 approved by CEN on 16 July 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 930:1997+A2:2009: E
worldwide for CEN national Members.

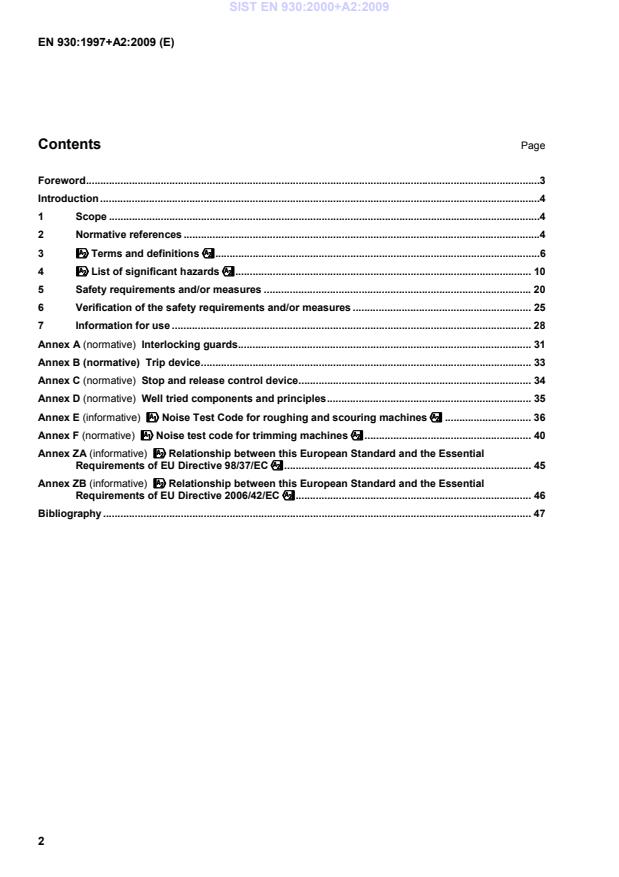

Contents Page
Foreword .3
Introduction .4
1 Scope .4
2 Normative references .4
3 ####Terms and definitions$$$$ .6
4 ####List of significant hazards$$$$ . 10
5 Safety requirements and/or measures . 20
6 Verification of the safety requirements and/or measures . 25
7 Information for use . 28
Annex A (normative) Interlocking guards. 31
Annex B (normative) Trip device . 33
Annex C (normative) Stop and release control device . 34
Annex D (normative) Well tried components and principles . 35
Annex E (informative) !!Noise Test Code for roughing and scouring machines$$ . 36
!! $$
Annex F (normative) !!!!Noise test code for trimming machines$$$$ . 40
Annex ZA (informative) ##Relationship between this European Standard and the Essential
##
Requirements of EU Directive 98/37/EC$$$$ . 45
Annex ZB (informative) ####Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC$$$$ . 46
Bibliography . 47
Foreword
This document (EN 930:1997+A2:2009) has been prepared by Technical Committee CEN/TC 201 “Leather
and imitation leather goods and footwear manufacturing machinery - Safety”, the secretariat of which is held
by UNI.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by February 2010, and conflicting national standards shall be withdrawn
at the latest by February 2010.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 930:1997.
This document includes Amendment 1, approved by CEN on 2004-08-16 and Amendment 2, approved by
CEN on 2009-07-16.
The start and finish of text introduced or altered by amendment is indicated in the text by tags
!" and # $.
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
#For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this
document.$
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and United Kingdom.
Introduction
#This document is a type C standard as stated in EN ISO 12100.
The machinery concerned and the extent to which hazards, hazardous situations and hazardous events are
covered are indicated in the scope of this document.
When provisions of this type C standard are different from those which are stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of the other standards, for machines
that have been designed and built according to the provisions of this type C standard.$
1 Scope
1.1 This standard applies to the following machines which are intended to work material for the manufacture
of footwear:
Automatic and manual roughing, scouring and polishing machines;
Automatic and manual edge contour trimming machines.
1.2 This standard does not apply to modular shoe repair machines.
1.3 This standard specifies safety requirements for design, construction and operation.
It takes account of intended use, foreseeable misuse, component and system failure.
1.4 This standard covers all hazards relevant to the footwear, leather and imitation leather goods
manufacturing industries.
The use of machines within the scope of this standard in different industries may give rise to hazards which
were not taken into account at the time of its preparation.
1.5 #This document is not applicable to roughing, scouring, polishing and trimming machines which are
manufactured before the date of its publication as EN.$
2 Normative references
#The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.$
#deleted text$
EN 294:1992, Safety of machinery - Safety distance to prevent danger zones being reached by the upper
limbs
#deleted text$
#EN 547-2, Safety of machinery - Human body measurements - Part 2: Principles for determining the
dimensions required for access openings$
#EN 574, Safety of machinery — Two-hand control devices — Functional aspects — Principles for
design$
EN 626-1:1994, Safety of machinery – Reduction of risks to health from hazardous substances emitted by
machinery – Part 1: Principles and specifications for machinery manufacturers
#EN 894-1, Safety of machinery — Ergonomics requirements for the design of displays and control
actuators —Part 1: General principles for human interactions with displays and control actuators$
#EN 953:1997, Safety of machinery — Guards — General requirements for the design and construction of
fixed and movable guards$
#deleted text$
EN 982:1996, Safety of machinery - Safety requirements for fluid power systems and their components -
Hydraulics
EN 983:1996, Safety of machinery - Safety requirements for fluid power systems and their components -
Pneumatics
#EN 999, Safety of machinery — The positioning of protective equipment in respect of approach speeds of
parts of the human body$
#deleted text$
#EN 1005-2, Safety of machinery — Human physical performance — Part 2: Manual handling of machinery
and component parts of machinery$
#EN 1005-3, Safety of machinery — Human physical performance — Part 3: Recommended force limits for
machinery operation$
#EN 1037, Safety of machinery - Prevention of unexpected start-up$
#deleted text$
EN 1088:1995, Safety of machinery - Interlocking devices with or without guard locking – General principles
and provisions for design
#EN 1093-1, Safety of machinery — Evaluation of the emission of airborne hazardous substances — Part 1:
Selection of test methods$
#EN 1127-1:2007, Explosive atmospheres — Explosion prevention and protection — Part 1: Basic concepts
and methodology$
!EN 12545:2000, Footwear, leather and imitation leather goods manufacturing machines - Noise test code -
Common requirements"
!deleted text"
!EN ISO 11688-1, Acoustics — Recommended practice for the design of low-noise machinery and
equipment — Part 1: Planning (ISO/TR 11688-1:1995)"
#deleted text$
#EN ISO 12100–1:2003, Safety of machinery — Basic concepts, general principles for design — Part 1:
Basic terminology, methodology (ISO 12100-1:2003)$
#EN ISO 12100–2:2003, Safety of machinery — Basic concepts, general principles for design — Part 2:
Technical principles (ISO 12100-2:2003)$
#EN ISO 13849-1, Safety of machinery - Safety-related parts of control systems - Part 1: General principles
for design (ISO 13849-1:2006)$
#EN ISO 13850, Safety of machinery - Emergency stop - Principles for design (ISO 13850:2006)$
#deleted text$
#EN 60204-1:2006, Safety of machinery — Electrical equipment of machines — Part 1: General
requirements (IEC 60204-1:2005 (modified))$
#EN 60947-4-1, Low-voltage switchgear and controlgear — Part 4-1: Contactors and motor-starters —
Electromechanical contactors and motor-starters (IEC 60947-4-1:2000)$
#EN 60947-5-1, Low-voltage switchgear and control gear — Part 5-1: Control circuit devices and switching
elements — Electromechanical control circuit devices (IEC 60947-5-1:2003)$
#EN 61310-1, Safety of machinery — Indication, marking and actuation — Part 1: Requirements for visual,
acoustic and tactile signals (IEC 61310-1:2007)$
#EN 61496-1, Safety of machinery — Electro-sensitive protective equipment — Part 1: General
requirements and tests (IEC 61496-1:2004, modified)$
#CLC/TS 61496-2, Safety of machinery - Electro-sensitive protective equipment - Particular requirements
for equipment using active optoelectronic protective devices (AOPDs) (IEC 61496-2:2006)$
3 ####Terms and definitions$$$$
#For the purposes of this document, the terms and definitions given in EN ISO 12100-1:2003 and the
following apply.$
3.1
roughing machine
a machine which transmits energy from a prime mover to a tool for the purpose of roughing surfaces of
material used in the manufacture of footwear, leather and imitation leather goods and other related
components prior to cementing
Key
1 abrasive band
2 transporter belt
Figure 1 — Roughing machine
3.2
scouring machine
a machine which transmits energy from a prime mover to a tool for the purpose of removing layers of material
used in the manufacture of footwear, leather and imitation leather goods and other related components to
obtain a semi-finished surface
Key
1 abrasive band
2 transporter roller
...
