EN ISO 19954:2003

Footwear - Test methods for whole shoe - Washability in a domestic washing machine (ISO 19954:2003)

ISO 19954:2003 specifies a test method for the evaluation of the behaviour of footwear when subjected to domestic washing. The evaluation is based upon the modification of some characteristics measured before and after washing.
ISO 19954:2003 specifies a method of domestic washing adapted to all types of footwear.

Schuhe - Prüfverfahren für fertige Schuhe - Prüfverfahren in einer Haushaltswaschmaschine (ISO 19954:2003)

Chaussures - Méthodes d'essai s'appliquant à la chaussure entière - Lavabilité au lavage domestique (ISO 19954:2003)

L'ISO 19954:2003 spécifie une méthode d'essai pour l'évaluation du comportement des chaussures lorsqu'elles sont soumises à un lavage domestique. L'évaluation est fondée sur la modification de certaines caractéristiques mesurées avant et après le lavage.
L'ISO 19954:2003 spécifie une méthode de lavage adaptée à tous les types de chaussure.

Footwear - Test methods for whole shoe - Washability in a domestic washing machine (ISO 19954:2003)

General Information

• Status: Published
• Publication Date: 30-Sep-2003
• Withdrawal Date: 29-Apr-2004
• ICS: 61.060 - Footwear
• Technical Committee: CEN/TC 309 - Footwear
• Drafting Committee: CEN/TC 309/WG 1 - Minimum performance requirements and test methods for components for footwear
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 21-Oct-2008
• Completion Date: 21-Oct-2008
• Ref Project: SIST EN ISO 19954:2004 - Footwear - Test methods for whole shoe - Washability in a domestic washing machine (ISO 19954:2003)

Overview

EN ISO 19954:2003 - Footwear: Test methods for whole shoe - Washability in a domestic washing machine (ISO 19954:2003) is a CEN/ISO standard that specifies a reproducible laboratory method to evaluate how complete footwear items behave when subjected to domestic washing. The test determines changes in appearance, dimensions and performance after a defined washing and drying cycle, enabling objective assessment of washability, durability and product claims.

Key topics and technical requirements

• Scope: Method adapted to all types of footwear; evaluation is based on differences measured before and after washing.
• Sample and conditioning: At least two pairs (each shoe is a test piece); condition samples for 24 h in a standard atmosphere per EN 12222.
• Washing equipment and program: Use a type A1 washing machine per EN ISO 6330. Key cycle parameters:
  • Water volume: 18 ± 1 L (wash); rinse 15 ± 1 L
  • Temperature: 30–35 °C
  • Washing time: 30 ± 2 min
  • Drum rotation (wash): 5.4 ± 0.5 rad/s; wringing and final spin speeds specified
  • Detergent: reference ECE detergent per EN ISO 6330 (4 g/L)
• Textile component: Ten white 100% cotton rectangles (50×50 cm nominal) placed in the drum to simulate normal washing load and reduce abrasion.
• Assessments and measurements:
  • Visual inspection for cuts, tears, accessory loss, staining or colour transfer (ISO 105-A03)
  • Colour change evaluated with the grey scale (ISO 105-A02)
  • Dimensional change: internal length (L) and width (B) measured on insole/insock; report changes R1 = L1–L2 and R2 = B1–B2
  • Toe spring measured with a toe spring gauge
  • Upper-to-sole adhesion tested before and after washing according to EN ISO 17708 (reported as N/mm)
• Test cycle: Three washings and three dryings constitute a complete test cycle; drying must ensure the specimen is truly dry (mass change ≤1% within 1 h).

Applications and users

This standard is intended for:

• Footwear manufacturers and product developers validating washability claims
• Quality control and testing laboratories performing routine conformity and durability testing
• Retailers and certification bodies assessing product performance and labeling
• R&D teams optimizing materials, adhesives and constructions for machine-washable footwear

Practical uses include establishing manufacturing controls, supporting marketing claims (washable/cleanable), and comparing material or construction options for washable footwear.

Related standards

• EN 12222 - conditioning atmospheres for footwear
• EN ISO 6330 - domestic washing and drying procedures for textiles
• EN ISO 17708 - upper-to-sole adhesion test for whole shoe
• ISO 105-A02 / ISO 105-A03 - grey scales for colour change and staining
• EN 13400 - sampling and conditioning (bibliography)

Keywords: EN ISO 19954:2003, footwear washability, domestic washing machine test, whole shoe test methods, washability standard, textile grey scale, upper-to-sole adhesion.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2004
Footwear - Test methods for whole shoe - Washability in a domestic washing
machine (ISO 19954:2003)
Footwear - Test methods for whole shoe - Washability in a domestic washing machine
(ISO 19954:2003)
Schuhe - Prüfverfahren für fertige Schuhe - Prüfverfahren in einer
Haushaltswaschmaschine (ISO 19954:2003)
Chaussures - Méthodes d'essai s'appliquant a la chaussure entiere - Lavabilité au lavage
domestique (ISO 19954:2003)
Ta slovenski standard je istoveten z: EN ISO 19954:2003
ICS:
61.060 Obuvala Footwear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 19954
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2003
ICS 61.060
English version
Footwear - Test methods for whole shoe - Washability in a
domestic washing machine (ISO 19954:2003)
Chaussures - Méthodes d'essai s'appliquant à la chaussure Schuhe - Prüfverfahren für fertige Schuhe - Prüfverfahren
entière - Lavabilité au lavage domestique (ISO 19954:2003) in einer Haushaltswaschmaschine (ISO 19954:2003)
This European Standard was approved by CEN on 16 May 2003.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 19954:2003 E
worldwide for CEN national Members.

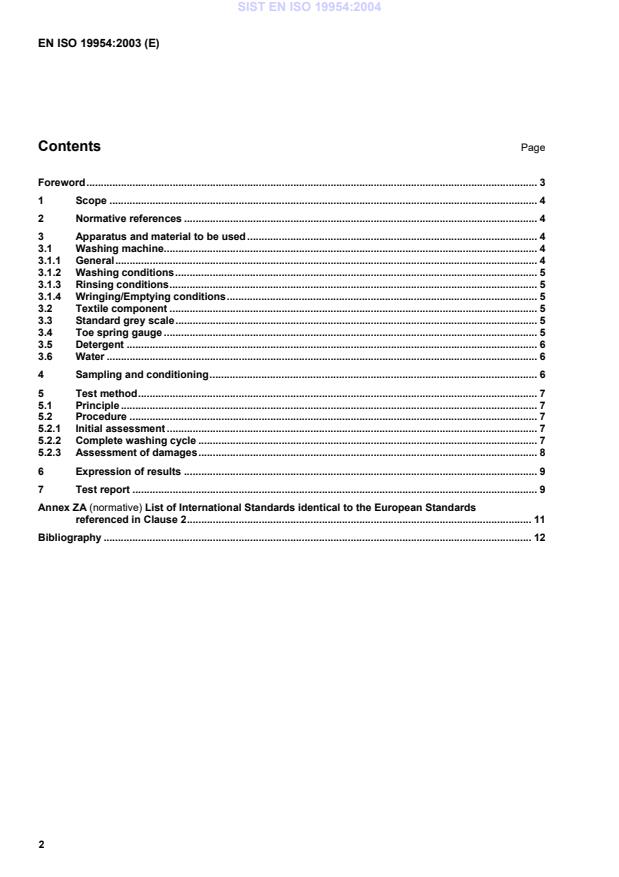

Contents Page
Foreword. 3
1 Scope . 4
2 Normative references . 4
3 Apparatus and material to be used. 4
3.1 Washing machine. 4
3.1.1 General. 4
3.1.2 Washing conditions. 5
3.1.3 Rinsing conditions. 5
3.1.4 Wringing/Emptying conditions. 5
3.2 Textile component . 5
3.3 Standard grey scale. 5
3.4 Toe spring gauge . 5
3.5 Detergent . 6
3.6 Water . 6
4 Sampling and conditioning. 6
5 Test method. 7
5.1 Principle . 7
5.2 Procedure . 7
5.2.1 Initial assessment . 7
5.2.2 Complete washing cycle . 7
5.2.3 Assessment of damages. 8
6 Expression of results . 9
7 Test report . 9
Annex ZA (normative) List of International Standards identical to the European Standards
referenced in Clause 2. 11
Bibliography . 12
Foreword
This document (EN ISO 19954:2003) has been prepared by Technical Committee CEN/TC 309 "Footwear”,
the secretariat of which is held by AENOR, in collaboration with Technical Committee ISO/TC 216 "Footwear".
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by January 2004 and conflicting national standards shall be withdrawn at
the latest by January 2004.
Annex ZA is normative.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands,
Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and the United Kingdom.
1 Scope
This European Standard specifies a test method for the evaluation of the behaviour of footwear when
subjected to domestic washing. The evaluation is based upon the modification of some characteristics
measured before and after washing.
This European Standard specifies a method of domestic washing adapted to all types of footwear.
2 Normative references
This European Standard incorporates by dated or undated references, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply to
this European Standard only when incorporated in it by amendment or revision. For undated references the
latest edition of the publication referred to applies (including amendments).
EN 12222, Footwear - Standard atmospheres for conditioning and testing of footwear and components for
footwear.
EN ISO 6330, Textiles - Domestic washing and drying procedures for textile testing (ISO 6330:2000).
EN ISO 17708, Footwear - Test methods for whole shoe - Upper sole adhesion (ISO 17708:2003).
ISO 105-A02, Textiles - Tests for colour fastness - Part A02: Grey scale for assessing change in colour.
ISO 105-A03, Textiles - Tests for colour fastness - Part A03: Grey scale for assessing staining.
3 Apparatus and material to be used
3.1 Washing machine
A washing machine complying with 3.1.1 to 3.1.4. Other equipment can be used provided that it gives identical
results to the machine described in this subclause.
3.1.1 General
The washing machine used should correspond to machine type A1 as described in EN ISO 6330.
...
