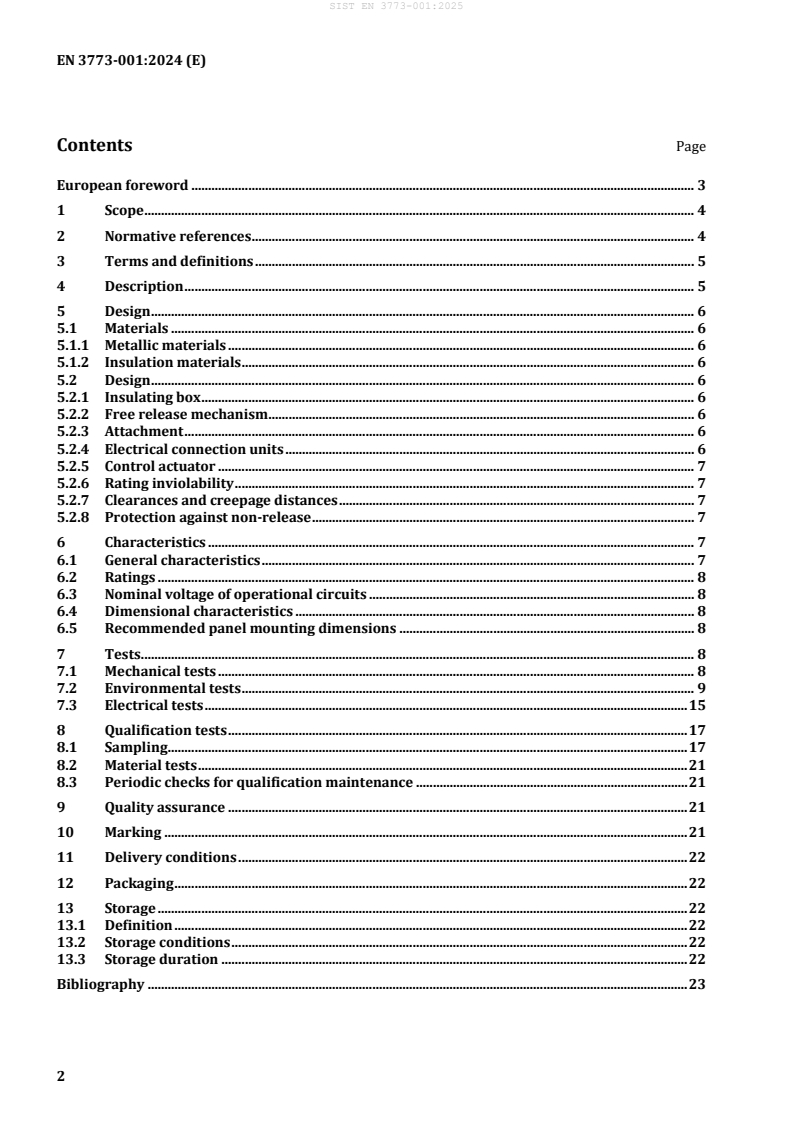

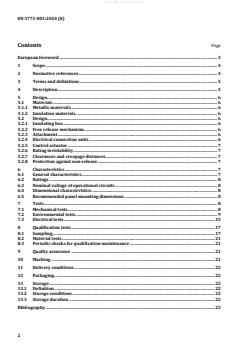

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Description . 5
5 Design . 5
5.1 Materials . 5
5.1.1 Metallic materials . 5
5.1.2 Insulation materials . 5
5.2 Design . 5
5.2.1 Insulating box . 5
5.2.2 Free release mechanism . 5
5.2.3 Attachment . 5
5.2.4 Electrical connection units . 5
5.2.5 Control actuator . 5
5.2.6 Rating inviolability . 6
5.2.7 Clearances and creepage distances . 6
5.2.8 Protection against non-release . 6
6 Characteristics . 6
6.1 General characteristics . 6
6.2 Ratings . 7
6.3 Nominal voltage of operational circuits . 7
6.4 Dimensional characteristics . 7
6.5 Recommended panel mounting dimensions . 7
7 Tests . 7
7.1 Mechanical tests . 7
7.2 Environmental tests . 8
7.3 Electrical tests . 13
8 Qualification tests . 15
8.1 Sampling . 15
8.2 Material tests . 18
8.3 Periodic checks for qualification maintenance . 18
9 Quality assurance . 18
10 Marking . 18
11 Delivery conditions . 18
12 Packaging . 19
13 Storage . 19
13.1 Definition . 19
13.2 Storage conditions . 19
13.3 Storage duration . 19
Annex A (informative) Standard evolution form . 20
Bibliography . 21
oSIST prEN 3773-001:2023
prEN 3773-001:2023 (E)
European foreword
This document (prEN 3773-001:2023) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 3773-001:2014.
The main changes with respect to the previous edition are as follows:
— prEN 3773-001 (P2), 02/2012 — Editorial revision of this document: g replaced by g-PK for
n
sinusoidal and low frequencies, g replaced by Grms for random.
n
oSIST prEN 3773-001:2023
prEN 3773-001:2023 (E)
1 Scope
This document specifies the single-pole temperature compensated circuit breakers rated from 1 A to
25 A and used in aircraft on-board circuits. It describes specific environmental, electrical and
mechanical characteristics and the stringency of tests to be applied according to test methods of
EN 3841-100.
These circuit breakers are intended for use in aircraft with electrical supplies in accordance with
EN 2282.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2083, Aerospace series — Copper and copper alloys conductors for electrical cables — Product
standard
EN 2825, Aerospace series — Burning behaviour of non-metallic materials under the influence of
radiating heat and flames — Determination of smoke density
EN 2826, Aerospace series — Burning behaviour of non-metallic materials under the influence of
radiating heat and flames — Determination of gas components in the smoke
*
EN 3841- , Aerospace series — Circuit breakers — Test methods
EN 3844-1, Aerospace series — Flammability of non-metallic materials — Part 1: Small burner test,
vertical — Determination of the vertical flame propagation
TR 6083, Aerospace series — Cut-outs for installation of electrical components
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 3841-100 and the following
apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
*
All parts quoted in this document.
Published as ASD-STAN Technical Report at the date of publication of this document by AeroSpace and Defence
industries Association of Europe — Standardization (ASD-STAN), https://www.asd-stan.org/.
oSIST prEN 3773-001:2023
prEN 3773-001:2023 (E)
4 Description
These circuit breakers are operated by a “push-pull” type single push button (actuator) and with
delayed action “trip-free” tripping. Their function is ensured up to the short-circuit current.
5 Design
5.1 Materials
5.1.1 Metallic materials
All metallic parts shall be resistant to corrosion or finished against corrosion. When dissimilar materials
are in close contact, an adequate protection against corrosion shall be used so that the electromotive
force of the galvanic couple does not exceed 0,25 V.
When bimetals are used, an eventual corrosion shall not affect the good operation of the circuit breaker.
5.1.2 Insulation materials
The insulating parts shall be made of auto-extinguishing or non-flammable materials; they shall not
emit damaging or explosive vapours, even in presence of fire or internal electric arc.
They shall be insensitive to moulds and microorganisms action.
Application of any material or protective coating, which might crack, break on flake shall be forbidden.
Materials which are not specified, or which are not specially described shall be as light as possible for
the requested use.
Materials shall be selected according to security criteria (
...
