EN ISO 20869:2010

Footwear - Test methods for outsoles, insoles, lining and insocks - Water soluble content (ISO 20869:2010)

ISO 20869:2010 specifies a method for the determination of the water soluble contents for outsoles, insoles, lining and insocks.

Schuhe - Prüfverfahren für Laufsohlen, Brandsohlen, Futter und Decksohlen - Wasserlöslicher Anteil (ISO 20869:2010)

Diese Internationale Norm legt ein Verfahren für die Bestimmung des wasserlöslichen Anteils in Laufsohlen,
Brandsohlen, Futter und Decksohlen fest.

Chaussures - Méthodes d'essai applicables aux premières de montage, aux doublures, aux premières de propreté et aux semelles d'usure - Détermination des substances solubles dans l'eau (ISO 20869:2010)

L'ISO 20869:2010 spécifie une méthode de détermination des substances solubles dans l'eau provenant des premières de montage, des doublures, des premières de propreté et des semelles d'usure.

Obutev - Preskusne metode za zunanje podplate, notranjike, podloge in vložke - Vodotopni delež (ISO 20869:2010)

Ta mednarodni standard določa metodo za določitev vodotopnega deleža za zunanje podplate, notranjike, podloge in vložke.

General Information

• Status: Published
• Publication Date: 30-Apr-2010
• Withdrawal Date: 29-Nov-2010
• ICS: 61.060 - Footwear
• Technical Committee: CEN/TC 309 - Footwear
• Drafting Committee: CEN/TC 309/WG 1 - Minimum performance requirements and test methods for components for footwear
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 01-May-2010
• Due Date: 29-Jan-2011
• Completion Date: 01-May-2010
• Ref Project: SIST EN ISO 20869:2010 - Footwear - Test methods for outsoles, insoles, lining and insocks - Water soluble content (ISO 20869:2010)

Relations

• Replaces: EN 12748:1999 - Footwear - Test methods for outsoles, insoles, lining and insocks - Water soluble content
• Effective Date: 22-Dec-2008

Overview

EN ISO 20869:2010 (ISO 20869:2010) specifies a standardized laboratory method for determining the water soluble content of footwear components - specifically outsoles, insoles, linings and insocks. Published by CEN in cooperation with ISO/TC 216, the standard defines sampling, sample preparation, test apparatus, test procedure and reporting requirements for quantifying total water-soluble matter and its inorganic (sulfated ash) and organic fractions.

Key topics and requirements

• Scope: Determination of water-soluble substances extracted from footwear components (outsoles, insoles, linings, insocks).
• Sampling & conditioning: Test specimens taken per ISO 17709; conditioned per ISO 18454. Material is ground and defatted/extracted by Soxhlet with dichloromethane (minimum 30 refluxes) before testing.
• Apparatus & reagents: Specifies flasks, fluted filter, shaker (50 ± 10 rpm), ovens (102 ± 2 °C), muffle furnace (690 ± 10 °C), analytical balances (sensitivity 0.1 mg), distilled water, and 1 mol/l sulfuric acid.
• Test procedure: Shake 10 g of conditioned, extracted material in 500 ml distilled water at (23 ± 2) °C for 2 h; filter and discard first 50 ml; use a subsequent 50 ml aliquot for analysis. Evaporate the filtrate to dryness to obtain total water solubles, then ignite the residue after sulfuric acid treatment to determine sulfated ash (water-soluble inorganic fraction). The organic fraction is calculated as the difference between total water solubles and sulfated ash.
• Results & reporting: Results are expressed as percentages (average of two test pieces, on fat‑free conditioned samples) and rounded to one decimal place. Test reports must reference ISO 20869:2010 and include sample identification and test date.

Applications and users

• Footwear manufacturers and component suppliers use this method for quality control, material specification and batch verification.
• Independent testing laboratories apply the procedure to certify compliance with contractual and regulatory requirements.
• R&D and materials engineering teams use the results to compare formulations, assess durability or leaching behavior, and guide material selection.
• Regulatory bodies and standards committees rely on standardized test data for market surveillance and comparative assessment.

Related standards

• ISO 17709 - sampling location and preparation for footwear tests
• ISO 18454 - standard atmospheres for conditioning and testing footwear components
• EN 12748:1999 - superseded by EN ISO 20869:2010
• ISO 20869:2001 - first edition, superseded by the 2010 edition

Keywords: footwear test methods, water soluble content, ISO 20869, outsoles, insoles, lining, insocks, sulfated ash, testing procedure, footwear quality control.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2010
1DGRPHãþD
SIST EN 12748:2000
Obutev - Preskusne metode za zunanje podplate, notranjike, podloge in vložke -
Vodotopni delež (ISO 20869:2010)
Footwear - Test methods for outsoles, insoles, lining and insocks - Water soluble content
(ISO 20869:2010)
Schuhe - Prüfverfahren für Laufsohlen, Brandsohlen, Futter und Decksohlen -
Wasserlöslicher Anteil (ISO 20869:2010)
Chaussures - Méthodes d'essai applicables aux premières de montage, aux doublures,
aux premières de propreté et aux semelles d'usure - Détermination des substances
solubles dans l'eau (ISO 20869:2010)
Ta slovenski standard je istoveten z: EN ISO 20869:2010
ICS:
61.060 Obuvala Footwear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 20869
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2010
ICS 61.060 Supersedes EN 12748:1999
English Version
Footwear - Test methods for outsoles, insoles, lining and
insocks - Water soluble content (ISO 20869:2010)
Chaussures - Méthodes d'essai applicables aux premières Schuhe - Prüfverfahren für Laufsohlen, Brandsohlen, Futter
de montage, aux doublures, aux premières de propreté et und Decksohlen - Wasserlöslicher Anteil (ISO 20869:2010)
aux semelles d'usure - Détermination des substances
solubles dans l'eau (ISO 20869:2010)
This European Standard was approved by CEN on 22 April 2010.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2010 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 20869:2010: E
worldwide for CEN national Members.

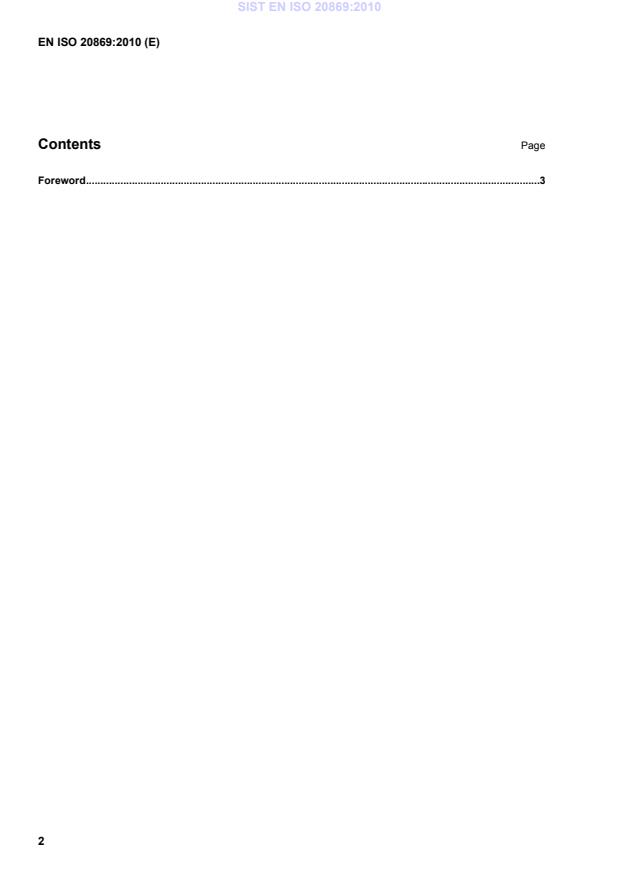

Contents Page
Foreword .3
Foreword
This document (EN ISO 20869:2010) has been prepared by Technical Committee CEN/TC 309 "Footwear",
the secretariat of which is held by AENOR, in collaboration with Technical Committee ISO/TC 216 "Footwear".
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by November 2010, and conflicting national standards shall be withdrawn
at the latest by November 2010.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12748:1999.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
INTERNATIONAL ISO
STANDARD 20869
Second edition
2010-05-01
Footwear — Test method for outsoles,
insoles, linings and insocks — Water
soluble content
Chaussures — Méthode d'essai applicable aux premières de montage,
aux doublures, aux premières de propreté et aux semelles d'usure —
Détermination des substances solubles dans l'eau

Reference number
ISO 20869:2010(E)
©
ISO 2010
ISO 20869:2010(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2010 – All rights reserved

ISO 20869:2010(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
...
