EN 14290:2004
(Main)Zinc and zinc alloys - Secondary raw material
Zinc and zinc alloys - Secondary raw material
This document specifies the requirements for the properties and condition of a specific range of tradeable secondary raw materials with a predominant zinc content.
This document defines these materials uniformly at the European level so that they can be traded within the economic cycle as raw materials with product character and their recycling is carried out specific to the material.
Zink und Zinklegierungen - Sekundärrohstoffe
Diese Europäische Norm legt die Anforderungen an die Merkmale und Beschaffenheit eines bestimmten Bereiches marktgängiger zinkhaltiger Sekundärrohstoffe mit überwiegendem Zinkgehalt fest.
Die vorliegende Norm definiert diese Stoffe einheitlich auf europäischer Ebene, damit sie im Wirtschaftskreislauf als Sekundärrohstoffe mit Produktcharakter gehandelt werden können und ein Recycling stoffspezifisch durch-ge-führt wird.
Zinc et alliages de zinc - Matières premières secondaires
La présente Norme Européenne spécifie les exigences applicables aux propriétés et à l'état d'une gamme spécifique de matières premières secondaires à base de zinc commercialisables, à haute teneur en zinc.
La présente Norme définit ces produits de manière uniforme au niveau européen de manière à ce qu'ils puissent être commercialisés dans le cadre du processus économique sous forme de matières premières ayant les caractéristiques d'un produit et de façon à ce que leur recyclage soit réalisé en fonction de ce dernier.
Cink in cinkove zlitine – Sekundarne surovine
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Cink in cinkove zlitine – Sekundarne surovineZink und Zinklegierungen - SekundärrohstoffeZinc et alliages de zinc - Matieres premieres secondairesZinc and zinc alloys - Secondary raw material77.120.60Svinec, cink, kositer in njihove zlitineLead, zinc, tin and their alloysICS:Ta slovenski standard je istoveten z:EN 14290:2004SIST EN 14290:2004en01-november-2004SIST EN 14290:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14290July 2004ICS 77.120.60English versionZinc and zinc alloys - Secondary raw materialZinc et alliages de zinc - Matières premières secondairesZink und Zinklegierungen - SekundärrohstoffeThis European Standard was approved by CEN on 16 January 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14290:2004: ESIST EN 14290:2004

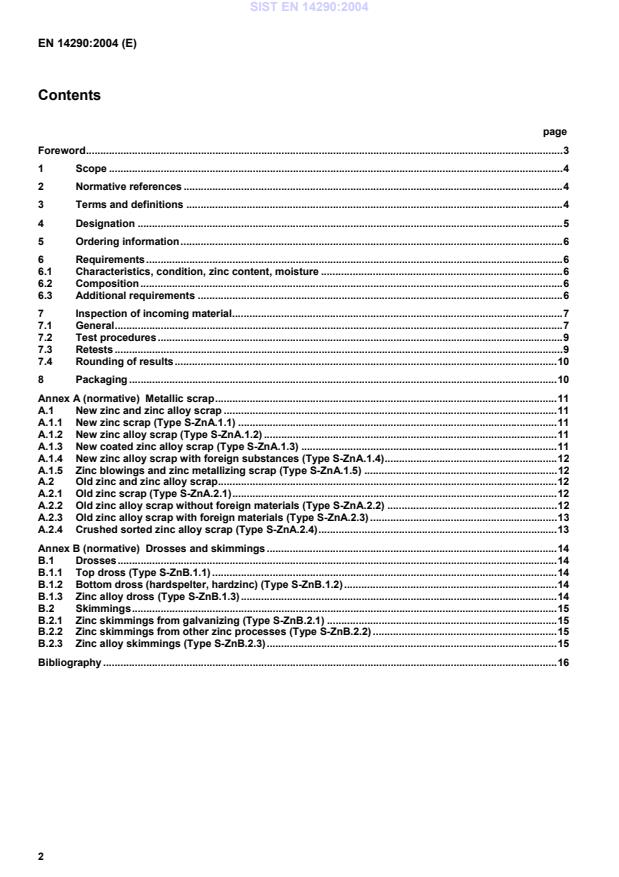

Contents page Foreword.3 1 Scope.4 2 Normative references.4 3 Terms and definitions.4 4 Designation.5 5 Ordering information.6 6 Requirements.6 6.1 Characteristics, condition, zinc content, moisture.6 6.2 Composition.6 6.3 Additional requirements.6 7 Inspection of incoming material.7 7.1 General.7 7.2 Test procedures.9 7.3 Retests.9 7.4 Rounding of results.10 8 Packaging.10 Annex A (normative)
Metallic scrap.11 A.1 New zinc and zinc alloy scrap.11 A.1.1 New zinc scrap (Type S-ZnA.1.1).11 A.1.2 New zinc alloy scrap (Type S-ZnA.1.2).11 A.1.3 New coated zinc alloy scrap (Type S-ZnA.1.3).11 A.1.4 New zinc alloy scrap with foreign substances (Type S-ZnA.1.4).12 A.1.5 Zinc blowings and zinc metallizing scrap (Type S-ZnA.1.5).12 A.2 Old zinc and zinc alloy scrap.12 A.2.1 Old zinc scrap (Type S-ZnA.2.1).12 A.2.2 Old zinc alloy scrap without foreign materials (Type S-ZnA.2.2).12 A.2.3 Old zinc alloy scrap with foreign materials (Type S-ZnA.2.3).13 A.2.4 Crushed sorted zinc alloy scrap (Type S-ZnA.2.4).13 Annex B (normative)
Drosses and skimmings.14 B.1 Drosses.14 B.1.1 Top dross (Type S-ZnB.1.1).14 B.1.2 Bottom dross (hardspelter, hardzinc) (Type S-ZnB.1.2).14 B.1.3 Zinc alloy dross (Type S-ZnB.1.3).14 B.2 Skimmings.15 B.2.1 Zinc skimmings from galvanizing (Type S-ZnB.2.1).15 B.2.2 Zinc skimmings from other zinc processes (Type S-ZnB.2.2).15 B.2.3 Zinc alloy skimmings (Type S-ZnB.2.3).15 Bibliography.16
3 Foreword This document (EN 14290:2004) has been prepared by Technical Committee CEN/TC 209 “Zinc and alloys”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2005, and conflicting national standards shall be withdrawn at the latest by January 2005. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following coun-tries are bound to implement this European Standard : Austria, Belgium, Cyprus, Czech Republic, Denmark, Esto-nia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom. SIST EN 14290:2004
1 Scope This document specifies the requirements for the properties and condition of a specific range of tradeable secondary raw materials with a predominant zinc content. This document defines these materials uniformly at the European level so that they can be traded within the economic cycle as raw materials with product character and their recycling is carried out specific to the material. 2 Normative references The following referenced document is indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 12844,
Zinc and zinc alloys — Castings — Specifications.
3 Terms and definitions For the purposes of this document, the following terms and definitions apply: 3.1 groups of secondary raw materials
3.1.1 metallic scrap
3.1.1.1 new zinc and zinc alloy scrap zinc and zinc alloy new or unused such as rejected parts, stampings and/or other by-products from processing 3.1.1.2 old zinc and zinc alloy scrap zinc and zinc alloy-based used or end of life material with or without foreign attachments and/or foreign materials 3.1.2 Drosses and skimmings
3.1.2.1 drosses by-products from melting and/or galvanizing operations consisting of mainly metallic materials predominantly of zinc and iron 3.1.2.2 skimmings by-products from melting and/or galvanizing operations consisting of a mixture of predominantly zinc and zinc ox-ide, untreated or treated 3.2 foreign materials material, other than as specified in this standard, whether metallic or non-metallic including free iron SIST EN 14290:2004
5 3.3 coated, plated or enamelled material material with any kind of coating or plating, independent of the process of coating or plating, e.g. paint, varnish, print, plastics or metals (e.g. aluminium, chromium, nickel, tin) 3.4 free iron ferrous materials (e.g. steels) either magnetic or non-magnetic 3.5 moisture any liquid that adheres to the material
(less than 0,2% for metallic material) when it reaches the point of delivery due to fabrication, usage or pick-up during storage 3.6 inspection lot consignment or a part thereof submitted for inspection by the purchaser 3.7 representative sample sample, fully representing the range of scrap in an inspection lot 3.8 zinc content total elemental zinc content, either in metallic or compound form 3.9 metal yield mass of gained metal after drying and melting with a temperature up to 500 °C, using flux if necessary 3.10 unmeltables fraction of the consignment not molten at a temperature up to 500 °C 4 Designation The product designation provides a standardized pattern of designation from which a rapid and unequivocal description of a product is conveyed in communication. It provides mutual comprehension at the international level with regard to products which meet the requirements of the relevant document. The product designation is no substitute for the full content of the standard. The product designation for products to this standard shall consist of: denomination (Secondary raw material); number of this document (EN 14290); material type (see annexes A and B). SIST EN 14290:2004
The derivation of a product designation is shown in the following example. EXAMPLE Secondary raw material conforming to this standard, material type S-ZnA.1.1, shall be designated as follows: Secondary raw material EN 14290 – S-ZnA.1.1 Denomination
Number of this document Material type 5 Ordering information In order to facilitate the enquiry, order and confirmation of order procedures between the purchaser and the supplier, the purchaser shall state on his enquiry and order the following information: a) quantity of material required (mass); b) denomination (Secondary raw material); c) number of this document (EN 14290); d) material type (see annexes A and B). NOTE It is recommended that the product designation, as described in clause 4, is used for items b) to d). In addition, the purchaser shall also state on the enquiry and order any of the following, if required: e) form of packaging. EXAMPLE Ordering details for 20 t secondary raw material conforming to EN 14290, material type S-ZnA.1.1: 20 t Secondary raw material EN 14290 – S-ZnA.1.1 6 Requirements 6.1 Characteristics, condition, zinc content, moisture The characteristics, condition, zinc content, moisture shall conform to the requirements for the appropriate material given in annexes A and B. 6.2 Composition The compositions given in annexes A and B refer to the analytical results obtained, using appropriate documents or other methods by agreement, from a representative sample taken from an inspection lot. 6.3 Additional requirements If not otherwise specified in annexes A and B, the following applies: The secondary raw material shall not contain: mica, asbestos, plastic, rubber, paper impregnated with oil, oil, grease; materials being recognized as substances that deplete the ozone layer of the earth; explosive materials. No radioactively contaminated secondary raw material or radioactively contaminated substances adhering to the secondary raw material or mixed with the secondary raw material shall be accepted. SIST EN 14290:2004
7 7 Inspection of incoming material 7.1 General The inspection scheme given in Figure 1 shall be applied. The test procedures shall be carried out on representative samples. For expression of results, the rounding rules given in 7.4 shall be used. In case of dispute with respect to sampling or testing methods or their results, arbitration shall be agreed between the purchaser and the supplier.
9 7.2 Test procedures The test procedures given in Table 1 shall be used as appropriate. Table 1 — Test procedures Characteristic Test procedure Moisture — Estimation — Weighing before and after removal of the moisture
from a representative sample
” Removal of the moisture shall be achieved by
heating to a maximum temperature of 110 °C
until n
...
