EN 16228-4:2014/FprA1

Drilling and foundation equipment - Safety - Part 4: Foundation equipment

This European Standard, together with part 1, deals with all significant hazards for foundation equipment when they are used as intended and under the conditions of misuse which are reasonably foreseeable by the manufacturer associated with the whole life time of the machine (see Clause 4).
The requirements of this part are complementary to the common requirements formulated in EN 16228 1:2014
This document does not repeat the requirements from EN 16228 1:2014 but adds or replaces the requirements for application for foundation equipment.
In this document the general term "foundation equipment" covers several different types of machines used for installation and/or extracting by drilling (machines with a rotary torque greater than 35 kNm), driving, vibrating, pushing, pulling or a combination of techniques, or any other way, of:
-   longitudinal foundation elements;
-   soil improvement by vibrating and soil mixing techniques;
-   vertical drainage.
NOTE   Some foundation equipment may have an additional rotary head with a torque less than 35 kNm for pre-drilling applications; this equipment is covered by this standard.
Machines with one or more of the following characteristics are not covered by this standard, but are covered by EN 16228 2:
-   machines that have a main rotary head torque of less than 35 kNm;
-   machines that have multi-directional drilling capability;
-   machines for which adding and removing rods or digging and drilling tools etc. is usually required during the installation/extraction process.
Typically the process of foundation techniques involves the installation of longitudinal elements such as concrete piles, steel beams, tubes and sheet piles, injection elements as tubes and hoses and casings for cast in situ.

Geräte für Bohr- und Gründungsarbeiten - Sicherheit - Teil 4: Geräte für Gründungsarbeiten

Machines de forage et de fondation - Sécurité - Partie 4 : Machines de fondation

Dans le 9e alinéa, deuxième tiret, remplacer par
« - Partie 2 : Machines mobiles de forage de génie civil, de puits d'eau, d'exploration de sol, d'énergie géothermique dans le sol ou mélange roche et sol ».

Oprema za vrtanje in temeljenje - Varnost - 4. del: Oprema za temeljenje - Dopolnilo A1

General Information

• Status: Not Published
• Publication Date: 24-Apr-2022
• Withdrawal Date: 24-Jul-2022
• ICS: 93.020 - Earthworks. Excavations. Foundation construction. Underground works
• Technical Committee: CEN/TC 151 - Construction equipment and building material machines - Safety
• Drafting Committee: CEN/TC 151/WG 3 - Drilling equipment - Safety
• Current Stage: 5060 - Closure of Vote - Formal Approval
• Start Date: 21-Oct-2021
• Completion Date: 21-Oct-2021
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: SIST EN 16228-4:2014/kprA1:2021 - Drilling and foundation equipment - Safety - Part 4: Foundation equipment

Relations

• Merged Into: EN 16228-4:2014+A1:2021 - Drilling and foundation equipment - Safety - Part 4: Foundation equipment
• Effective Date: 03-Nov-2021
• Amends: EN 16228-4:2014 - Drilling and foundation equipment - Safety - Part 4: Foundation equipment
• Effective Date: 09-Nov-2016

Overview

EN 16228-4:2014/FprA1 (CEN) is the European safety standard for drilling and foundation equipment - Part 4: Foundation equipment. It complements the common requirements in EN 16228-1 and covers significant hazards associated with foundation machines used as intended and under reasonably foreseeable misuse across the machine lifetime. The standard applies to foundation equipment performing drilling, driving, vibrating, pushing, pulling or combined techniques for longitudinal foundation elements, soil improvement and vertical drainage. Machines with main rotary torque greater than 35 kNm are covered; those below that threshold or with multi-directional drilling are covered by EN 16228-2.

Key topics and technical requirements

• Scope & hazards: Identifies mechanical hazards (overturning, inadequate strength), drawing-in/trapping from rotating parts, noise and combined hazards.
• Stability (Rigid body stability): Requirements for stability assessment; introduces the stability class SC condition and related verification criteria.
• Operating positions & ROPS: For machines ≤ 50 t fitted with roll-over protective structures, compliance with ISO 12117-2:2008 (ROPS for excavators) is required.
• Moving parts / guards: Specific guarding rules for rotary piling rigs: bottom edge ≤ 750 mm above ground, top ≥ 1 600 mm, moveable guards must lock mechanically; exemptions apply for kelly bars, soil-mixing attachments, low-speed casings (≤ 30 rpm), auger cleaners and guide devices.
• Auxiliary equipment: Piling leaders used with rope-driven free-fall hammers must include mechanical stops; higher supports required when personnel enter the danger zone beneath the hammer.
• Verification & documentation: Tests and verification aligned with amended clauses; operator manuals must include capacity tables (NC or SC), allowed extraction forces, and noise-emission clarifications (piling rig noise measured without pile installation equipment).

Practical applications and users

Who uses this standard:

• Manufacturers and OEMs of piling rigs, rotary piling rigs and foundation machinery
• Design and safety engineers conducting risk assessments and machine conformity
• Technical authors preparing operator’s manuals and maintenance instructions
• Test laboratories and notified bodies verifying compliance and CE marking
• Contractors and site managers selecting equipment and implementing site safety controls

Practical uses:

• Design and retrofit guidance for guards, ROPS and stability features
• Preparation of compliant operator manuals and capacity tables
• On-site checks for guarding, hammer supports and noise declaration
• Basis for procurement specifications and conformity assessment

Related standards

• EN 16228-1:2014 (+prA1) - Common requirements (referenced throughout)
• EN 16228-2:2014 (+prA1) - Machines excluded from Part 4 (lower torque / multi-directional)
• ISO 12117-2:2008 - ROPS requirements for machines ≤ 50 t

Keywords: EN 16228-4:2014/FprA1, drilling and foundation equipment, foundation equipment safety, piling rig safety, rotary piling rigs, ROPS, machine stability, guarding requirements, CEN standard.

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 16228-4:2014/oprA1:2019
01-julij-2019
Oprema za vrtanje in temeljenje - Varnost - 4. del: Oprema za temeljenje -
Dopolnilo A1
Drilling and foundation equipment - Safety - Part 4: Foundation equipment
Geräte für Bohr- und Gründungsarbeiten - Sicherheit - Teil 4: Geräte für
Gründungsarbeiten
Machines de forage et de fondation - Sécurité - Partie 4 : Machines de fondation
Ta slovenski standard je istoveten z: EN 16228-4:2014/prA1
ICS:
53.100 Stroji za zemeljska dela Earth-moving machinery
93.020 Zemeljska dela. Izkopavanja. Earthworks. Excavations.
Gradnja temeljev. Dela pod Foundation construction.
zemljo Underground works
SIST EN 16228-4:2014/oprA1:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

SIST EN 16228-4:2014/oprA1:2019

SIST EN 16228-4:2014/oprA1:2019

DRAFT
EUROPEAN STANDARD
EN 16228-4:2014
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
May 2019
ICS 93.020
English Version
Drilling and foundation equipment - Safety - Part 4:
Foundation equipment
Machines de forage et de fondation - Sécurité - Partie 4 Geräte für Bohr- und Gründungsarbeiten - Sicherheit -
: Machines de fondation Teil 4: Geräte für Gründungsarbeiten
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 151.

This draft amendment A1, if approved, will modify the European Standard EN 16228-4:2014. If this draft becomes an
amendment, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
inclusion of this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16228-4:2014/prA1:2019 E
worldwide for CEN national Members.

SIST EN 16228-4:2014/oprA1:2019
EN 16228-4:2014/prA1:2019 (E)

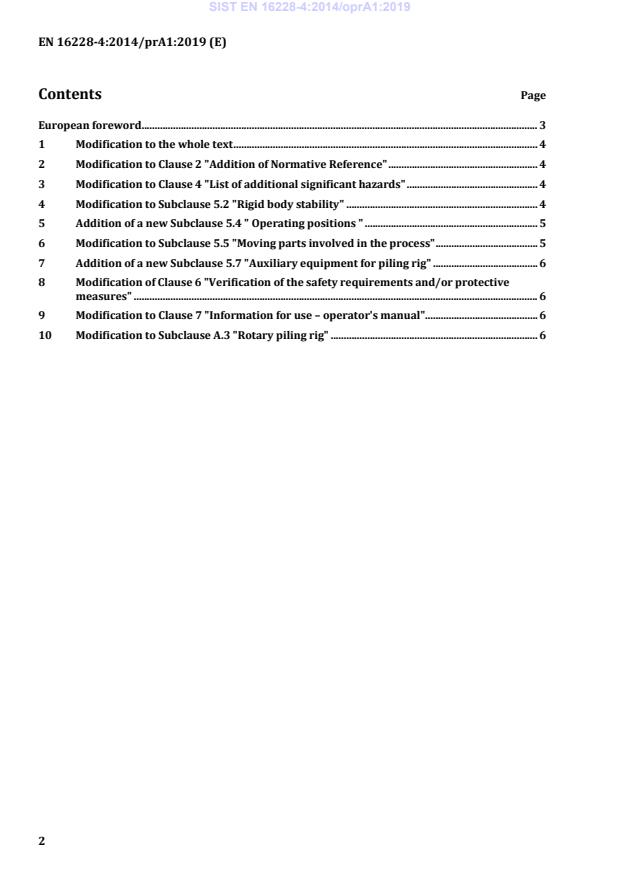

Contents Page
