EN 4652-213:2015

Aerospace series - Connectors, coaxial, radio frequency - Part 213: Type 2, TNC interface - Clamp nut assembly version - Bulkhead receptacle - Product standard

This European Standard specifies the characteristics of screwed on coupling (TNC interface) coaxial bulkhead receptacle − 50 ohms. The cable to connector assembly is a clamp technology.

Luft- und Raumfahrt - Koaxiale Hochfrequenz-Steckverbinder - Teil 213: Typ 2, TNC-Schnittstelle - Klemmverbindung - fester Steckverbinder für Trennwände - Produktnorm

Série aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 213 : Type 2, interface TNC - Version à presse étoupe - Prolongateur femelle - Norme de produit

La présente Norme européenne spécifie les caractéristiques des prolongateurs femelles coaxiaux à accouplement vissé (interface TNC) - 50 ohms. L'ensemble câble-connecteur utilise une technologie de serrage.

Aeronavtika - Konektorji, koaksialni, radiofrekvenčni - 213. del: Tip 2, vmesnik TNC - Izvedba z objemno matico - Skoznja vtičnica - Standard za proizvod

Ta evropski standard določa lastnosti koaksialnih skoznjih vtičnic z vijačnim spojem (vmesnik TNC) – 50 ohmov. Sklop kabla in konektorja je spojna tehnologija.

General Information

• Status: Published
• Publication Date: 01-Dec-2015
• Withdrawal Date: 29-Jun-2016
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 2 - Electrical
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 02-Dec-2015
• Completion Date: 02-Dec-2015
• Ref Project: SIST EN 4652-213:2016 - Aerospace series - Connectors, coaxial, radio frequency - Part 213: Type 2, TNC interface - Clamp nut assembly version - Bulkhead receptacle - Product standard

Relations

• Refers: EN 2812:2019 - Aerospace series - Stripping of electric cables
• Effective Date: 28-Jan-2026
• Refers: EN 4652-001:2015 - Aerospace series - Connectors, coaxial, radio frequency - Part 001: Technical specification
• Effective Date: 28-Jan-2026
• Refers: EN 2591:1992 - Aerospace series - Elements of electrical and optical connection - Test methods - General
• Effective Date: 28-Jan-2026
• Refers: EN 9133:2018 - Aerospace series - Quality Management Systems - Qualification Procedure for Aerospace Standard Products
• Effective Date: 28-Jan-2026
• Referred By: EN 4652-210:2015 - Aerospace series - Connectors, coaxial, radio frequency - Part 210: Type 2, TNC interface - Clamp nut assembly version - Straight plug - Product standard
• Effective Date: 28-Jan-2026

Overview

EN 4652-213:2015 is a CEN aerospace product standard that defines the Type 2 TNC interface clamp-nut bulkhead receptacle – 50 ohm. It specifies mechanical, electrical and environmental characteristics, materials, and test/qualification requirements for aerospace coaxial RF connectors using clamp technology for cable-to-connector assemblies. The standard is intended for use where robust, space-efficient RF bulkhead connectors are required in aircraft and aerospace systems.

Key topics and requirements

• Connector type: TNC interface, clamp nut assembly version, bulkhead receptacle (Type 2).
• Impedance and frequency: 50 Ω characteristic impedance; maximum operating frequency 6 GHz.
• Electrical performance: VSWR ≤ 1.15 up to 6 GHz; insertion loss ≤ 0.04 √f dB (f in GHz); initial centre contact resistance ≤ 1.5 mΩ; insulation resistance ≥ 5 000 MΩ; withstand voltage 1 500 Veff at sea level.
• Materials and finishes: gold-plated copper-alloy centre contact over nickel undercoat; PTFE insulators; silicone seals; copper-alloy nickel-plated body; polyolefin heat-shrink tube.
• Environmental & mechanical: operating temperature −65 °C to +165 °C; service life 500 cycles; retention of centre contact ≥ 27 N; cable retention minimums defined by cable group.
• Water ingress: resistance required in mated condition for all cable groups and in unmated condition for cable group A.
• Tests & qualification: references EN 2591 test methods for visual, contact resistance, VSWR, insertion loss, RF leakage, corona, salt mist, sand/dust, vibration, shock, mechanical endurance and more. Qualification and quality assurance follow EN 4652-001 and EN 9133.

Practical applications and users

This standard is directly applicable to:

• Aerospace and avionics OEMs specifying bulkhead RF connectors for antennas, radios, SATCOM, transceivers and instrumentation.
• Connector and cable-assembly manufacturers producing TNC bulkhead receptacles to aerospace quality and performance requirements.
• Design engineers, qualification/test laboratories and procurement teams requiring validated RF connector performance (VSWR, insertion loss, environmental ruggedness).
• Maintenance and repair organizations replacing or specifying compliant RF connectors in aircraft and space systems.

Using EN 4652-213 ensures interoperability, predictable RF performance, environmental robustness and traceable qualification for mission-critical aerospace RF connections.

Related standards

• EN 4652-001 (technical specifications and common terms)
• EN 4652-210 (TNC straight plug, clamp nut version)
• EN 2591 (Aerospace test methods)
• EN 2812 (cable stripping)
• EN 9133 (quality systems)
• TR 6058 (cable code identification)

Keywords: EN 4652-213:2015, TNC interface, coaxial bulkhead receptacle, 50 ohm, aerospace RF connectors, clamp nut assembly, VSWR, insertion loss, connector qualification.

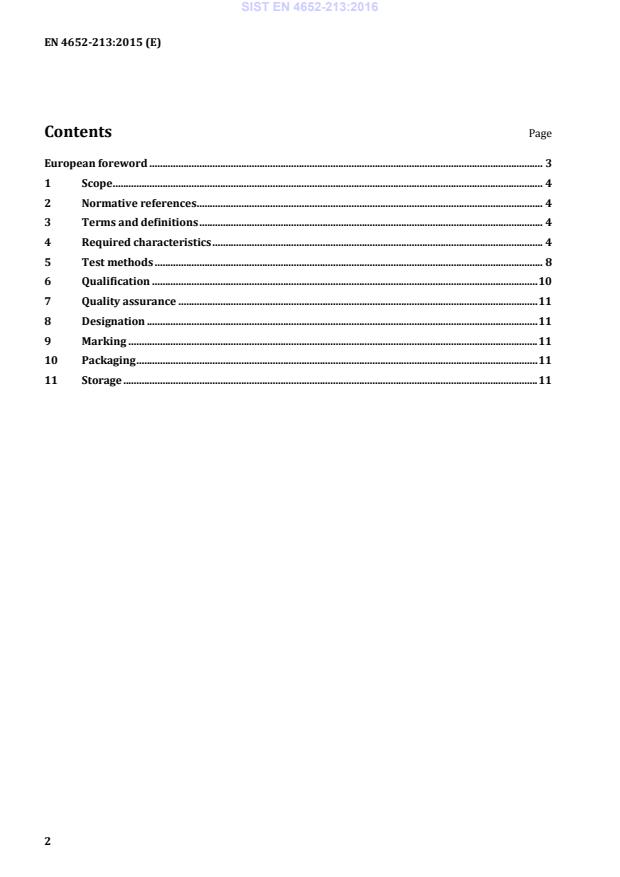

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.YRGLuft- und Raumfahrt - Hochfrequenz Steckverbinder, koaxial - Teil 213: Typ 2 TNC - Klemmverbindung - Kabelbuchse - ProduktnormSérie aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 213 : Type 2, interface TNC - Version à presse étoupe - Prolongateur femelle - Norme de produitAerospace series - Connectors, coaxial, radio frequency - Part 213: Type 2, TNC interface - Clamp nut assembly version - Bulkhead receptacle - Product standard49.060Aerospace electric equipment and systems31.220.10Plug-and-socket devices. ConnectorsICS:Ta slovenski standard je istoveten z:EN 4652-213:2015SIST EN 4652-213:2016en,fr,de01-februar-2016SIST EN 4652-213:2016SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4652-213
December
t r s w ICS
v {ä r x r English Version
Aerospace series æ Connectorsá coaxialá radio frequency æ Part
t s uã Type
tá TNC interface æ Clamp nut assembly version æ Bulkhead receptacle æ Product standard Série aérospatiale æ Connecteurs coaxiaux pour radio fréquences æ Partie
t s u ã Type
tá interface TNC æ Version à presse étoupe æ Prolongateur femelle æ Norme de produit
Luftæ und Raumfahrt æ Koaxiale HochfrequenzæSteckverbinder æ Teil
t s uã Typ
tá TNCæAnschluss æ Klemmverbindung æ fester Steckverbinder für Trennwände æ Produktnorm This European Standard was approved by CEN on
x June
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
v x w tæ t s uã t r s w ESIST EN 4652-213:2016

1) All parts quoted in this standard. 2) Pu
...
