prEN 4915-001
(Main)Aerospace series - Hermetically sealed relays 2PDT, 4PDT and 6PDT — Part 001: Technical specification
Aerospace series - Hermetically sealed relays 2PDT, 4PDT and 6PDT — Part 001: Technical specification
This document specifies the general characteristics, the conditions for qualification, acceptance and quality assurance, as well as the test programs and groups for non-latching electromagnetic, hermetically sealed relays intended for use in a temperature range from - 55 °C to 125 °C continuous.
Luft- und Raumfahrt - Hermetisch abgedichtete Relais, zwei-, vier- und sechspolige Wechselschalter - Teil 001: Technische Lieferbedingungen
Dieses Dokument legt die allgemeinen Eigenschaften, die Bedingungen für die Qualifizierung, Abnahme und Qualitätssicherung sowie die Prüfprogramme und -gruppen für nicht einrastende elektromagnetische, herme
tisch dichte Relais fest, die für den Einsatz in einem Temperaturbereich von −55°C bis 125°C kontinuierlich vorgesehen sind.
Aeronavtika - Hermetično zaprti releji 2PDT, 4PDT in 6PDT - 001. del: Tehnične specifikacije
General Information
Standards Content (Sample)

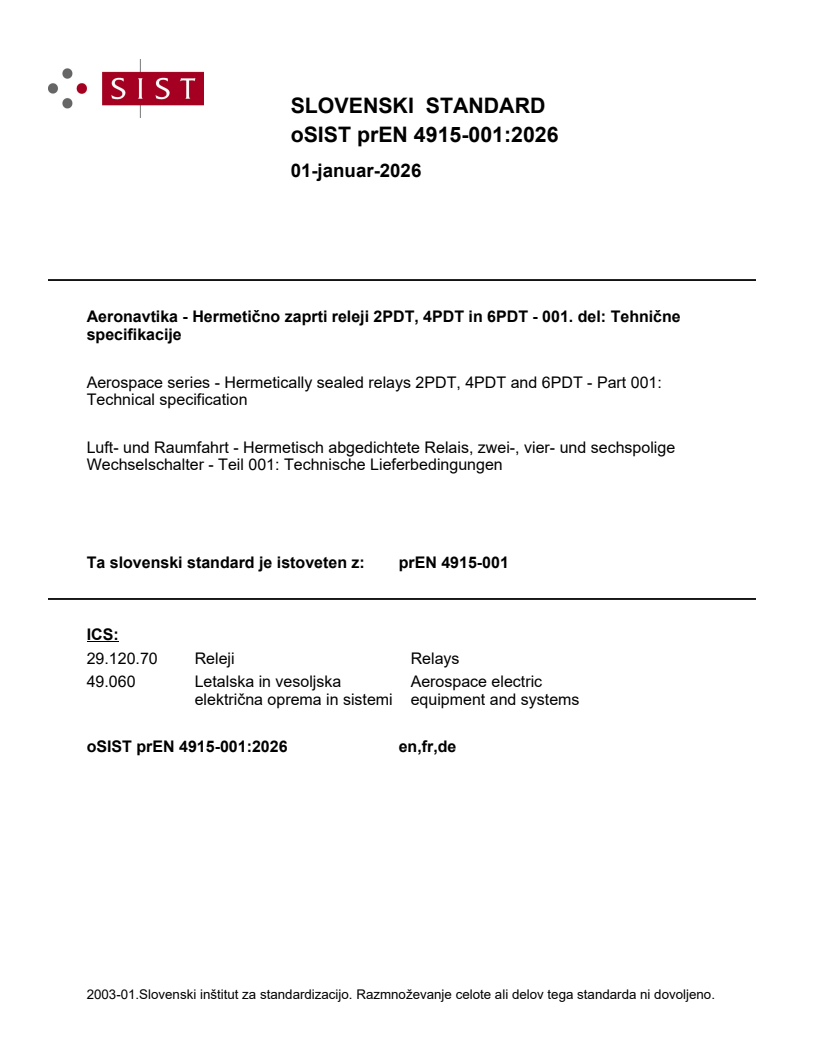

SLOVENSKI STANDARD
01-januar-2026
Aeronavtika - Hermetično zaprti releji 2PDT, 4PDT in 6PDT - 001. del: Tehnične
specifikacije
Aerospace series - Hermetically sealed relays 2PDT, 4PDT and 6PDT - Part 001:
Technical specification
Luft- und Raumfahrt - Hermetisch abgedichtete Relais, zwei-, vier- und sechspolige
Wechselschalter - Teil 001: Technische Lieferbedingungen
Ta slovenski standard je istoveten z: prEN 4915-001
ICS:
29.120.70 Releji Relays
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

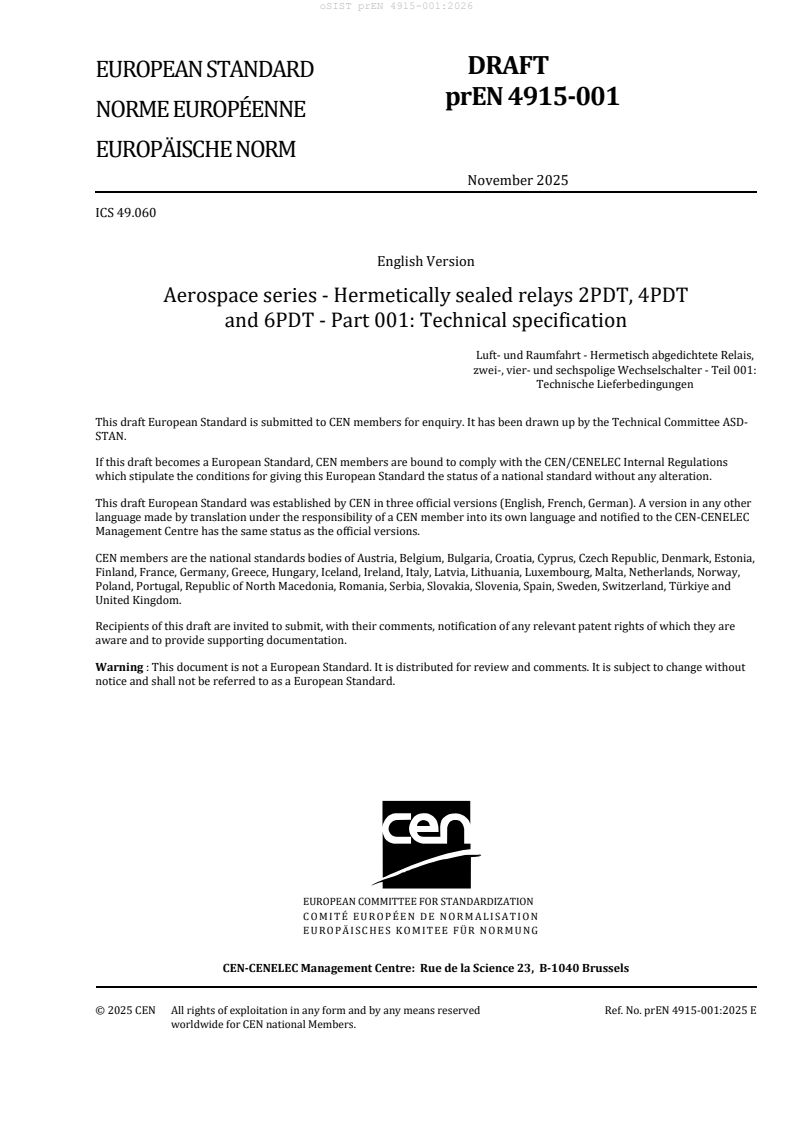

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2025
ICS 49.060
English Version
Aerospace series - Hermetically sealed relays 2PDT, 4PDT
and 6PDT - Part 001: Technical specification
Luft- und Raumfahrt - Hermetisch abgedichtete Relais,
zwei-, vier- und sechspolige Wechselschalter - Teil 001:
Technische Lieferbedingungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ASD-
STAN.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 4915-001:2025 E
worldwide for CEN national Members.

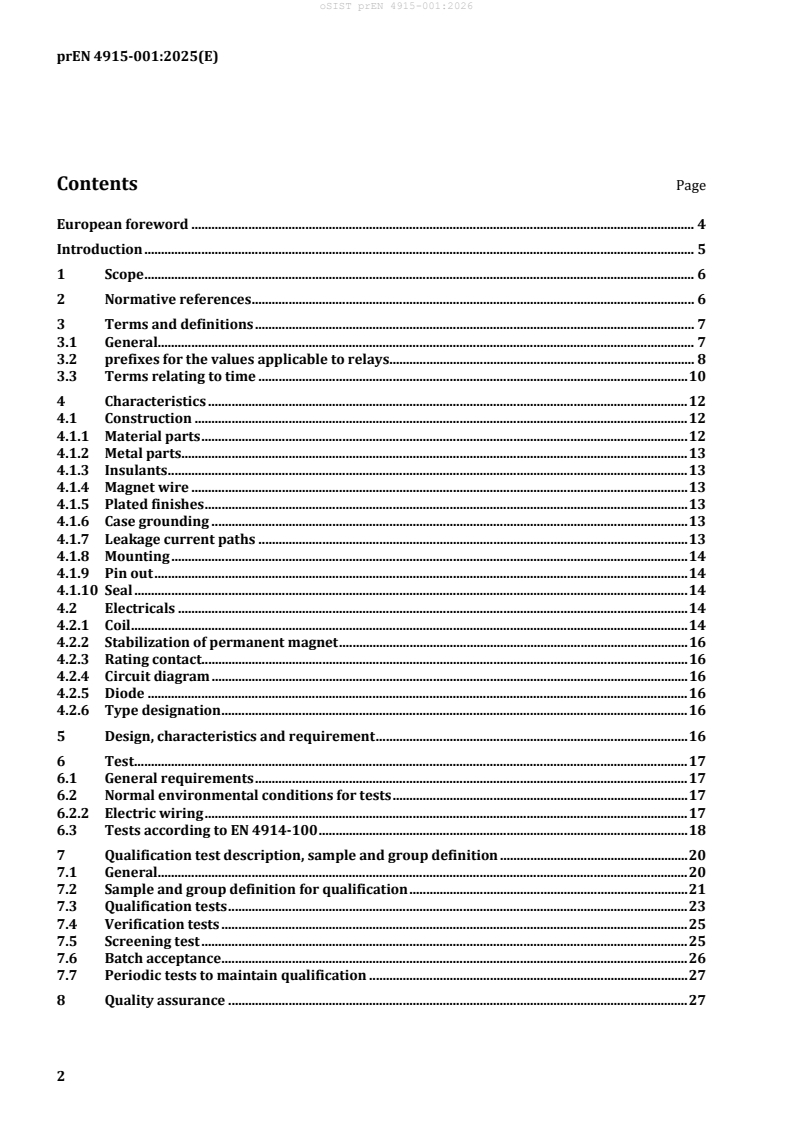

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
3.1 General. 7
3.2 prefixes for the values applicable to relays. 8
3.3 Terms relating to time . 10
4 Characteristics . 12
4.1 Construction . 12
4.1.1 Material parts . 12
4.1.2 Metal parts. 13
4.1.3 Insulants . 13
4.1.4 Magnet wire . 13
4.1.5 Plated finishes . 13
4.1.6 Case grounding . 13
4.1.7 Leakage current paths . 13
4.1.8 Mounting . 14
4.1.9 Pin out . 14
4.1.10 Seal . 14
4.2 Electricals . 14
4.2.1 Coil . 14
4.2.2 Stabilization of permanent magnet . 16
4.2.3 Rating contact. 16
4.2.4 Circuit diagram . 16
4.2.5 Diode . 16
4.2.6 Type designation . 16
5 Design, characteristics and requirement . 16
6 Test . 17
6.1 General requirements . 17
6.2 Normal environmental conditions for tests . 17
6.2.2 Electric wiring . 17
6.3 Tests according to EN 4914-100 . 18
7 Qualification test description, sample and group definition . 20
7.1 General. 20
7.2 Sample and group definition for qualification . 21
7.3 Qualification tests . 23
7.4 Verification tests . 25
7.5 Screening test . 25
7.6 Batch acceptance . 26
7.7 Periodic tests to maintain qualification . 27
8 Quality assurance . 27
9 Designation and marking . 27
9.1 General principle of designation . 27
9.2 Marking . 28
10 Delivery conditions . 28
11 Packaging . 28
12 Storage . 28
12.1 Storage conditions . 28
12.2 Storage duration . 29
Bibliography . 30
European foreword
This document (prEN 4915-001:2025) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document is currently submitted to the CEN Enquiry.
Introduction
This family of relays is derived from MIL-PRF-83536, MIL-PRF-6106, ASNE, ABS, ECS and CECC, with
which it is intermateable and interchangeable.
This specification covers the general requirements for non-latching electromagnetic, hermetically
sealed relays for use in aircraft.
These relays are designed to operate over the full range from low level to power switching with contact
ratings up to 25 A alternating current (AC) or direct current (DC).
1 Scope
This document specifies the general characteristics, the conditions for qualification, acceptance and
quality assurance, as well as the test programs and groups for non-latching electromagnetic,
hermetically sealed relays intended for use in a temperature range from - 55 °C to 125 °C continuous.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2282, Aerospace series — Characteristics of aircraft electrical supplies
EN 3155-001, Aerospace series — Electrical contacts used in elements of connection — Part 001:
Technical specification
EN 4914-100, Aerospace series — Test procedures for electromechanical all-or-nothing relays
EN 4915-010 Aerospace series — Hermetically sealed 2PDT, 4PDT and 6PDT, 10 AMP — Part 010:
Product standard
EN 9133, Aerospace series — Quality Management Systems — Qualification procedure for aerospace
standard products
EN IEC 60068-2-17, Environmental testing — Part 2-17: Tests — Test Q: Sealing
MIL-HDBK-454:2021, General Guidelines for Electronic Equipment
This document is currently under development.
Published by Department of Defense (DoD), available at: https://assist.dla.mil/online/start/.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 4914-100, EN 4915-010 and
the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
3.1 General
3.1.1
electromechanical relay
electrical relay in which the designed re
...
