EN 2476:2019

Aerospace series - Steel 30CrNiMo8 (1.6580) - 1 100 MPa ≤ Rm ≤ 1 300 MPa - Forgings - De ≤ 100 mm

This document specifies the requirements relating to:
Steel 30CrNiMo8 (1.6580)
1 100 MPa ≤ Rm ≤ 1 300 MPa
Forgings
De ≤ 100 mm
for aerospace applications.
W.nr: 1.6580
ASD-STAN designation: FE-PL74.

Luft- und Raumfahrt - Stahl 30CrNiMo8 (1.6580) - 1 100 MPa ≤ Rm ≤ 1 300 MPa - Schmiedestücke - De ≤ 100 mm

Dieses Dokument legt die Anforderungen an:
Stahl 30CrNiMo8 (1.6580)
1 100 MPa ≤ Rm ≤ 1 300 MPa
Schmiedestücke
De ≤ 100 mm
für Anwendungen in der Luft- und Raumfahrt fest.
W.-Nr.: 1.6580
ASD-STAN-Bezeichnung: FE-PL74.

Série aérospatiale - Acier 30CrNiMo8 (1.6580) - 1 100 MPa ≤ Rm ≤ 1 300 MPa - Pièces forgées ou matricées - De ≤ 100 mm

Le présent document spécifie les exigences relatives à :
Acier 30CrNiMo8 (1.6580)
1 100 MPa ≤ Rm ≤ 1 300 MPa
Pièces forgées ou matricées
De ≤ 100 mm
pour applications aérospatiales.
W.nr : 1.6580
Désignation ASD-STAN : FE-PL74.

Aeronavtika - Jeklo 30CrNiMo8 (1.6580) - 1100 MPa ≤ Rm ≤ 1300 MPa - Izkovki - De ≤ 100 mm

Ta dokument določa zahteve, ki se navezujejo na: jeklo 30CrNiMo8 (1.6580), 1100 MPa ≤ Rm ≤ 1300 MPa, izkovki, De ≤ 100 mm, za uporabo v aeronavtiki. Št. W.: 1.6580. Oznaka ASD-STAN: FE-PL74.

General Information

• Status: Published
• Publication Date: 03-Dec-2019
• Withdrawal Date: 29-Jun-2020
• ICS: 49.025.10 - Steels
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 4/S 3 - Steels & Heat Resisting Alloys
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 04-Dec-2019
• Completion Date: 04-Dec-2019
• Ref Project: SIST EN 2476:2020 - Aerospace series - Steel 30CrNiMo8 (1.6580) - 1 100 MPa ≤ Rm ≤ 1 300 MPa - Forgings - De ≤ 100 mm

Overview

EN 2476:2019 is a European Standard developed by CEN (European Committee for Standardization) that specifies the technical requirements for aerospace series steel 30CrNiMo8 (W.nr 1.6580). The standard covers forgings with a diameter (De) of up to 100 mm and a tensile strength (Rm) ranging between 1 100 MPa and 1 300 MPa. Originally prepared by ASD-STAN, this standard provides precise chemical composition limits, mechanical properties, and delivery conditions to ensure the material’s suitability for aerospace applications. EN 2476:2019 aligns with the aerospace industry's stringent demands for high-strength, durable steels used in critical components.

Key Topics

• Material Designation: Steel 30CrNiMo8 (1.6580), also recognized under ASD-STAN designation FE-PL74.
• Chemical Composition: Controlled ranges of carbon (0.26-0.34%), silicon, manganese, chromium, molybdenum, and nickel elements to maintain optimal performance.
• Mechanical Properties:
  • Tensile strength (Rm) between 1 100 MPa and 1 300 MPa.
  • Proof stress (Rp0.2) minimum 900 MPa for annealed condition, increasing to 1 030 MPa for hardened and tempered condition.
  • Elongation at break ≥ 9-10%.
  • Hardness values from HB ≤ 248 (annealed) up to HB 363-415 (hardened).
• Heat Treatment:
  • Delivery condition includes annealed or hardened and tempered states.
  • Typical heat treatment involves quenching between 840°C and 860°C, followed by tempering at temperatures of at least 560°C.
• Dimensions: Forgings covered have an external diameter (De) up to 100 mm.
• Testing and Inspection: Mechanical tests, hardness tests, and dimensional inspections are integral to validate compliance with the standard.
• Compliance: The standard must be adopted by CEN member countries as the national standard by June 2020, replacing any conflicting national standards.

Applications

EN 2476:2019 steel 30CrNiMo8 forgings are specifically designed for aerospace use due to their superior mechanical properties and reliability. Practical applications include:

• Structural aerospace components requiring high strength and toughness.
• Critical parts subjected to cyclic stressing and demanding environmental conditions.
• Components where dimensional fidelity and safe performance under stress are essential-such as gear parts, shafts, and landing gear components.
• Engineering parts in aircraft manufacturing where high tensile strength and resistance to fatigue are necessary.

This standard ensures that materials used in aerospace meet the agreed-upon specifications for safety, performance, and interchangeability in the highly regulated aerospace sector.

Related Standards

• EN 2157-2: Aerospace series steel forgings - Technical specification for forging stock, directly referenced for forging stock requirements in EN 2476.
• EN 4258: General organization of aerospace series metallic material standards, providing the structural framework within which EN 2476 fits.
• EN 4500-005: Rules for drafting and presentation of material standards, defining the specific drafting rules used in EN 2476.
• ISO Online Browsing Platform & IEC Electropedia: Authoritative sources for terminology related to standardization referenced within EN 2476.

Summary

EN 2476:2019 is a critical standard for manufacturers and users of high-strength steel forgings in aerospace. It ensures that Steel 30CrNiMo8 forgings with diameters up to 100 mm meet strict mechanical and chemical requirements needed for aerospace safety and performance. By adhering to this standard, aerospace industries benefit from consistent quality, material reliability, and regulatory compliance.

Keywords: EN 2476:2019, aerospace steel standard, Steel 30CrNiMo8, aerospace forgings, high strength steel, aerospace materials, forging standard, tensile strength, mechanical properties, CEN steel standards

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2020
Aeronavtika - Jeklo 30CrNiMo8 (1.6580) - 1100 MPa ≤ Rm ≤ 1300 MPa - Izkovki - De
≤ 100 mm
Aerospace series - Steel 30CrNiMo8 (1.6580) - 1 100 MPa ≤ Rm ≤ 1 300 MPa - Forgings
- De ≤ 100 mm
Luft- und Raumfahrt - Stahl 30CrNiMo8 (1.6580) - 1 100 MPa ≤ Rm ≤ 1 300 MPa -
Schmiedestücke - De ≤ 100 mm
Série aérospatiale - Acier 30CrNiMo8 (1.6580) - 1 100 MPa ≤ Rm ≤ 1 300 MPa - Pièces
forgées ou matricées - De ≤ 100 mm
Ta slovenski standard je istoveten z: EN 2476:2019
ICS:
49.025.10 Jekla Steels
77.140.85 Železni in jekleni kovani Iron and steel forgings
izdelki
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 2476
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2019
EUROPÄISCHE NORM
ICS 49.025.10
English Version
Aerospace series - Steel 30CrNiMo8 (1.6580) - 1 100 MPa
≤ Rm ≤ 1 300 MPa - Forgings - De ≤ 100 mm
Série aérospatiale - Acier 30CrNiMo8 (1.6580) - 1 100 Luft- und Raumfahrt - Stahl 30CrNiMo8 (1.6580) - 1
MPa ≤ Rm ≤ 1 300 MPa - Pièces forgées ou matricées - 100 MPa ≤ Rm ≤ 1 300 MPa - Schmiedestücke - De ≤
100 mm
De ≤ 100 mm
This European Standard was approved by CEN on 4 February 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2476:2019 E
worldwide for CEN national Members.

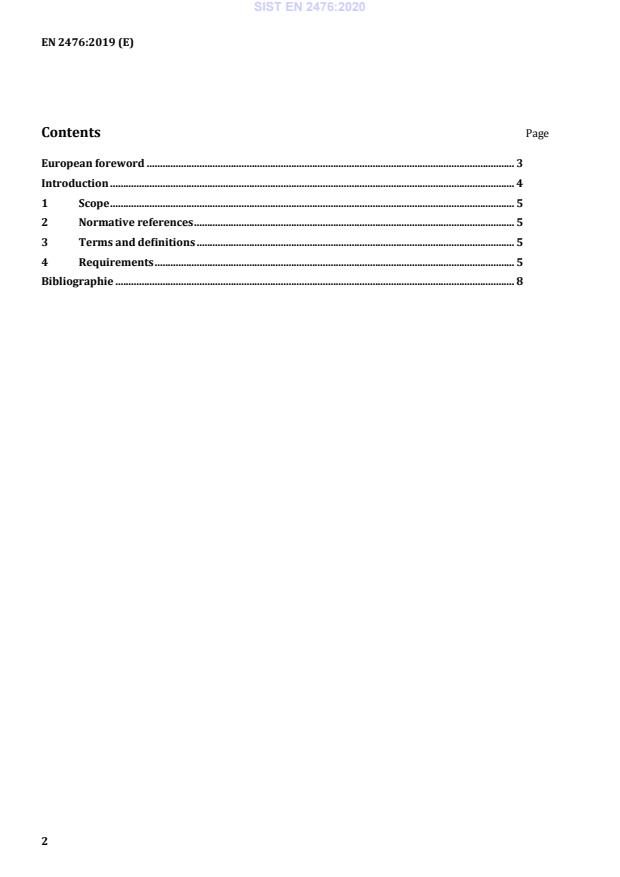

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliographie . 8

European foreword
This document (EN 2476:2019) has been prepared by the Aerospace and Defence Industries Association
of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2020, and conflicting national standards shall be
withdrawn at the latest by June 2020.
Attention is drawn to the possibility that some of
...
