EN 22340:1992

Clevis pins without head (ISO 2340:1986)

Specifies the characteristics of products without (type A) and with split pin holes (type B) with metric dimensions and nominal diameters from 3 mm up to and including 100 mm with reference to International Standards; gives examples for the designation.

Bolzen ohne Kopf (ISO 2340:1986)

Axes d'articulation sans tête (ISO 2340:1986)

La présente Norme internationale spécifie les caractéristiques des axes d'articulation sans tête, de dimensions métriques et de diamètre nominal, d, de 3 à 100 mm inclus.

Sorniki brez glave

General Information

• Status: Published
• Publication Date: 23-Jul-1992
• ICS: 21.060.50 - Pins, nails
• Technical Committee: CEN/TC 185 - Threaded and nonthreaded mechanical fasteners and accessories
• Drafting Committee: CEN/TC 185 - Threaded and nonthreaded mechanical fasteners and accessories
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 04-Feb-2008
• Completion Date: 04-Feb-2008
• Directive: Not Harmonized97/23/EC - Pressure equipment
• Mandate: M/071 - Mandate to CEN for standardization in the field of Pressure equipment
• Ref Project: SIST EN 22340:1996 - Clevis pins without head (ISO 2340:1986)

Overview

EN 22340:1992 - Clevis Pins Without Head (ISO 2340:1986) is a European standard developed by CEN that specifies the properties and dimensional characteristics of clevis pins without a head. This standard covers products both without split pin holes (Type A) and with split pin holes (Type B) in metric sizes. Applicable nominal diameters range from 3 mm up to and including 100 mm, supporting versatility in various mechanical and engineering applications. EN 22340:1992 references and aligns with International Standard ISO 2340:1986, ensuring international compatibility and uniformity.

Key Topics

• Product Types: Details two types of clevis pins:

  • Type A - Without split pin holes
  • Type B - With split pin holes

• Metric Dimensions: Specifies nominal diameters from 3 mm to 100 mm, facilitating diverse mechanical uses.

• Standardized Terminology: Provides clear designations and examples for each pin type and size to minimize ambiguity in supply chains.

• Reference to International Standards: Harmonized with ISO 2340:1986 for global compatibility, supporting cross-border manufacturing and sourcing needs.

Applications

Clevis pins without head, as defined by EN 22340:1992, play a fundamental role across multiple industries due to their simplicity, strength, and standardization. Typical applications include:

• Machinery and Equipment: Used as pivot, hinge, or linkage pins in agricultural, construction, and industrial equipment.
• Automotive Sector: Integral in assembling and linking mechanical components where quick assembly and disassembly are required.
• Aerospace and Rail: Suitable for control systems and mechanical linkages, benefiting from standardized sizing and interchangeable parts.
• General Engineering: Preferred for assembling mechanical joints and temporary structural connections, owing to their reliability and ease of replacement.

The use of clevis pins standardized under EN 22340:1992 ensures high levels of interchangeability, efficient maintenance, and compatibility between manufacturers and suppliers globally.

Related Standards

For broader perspective and integration, the following international and European standards are relevant to EN 22340:1992:

• ISO 2340:1986 - Clevis pins without head, the international counterpart forming the technical basis for EN 22340:1992.
• EN 22341 - Covers clevis pins with heads, offering a complementary specification.
• ISO 2341 - Specifies split pins suitable for use with Type B clevis pins.
• EN ISO 8752 - Relates to spring-type straight pins for secure fastening in similar applications.

Adopting EN 22340:1992 facilitates harmonized procurement, production, and maintenance practices, ensuring compliance with European and international quality standards for clevis pins without head.

Keywords: clevis pins without head, EN 22340:1992, ISO 2340:1986, metric clevis pins, mechanical fasteners, split pin holes, standardized pins, CEN standard, engineering components, pin dimensions.

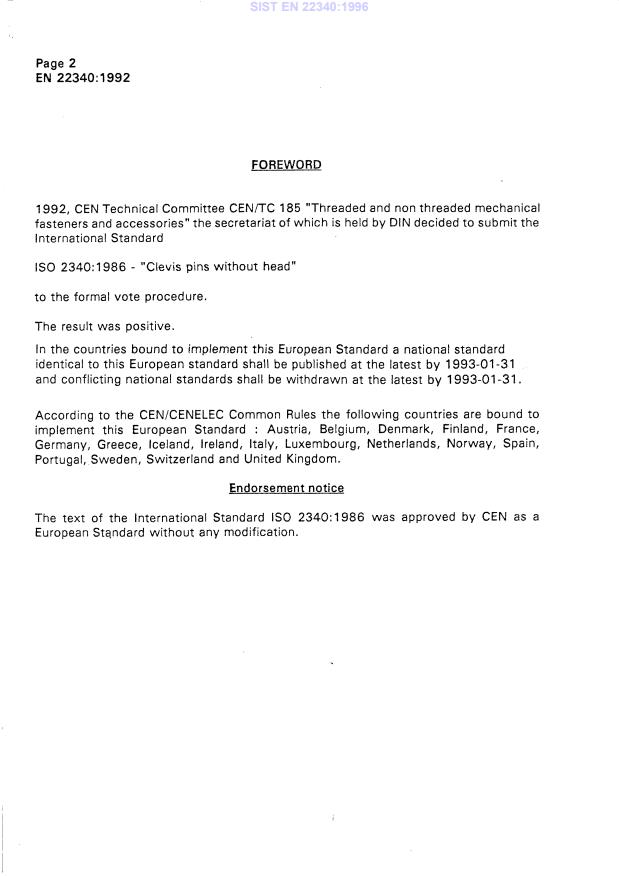

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sorniki brez glaveBolzen ohne Kopf (ISO 2340:1986)Axes d'articulation sans tete (ISO 2340:1986)Clevis pins without head (ISO 2340:1986)21.060.50Pins, nailsICS:Ta slovenski standard je
...
