EN 1530:1999

Door leaves - General and local flatness - Tolerance classes

This standard gives the tolerances limits for general and local flatness of door leaves. It applies to door leaves which are supplied without, and independent of, any frames. It does not apply to the leaves of doorsets. NOTE: Compliance with the tolerance limits given in this standard does not imply that this would necessarily produce a perfect fit between door leaves and frames.

Türblätter - Allgemeine und lokale Ebenheit - Toleranzklassen

Diese Norm legt die Toleranzgrenzen für die allgemeine und die lokale Ebenheit von Türblättern fest. Sie gilt für Türblätter, die ohne bzw. unabhängig von den Zargen geliefert werden. Diese Norm gilt nicht für Türblätter von Türelementen. ANMERKUNG: Selbst wenn die Toleranzgrenzen dieser Norm eingehalten werden, bedeutet dies nicht, daß daraus notwendigerweise eine einwandfreie Passung zwischen Türblättern und Zargen resultiert.

Vantaux de portes - Planéité générale et planéité locale - Classes de tolérances

La présente norme donne les limites des tolérances en planéité générale et en planéité locale des vantaux de portes. Elle s'applique aux vantaux livrés sans huisseries et indépendamment de ces dernières. Elle ne s'applique pas aux vantaux des blocs portes. NOTE: La conformité aux prescriptions de tolérances données dans la présente norme n'implique pas nécessairement un adjustement parfait entre vantaux et huisseries.

Vratna krila - Splošna in lokalna ravnost - Tolerančni razredi

General Information

• Status: Published
• Publication Date: 16-Nov-1999
• Withdrawal Date: 30-May-2000
• ICS: 91.060.50 - Doors and windows
• Technical Committee: CEN/TC 33 - Doors, windows, shutters and building hardware
• Drafting Committee: CEN/TC 33/WG 2 - Windows
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 10-Jan-2023
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Ref Project: SIST EN 1530:2000 - Door leaves - General and local flatness - Tolerance classes

Overview

EN 1530:1999 is a European standard developed by CEN that specifies the tolerance classes for the general and local flatness of door leaves. This standard applies exclusively to door leaves supplied independently-without frames-and is not intended for door leaves that are part of complete doorsets. The core purpose of EN 1530:1999 is to define acceptable flatness variations to ensure quality control in manufacturing and installation processes. However, it should be noted that meeting these tolerance requirements does not guarantee a perfect fit between the door leaf and its frame.

Key Topics

• Tolerance Limits for Flatness
  The standard defines clear limits for both general flatness (overall surface evenness) and local flatness (smaller surface deviations) of door leaves.

• Scope of Application
  Applies only to standalone door leaves, excluding any door leaves integrated within doorsets. This ensures focus on the intrinsic quality of the door leaf itself.

• Quality Control Parameters
  Establishes benchmarks that manufacturers and quality inspectors can use to evaluate flatness consistency, aiding in product standardization.

• Non-Guarantee of Fit
  Highlights that compliance with the flatness tolerances alone does not ensure flawless fitting between door leaves and frames, acknowledging other factors affecting final assembly.

Applications

EN 1530:1999 serves as an essential guideline for manufacturers, fabricators, and quality controllers in the door manufacturing industry:

• Manufacturing Consistency
  Ensures door leaves produced meet flatness tolerance classes to maintain product quality and uniformity.

• Quality Assurance
  Provides a measurable standard to assess and document the flatness of door leaves before market release or installation.

• Procurement Specifications
  Architects and builders can specify compliance with EN 1530:1999 flatness tolerances in contracts to guarantee product performance criteria.

• Repair and Replacement
  Helps maintenance teams determine acceptable flatness deviations for replacement door leaves to match existing door systems.

Related Standards

• EN 14351-1 - Windows and doors - Product standard, performance characteristics. This complements EN 1530:1999 by covering complete doorsets and performance metrics.
• EN 12519 - Windows and doors - Terminology, which helps in understanding terms related to door leaves and flatness.
• EN 16034 - Fire-resistant doorsets and openable windows, which relates to safety and performance aspects beyond flatness.

---

By adhering to EN 1530:1999, industry professionals can ensure the production and inspection of door leaves meet recognized European tolerance standards for flatness - a critical factor in achieving durable, functional, and visually acceptable doors. This standard plays a pivotal role in optimizing the quality control process, reducing installation issues, and enhancing overall door leaf reliability.

Standards Content (Sample)

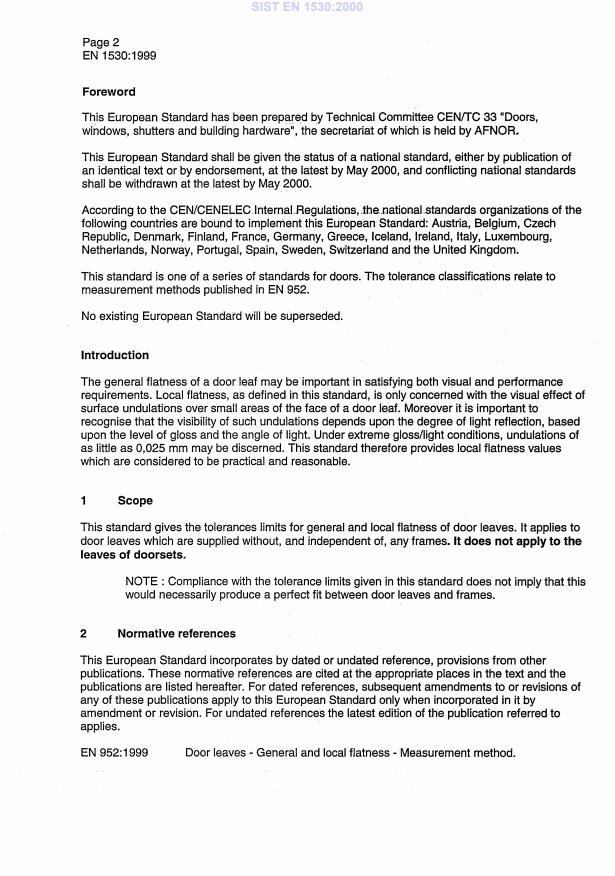

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Türblätter - Allgemeine und lokale Ebenheit - ToleranzklassenVantaux de portes - Planéité générale et planéité locale - Classes de tolérancesDoor leaves - General and
...
