EN IEC 61993-2:2018

Maritime navigation and radiocommunication equipment and systems - Automatic Identification Systems (AIS) - Part 2: Class A shipborne equipment of the automatic identification system (AIS) - Operational and performance requirements, methods of test and required test results

NEW!IEC 61993-2:2018 is available as IEC 61993-2:2018 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition. IEC 61993-2:2018 specifies the minimum operational and performance requirements, methods of testing and required test results conforming to performance standards adopted by IMO in Resolution MSC.74(69):1998, Annex 3. This document incorporates the applicable technical characteristics of Class A shipborne equipment included in Recommendation ITU-R M.1371 and takes into account the ITU Radio Regulations, where applicable. In addition, it takes account of IMO Resolution A.694(17) to which IEC 60945 is associated. When a requirement in this document is different from IEC 60945, the requirement of this document takes precedence. This document also specifies the minimum requirements both for the means to input and display data and for the interfaces to other equipment suitable to be used as means of input and display data. This third edition cancels and replaces the second edition published in 2012. This edition constitutes a technical revision. This edition includes the following technical changes with respect to the previous edition: a) it incorporates the technical characteristics included in Recommendation ITU R M.1371-5:2014; b) it introduces the concept of locating device groups in order to include EPIRB AIS and MOB AIS in addition to AIS SART; c) it adds security features for configuration input by introducing a new sentence SSA; d) it adds optional implementation of IEC 61162-450/460 interfaces; e) it adds requirements for bridge alert management (BAM); f) it introduces extended dimension values used by towing vessels; g) it adds a software update requirement.

Navigations- und Funkkommunikationsgeräte und -systeme für die Seeschifffahrt - Automatische Identifikationssysteme (AIS) - Teil 2: Geräte der Klasse A des universellen automatischen Identifikationssystems (AIS) für Schiffe - Betriebs- und Leistungsanforderungen, Prüfverfahren und geforderte Prüfergebnisse

Matériels et systèmes de navigation et de radiocommunication maritimes - Systèmes d'identification automatique (AIS) Partie 2: Équipements AIS de type Classe A embarqués - Exigences d'exploitation et de fonctionnement, méthodes d'essai et résultats d'essai exigés

NEW!IEC 61993-2:2018 est disponible sous forme de IEC 61993-2:2018 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente. L'IEC 61993-2:2018 spécifie les exigences minimales d'exploitation et de fonctionnement, les méthodes d'essai et les résultats d'essai exigés selon les normes de fonctionnement adoptées par l'OMI dans la Résolution MSC.74(69):1998, Annexe 3. Le présent document intègre les caractéristiques techniques applicables des équipements de bord de Classe A inclus dans la Recommandation UIT-R M.1371 et tient compte des Règlements des radiocommunications de l'UIT, le cas échéant. De plus, elle tient compte de la Résolution A.694(17) de l'OMI à laquelle l'IEC 60945 est associée. Si une exigence du présent document est différente de l'IEC 60945, cette exigence prévaut. Le présent document spécifie également les exigences minimales en matière d'entrée et d'affichage des données, et pour les interfaces avec d'autres matériels utilisables comme moyens d'entrée et d'affichage des données. Cette troisième édition annule et remplace la deuxième édition publiée en 2012. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) elle intègre les caractéristiques techniques incluses dans la Recommandation UIT R M.1371-5:2014; b) elle introduit le concept de localisation de groupes de dispositifs afin d'inclure EPIRB AIS et MOB AIS en plus d'AIS SART; c) elle ajoute des fonctions de sécurité pour l'entrée de configuration en introduisant une nouvelle sentence SSA; d) elle ajoute une mise en œuvre facultative des interfaces IEC 61162-450/460; e) elle ajoute des exigences en matière de gestion des alertes à la passerelle (BAM); f) elle introduit des valeurs de dimension étendues utilisées par les bateaux-remorqueurs; g) elle ajoute une exigence de mise à jour logicielle.

Pomorska navigacijska in radiokomunikacijska oprema in sistemi - Sistemi za avtomatično identifikacijo (AIS) - 2. del: Ladijska oprema razreda A sistema za avtomatično identifikacijo (AIS) - Operativne in tehnične zahteve, preskusne metode in pričakovani rezultati preskušanja (IEC 61993-2:2018)

Ta del standarda IEC 61993 določa minimalne operativne in izvedbene zahteve, preskusne metode in pričakovane rezultate preskušanja v skladu z izvedbenimi standardi, ki jih je sprejela Mednarodna pomorska organizacija v dodatku 3 k resoluciji MSC.74(69):1998. Ta dokument vključuje veljavne tehnične lastnosti ladijske opreme razreda A, ki je zajeta v priporočilu ITU-R M.1371, in upošteva pravilnik ITU o radiokomunikacijah, kadar je to primerno. Poleg tega je upoštevana Resolucija Mednarodne pomorske organizacije A.694(17), s katero je povezan standard IEC 60945. Če se zahteva iz tega dokumenta razlikuje od zahteve iz standarda IEC 60945, velja zahteva iz tega dokumenta.
Ta dokument določa tudi minimalne zahteve za sredstva za vnos in prikaz podatkov ter vmesnike za drugo opremo, ki se lahko uporabljajo kot sredstva za vnos in prikaz podatkov.
OPOMBA: Celotno besedilo tega dokumenta, ki je enako besedilu v dodatku 3 k resoluciji MSC.74(69):1998 Mednarodne pomorske organizacije ali priporočilu ITU-R M.1371, je natisnjeno s poševno pisavo, sklici na resolucijo (krajše A3) ali priporočilo (krajše M.1371) in številke odstavkov pa so navedeni v oklepajih, npr. (A3/3.3) oziroma (M.1371-5/A2-3.3).

General Information

• Status: Published
• Publication Date: 25-Oct-2018
• Withdrawal Date: 22-Aug-2021
• ICS: 47.020.70 - Navigation and control equipment
• Technical Committee: CLC/SR 80 - Maritime navigation and radiocommunication equipment and systems
• Drafting Committee: IEC/TC 80 - IEC_TC_80
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 26-Oct-2018
• Completion Date: 26-Oct-2018
• Ref Project: SIST EN IEC 61993-2:2019 - Maritime navigation and radiocommunication equipment and systems - Automatic Identification Systems (AIS) - Part 2: Class A shipborne equipment of the automatic identification system (AIS) - Operational and performance requirements, methods of test and required test results (IEC 61993-2:2018)

Relations

• Replaces: EN 61993-2:2013 - Maritime navigation and radiocommunication equipment and systems - Automatic Identification Systems (AIS) - Part 2: Class A shipborne equipment of the automatic identification system (AIS) - Operational and performance requirements, methods of test and required test results
• Effective Date: 17-May-2016

Overview

EN IEC 61993-2:2018 (identical to IEC 61993-2:2018) defines the minimum operational and performance requirements, test methods, and required test results for Class A shipborne Automatic Identification System (AIS) equipment. It implements the performance standards adopted by IMO (MSC.74(69):1998, Annex 3), incorporates ITU and IMO technical characteristics, and specifies minimum requirements for input/display means and interfaces to other shipborne equipment. The 2018/2019 edition is a technical revision and is published as an RLV (Redline) version showing changes from the previous edition.

Key technical topics and requirements

• Scope & compliance
  • Conformance to IMO Resolution MSC.74(69) and alignment with ITU-R Recommendation M.1371.
  • Where conflicts with IEC 60945 exist, this document takes precedence.
• Performance requirements and tests
  • Operational performance, timing and position reporting, transmitter/receiver characteristics, and required test results.
  • Built-in test equipment (BITE), status messages, fall-back arrangements and event logging.
• User interface, data input & display
  • Minimum Keyboard and Display (MKD) requirements and data protection.
  • Requirements for automatic sensor data input and communication tests.
• Interfacing and protocols
  • Interfaces to other shipborne systems, including optional implementation of IEC 61162-450/460 (Ethernet-based multiple talkers/listeners with safety/security).
• Security & maintenance
  • New security sentence (SSA) for configuration input.
  • Software update requirements and quality assurance provisions.
• New and extended features (Edition 3)
  • Incorporates ITU‑R M.1371‑5:2014 technical characteristics.
  • Introduces locating device groups (EPIRB AIS, MOB AIS, AIS SART).
  • Adds Bridge Alert Management (BAM) requirements and extended dimension values (towing vessels).

Practical applications and who uses this standard

• Equipment manufacturers: design, test and certify Class A AIS transceivers and display units to meet regulatory performance and interface requirements.
• Shipbuilders & integrators: ensure AIS installations meet IMO/ITU interoperability and display/input requirements.
• Testing laboratories & certification bodies: apply prescribed methods of test and required test results for product certification and type approval.
• Classification societies & flag administrations: reference for compliance checks and statutory certification.
• Naval architects & system engineers: integrate AIS with bridge systems, GNSS, radar and Bridge Alert Management.

Related standards and references

• IMO Resolution MSC.74(69) (AIS performance standards)
• ITU‑R Recommendation M.1371 (AIS technical characteristics)
• IEC 60945 (general marine equipment requirements) - note: this standard takes precedence where differences occur
• IEC 61162 series (digital interfaces), including optional IEC 61162‑450/460

This standard is essential for ensuring AIS Class A interoperability, regulatory compliance, safe bridge operation, and robust integration with modern shipborne networks. Keywords: EN IEC 61993-2:2018, IEC 61993-2:2018, Class A AIS, automatic identification system, AIS performance requirements, IMO MSC.74(69).

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2019
1DGRPHãþD
SIST EN 61993-2:2013
3RPRUVNDQDYLJDFLMVNDLQUDGLRNRPXQLNDFLMVNDRSUHPDLQVLVWHPL6LVWHPL]D
DYWRPDWLþQRLGHQWLILNDFLMR$,6GHO/DGLMVNDRSUHPDUD]UHGD$VLVWHPD]D
DYWRPDWLþQRLGHQWLILNDFLMR$,62SHUDWLYQHLQWHKQLþQH]DKWHYHSUHVNXVQH
PHWRGHLQSULþDNRYDQLUH]XOWDWLSUHVNXãDQMD,(&
Maritime navigation and radiocommunication equipment and systems - Automatic
Identification Systems (AIS) - Part 2: Class A shipborne equipment of the automatic
identification system (AIS) - Operational and performance requirements, methods of test
and required test results (IEC 61993-2:2018)
Navigations- und Funkkommunikationsgeräte und -systeme für die Seeschifffahrt -
Automatische Identifikationssysteme (AIS) - Teil 2: Geräte der Klasse A des universellen
automatischen Identifikationssystems (AIS) für Schiffe - Betriebs- und
Leistungsanforderungen, Prüfverfahren und geforderte Prüfergebnisse (IEC 61993-
2:2018)
Matériels et systèmes de navigation et de radiocommunications maritimes - Systèmes
d'identification automatique (AIS) - Partie 2: Equipements AIS de type Classe A
embarqués - Exigences d'exploitation et de fonctionnement, méthodes d'essai et
résultats d'e (IEC 61993-2:2018)
Ta slovenski standard je istoveten z: EN IEC 61993-2:2018
ICS:
47.020.70 Navigacijska in krmilna Navigation and control
oprema equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61993-2

NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2018
ICS 47.020.70 Supersedes EN 61993-2:2013
English Version
Maritime navigation and radiocommunication equipment and
systems - Automatic Identification Systems (AIS) - Part 2: Class
A shipborne equipment of the automatic identification system
(AIS) - Operational and performance requirements, methods of
test and required test results
(IEC 61993-2:2018)
Matériels et systèmes de navigation et de Navigations- und Funkkommunikationsgeräte und -systeme
radiocommunication maritimes - Systèmes d'identification für die Seeschifffahrt - Automatische Identifikationssysteme
automatique (AIS) Partie 2: Équipements AIS de type (AIS) - Teil 2: Geräte der Klasse A des universellen
Classe A embarqués - Exigences d'exploitation et de automatischen Identifikationssystems (AIS) für Schiffe -
fonctionnement, méthodes d'essai et résultats d'essai Betriebs- und Leistungsanforderungen, Prüfverfahren und
exigés geforderte Prüfergebnisse
(IEC 61993-2:2018) (IEC 61993-2:2018)
This European Standard was approved by CENELEC on 2018-08-23. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61993-2:2018 E

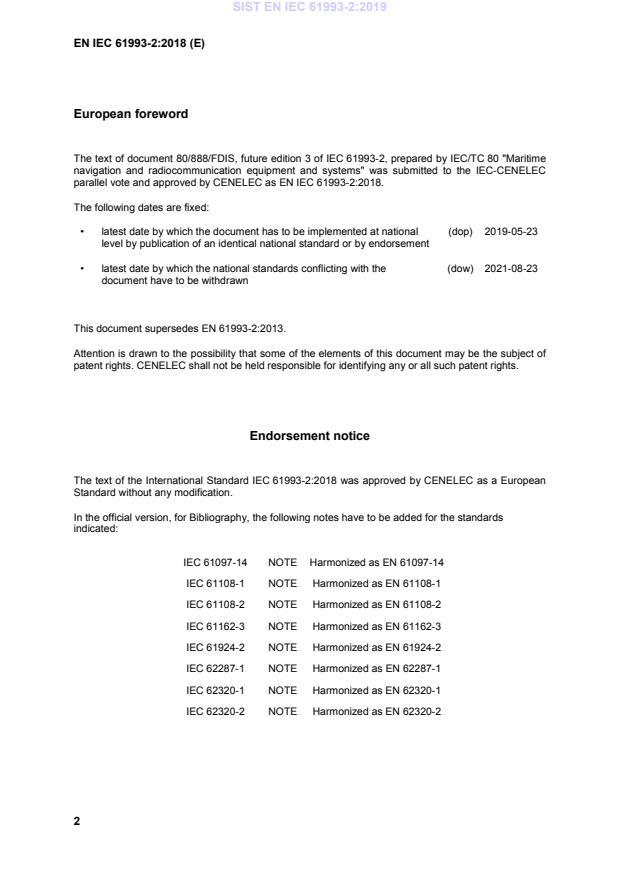

European foreword
