HD 60364-7-709:2009/A1:2012

Low-voltage electrical installations - Part 7-709: Requirements for special installations or locations - Marinas and similar locations

2012-02-24: Publication editing allocated to [e-mail]

Errichten von Niederspannungsanlagen - Teil 7-709: Anforderungen für Betriebsstätten, Räume und Anlagen besonderer Art - Marinas und ähnliche Bereiche

Installations électriques à basse tension - Partie 7-709: Exigences pour les installations et emplacements spéciaux - Marinas et emplacements analogues

Nizkonapetostne električne inštalacije - 7-709. del: Zahteve za posebne inštalacije ali lokacije - Marine in podobne lokacije - Dopolnilo A1 (IEC 60364-7-709:2007/A1:2012)

Posebne zahteve, opredeljene v tem delu standarda HD 60364, se uporabljajo samo za tokokroge, namenjene za plovila za prosti čas ali bivalna plovila v marinah in na podobnih lokacijah.

General Information

• Status: Published
• Publication Date: 26-Apr-2012
• Withdrawal Date: 20-Mar-2015
• ICS: 29.020 - Electrical engineering in general
• ICS: 91.140.50 - Electricity supply systems
• Technical Committee: CLC/TC 64 - Electrical installations and protection against electric shock
• Drafting Committee: CLC/TC 64/WG 20 - Caravans, caravan parks and marinas
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 27-Apr-2012
• Completion Date: 27-Apr-2012
• Ref Project: SIST HD 60364-7-709:2009/A1:2012 - Low-voltage electrical installations - Part 7-709: Requirements for special installations or locations - Marinas and similar locations

Relations

• Amends: HD 60364-7-709:2009 - Low-voltage electrical installations - Part 7-709: Requirements for special installations or locations - Marinas and similar locations
• Effective Date: 28-Jan-2023
• Corrected By: HD 60364-7-709:2009/A1:2012/AC:2012 - Low-voltage electrical installations - Part 7-709: Requirements for special installations or locations - Marinas and similar locations
• Effective Date: 28-Jan-2023
• Revised: HD 60364-7-709:2009/A12:2019 - Low-voltage electrical installations - Part 7-709: Requirements for special installations or locations - Harbours, marinas and similar locations - Special requirements for shore supply to ships
• Effective Date: 10-May-2016

Overview

HD 60364-7-709:2009/A1:2012 is a CENELEC harmonization document and IEC amendment focused on low‑voltage electrical installations for marinas and similar locations. It amends HD 60364-7-709:2009 (IEC 60364-7-709) to clarify and update requirements tailored to the wet, corrosive and variable‑load environments of boat berths, pontoons and marina shore‑power installations. The amendment (A1) was approved in 2012 and is binding for CENELEC members unless national deviations apply.

Key topics and technical requirements

• Scope: Requirements for special installations or locations - specifically marinas and analogous locations where boats connect to shore power.
• Residual current protective devices (RCDs): The amendment updates RCD protection rules for socket‑outlets:
  • Every socket‑outlet with a rated current up to 63 A shall be individually protected by an RCD with a rated residual operating current not exceeding 30 mA, and the RCD must disconnect all poles including the neutral.
  • Every socket‑outlet with a rated current above 63 A shall be individually protected by an RCD with a rated residual operating current not exceeding 300 mA, also disconnecting all poles including the neutral.
  • Selectivity considerations (e.g., Type S RCDs) should be taken into account to ensure coordination between upstream and downstream protection.
• Harmonization and national conditions: Annex ZA/ZB describe special national conditions and permitted deviations (examples include Germany, The Netherlands, Spain) that affect implementation at national level.
• Safety focus areas: While the amendment explicitly revises RCD requirements, the standard set addresses broader marina safety topics such as protection against electric shock, earthing and bonding practices, and installation rules suited to marine environments.

Practical applications

• Designing and specifying shore‑power outlets, distribution boards and berth socket‑outlets in marinas, yacht clubs and ports.
• Electrical installation and commissioning in boat berths, floating pontoons and marina service pedestals where residual current protection and pole‑disconnection requirements are critical.
• Creating procurement specs for RCDs and protective devices to meet marina safety requirements and ensure selectivity.
• Compliance checks, safety inspections and acceptance testing by marina owners, electrical contractors and certification bodies.

Who uses this standard

• Electrical designers and consulting engineers for marine and waterfront projects
• Installation contractors and electricians working on berths and shore power
• Marina operators, port authorities and facility managers
• Manufacturers and suppliers of RCDs, shore‑power equipment and distribution units
• National standards bodies implementing CENELEC/IEC requirements

Related standards

• Other parts of the IEC/HD 60364 series covering general low‑voltage installation rules and other special locations.
• National electrical regulations and maritime port construction standards that may reference or deviate from HD 60364‑7‑709.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2012
1L]NRQDSHWRVWQHHOHNWULþQHLQãWDODFLMHGHO=DKWHYH]DSRVHEQHLQãWDODFLMH
DOLORNDFLMH0DULQHLQSRGREQHORNDFLMH'RSROQLOR$,(&
$
Low-voltage electrical installations - Part 7-709: Requirements for special installations or
locations - Marinas and similar locations
Errichten von Niederspannungsanlagen - Teil 7-709: Anforderungen für Betriebsstätten,
Räume und Anlagen besonderer Art - Marinas und ähnliche Bereiche
Installations électriques à basse tension - Partie 7-709: Exigences pour les installations
et emplacements spéciaux - Marinas et emplacements analogues
Ta slovenski standard je istoveten z: HD 60364-7-709:2009/A1:2012
ICS:
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
93.140 *UDGQMDYRGQLKSRWLLQ Construction of waterways
SULVWDQLãþ and ports
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

HARMONIZATION DOCUMENT
HD 60364-7-709/A1
DOCUMENT D'HARMONISATION
April 2012
HARMONISIERUNGSDOKUMENT
ICS 29.020; 91.140.50
English version
Low-voltage electrical installations -
Part 7-709: Requirements for special installations or locations -
Marinas and similar locations
(IEC 60364-7-709:2007/A1:2012)

Installations électriques à basse tension - Errichten von Niederspannungsanlagen -
Partie 7-709: Exigences pour les Teil 7-709: Anforderungen für
installations et emplacements spéciaux - Betriebsstätten, Räume und Anlagen
Marinas et emplacements analogues besonderer Art -
(CEI 60364-7-709:2007/A1:2012) Marinas und ähnliche Bereiche
(IEC 60364-7-709:2007/A1:2012)

This amendment A1 modifies the Harmonization Document HD 60364-7-709:2009; it was approved by
CENELEC on 2012-03-21. CENELEC members are bound to comply with the CEN/CENELEC Internal
Regulations which stipulate the conditions for implementation of this amendment at national level.

Up-to-date lists and bibliographical references concerning such national implementations may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German).

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. HD 60364-7-709:2009/A1:2012 E

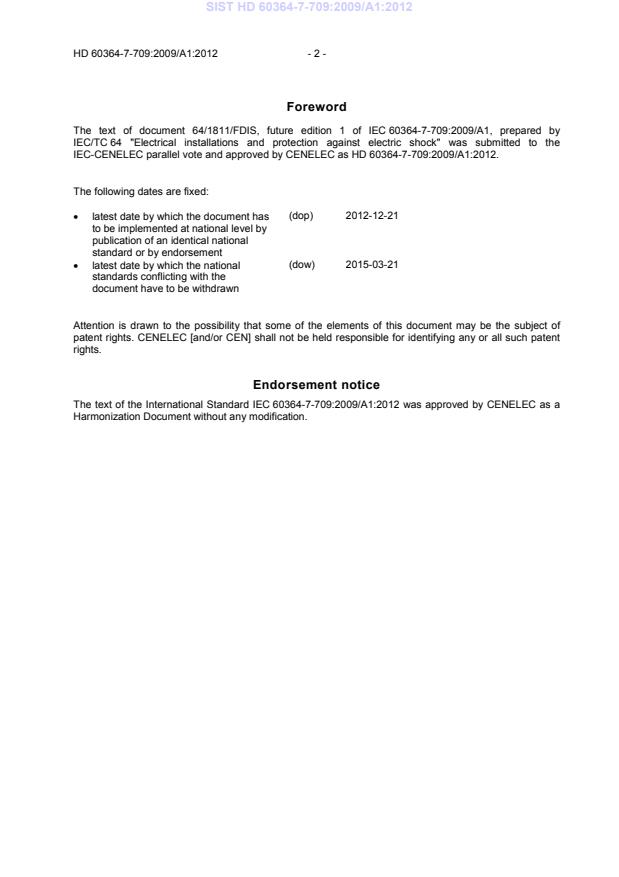

Foreword
The text of document 64/1811/FDIS, future edition 1 of IEC 60364-7-709:2009/A1, prepared by
IEC/TC 64 "Electrical installations and protection against electric shock" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as HD 60364-7-709:2009/A1:2012.

The following dates are fixed:
(dop) 2012-12-21
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2015-03-21

standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 60364-7-709:2009/A1:2012 was approved by CENELEC as a
Harmonization Document without any modification.

- 3 - HD 60364-7-709:2009/A1:2012

Annex ZA
(normative)
Special national conditions
Special national condition: National characteristic or practice that cannot be cha
...
