EN IEC 61784-2-6:2023
(Main)Industrial networks - Profiles - Part 2-6: Additional real-time fieldbus profiles based on ISO/IEC/IEEE 8802-3 - CPF 6
Industrial networks - Profiles - Part 2-6: Additional real-time fieldbus profiles based on ISO/IEC/IEEE 8802-3 - CPF 6
IEC 61784-2-6:2023 defines extensions of Communication Profile Family 6 (CPF 6) for Real-Time Ethernet (RTE). CPF 6 specifies a set of Real-Time Ethernet (RTE) communication profiles (CPs) and related network components based on the IEC 61158 series (Type 8 and Type 10), ISO/IEC/IEEE 8802-3 and other standards.
Industrielle Kommunikationsnetze - Profile - Teil 2-6: Zusätzliche Feldbusprofile für Echtzeitnetzwerke basierend auf ISO/IEC/IEEE 8802-3 - Kommunikationsprofilfamilie (CPF) 6
Réseaux industriels - Profils - Partie 2-6: Profils de bus de terrain supplémentaires pour les réseaux en temps réel fondés sur lISO/IEC/IEEE 8802-3 - CPF 6
L’IEC 61784-2-6:2023 définit les extensions de la famille de profils de communication 6 (CPF 6) pour l’Ethernet en temps réel (RTE). La CPF 6 spécifie un ensemble de profils de communication (CP) Ethernet en temps réel (RTE, Real-Time Ethernet) et de composants de réseau associés basés sur la série IEC 61158 (type 8 et type 10), l’ISO/IEC/IEEE 8802-3 et d’autres normes.
Industrijska omrežja - Profili - 2-6. del: Dodatni profili procesnih vodil v realnem času po ISO/IEC/IEEE 8802-3 - CPF 6 (IEC 61784-2-6:2023)
Ta del standarda IEC 61784-2 določa razširitve družine komunikacijskih profilov 6 (CPF 6) za Real-Time Ethernet (RTE). Družina komunikacijskih profilov 6 določa sklop komunikacijskih profilov (CP) Real-Time Ethernet (RTE) in povezanih omrežnih komponent na osnovi skupine standardov IEC 61158 (tip 8 in tip 10), standarda ISO/IEC/IEEE 8802-3 in drugih standardov.
Za vsak komunikacijski profil RTE ta dokument določa tudi povezane kazalnike uspešnosti RTE in odvisnosti med temi kazalniki uspešnosti RTE.
OPOMBA 1: Vsi komunikacijski profili temeljijo na standardih ali osnutkih standardov ali mednarodnih standardih, ki jih je objavila komisija IEC, oziroma na standardih ali mednarodnih standardih, ki so jih določili drugi organi za standarde ali procesi odprtih standardov.
OPOMBA 2: Komunikacijski profili RTE uporabljajo komunikacijska omrežja v skladu s standardom ISO/IEC 8802-3 in z njimi povezane omrežne komponente ter v nekaterih primerih za pridobitev funkcij RTE te standarde spremenijo.
OPOMBA 3: Nekateri komunikacijski profili iz družine komunikacijskih profilov 6 so določeni v standardu IEC 61784-1-6.
General Information
Relations
Standards Content (Sample)

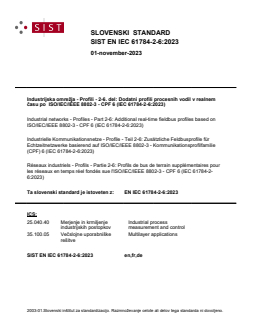

SLOVENSKI STANDARD
01-november-2023
Industrijska omrežja - Profili - 2-6. del: Dodatni profili procesnih vodil v realnem
času po ISO/IEC/IEEE 8802-3 - CPF 6 (IEC 61784-2-6:2023)
Industrial networks - Profiles - Part 2-6: Additional real-time fieldbus profiles based on
ISO/IEC/IEEE 8802-3 - CPF 6 (IEC 61784-2-6:2023)
Industrielle Kommunikationsnetze - Profile - Teil 2-6: Zusätzliche Feldbusprofile für
Echtzeitnetzwerke basierend auf ISO/IEC/IEEE 8802-3 - Kommunikationsprofilfamilie
(CPF) 6 (IEC 61784-2-6:2023)
Réseaux industriels - Profils - Partie 2-6: Profils de bus de terrain supplémentaires pour
les réseaux en temps réel fondés sue l'ISO/IEC/IEEE 8802-3 - CPF 6 (IEC 61784-2-
6:2023)
Ta slovenski standard je istoveten z: EN IEC 61784-2-6:2023
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.100.05 Večslojne uporabniške Multilayer applications
rešitve
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 61784-2-6
NORME EUROPÉENNE
EUROPÄISCHE NORM May 2023
ICS 35.240.50; 35.100.20 Supersedes EN IEC 61784-2:2019 (partially)
English Version
Industrial networks - Profiles - Part 2-6: Additional real-time
fieldbus profiles based on ISO/IEC/IEEE 8802-3 - CPF 6
(IEC 61784-2-6:2023)
Réseaux industriels - Profils - Partie 2-6: Profils de bus de Industrielle Kommunikationsnetze - Profile - Teil 2-6:
terrain supplémentaires pour les réseaux en temps réel Zusätzliche Feldbusprofile für Echtzeitnetzwerke basierend
fondés sue l'ISO/IEC/IEEE 8802-3 - CPF 6 auf ISO/IEC/IEEE 8802-3 - Kommunikationsprofilfamilie
(IEC 61784-2-6:2023) (CPF) 6
(IEC 61784-2-6:2023)
This European Standard was approved by CENELEC on 2023-05-04. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61784-2-6:2023 E

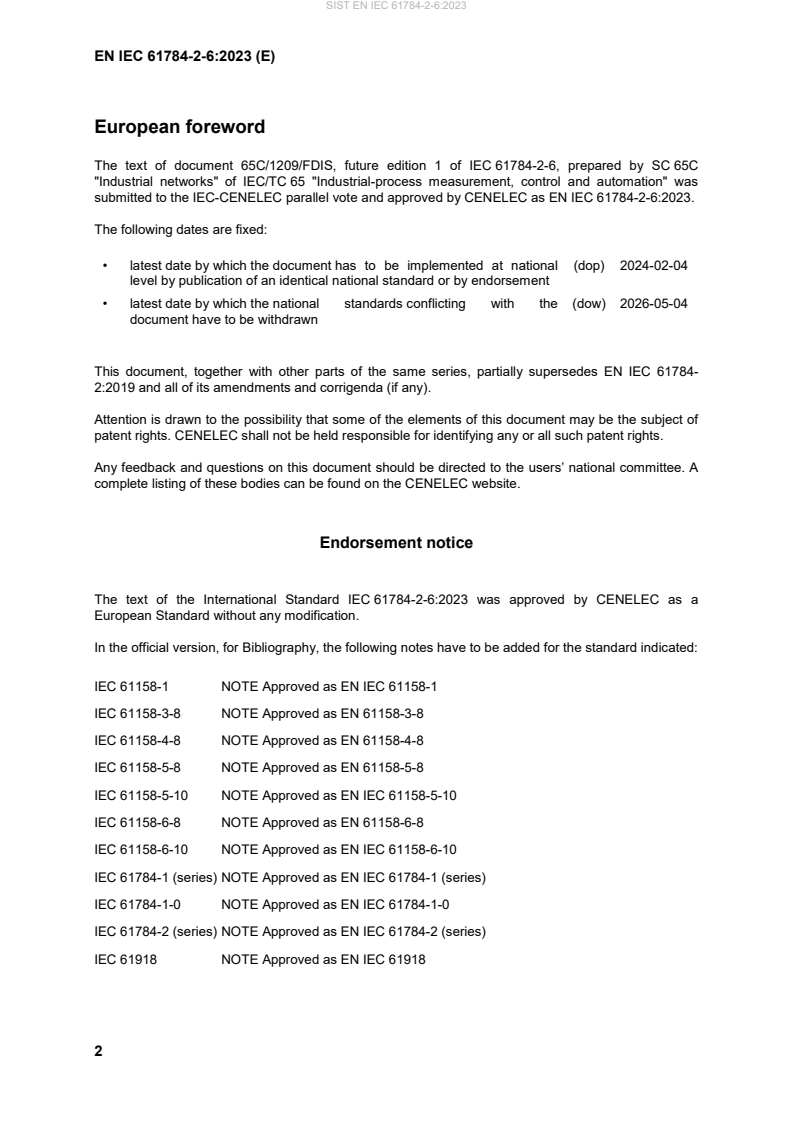

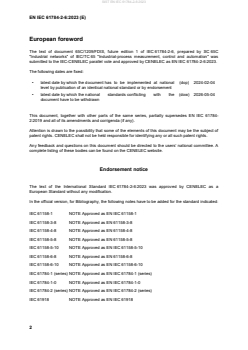

European foreword
The text of document 65C/1209/FDIS, future edition 1 of IEC 61784-2-6, prepared by SC 65C
"Industrial networks" of IEC/TC 65 "Industrial-process measurement, control and automation" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61784-2-6:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-02-04
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-05-04
document have to be withdrawn
This document, together with other parts of the same series, partially supersedes EN IEC 61784-
2:2019 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61784-2-6:2023 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 61158-1 NOTE Approved as EN IEC 61158-1
IEC 61158-3-8 NOTE Approved as EN 61158-3-8
IEC 61158-4-8 NOTE Approved as EN 61158-4-8
IEC 61158-5-8 NOTE Approved as EN 61158-5-8
IEC 61158-5-10 NOTE Approved as EN IEC 61158-5-10
IEC 61158-6-8 NOTE Approved as EN 61158-6-8
IEC 61158-6-10 NOTE Approved as EN IEC 61158-6-10
IEC 61784-1 (series) NOTE Approved as EN IEC 61784-1 (series)
IEC 61784-1-0 NOTE Approved as EN IEC 61784-1-0
IEC 61784-2 (series) NOTE Approved as EN IEC 61784-2 (series)
IEC 61918 NOTE Approved as EN IEC 61918
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 61158 series Industrial communication networks - EN IEC 61158 series
Fieldbus specifications
IEC 61158-2 2023 Industrial communication networks - EN IEC 61158-2 2023
Fieldbus specifications - Part 2: Physical
layer specification and service definition
IEC 61784-1-6 2023 Industrial networks - Profiles - Part 1-6: EN IEC 61784-1-6 2023
Fieldbus profiles - Communication Profile
Family 6
IEC 61784-2-0 2023 Industrial networks - Profiles - Part 2-0: EN IEC 61784-2-0 2023
Additional real-time fieldbus profiles based
on ISO/IEC/IEEE 8802-3 - General
concepts and terminology
IEC 61784-2-3 2023 Industrial networks - Profiles - Part 2-3: EN IEC 61784-2-3 2023
Additional real-time fieldbus profiles based
on ISO/IEC/IEEE 8802-3 - CPF 3
IEC 61784-5-3 - Industrial communication networks - EN IEC 61784-5-3 -
Profiles - Part 5-3: Installation of fieldbuses
- Installation profiles for CPF 3
IEC 61784-5-6 - Industrial communication networks - EN IEC 61784-5-6 -
Profiles - Part 5-6: Installation of fieldbuses
- Installation profiles for CPF 6
ISO/IEC/IEEE 8802-3 - Telecommunications and exchange - -
between information technology systems -
Requirements for local and metropolitan
area networks - Part 3: Standard for
Ethernet
IEEE Std 802 2014 IEEE Standard for Local and metropolitan - -
area networks: Overview and Architecture
IEEE Std 802.1AB 2016 IEEE Standard for Local and metropolitan - -
area networks: Station and Media Access
Control Connectivity Discovery
IEEE Std 802.1AS 2020 IEEE standard for Local and metropolitan - -
area networks - Timing and
Synchronization for Time-Sensitive
Applications
IEEE Std 802.1Q 2018 IEEE Standard for Local and metropolitan - -
area networks - Bridges and Bridged
Networks
IETF RFC 1157 1990 Simple Network Management Protocol - -
(SNMP)
IETF RFC 1213 1991 Management Information Base for Network - -
Management of TCP/IP-based Internets:
MIB-II
IETF RFC 768 1980 User Datagram Protocol - -
IETF RFC 791 1981 Internet Protocol - -
IETF RFC 792 1981 Internet Control Message Protocol - -
IETF RFC 793 1981 Transmission Control Protocol - -
IEC 61784-2-6 ®
Edition 1.0 2023-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Industrial networks – Profiles –
Part 2-6: Additional real-time fieldbus profiles based on ISO/IEC/IEEE 8802-3 –
CPF 6
Réseaux industriels – Profils –
Partie 2-6: Profils de bus de terrain supplémentaires pour les réseaux en temps
réel fondés sur l’ISO/IEC/IEEE 8802-3 – CPF 6
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 35.100.20; 35.240.50 ISBN 978-2-8322-6694-6
– 2 – IEC 61784-2-6:2023 © IEC 2023
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, abbreviated terms, acronyms, and conventions . 7
3.1 Terms and definitions . 7
3.2 Abbreviated terms and acronyms . 8
3.3 Symbols . 8
3.4 Conventions . 8
4 CPF 6 (INTERBUS®) – RTE communication profiles . 9
4.1 General overview . 9
4.2 CP 6/4 . 10
4.2.1 Mapping . 10
4.2.2 Type 10 service and protocol selection . 11
4.2.3 Type 8 service and protocol selection . 12
4.2.4 Performance indicator selection . 12
4.3 CP 6/5 . 13
4.3.1 Mapping . 13
4.3.2 Type 10 service and protocol selection . 13
4.3.3 Type 8 service and protocol selection . 14
4.3.4 Performance indicator selection . 14
4.4 CP 6/6 . 14
4.4.1 Mapping . 14
4.4.2 Type 10 service and protocol selection . 14
4.4.3 Type 8 service and protocol selection . 15
4.4.4 Performance indicator selection . 15
Bibliography . 16
Figure 1 – Linking-device communication profiles RTE-network context . 9
Figure 2 – Linking-device mapping principle. 10
Figure 3 – Data Mapping . 11
Table 1 – CPF 6 symbols . 8
Table 2 – CPF 6: device CP identifier assignment . 10
Table 3 – Linking-device Type 10 network PI overview . 12
IEC 61784-2-6:2023 © IEC 2023 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL NETWORKS –
PROFILES –
Part 2-6: Additional real-time fieldbus profiles
based on ISO/IEC/IEEE 8802-3 –
CPF 6
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization f
...
