EN 61158-5-16:2008

Industrial communication networks - Fieldbus specifications - Part 5-16: Application layer service definition - Type 16 elements

It provides user programs with a means to access the fieldbus communication environment. In this respect, the FAL can be viewed as a 'window between corresponding application programs.' This standard provides common elements for basic time-critical and non-time-critical messaging communications between application programs in an automation environment and material specific to Type 16 fieldbus. The term 'time-critical' is used to represent the presence of a time-window, within which one or more specified actions are required to be completed with some defined level of certainty. Failure to complete specified actions within the time window risks failure of the applications requesting the actions, with attendant risk to equipment, plant and possibly human life. It includes the following significant changes with respect to the previous edition deletion of the former Type 6 fieldbus, and the placeholder for a Type 5 fieldbus data-link layer, for lack of market relevance; addition of new types of fieldbuses; division of this part into multiple parts numbered.

Industrielle Kommunikationsnetze - Feldbusse - Teil 5-16: Dienstfestlegungen des Application Layer (Anwendungsschicht) - Typ 16-Elemente

Réseaux de communication industriels - Spécifications des bus de terrain - Partie 5-16: Définition des services des couches d'application - Eléments de type 16

L'IEC 61158-5-16:2007 définit les services fournis à l'utilisateur de FAL à la frontière entre l'utilisateur et la couche application du modèle de référence du bus de terrain, et la gestion des systèmes au niveau de la frontière entre la couche application et la gestion des systèmes selon le modèle de référence de bus de terrain. Elle spécifie la structure et les services de la couche application des bus de terrain, en conformité avec le Modèle de référence de base de l'OSI (ISO/CEI 7498) et la Structure de la couche application de l'OSI (ISO/CEI 9545). Cette première édition et les autres normes de la sous-série CEI 61158-5 annulent et remplacent la CEI 61158 5:2003. La présente édition de cette partie constitue un supplément technique. Cette partie et ses parties compagnes Type 16 remplacent aussi partiellement la CEI 61491:2002 qui est actuellement en cours de révision. La CEI 61491 sera éditée sous la forme d'un rapport technique. Elle comprend les changements suivants: suppression du précédent bus de terrain Type 6 en raison du manque de pertinence commerciale; ajout de nouveaux types de bus de terrain; division de la partie 5 de la troisième édition en parties multiples numérotées 5 2, 5 3, La présente version bilingue (2014-06) correspond à la version anglaise monolingue publiée en 2007-12.

Industrijska komunikacijska omrežja - Specifikacije za procesno vodilo - 5-16. del: Definicija opravil na aplikacijskem nivoju - Elementi tipa 16 (IEC 61158-5-16:2007)

General Information

• Status: Published
• Publication Date: 13-Mar-2008
• Withdrawal Date: 31-Jan-2011
• ICS: 25.040.40 - Industrial process measurement and control
• ICS: 35.100.70 - Application layer
• Technical Committee: CLC/TC 65X - Industrial-process measurement, control and automation
• Drafting Committee: IEC/SC 65C - IEC_SC_65C
• Parallel Committee: IEC/SC 65C - IEC_SC_65C
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 14-Mar-2008
• Completion Date: 14-Mar-2008
• Mandate: M/490 - Standardisation mandate to the European Standardisation Organisations (ESOs) to support European Smart Grid deployment
• Ref Project: SIST EN 61158-5-16:2008 - Industrial communication networks - Fieldbus specifications - Part 5-16: Application layer service definition - Type 16 elements

Relations

• Replaces: EN 61158-5:2004 - Digital data communication for measurement and control - Fieldbus for use in industrial control systems - Part 5: Application layer service definition
• Effective Date: 29-Jan-2023
• Replaces: EN 61491:1998 - Electrical equipment of industrial machines - Serial data link for real-time communication between controls and drives
• Effective Date: 28-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 61158-5-16:2008
01-julij-2008
1DGRPHãþD
SIST EN 61158-5:2004
SIST EN 61491:2001
Industrijska komunikacijska omrežja - Specifikacije za procesno vodilo - 5-16. del:
Definicija opravil na aplikacijskem nivoju - Elementi tipa 16 (IEC 61158-5-16:2007)
Industrial communication networks - Fieldbus specifications - Part 5-16: Application layer
service definition - Type 16 elements
Industrielle Kommunikationsnetze - Feldbusse - Teil 5-16: Dienstfestlegungen des
Application Layer (Anwendungsschicht) - Typ 16-Elemente
Réseaux de communication industriels - Spécifications des bus de terrain - Partie 5-16:
Définition des services des couches d'application - Eléments de type 16
Ta slovenski standard je istoveten z: EN 61158-5-16:2008
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.100.70 Uporabniški sloj Application layer
35.110 Omreževanje Networking
SIST EN 61158-5-16:2008 en,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 61158-5-16:2008

---------------------- Page: 2 ----------------------

SIST EN 61158-5-16:2008


EUROPEAN STANDARD
EN 61158-5-16

NORME EUROPÉENNE
March 2008
EUROPÄISCHE NORM

ICS 35.100.70; 25.040.40 Partially supersedes EN 61158-5:2004


English version


Industrial communication networks -
Fieldbus specifications -
Part 5-16: Application layer service definition -
Type 16 elements
(IEC 61158-5-16:2007)


Réseaux de communication industriels -  Industrielle Kommunikationsnetze -
Spécifications des bus de terrain - Feldbusse -
Partie 5-16: Définition des services Teil 5-16: Dienstfestlegungen
des couches d'application - des Application Layer
Eléments de type 16 (Anwendungsschicht) -
(CEI 61158-5-16:2007) Typ 16-Elemente
(IEC 61158-5-16:2007)




This European Standard was approved by CENELEC on 2008-02-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels


© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61158-5-16:2008 E

---------------------- Page: 3 ----------------------

SIST EN 61158-5-16:2008
EN 61158-5-16:2008 - 2 -

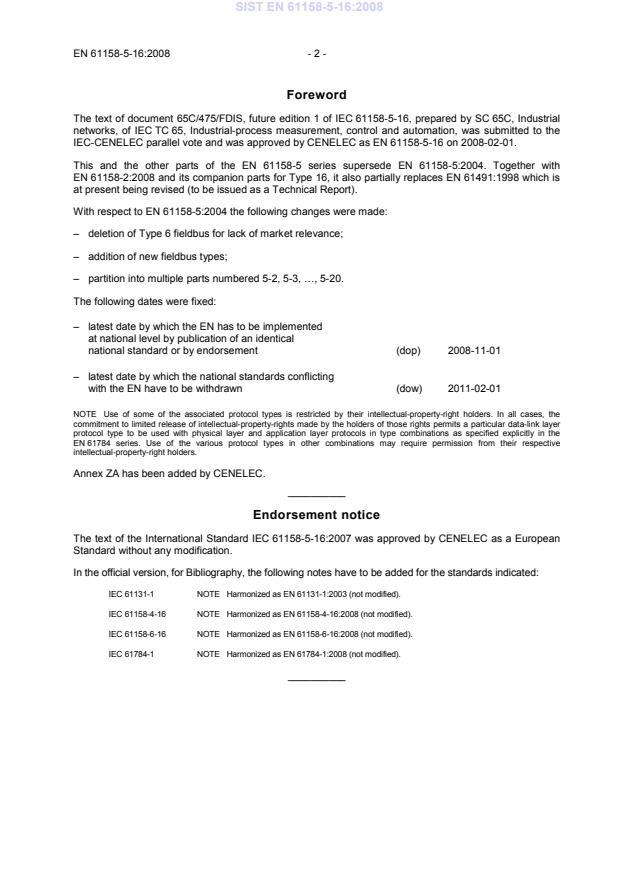

Foreword
