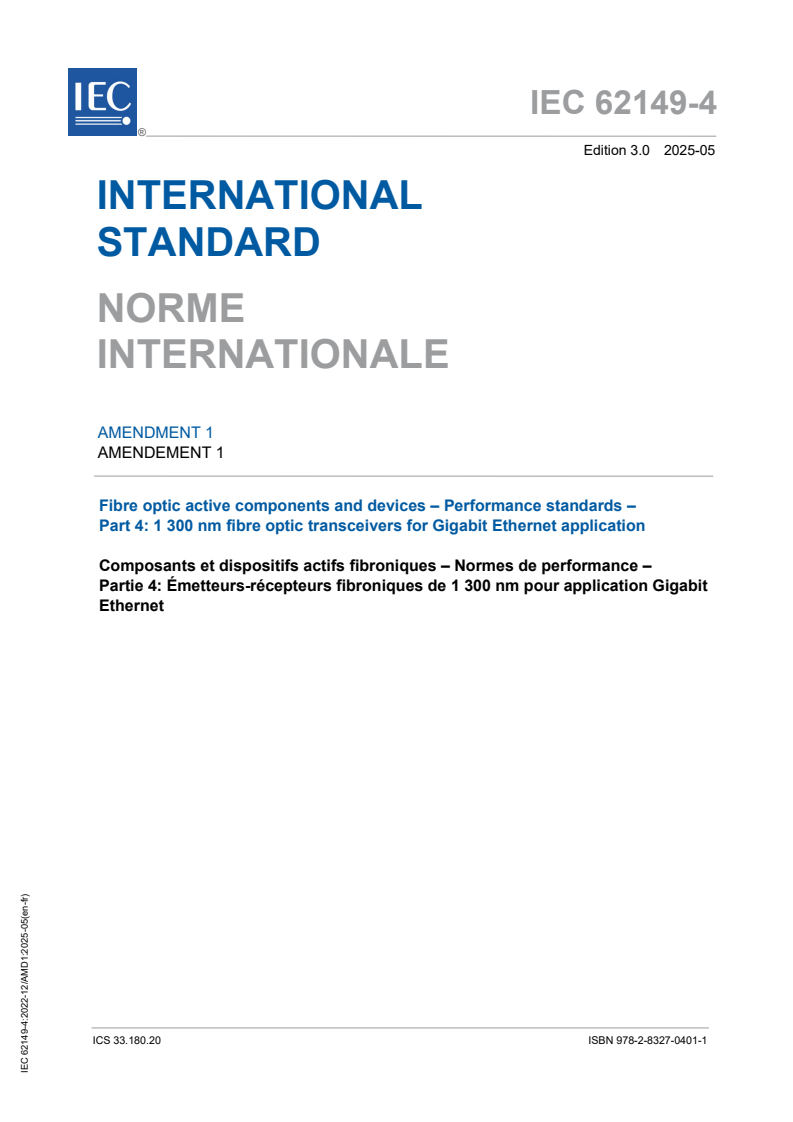

IEC 62149-4 ®
Edition 3.0 2025-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Fibre optic active components and devices – Performance standards –
Part 4: 1 300 nm fibre optic transceivers for Gigabit Ethernet application
Composants et dispositifs actifs fibroniques – Normes de performance –
Partie 4: Émetteurs-récepteurs fibroniques de 1 300 nm pour application Gigabit
Ethernet
ICS 33.180.20 ISBN 978-2-8327-0401-1
IEC 62149-4:2022-12/AMD1:2025-05(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications gratuitement tous les aperçus des publications, symboles
IEC en utilisant différents critères (numéro de référence, graphiques et le glossaire. Avec un abonnement, vous aurez
texte, comité d’études, …). Elle donne aussi des toujours accès à un contenu à jour adapté à vos besoins.
informations sur les projets et les publications remplacées
ou retirées. Electropedia - www.electropedia.org
Le premier dictionnaire d'électrotechnologie en ligne au
IEC Just Published - webstore.iec.ch/justpublished monde, avec plus de 22 500 articles terminologiques en
Restez informé sur les nouvelles publications IEC. Just anglais et en français, ainsi que les termes équivalents
Published détaille les nouvelles publications parues. dans 25 langues additionnelles. Egalement appelé
Disponible en ligne et une fois par mois par email. Vocabulaire Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-
nous: [e-mail].
– 2 – IEC 62149-4:2022/AMD1:2025
© IEC 2025
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PERFORMANCE STANDARDS –
Part 4: 1 300 nm fibre optic transceivers for Gigabit Ethernet application
AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 62149-4:2022 has been prepared by subcommittee 86C: Fibre optic
systems and active devices, of IEC technical committee 86: Fibre optics.
The text of this Amendment is based on the following documents:
Draft Report on voting
86C/1946/CDV 86C/1962/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
© IEC 2025
The language used for the development of this Amendment is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
___________
4.1 Absolute limiting ratings
Replace the existing Table 1 with the following new Table 1:
Table 1 – Absolute limiting ratings
Parameter Symbol or Minimum Maximum Unit
abbreviated
term
Storage temperature T –40 +85 °C
stg
T
Ambient operating temperature –10 +80 °C
amb
Lead soldering temperature +260 °C
(minimum distance to case specified) (for 10 s)
I
Output current 0 50 mA
out
Data input voltage –0,5 V V
cc
Transmitter differential input voltage swing V 0,30 1,40 V
pp
a
–0,5 V × 1,4 V
Supply voltage
nom
b
RH 5 85 %
Relative humidity
a
Nominal operating voltages (V ) of 5 V and 3,3 V apply.
nom
b
No condensation allowed.
– 4 – IEC 62149-4:2022/AMD1:2025
© IEC 2025
4.2 Operating environment
Replace the existing Table 2 with the following new Table 2:
Table 2 – Operating environment
Parameter Symbol or Minimum Maximum Unit
abbreviated
term
a
V V × 0,95 V × 1,05 V
Supply voltage
cc nom nom
T
Ambient operating temperature 0 70 °C
amb
b
RH 5 85 %
Relative humidity
a
For a nominal operating voltage (V ) of 5 V. For 3,3 V nominal operating voltage, the minimum value is 3,15 V
nom
and the maximum value is 3,45 V.
b
No condensation allowed.
4.3 Functional specification
Replace the existing Table 3 with the following new Table 3:
Table 3 – Receiver section: functional specification
Parameter Symbol Minimum Maximum Unit
a
S –19 dBm
Receiver sensitivity
Maximum optical input power −3 dBm
Optical return loss 12 dB
f
P −45 −20 dBm
Alarm on level
d
f
P −19 dBm
Alarm off level
a
Hysteresis 0,5 4,0 dB
Alarm response time 600 μs
b
V
−1,1 −0,8 V
Alarm output high voltage (option 1)
oh
b
V −2,0 −1,6 V
Alarm output low voltage (option 1)
ol
c
V 2 V V
Alarm output high voltage (option 2)
oh cc
c
V 0 0,8 V
Alarm output low voltage (option 2)
ol
d
V – V −1,950 −1,620 V
Data output voltage – low
ol cc
d
V – V −1,045 −0,740 V
Data output voltage – high
oh cc
e g
R 50 Ω
Data output load
dl
NOTE Refer to Table 2 for operating environment.
a –12
Minimum sensitivity and saturation levels for 10 BER measured with a 9 dB extinction ratio source and
(2 – 1) PRBS test signal.
b
These voltages are measured with respect to V .
cc
c
Outputs compatible with TTL and LVTTL inputs.
d
Outputs compatible with 10 K, 10 KH, 100 K ECL and PECL inputs.
e
Outputs terminated to V – 2 V.
cc
f
Alarm triggered when receive sensitivity is below that specified. Hysteresis value specified as P − P .
a d
g
Basic value.
© IEC 2025
5.2 Characterization testing
Replace the existing Table 6 with the following new Table 6:
Table 6 – Receiver section characterization tests
Test limit Test limit
a
Parameter Test conditions Unit
minimum maximum
Sensitivity at
PRBS modulation NRZ at 1,25 Gbit/s assuming
−19 dBm
-12
10 BER 9 dB extinction ratio source
Alarm level high TTL/CMOS compatible logic level "1"
Alarm level low TTL/CMOS compatible logic level "0"
PRBS modulation NRZ at 1,25 Gbit/s assuming
Alarm on threshold −20 dBm
9 dB extinction ratio source
PRBS modulation NRZ at 1,25 Gbit/s assuming
Alarm hysteresis 0,5 4,0 dB
9 dB extinction ratio source
P set to −2,4 dBm Gate for 3 s using 9 dB
Maximum input
opt
errors
extinction ratio source
a
A minimum of 20 devices to be measured at T of 0 °C, 25 °C, and 70 °C ± 2 °C and with V set at minimum
amb cc
), and at maximal operating voltage. Refer to Table 2 for
operating voltage, at nominal operating voltage (V
nom
minimum and maximum operating voltages.

___________
– 6 – IEC 62149-4:2022/AMD1:2025
© IEC 2025
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
COMPOSANTS ET DISPOSITIFS ACTIFS FIBRONIQUES –
NORMES DE PERFORMANCE –
Partie 4: Émetteurs-récepteurs fibroniques de 1 300 nm
pour application Gigabit Ethernet

AMENDEMENT 1
AVANT-PROPOS
1) La Commission Électrotechnique Internationale (IEC) est une organisation mondiale de normalisation composée
de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l’IEC). L'IEC a pour objet de
favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines de
l'électricité et de l'électro
...
