IEC 60335-2-32:2019

Household and similar electrical appliances - Safety - Part 2-32: Particular requirements for massage appliances

IEC 60335-2-32:2019 is available as IEC 60335-2-32:2019 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 60335-2-32:2019 deals with the safety of electric massage appliances for household and similar purposes, their rated voltage being not more than 250 V for single phase appliances and 480 V for other appliances. Examples of appliances within the scope of this standard are:
- foot massagers;
- water filled foot massagers;
- hand-held massagers;
- massage beds;
- massage belts;
- massage chairs;
- massage pads.
Appliances not intended for normal household use but that nevertheless may be a source of danger to the public, such as appliances intended to be used by laymen in shops, in light industry and on farms, are within the scope of this standard. As far as is practicable, this standard deals with the common hazards presented by appliances that are encountered by all persons in and around the home. However, in general, it does not take into account:
- persons (including children) whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction;
- children playing with the appliance.
Attention is drawn to the fact that:
- for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements can be necessary;
- in many countries additional requirements are specified by the national health authorities, the national authorities responsible for the protection of labour and similar authorities.
This standard does not apply to
- appliances intended exclusively for industrial purposes;
- appliances intended to be used in locations where special conditions prevail, such as the presence of a corrosive or explosive atmosphere (dust, vapour or gas);
- electric foot care appliances that do not contain motors and other electric appliances for the care of skin or hair (IEC 60335-2-23)
- electric appliances for beauty care of persons and intended for household, commercial and similar purposes (IEC 60335-2-115).
This fifth edition cancels and replaces the fourth edition published in 2002, Amendment 1: 2008 and Amendment 2:2013. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
- aligns the text with IEC 60335-1, Ed 5, and its Amendments 1 and 2;
- note is converted to normative text (11.8);
- additional requirements for temperatures of external accessible surfaces (Clause 11);
- alternative stability requirements for hand-held appliances (20.2);
- new mechanical strength test for hand-held appliances (21.1, 21.101).
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its amendments. It was established on the basis of the fifth edition (2010) of that standard.

Appareils électrodomestiques et analogues - Sécurité - Partie 2-32: Exigences particulières pour les appareils de massage

IEC 60335-2-32:2019 est disponible sous forme de IEC 60335-2-32:2019 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 60335-2-32:2019 traite de la sécurité des appareils électriques de massage pour usages domestiques et analogues, dont la tension assignée n'est pas supérieure à 250 V pour les appareils monophasés et à 480 V pour les autres appareils. Exemples d’appareils relevant du domaine d'application de la présente norme:
- appareils de massage des pieds;
- appareils de massage des pieds remplis d’eau;
- appareils de massage portatifs;
- lits de massage;
- ceintures de massage;
- chaises de massage;
- coussins de massage.
Les appareils non destinés à un usage domestique normal mais qui peuvent néanmoins constituer une source de danger pour le public, par exemple les appareils destinés à être utilisés par des utilisateurs non avertis dans des magasins, chez des artisans et dans des exploitations agricoles, relèvent du domaine d'application de la présente norme.
Dans la mesure du possible, la présente norme traite des dangers ordinaires présentés par les appareils et encourus par tous les individus à l'intérieur et autour de l'habitation. Cependant, elle ne tient généralement pas compte:
- des personnes (y compris des enfants) dont les capacités physiques, sensorielles ou mentales ou le manque d’expérience et de connaissance les empêchent d’utiliser l’appareil en toute sécurité sans surveillance ou instruction;
- de l’utilisation de l’appareil comme jouet par des enfants.
L’attention est attirée sur le fait que:
- pour les appareils destinés à être utilisés dans des véhicules ou à bord de navires ou d'avions, des exigences supplémentaires peuvent être nécessaires;
- dans de nombreux pays, des exigences supplémentaires sont spécifiées par les organismes nationaux de la santé, par les organismes nationaux responsables de la protection des travailleurs, par les organismes nationaux responsables de l'alimentation en eau et par des organismes similaires.
La présente norme ne s’applique pas:
- aux appareils exclusivement destinés à un usage industriel;
- aux appareils destinés à être utilisés dans des locaux présentant des conditions particulières, telles que la présence d'une atmosphère corrosive ou explosive (poussières, vapeur ou gaz);
- aux appareils électriques de soins des pieds sans moteur et aux autres appareils électriques de soins de la peau ou des cheveux (IEC 60335-2-23);
- aux appareils électriques de soins de beauté destinés à un usage domestique, commercial ou analogue (IEC 60335-2-115).
Cette cinquième édition annule et remplace la quatrième édition parue en 2002, l'Amendement 1:2008 et l'Amendement 2:2013. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- alignement du texte sur l’IEC 60335-1, Ed 5 et ses Amendements 1 et 2;
- conversion d’une note en texte normatif (11.8);
- ajout d’exigences relatives aux surfaces accessibles extérieures (Article 11);
- ajout d’exigences de stabilité alternatives relatives aux appareils portatifs (20.2);
- ajout d’un nouvel essai de résistance mécanique pour les appareils portatifs (21.1, 21.101).
La présente partie 2 doit être utilisée conjointement avec la dernière édition de l’IEC 60335-1 et ses amendements. Elle a été établie sur la base de la cinquième édition (2010) de cette norme.

General Information

• Status: Published
• Publication Date: 19-Sep-2019
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 13.120 - Domestic safety
• ICS: 97.170 - Body care equipment
• Technical Committee: TC 61 - Safety of household and similar electrical appliances
• Current Stage: PPUB - Publication issued
• Completion Date: 20-Sep-2019

Standards Content (Sample)

IEC 60335-2-32
Edition 5.0 2019-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-32: Particular requirements for massage appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-32: Exigences particulières pour les appareils de massage
IEC 60335-2-32:2019-09(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
---------------------- Page: 2 ----------------------
IEC 60335-2-32
Edition 5.0 2019-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-32: Particular requirements for massage appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-32: Exigences particulières pour les appareils de massage
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.170 ISBN 78-2-8322-7391-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

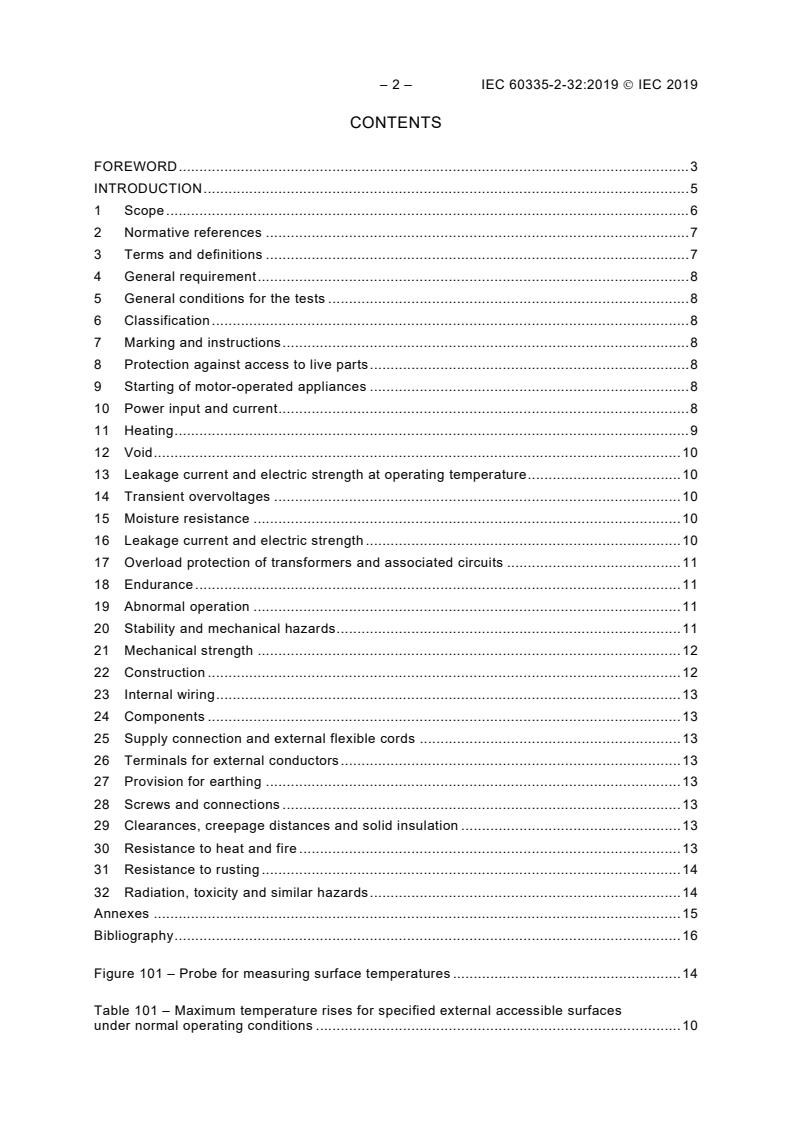

– 2 – IEC 60335-2-32:2019  IEC 2019
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 7

4 General requirement ........................................................................................................ 8

5 General conditions for the tests ....................................................................................... 8

6 Classification ................................................................................................................... 8

7 Marking and instructions .................................................................................................. 8

8 Protection against access to live parts ............................................................................. 8

9 Starting of motor-operated appliances ............................................................................. 8

10 Power input and current ................................................................................................... 8

11 Heating ............................................................................................................................ 9

12 Void ............................................................................................................................... 10

13 Leakage current and electric strength at operating temperature ..................................... 10

14 Transient overvoltages .................................................................................................. 10

15 Moisture resistance ....................................................................................................... 10

16 Leakage current and electric strength ............................................................................ 10

17 Overload protection of transformers and associated circuits .......................................... 11

18 Endurance ..................................................................................................................... 11

19 Abnormal operation ....................................................................................................... 11

20 Stability and mechanical hazards ................................................................................... 11

21 Mechanical strength ...................................................................................................... 12

22 Construction .................................................................................................................. 12

23 Internal wiring ................................................................................................................ 13

24 Components .................................................................................................................. 13

25 Supply connection and external flexible cords ............................................................... 13

26 Terminals for external conductors .................................................................................. 13

27 Provision for earthing .................................................................................................... 13

28 Screws and connections ................................................................................................ 13

29 Clearances, creepage distances and solid insulation ..................................................... 13

30 Resistance to heat and fire ............................................................................................ 13

31 Resistance to rusting ..................................................................................................... 14

32 Radiation, toxicity and similar hazards ........................................................................... 14

Annexes ............................................................................................................................... 15

Bibliography .......................................................................................................................... 16

Figure 101 – Probe for measuring surface temperatures ....................................................... 14

Table 101 – Maximum temperature rises for specified external accessible surfaces

under normal operating conditions ........................................................................................ 10

---------------------- Page: 4 ----------------------
IEC 60335-2-32:2019  IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-32: Particular requirements for massage appliances
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60335-2-32 has been prepared by IEC technical committee 61:

Safety of household and similar electrical appliances.

This fifth edition cancels and replaces the fourth edition published in 2002, Amendment 1:

2008 and Amendment 2:2013. This edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
– aligns the text with IEC 60335-1, Ed 5, and its Amendments 1 and 2;
– note is converted to normative text (11.8);

– additional requirements for temperatures of external accessible surfaces (Clause 11);

– alternative stability requirements for hand-held appliances (20.2);
– new mechanical strength test for hand-held appliances (21.1, 21.101).
---------------------- Page: 5 ----------------------
– 4 – IEC 60335-2-32:2019  IEC 2019
The text of this International Standard is based on the following documents:
CDV Report on voting
61/5747/CDV 61/5840A/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its

amendments. It was established on the basis of the fifth edition (2010) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to

convert that publication into the IEC standard: Safety requirements for massage appliances.

When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies

as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,

the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:

– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;

– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including

those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.

Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the

associated noun are also in bold.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing

organizations may need a transitional period following publication of a new, amended or revised IEC publication in

which to make products in accordance with the new requirements and to equip themselves for conducting new or

revised tests.

It is the recommendation of the committee that the content of this publication be adopted for implementation

nationally not earlier than 12 months or later than 36 months from the date of publication.

The following differences exist in the countries indicated below.

– 6.1: Class 0 portable appliances and Class I portable appliances are allowed (USA).

---------------------- Page: 6 ----------------------
IEC 60335-2-32:2019  IEC 2019 – 5 –
INTRODUCTION

It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that

there is compatibility with the wiring rules when the appliance is connected to the supply

mains. However, national wiring rules may differ.

If an appliance within the scope of this standard also incorporates functions that are covered

by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as

far as is reasonable. If applicable, the influence of one function on the other is taken into

account.

When a part 2 standard does not include additional requirements to cover hazards dealt with

in Part 1, Part 1 applies.

NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is

not necessary to specify particular requirements for the appliance in question over and above the general

requirements.

This standard is a product family standard dealing with the safety of appliances and takes

precedence over horizontal and generic standards covering the same subject.

NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into

consideration when developing the general and particular requirements for the IEC 60335 series of standards. For

example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as

ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.

An appliance that complies with the text of this standard will not necessarily be considered to

comply with the safety principles of the standard if, when examined and tested, it is found to

have other features that impair the level of safety covered by these requirements.

An appliance employing materials or having forms of construction differing from those detailed

in the requirements of this standard may be examined and tested according to the intent of

the requirements and, if found to be substantially equivalent, may be considered to comply

with the standard.
---------------------- Page: 7 ----------------------
– 6 – IEC 60335-2-32:2019  IEC 2019
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-32: Particular requirements for massage appliances
1 Scope
This clause of Part 1 is replaced by the following.

This International Standard deals with the safety of electric massage appliances for

household and similar purposes, their rated voltage being not more than 250 V for single

phase appliances and 480 V for other appliances.
NOTE 101 Examples of appliances within the scope of this standard are
– foot massagers;
– water filled foot massagers;
– hand-held massagers;
– massage beds;
– massage belts;
– massage chairs;
– massage pads.

Appliances not intended for normal household use but that nevertheless may be a source of

danger to the public, such as appliances intended to be used by laymen in shops, in light

industry and on farms, are within the scope of this standard.

As far as is practicable, this standard deals with the common hazards presented by

appliances that are encountered by all persons in and around the home. However, in general,

it does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge

prevents them from using the appliance safely without supervision or instruction;

– children playing with the appliance.
NOTE 102 Attention is drawn to the fact that

– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements can be

necessary;

– in many countries additional requirements are specified by the national health authorities, the national

authorities responsible for the protection of labour and similar authorities.
NOTE 103 This standard does not apply to
– appliances intended exclusively for industrial purposes;

– appliances intended to be used in locations where special conditions prevail, such as the presence of a

corrosive or explosive atmosphere (dust, vapour or gas);

– electric foot care appliances that do not contain motors and other electric appliances for the care of skin or

hair (IEC 60335-2-23)

– electric appliances for beauty care of persons and intended for household, commercial and similar purposes

(IEC 60335-2-115) .
___________
Under preparation. Stage at the time of publication: IEC 60335-2-115/CD:2019.
---------------------- Page: 8 ----------------------
IEC 60335-2-32:2019  IEC 2019 – 7 –
2 Normative references
This clause of Part 1 is applicable except as follows.

IEC 60335-2-17, Household and similar electrical appliances – Safety – Part 2-17: Particular

requirements for blankets, pads, clothing and similar flexible heating appliances

IEC 60584-1, Thermocouples – Part 1: EMF specifications and tolerances
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1 Definitions relating to physical characteristics
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions:

Hand-held appliances are operated with no load other than that imposed by the vibrator

head.

Appliances intended to be used under the feet of a sitting person are operated with the

platform loaded with a mass of 5 kg, evenly distributed over an area of 100 mm × 300 mm.

Appliances incorporating heating elements are operated with two sheets of thermal insulation

placed on the foot platform. The sheets of thermal insulation are made of open cell polyether

and have dimensions approximately 300 mm × 100 mm × 15 mm. They are positioned

together and loaded with an evenly distributed mass of 10 kg. Appliances having a liquid

container are filled with water in accordance with the instructions and loaded with a mass of

10 kg.
NOTE 101 The open-cell polyether has the following composition:
– cell count 18 per cm;
0
+10
– specific mass 30 kg/m %;
0
– hardness 120 N to 170 N at 40 % impression, measured according to ISO 2439.

Appliances intended to be used under the feet of a standing person are operated with the

platform loaded with a mass of 90 kg, evenly distributed over an area of 200 mm × 300 mm.

Massage belts are operated with the belt loaded with a force of 200 N. The force is applied in

a horizontal direction by means of a roller, the belt being approximately symmetrical about the

roller.

Massage pads are operated with the pad positioned between two layers of felt and placed on

a flat horizontal surface. The felt has a thickness of approximately 25 mm, a mass of

2 2

4 kg/m ± 0,4 kg/m and extends at least 15 mm beyond the edges of the pad. The upper

layer of felt is loaded with a mass of 90 kg, evenly distributed over an area
of 300 mm × 300 mm.
Massage chairs are operated without load.
Massage beds are loaded with a mass of 90 kg, evenly distributed over an area of
0,5 m × 2 m.
Foot massage appliances that use water are filled with water at a temperature of
40 °C ± 2 °C.
---------------------- Page: 9 ----------------------
– 8 – IEC 60335-2-32:2019  IEC 2019
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:

Portable appliances shall be class II or class III. Stationary appliances shall be class I,

class II, or class III.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.12 Addition:

The instructions for appliances having heated parts in contact with the skin shall include the

substance of the following:

The appliance has a heated surface. Persons insensitive to heat must be careful when

using the appliance.

The instructions for appliances having a liquid container that is filled with water shall include

the substance of the following:
If water leaks from the appliance, the appliance should no longer be used.
8 Protection against access to live parts
This clause of Part 1 is applicable except as follows.
8.1.4 Addition:

All energized parts in foot massage appliances that use water are considered to be live parts.

9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
---------------------- Page: 10 ----------------------
IEC 60335-2-32:2019  IEC 2019 – 9 –
11 Heating
This clause of Part 1 is applicable except as follows.
11.2 Modification:
Combined appliances are positioned as specified for motor-operated appliances.
11.3 Addition:

Where the external accessible surfaces are suitably flat and access permits, then the test

probe of Figure 101 is used to measure the temperature rises of external accessible

surfaces specified in Table 101. The probe is applied with a force of 4 N ± 1 N to the surface

in such a way that the best possible contact between the probe and the surface is ensured.

The measurement is performed after a contact period of 30 s.

The probe may be held in place using a laboratory stand clamp or similar device. Any

measuring instrument giving the same results as the probe may be used.
11.7 Replacement:
Hand-held appliances are operated for 20 min.
Other appliances are operated until steady conditions are established.
11.8 Addition:

During the test, the temperature rises are monitored continuously and shall not exceed the

values shown in Table 3 and Table 101.

The temperature rise of parts in contact with skin or hair shall not exceed the limits specified

for handles that are continuously held.
The water temperature at the middle of the water volume shall not exceed 50 °C.

For massage pads with heating elements, the temperature limits specified for heating pads in

IEC 60335-2-17 apply.
---------------------- Page: 11 ----------------------
– 10 – IEC 60335-2-32:2019  IEC 2019
Table 101 – Maximum temperature rises for specified external accessible surfaces
under normal operating conditions
a, e
Surface
Temperature rise of external accessible surfaces
Surfaces of appliances Surfaces of hand held
situated on the floor appliances and other appliances
Bare metal 38 42
42 49
Coated metal
Glass and ceramic 51 56
c, d
58 62
Plastic and plastic coating > 0,4 mm

Temperature rises are not measured on the underside of appliances intended to be used on the floor, where

these surfaces are inaccessible to a 75 mm diameter probe, applied with a force not exceeding 1 N, having a

hemispherical end.

Metal is considered coated when a coating having a minimum thickness of 90 µm made by enamel or non-

substantially plastic coating is used.

The temperature rise limit of plastic also applies for plastic material having a metal finish of thickness less

than 0,
...
