IEC 60747-5-10:2019

Semiconductor devices - Part 5-10: Optoelectronic devices - Light emitting diodes - Test method of the internal quantum efficiency based on the room-temperature reference point

IEC 60747-5-10:2019(E) specifies the measuring method of the internal quantum efficiency (IQE) of single light emitting diode (LED) chips or packages without phosphor. White LEDs for lighting applications are out of the scope of this document. This document utilizes only the relative external quantum efficiency (EQE) measured at an operating room temperature. In order to identify the reference IQE, an operating current corresponding to the injection efficiency of 100 % is found and the radiative efficiency is determined by the infinitesimal change of the relative EQE at that point. The IQE as a function of current is then calculated from the relative ratio of the EQEs to the value at the reference point, which is called room-temperature reference-point method (RTRM).

General Information

• Status: Published
• Publication Date: 10-Dec-2019
• ICS: 31.080.99 - Other semiconductor devices
• Technical Committee: SC 47E - Discrete semiconductor devices
• Drafting Committee: WG 9 - TC 47/SC 47E/WG 9
• Current Stage: PPUB - Publication issued
• Start Date: 11-Dec-2019
• Completion Date: 02-Jan-2020

Overview

IEC 60747-5-10:2019 defines a standardized test method for determining the internal quantum efficiency (IQE) of single light-emitting diode (LED) chips or packages without phosphor, using measurements taken at room temperature. Known as the room‑temperature reference‑point method (RTRM), the standard uses only relative external quantum efficiency (EQE) measured at an operating ambient (25 ± 3) °C to find a reference operating point and then derives IQE as a function of forward current. White LEDs for lighting applications are excluded from this document.

Key topics and requirements

• Scope and targets
  • IQE measurement for single LED chips/packages without phosphor.
  • Excludes white LEDs for lighting.
• Measurement conditions
  • Ambient temperature default: (25 ± 3) °C; relative humidity typically 45–85% RH.
  • Thermal equilibrium or controlled measurement timing to avoid self‑heating artifacts.
• Measurement inputs
  • Radiant power vs. forward current (Φe vs I) curve measured at room temperature.
  • Forward voltage, emission spectrum (peak wavelength λp, bandwidth), and pulse current methods as needed.
• Method principle (RTRM)
  • Identify a room‑temperature reference point corresponding to an operating current at which injection efficiency reaches its maximum (≈100%).
  • Determine radiative efficiency from the infinitesimal change of the relative EQE at that point.
  • Compute IQE(I) by normalizing relative EQE values to the reference‑point value.
• Instruments and setup
  • Measurement equipment and basic setup follow IEC 60747-5-6:2016 references (radiometer/photometer, spectrometer, current source, thermal control).
• Reporting
  • Test report components and an informative test example are provided (see Annex A in the standard).

Applications and who uses it

• LED manufacturers and device engineers for device characterization, performance benchmarking, and process optimization.
• R&D labs and materials scientists studying recombination dynamics, radiative efficiency, and injection efficiency in LEDs.
• Independent test laboratories and quality assurance teams validating LED chip or package performance (non‑phosphor types).
• Useful in failure analysis and comparative studies across device designs and epitaxial structures.

Related standards

• IEC 60747-5-6:2016 - referenced for measurement instruments and basic optoelectronic LED test procedures.
• Other parts of the IEC 60747 series covering semiconductor and optoelectronic device test methods.

Keywords: IEC 60747-5-10, IQE, internal quantum efficiency, LED test method, RTRM, room-temperature reference-point method, EQE, radiative efficiency, injection efficiency, LED characterization.

Standards Content (Sample)

IEC 60747-5-10 ®
Edition 1.0 2019-12
INTERNATIONAL
STANDARD
colour
inside
Semiconductor devices –
Part 5-10: Optoelectronic devices – Light emitting diodes – Test method of the
internal quantum efficiency based on the room-temperature reference point
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
IEC 60747-5-10 ®
Edition 1.0 2019-12
INTERNATIONAL
STANDARD
colour
inside
Semiconductor devices –
Part 5-10: Optoelectronic devices – Light emitting diodes – Test method of the

internal quantum efficiency based on the room-temperature reference point

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.080.99 ISBN 978-2-8322-7655-6

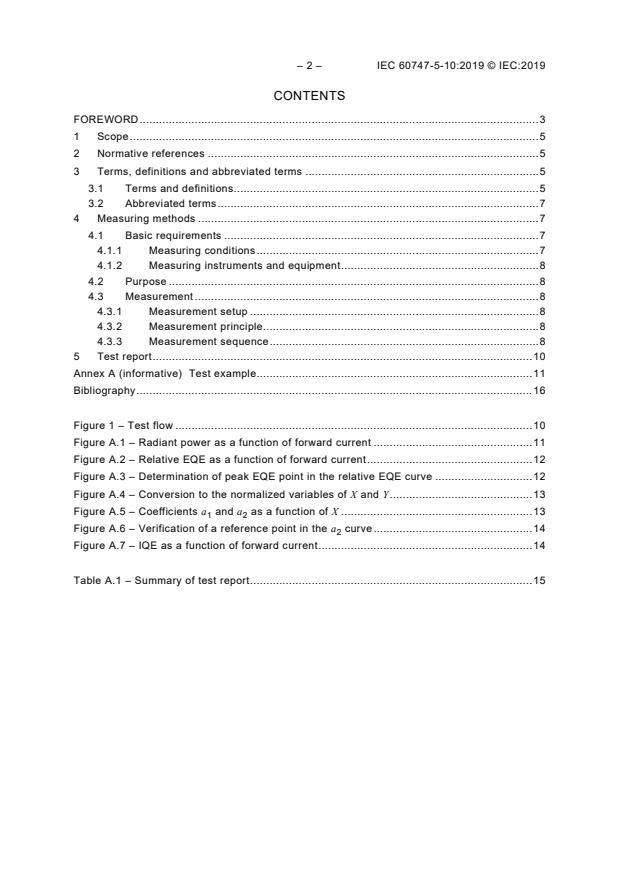

– 2 – IEC 60747-5-10:2019 © IEC:2019
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviated terms . 5
3.1 Terms and definitions . 5
3.2 Abbreviated terms . 7
4 Measuring methods . 7
4.1 Basic requirements . 7
4.1.1 Measuring conditions . 7
4.1.2 Measuring instruments and equipment . 8
4.2 Purpose . 8
4.3 Measurement . 8
4.3.1 Measurement setup . 8
4.3.2 Measurement principle. 8
4.3.3 Measurement sequence . 8
5 Test report . 10
Annex A (informative) Test example. 11
Bibliography . 16

Figure 1 – Test flow . 10
Figure A.1 – Radiant power as a function of forward current . 11
Figure A.2 – Relative EQE as a function of forward current . 12
Figure A.3 – Determination of peak EQE point in the relative EQE curve . 12
Figure A.4 – Conversion to the normalized variables of X and Y . 13
Figure A.5 – Coefficients a and a as a function of X . 13
1 2
Figure A.6 – Verification of a reference point in the a curve . 14
Figure A.7 – IQE as a function of forward current . 14

Table A.1 – Summary of test report . 15

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
Part 5-10: Optoelectronic devices – Light emitting diodes –
Test method of the internal quantum efficiency based on
the room-temperature reference point

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60747-5-10 has been prepared by subcommittee 47E: Discrete
semiconductor devices, of IEC technical committee 47: Semiconductor devices.
The text of this International Standard is based on the following documents:
CDV Report on voting
47E/652/CDV 47E/677/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 60747-5-10:2019 © IEC:2019
A list of all parts in the IEC 60747 series, published under the general title Semiconductor
devices, can be found on the IEC website.
Future standards in this series will carry the new general title as cited above. Titles of existing
standards in this series will be updated at the time of the next edition.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
SEMICONDUCTOR DEVICES –
Part 5-10: Optoelectronic devices – Light emitting diodes –
Test method of the internal quantum efficiency based on
the room-temperature reference point

1 Scope
This part of IEC 60747 specifies the measuring method of the internal quantum efficiency
(IQE) of single light emitting diode (LED) chips or packages without phosphor. White LEDs for
lighting applications are out of the scope of this document. This document utilizes only the
relative external quantum efficiency (EQE) measured at an operating room temperature. In
order to identify the reference IQE, an operating current corresponding to the injection
efficiency of 100 % is found and the radiative efficiency is determined by the infinitesimal
change of the relative EQE at that point. The IQE as a function of current is then calculated
from the relative ratio of the EQEs to the value at the reference point, which is called room-
temperature reference-point method (RTRM).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60747-5-6:2016, Semiconductor devices – Part 5-6: Optoelectronic devices – Light
emitting diodes
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
internal quantum efficiency
η
IQE
ratio of the number of photons emitted from the active region
...
