Household and similar electrical appliances - Safety - Part 2-79: Particular requirements for high pressure cleaners and steam cleaners

IEC 60335-2-79:2016 deals with the safety of high-pressure cleaners without traction drive, intended for household and commercial indoor or outdoor use, having a rated pressure not less than 2,5 MPa and not exceeding 35 MPa. It also applies to steam cleaners and those parts of hot water high pressure cleaners incorporating a steam stage which have a capacity not exceeding 100 l, a rated pressure not exceeding 2,5 MPa and a product of capacity and rated pressure not exceeding 5 MPa·l. They are not equipped with a traction drive. The following power systems of the drive for the high pressure pump are covered:
- mains powered motors up to a rated voltage of 250 V for single-phase machines and 480 V for other machines,
- battery-operated motors,
- internal combustion engines,
- hydraulic or pneumatic motors. This standard does not apply to:
- high pressure water jet machines having a rated pressure exceeding 35 MPa;
- steam cleaners intended for domestic use;
- hand-held and transportable motor-operated electric tools;
- appliances for medical purposes;
- agricultural sprayers;
- non-liquid, solid abrasive cleaners;
- machines designed to be part of a production process;
- machines designed for use in corrosive or explosive environments (dust, vapour or gas) or
- machines designed for use in vehicles or on board of ships or aircraft. This fourth edition cancels and replaces the third edition published in 2012. It constitutes a technical revision. The principal changes in this edition as compared with the third edition of IEC 60335-2-79 are as follows (minor changes are not listed):
- the standard has been revised editorially to avoid misunderstandings;
- the document has been revised for the consistent use of definitions throughout the text;
- correct references were added in the foreword;
- Annex B has been revised and updated;
- Clause 15 has been revised and updated;
- clarification of relevant liquid tanks has been added;
- in Clause 20 the revised temperature has been inserted and the text in 29.1 was modified in order to remove any misunderstandings and is in line with IEC 60335-2-102. This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its amendments. It was established on the basis of the fifth edition (2010) of that standard. The attention of National Committees is drawn to the fact that equipment manufacturers and testing organizations may need a transitional period following publication of a new, amended or revised IEC publication in which to make products in accordance with the new requirements and to equip themselves for conducting new or revised tests. It is the recommendation of the committee that the content of this publication be adopted for implementation nationally not earlier than 12 months or later than 36 months from the date of its publication. Key words: Steam Cleaner, High Pressure Cleaner

Appareils électrodomestiques et analogues - Sécurité - Partie 2-79: Exigences particulières pour les appareils de nettoyage à haute pression et les appareils de nettoyage à vapeur

L'IEC 60335-2-79:2016 traite de la sécurité des appareils de nettoyage à haute pression sans commande de dispositif de déplacement, à usage domestique, industriel et commercial, dont la pression assignée est comprise entre 2,5 MPa et 35 MPa. Elle s'applique également aux appareils de nettoyage à vapeur et aux parties des appareils de nettoyage à eau chaude sous haute pression incorporant un élément vapeur, qui ont une capacité ne dépassant pas 100 l, une pression assignée ne dépassant pas 2,5 MPa et un produit capacité par pression assignée ne dépassant pas 5 MPa·l. Ces appareils ne sont pas équipés d'une commande de dispositif de déplacement. Les systèmes d'alimentation suivants de l'entraînement de la pompe à haute pression sont couverts: les moteurs alimentés par le réseau, jusqu'à une tension assignée de 250 V pour les machines monophasées et de 480 V pour les autres machines, les moteurs alimentés par batteries, les moteurs à combustion interne, les moteurs hydrauliques ou pneumatiques. La présente norme ne s'applique pas:
- aux machines à jet d'eau sous haute pression, dont la pression assignée est supérieure à 35 MPa;
- aux appareils de nettoyage à vapeur à usage domestique;
- aux outils électroportatifs à moteur et machines-outils électriques semi-fixes;
- aux appareils électromédicaux;
- aux pulvérisateurs agricoles;
- aux appareils de nettoyage à abrasifs solides, non liquides;
- aux machines destinées à être intégrées dans un processus de production;
- aux machines destinées à être utilisées dans des environnements corrosifs ou explosifs (poussière, vapeur ou gaz);
- aux machines destinées à être utilisées dans des véhicules ou à bord de navires ou d'avions. Cette quatrième édition annule et remplace la troisième édition parue en 2012. Elle constitue une révision technique. Par rapport à la troisième édition de l'IEC 60335-2-79, les modifications majeures indiquées ci-après ont été apportées dans la présente édition (les modifications mineures ne sont pas mentionnées):
- la norme a fait l'objet d'une révision sur le plan rédactionnel destinée à éviter toute incompréhension;
- le document a fait l'objet d'une révision pour une utilisation cohérente des définitions à travers le texte;
- des références correctes on été ajoutées dans l'avant-propos;
- l'Annexe B a fait l'objet d'une révision et d'une mise à jour;
- l'Article 15 a fait l'objet d'une révision et d'une mise à jour;
- une clarification des réservoirs de liquide appropriés a été ajoutée;
- à l'Article 20, une température révisée a été insérée;
- le texte de 29.1 a été modifié afin de supprimer toute incompréhension et est en accord avec l'IEC 60335-2-102. La présente partie 2 doit être utilisée conjointement avec la dernière édition de l'IEC 60335-1 et ses amendements. Elle a été établie sur la base de la cinquième édition (2010) de cette norme. L'attention des Comités Nationaux est attirée sur le fait que les fabricants d'appareils et les organismes d'essai peuvent avoir besoin d'une période de transition après la publication d'une nouvelle publication IEC, ou d'une publication amendée ou révisée, pour fabriquer des produits conformes aux nouvelles exigences et pour adapter leurs équipements aux nouveaux essais ou aux essais révisés. Le comité recommande que le contenu de cette publication soit entériné au niveau national au plus tôt 12 mois et au plus tard 36 mois après la date de publication. Mots clés: appareils de nettoyage à vapeur, appareils de nettoyage à haute pression

General Information

Status
Published
Publication Date
06-Jun-2016
Current Stage
PPUB - Publication issued
Completion Date
07-Jun-2016
Ref Project

Buy Standard

Standard
IEC 60335-2-79:2016 - Household and similar electrical appliances - Safety - Part 2-79: Particular requirements for high pressure cleaners and steam cleaners
English and French language
132 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60335-2-79
Edition 4.0 2016-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-79: Particular requirements for high pressure cleaners and steam cleaners
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-79: Exigences particulières pour les appareils de nettoyage à haute
pression et les appareils de nettoyage à vapeur
IEC 60335-2-79:2016-06(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2016 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary

La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais

en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des

comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées

projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC 60335-2-79
Edition 4.0 2016-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-79: Particular requirements for high pressure cleaners and steam cleaners
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-79: Exigences particulières pour les appareils de nettoyage à haute
pression et les appareils de nettoyage à vapeur
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 97.080 ISBN 978-2-8322-3444-0

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

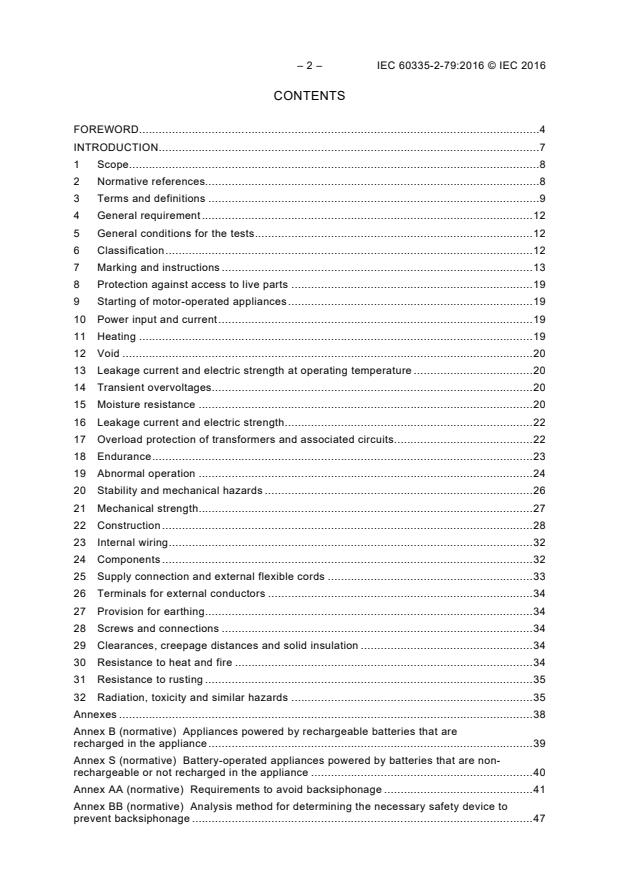

– 2 – IEC 60335-2-79:2016 © IEC 2016
CONTENTS

FOREWORD ......................................................................................................................... 4

INTRODUCTION ................................................................................................................... 7

1 Scope ............................................................................................................................ 8

2 Normative references..................................................................................................... 8

3 Terms and definitions .................................................................................................... 9

4 General requirement .................................................................................................... 12

5 General conditions for the tests .................................................................................... 12

6 Classification ............................................................................................................... 12

7 Marking and instructions .............................................................................................. 13

8 Protection against access to live parts ......................................................................... 19

9 Starting of motor-operated appliances .......................................................................... 19

10 Power input and current ............................................................................................... 19

11 Heating ....................................................................................................................... 19

12 Void ............................................................................................................................ 20

13 Leakage current and electric strength at operating temperature .................................... 20

14 Transient overvoltages................................................................................................. 20

15 Moisture resistance ..................................................................................................... 20

16 Leakage current and electric strength ........................................................................... 22

17 Overload protection of transformers and associated circuits .......................................... 22

18 Endurance ................................................................................................................... 23

19 Abnormal operation ..................................................................................................... 24

20 Stability and mechanical hazards ................................................................................. 26

21 Mechanical strength ..................................................................................................... 27

22 Construction ................................................................................................................ 28

23 Internal wiring .............................................................................................................. 32

24 Components ................................................................................................................ 32

25 Supply connection and external flexible cords .............................................................. 33

26 Terminals for external conductors ................................................................................ 34

27 Provision for earthing ................................................................................................... 34

28 Screws and connections .............................................................................................. 34

29 Clearances, creepage distances and solid insulation .................................................... 34

30 Resistance to heat and fire .......................................................................................... 34

31 Resistance to rusting ................................................................................................... 35

32 Radiation, toxicity and similar hazards ......................................................................... 35

Annexes ............................................................................................................................. 38

Annex B (normative) Appliances powered by rechargeable batteries that are

recharged in the appliance .................................................................................................. 39

Annex S (normative) Battery-operated appliances powered by batteries that are non-

rechargeable or not recharged in the appliance ................................................................... 40

Annex AA (normative) Requirements to avoid backsiphonage ............................................. 41

Annex BB (normative) Analysis method for determining the necessary safety device to

prevent backsiphonage ....................................................................................................... 47

---------------------- Page: 4 ----------------------
IEC 60335-2-79:2016 © IEC 2016 – 3 –

Annex CC (informative) Emission of acoustical noise .......................................................... 50

Annex DD (informative) Emission of vibration ..................................................................... 52

Annex EE (informative) Model test report for vibration emission at handles of high-

pressure cleaners ............................................................................................................... 63

Bibliography ....................................................................................................................... 65

Figure 101 – Warning symbol .............................................................................................. 35

Figure 102 – Impact test apparatus ..................................................................................... 36

Figure 103 – Reactions on handle ....................................................................................... 36

Figure 104 – Warning symbol: Machine not suitable for connection to the potable

water mains ........................................................................................................................ 37

Figure 105 – Warning symbol: Do not inhale fumes ............................................................. 37

Figure AA.1 – Arrangement for the durability test on backflow preventers with reduced

pressure zone ..................................................................................................................... 46

Figure BB.1 – Example for an air break to drain ................................................................... 49

Figure DD.1 – Trigger gun ................................................................................................... 52

Figure DD.2 – Trigger gun with additional side handle ......................................................... 53

Figure DD.3 – Measurement locations: Trigger gun, main and secondary measuring

point ................................................................................................................................... 55

Figure DD.4 – Measurement locations: Trigger gun with additional side handle, main

and secondary measuring point ........................................................................................... 56

Figure DD.5 – Operating conditions – Position of spraying device ........................................ 58

Table 101 – Degree of protection against harmful ingress of water ....................................... 13

Table 12 – Pull force and torque ......................................................................................... 34

Table AA.1 – Nominal size versus durability test flow rate .................................................... 45

Table BB.1 – Matrix of the safety devices appropriate to fluid categories .............................. 48

Table DD.1 – Description and units of the symbols used ...................................................... 54

Table EE.1 – General information and reported results ........................................................ 63

Table EE.2 – Measurement results for one machine ............................................................ 64

---------------------- Page: 5 ----------------------
– 4 – IEC 60335-2-79:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-79: Particular requirements
for high pressure cleaners and steam cleaners
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60335-2-79 has been prepared by subcommittee 61J: Electrical

motor-operated cleaning appliances for commercial use, of IEC technical committee 61:

Safety of household and similar electrical appliances.

This fourth edition cancels and replaces the third edition published in 2012. It constitutes a

technical revision.

The principal changes in this edition as compared with the third edition of IEC 60335-2-79 are

as follows (minor changes are not listed):
– the standard has been revised editorially to avoid misunderstandings;

– the document has been revised for the consistent use of definitions throughout the text;

– correct references were added in the foreword;
---------------------- Page: 6 ----------------------
IEC 60335-2-79:2016 © IEC 2016 – 5 –
– Annex B has been revised and updated;

– Clause 15 has been revised and updated; clarification of relevant liquid tanks has been

added;
– in Clause 20 the revised temperature has been inserted;

– the text in 29.1 was modified in order to remove any misunderstandings and is in line with

IEC 60335-2-102.
The text of this standard is based on the following documents:
FDIS Report on voting
61J/635/FDIS 61J/645/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its

amendments. It was established on the basis of the fifth edition (2010) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to

convert that publication into the IEC standard: Safety requirements for high pressure cleaners

and steam cleaners.

When a particular sub clause of Part 1 is not mentioned in this part 2, that sub clause applies

as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,

the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:

– sub clauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;

– unless notes are in a new sub clause or involve notes in Part 1, they are numbered starting from 101, including

those in a replaced clause or sub clause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.

Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the

associated noun are also in bold.

NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing

organizations may need a transitional period following publication of a new, amended or revised IEC publication in

which to make products in accordance with the new requirements and to equip themselves for conducting new or

revised tests.

It is the recommendation of the committee that the content of this publication be adopted for implementation

nationally not earlier than 12 months or later than 36 months from the date of publication.

A list of all parts of the IEC 60335 series, under the general title: Household and similar

electrical appliances – Safety can be found on the IEC website.
---------------------- Page: 7 ----------------------
– 6 – IEC 60335-2-79:2016 © IEC 2016

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 8 ----------------------
IEC 60335-2-79:2016 © IEC 2016 – 7 –
INTRODUCTION

It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that

there is compatibility with the wiring rules when the appliance is connected to the supply

mains. However, national wiring rules may differ.

If an appliance within the scope of this standard also incorporates functions that are covered

by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as

far as is reasonable. If applicable, the influence of one function on the other is taken into

account.

When a part 2 standard does not include additional requirements to cover hazards dealt with

in Part 1, Part 1 applies.

NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is

not necessary to specify particular requirements for the appliance in question over and above the general

requirements.

This standard is a product family standard dealing with the safety of appliances and takes

precedence over horizontal and generic standards covering the same subject.

NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into

consideration when developing the general and particular requirements for the IEC 60335 series of standards. For

example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as

ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.

An appliance that complies with the text of this standard will not necessarily be considered to

comply with the safety principles of the standard if, when examined and tested, it is found to

have other features that impair the level of safety covered by these requirements.

An appliance employing materials or having forms of construction differing from those detailed

in the requirements of this standard may be examined and tested according to the intent of

the requirements and, if found to be substantially equivalent, may be considered to comply

with the standard.
---------------------- Page: 9 ----------------------
– 8 – IEC 60335-2-79:2016 © IEC 2016
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-79: Particular requirements
for high pressure cleaners and steam cleaners
1 Scope
This clause of Part 1 is replaced by the following.

This part of IEC 60335 deals with the safety of high-pressure cleaners without traction drive,

intended for household and commercial indoor or outdoor use, having a rated pressure not

less than 2,5 MPa and not exceeding 35 MPa.

It also applies to steam cleaners and those parts of hot water high pressure cleaners

incorporating a steam stage which have a capacity not exceeding 100 l, a rated pressure not

exceeding 2,5 MPa and a product of capacity and rated pressure not exceeding 5 MPa·l.

They are not equipped with a traction drive. The following power systems of the drive for the

high pressure pump are covered:

– mains powered motors up to a rated voltage of 250 V for single-phase machines and

480 V for other machines,
– battery-operated motors,
– internal combustion engines,
– hydraulic or pneumatic motors.
This standard does not apply to
– high pressure water jet machines having a rated pressure exceeding 35 MPa;
NOTE 101 In Europe, those machines are covered by EN 1829-1.
– steam cleaners intended for domestic use (IEC 60335-2-54);

– hand-held and transportable motor-operated electric tools (IEC 60745 series, IEC 61029

series, IEC 62841 series);
– appliances for medical purposes (IEC 60601);
– agricultural sprayers (ISO 4254-6);
– non-liquid, solid abrasive cleaners;
– machines designed to be part of a production process;

– machines designed for use in corrosive or explosive environments (dust, vapour or gas);

– machines designed for use in vehicles or on board of ships or aircraft.

NOTE 102 Attention is drawn to the fact that in many countries additional requirements on the safe use of the

equipment covered can be specified by the national health authorities, the national authorities responsible for the

protection of labour, the national water supply authorities and similar authorities.

2 Normative references
This clause of Part 1 is applicable except as follows.
---------------------- Page: 10 ----------------------
IEC 60335-2-79:2016 © IEC 2016 – 9 –
Addition:

IEC 60364-1, Low-voltage electrical installations – Part 1: Fundamental principles,

assessment of general characteristics, definitions

IEC 61558-2-3, Safety of transformers, reactors, power supply units and combinations thereof

– Part 2-3: Particular requirements and tests for ignition transformers for gas and oil burners

Replacement:
IEC 61770:2008, Electric appliances connected to the water mains – Avoidance of
backsiphonage and failure of hose-sets
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
conditions under which the machine is operated in normal use

It denotes the operation at rated flow and rated pressure with the appropriate nozzle and

hose line fitted, all strainers and filters in a clean operating condition and the unloader valve

set to the rated pressure. The water heater, if fitted, is operated at maximum power. Electric

motor driven machines are supplied at rated voltage.

Socket outlets for accessories are loaded with a resistive load in accordance with the

marking.

The burner is operated at rated power. Machines designed for operation at more than one

rated power setting are additionally tested at the most disadvantageous power.

On machines designed for use with a flue pipe, a section of flue pipe is attached to the

machine. Flue gas determinations are taken in this flue pipe.
The draught is adjusted as recommended in the instructions.
3.1.12 Addition:
Functions not controlling the starting and stopping of the high pressure
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
