IEC 63180:2020/AMD1:2025 – Amendment 1 Overview

The IEC 63180:2020/AMD1:2025 is an important amendment to the international standard focusing on the methods of measurement and declaration of detection ranges for passive infrared (PIR) detectors, specifically designed for major and minor motion detection. Published by the International Electrotechnical Commission (IEC), this amendment introduces refined testing procedures, equipment requirements, and environmental controls to enhance the reliability and repeatability of PIR detector performance assessments.

This standard is crucial for manufacturers, testers, and certification bodies involved in the development and deployment of PIR detectors used in security, automation, and energy management systems. It ensures that detection ranges are accurately measured, declared, and verified according to internationally accepted practices.

---

Key Topics in Amendment 1

This amendment introduces several significant technical updates to the original IEC 63180:2020 standard:

• Improved Test Environment Tolerances
  Enhanced temperature stability requirements for the test room and surfaces to within ±2 K for manual and ±1.5 K for automated tests, ensuring consistent and reliable measurement conditions.

• Defined Rotating Point of Test Arm
  Specifies the positioning of the rotating point on the test arm used for minor motion detection to improve test reproducibility.

• Recommended Mounting Heights
  Adds guidelines on mounting heights for detectors during tests, recommending 2.5 m for ceiling-mounted detectors and either 1.1 m or 2.5 m for wall-mounted detectors depending on installation types.

• Acceleration and Deceleration Criteria for Test Dummies
  Specifies speed and acceleration/deceleration tolerances for full-size and scaled test dummies emulating human motion, vital for accurate major motion detection testing.

• Updated Pre-Conditioning Test
  Introduces pre-conditioning at minimum and maximum declared ambient temperatures with strict limits on false triggers (maximum 2 within a monitored 24-hour period) to ensure detector stability and accuracy under varied conditions.

• Alternative Test Procedures for Large Detection Areas
  Provides methods to address practical testing challenges for large tangential major motion detection areas by limiting the number of measurement points and defining alternative assessment techniques.

• Detailed Test Equipment Specifications
  Includes precise dimensions and heating requirements for test dummies and the robotic test arm, with the necessary temperature differential above ambient to simulate authentic detection scenarios.

---

Practical Applications

The IEC 63180:2020/AMD1:2025 amendment is vital for a broad spectrum of use cases in which passive infrared detectors operate:

• Security Systems
  Ensures consistent and standardized evaluation of PIR sensors used in intrusion detection, alarm systems, and automated surveillance, improving the reliability of motion-triggered responses.

• Building Automation and Energy Efficiency
  Supports accurate performance declarations for PIR detectors controlling lighting, HVAC, and other systems based on presence or motion, optimizing energy savings without compromising comfort.

• Consumer Electronics and Smart Homes
  Provides standardized testing for motion sensors integrated into smart lighting, appliances, and home security products, enhancing user experience by reducing false triggers and ensuring proper detection range.

• Certification and Compliance Testing
  Enables certification bodies to validate compliance with international standards, facilitating global market acceptance of PIR motion detection devices.

---

Related IEC Standards

Organizations and professionals engaged with IEC 63180 should be aware of related standards and documents complementing its scope:

• IEC 60050-581:2008 – Vocabulary regarding type tests which provides foundational terminology related to testing protocols referenced within IEC 63180.

• ISO/IEC Directives Parts 1 & 2 – Outlines the rules and methodologies used for the drafting and development of international standards, under which IEC 63180 was formulated.

• Electropedia (IEC Electrotechnical Dictionary) – A valuable online resource for terminology relating to electrotechnology, aiding in consistent understanding of terms used within IEC 63180.

• IEC 63180 (Base Edition 2020) – The original standard specifying measurement and declaration methods without the 2025 amendments for detailed comparison and reference.

---

Keywords: IEC 63180 amendment, passive infrared detectors, PIR motion detection standard, detection range measurement, motion sensor testing, major and minor motion, test procedure, test environment, pre-conditioning test, automated test systems, test dummy specifications, mounting height for PIR detectors.

Standards Content (Sample)

IEC 63180 ®
Edition 1.0 2025-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Methods of measurement and declaration of the detection range of detectors –
Passive infrared detectors for major and minor motion detection

Méthodes de mesure et qualification de la plage de détection des détecteurs –
Détecteurs infrarouges passifs pour la détection de mouvements de forte et de
faible amplitude
ICS 29.120.40  ISBN 978-2-8327-0433-2

IEC 63180:2020-06/AMD1:2025-05(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.

replaced and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications gratuitement tous les aperçus des publications, symboles
IEC en utilisant différents critères (numéro de référence, graphiques et le glossaire. Avec un abonnement, vous aurez
texte, comité d’études, …). Elle donne aussi des toujours accès à un contenu à jour adapté à vos besoins.
informations sur les projets et les publications remplacées
ou retirées. Electropedia - www.electropedia.org
Le premier dictionnaire d'électrotechnologie en ligne au
IEC Just Published - webstore.iec.ch/justpublished monde, avec plus de 22 500 articles terminologiques en
Restez informé sur les nouvelles publications IEC. Just anglais et en français, ainsi que les termes équivalents
Published détaille les nouvelles publications parues. dans 25 langues additionnelles. Egalement appelé
Disponible en ligne et une fois par mois par email. Vocabulaire Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-
nous: [e-mail].
– 2 – IEC 63180:2020/AMD1:2025
© IEC 2025
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
METHODS OF MEASUREMENT AND DECLARATION
OF THE DETECTION RANGE OF DETECTORS –

Passive infrared detectors for major and minor motion detection

AMENDMENT 1

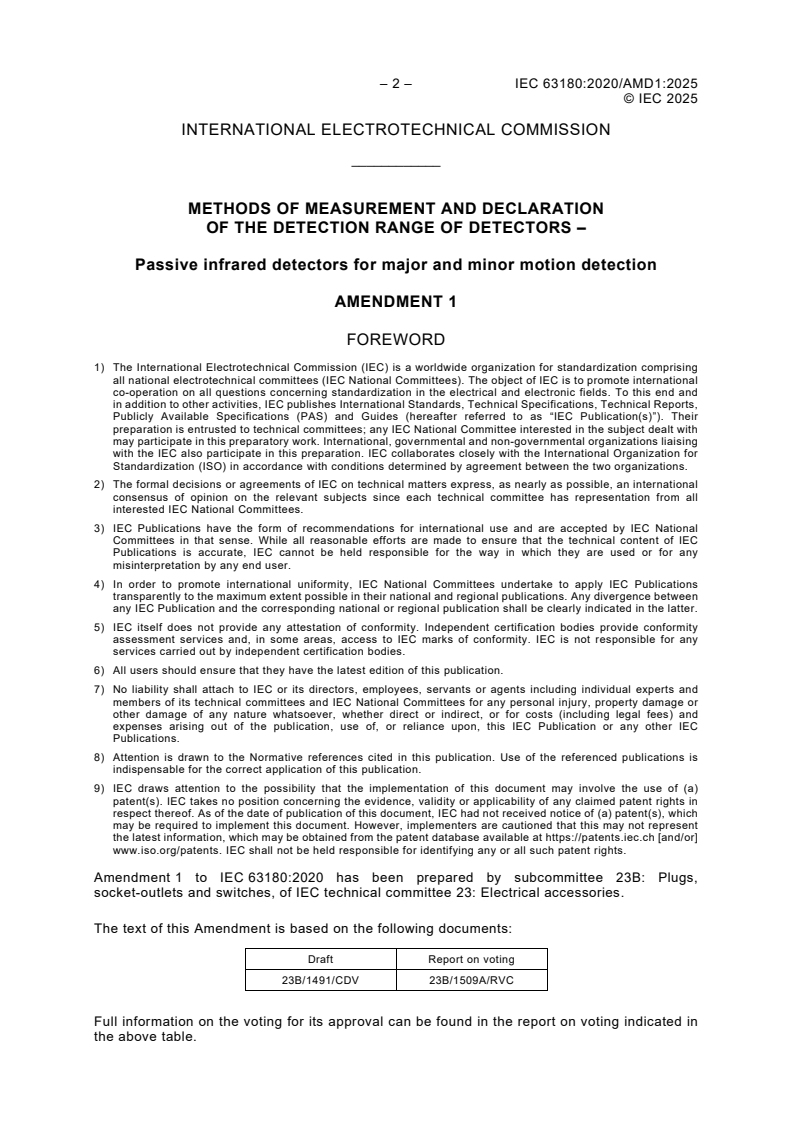

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch [and/or]
www.iso.org/patents. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 63180:2020 has been prepared by subcommittee 23B: Plugs,
socket-outlets and switches, of IEC technical committee 23: Electrical accessories.
The text of this Amendment is based on the following documents:
Draft Report on voting
23B/1491/CDV 23B/1509A/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
© IEC 2025
The language used for the development of this Amendment is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
___________

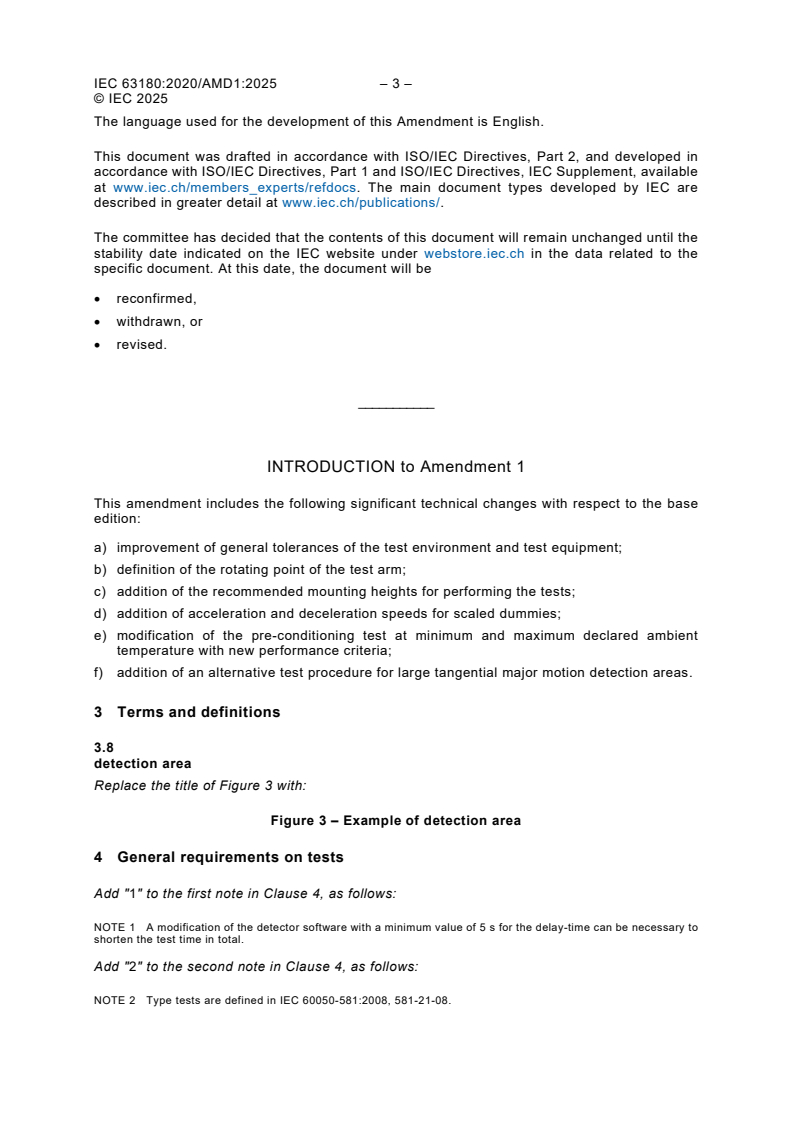

INTRODUCTION to Amendment 1
This amendment includes the following significant technical changes with respect to the base
edition:
a) improvement of general tolerances of the test environment and test equipment;
b) definition of the rotating point of the test arm;
c) addition of the recommended mounting heights for performing the tests;
d) addition of acceleration and deceleration speeds for scaled dummies;
e) modification of the pre-conditioning test at minimum and maximum declared ambient
temperature with new performance criteria;
f) addition of an alternative test procedure for large tangential major motion detection areas.
3 Terms and definitions
3.8
detection area
Replace the title of Figure 3 with:
Figure 3 – Example of detection area
4 General requirements on tests
Add "1" to the first note in Clause 4, as follows:
NOTE 1 A modification of the detector software with a minimum value of 5 s for the delay-time can be necessary to
shorten the test time in total.
Add "2" to the second note in Clause 4, as follows:
NOTE 2 Type tests are defined in IEC 60050-581:2008, 581-21-08.

– 4 – IEC 63180:2020/AMD1:2025
© IEC 2025
Add the following at the end of the last paragraph:
For more repeatable measurements it is recommended to use the automated test procedure.
5 Test environment
Replace the tenth paragraph (excluding the notes) with the following:
The test room temperature and the temperature of the walls, ceiling and floor shall be stable
during the tests within a tolerance of:
– ±2 K for manual tests;
– ±1,5 K for automated tests.
Add "1" to the first note in Clause 5, as follows:
NOTE 1 This can be achieved by covering the detection area of the detector towards the wall or by covering the
wall with a coating or a curtain.
Add "2" to the second note in Clause 5, as follows:
NOTE 2 Artificial light without an IR component can be achieved using LED technology.
Add "3" to the third note in Clause 5, as follows:
NOTE 3 It can be required to set the test room temperature several hours prior to testing.
6 Test equipment
6.2 Test dummies for major motion detection when using automated test systems
Replace Figure 4 with the following new Figure 4:

Figure 4 – Test dummy perspective view
Replace the fifth paragraph, the sixth paragraph, seventh paragraph, eighth paragraph and the
note with the following:
The body and legs are heated to a temperature of (7 ± 1) K above the ambient temperature of
the test room.
© IEC 2025
NOTE The shoulders are part of the body.
All test sides of the dummies shall be heated except the bottom side which is not relevant for
the test.
The temperature of the surface for each zone of the dummy shall be homogeneous and the
spread shall be ≤ 5 K.
The dummy can be made of aluminium, painted black and heated by heating plates placed
inside the dummy.
The temperature of the dummy shall be stable within 1 K for a minimum of 10 min prior to testing
and for the duration of the tests.
Stability can be verified by measuring the temperature during the test at one reference point at
each zone.
Replace the title of Table 1 with the following:
Table 1 – Relation between the declared mounting height, the mounting height of the
device under test (DUT) and test dummy used
6.3 Test arm for minor motion detection
Replace the whole subclause with the following:
The test arm to be used for the minor motion detection test shall be a robotic arm with
dimensions (76 mm × 76 mm × 380 mm) ±2 mm, mounted at a height of 750 mm ± 20 mm
above the reference level.
For manual tests the reference level is the floor.
For automated tests the reference level is the mounting surface of the test dummy as given in
Figure 4.
The test arm can be made of aluminium, painted black and heated by heating plates placed
inside the test arm.
The height is measured from the centre of the horizontal axis.
The test arm shall be able to move at a velocity of 90°/s.
The test arm shall be able to rotate in the horizontal x-y axis anticlockwise for 90°, followed by
a vertical y-z axis movement upwards and back to the starting position following the same path
as given in Figure 8.
The rotating point of the test arm is placed between 0 mm and 60 mm behind the heated parts
of the test arm.
To simplify the test equipment, it is permitted to perform the test separately in a horizontal and
a vertical plane. When using this approach, the test arm can be built to cover the horizontal and
vertical planes separately.
– 6 – IEC 63180:2020/AMD1:2025
© IEC 2025
Figure 8 – Test arm for testing minor motion detection
During the test, the temperature of all sides of the test arm (except rotating axis and back area
that is not relevant) shall be (14 ± 1) K above the ambient temperature of the test room.
The temperature of the test arm shall be stable within 1 K for a minimum of 10 min prior to and
during the tests.
Stability can be verified by measuring the temperature during the test at one reference point.
7 Test procedure
7.1 General
Replace the introductory line to the list in the seventh paragraph with the following:
For a wall mounted detector and for all other mounting types, the mounting height:
Add the following paragraph after the seventh paragraph:
For all other mounting types, the mounting height is the distance between the top of the test
dummy’s mounting plate and the centre of the lens of the detector.
Replace the tenth paragraph, which begins "In the event that the manufacturer declares" with
the following:
It is recommended to use the following mounting heights during the tests, if these are within the
ranges defined by the manufacturer:
– for ceiling mounted detectors, the standard mounting height of the DUT is 2,5 m. Other
mounting heights may be tested in addition.

© IEC 2025
– for wall mounted detectors the standard mounting height of the DUT is:
• 1,1 m for detectors to be mounted in installation boxes replacing, for example, switches;
• 2,5 m for all other types of detectors, for example, independent surface mounted
detectors for indoors or outdoors.
Replace the final, nineteenth paragraph (including bulleted list), and the note with the following:
When moving the test dummy for automated test systems the following three bullet point list
items shall be fulfilled:
– the moving speed shall be:
• for the full-size test dummy, 1 m/s with a tolerance of ±0,1 m/s.
• for the scaled 1:2 test dummy, 0,5 m/s with a tolerance of ±0,05 m/s.
• for the scaled 1:5 test dummy, 0,2 m/s with a tolerance of ±0,02 m/s.
– the acceleration shall be:
2 2
• for the full-size test dummy, 0,8 m/s with a tolerance of ±0,1 m/s .
2 2
• for the scaled 1:2 test dummy, 0,4 m/s with a tolerance of ±0,05 m/s .
2 2
• for the scaled 1:5 test dummy, 0,16 m/s with a tolerance of ±0,02 m/s .
– the deceleration shall be:
2 2
• for the full-size test dummy, 1,5 m/s with a tolerance of ±0,1 m/s .
2 2
• for the scaled 1:2 test dummy, 0,75 m/s with a tolerance of ±0,05 m/s .
2 2
• for the scaled 1:5 test dummy, 0,3 m/s with a tolerance of ±0,02 m/s .
7.2 Pre-conditioning of the detector
Replace the whole subclause with the following:
To ensure that the DUT does not false trigger during the test, the following procedure shall be
followed.
The DUT is placed in an enclosure such that it is shielded from external triggering influences
such as air drafts, electromagnetic fields, and mains disturbances. The supply voltage and the
climatic conditions within the enclosure shall comply with Clause 5.
The test is performed at the minimum and maximum ambient temperature declared by the
manufacturer.
No evaluation is made during the temperature change.
Before closing the enclosure, the threshold of the detector (if any) is set to maximum sensitivity
to reflect the worst case. The detector is energized, and the proper functioning of the detector
is checked.
The detector sensing activity is monitored for at least 24 h.
During each monitored period, the number of false triggers shall be maximum 2.

– 8 – IEC 63180:2020/AMD1:2025
© IEC 2025
7.3 Major motion detection
7.3.1 Detection via walking test
7.3.1.1 Tangential motion within the detection area (movement 1 m)
Add the following text before the first paragraph:
Tangential motion testing according to this Subclause 7.3.1 is limited to 400 measurements, for
example, 20 m × 20 m.
For larger areas the detection area is defined following the procedure of 7.5, using the
performance criteria as defined in 8.5 for large major motion detection areas.
7.3.1.2 Radial motion within the detection area
Replace the sixth paragraph with the following:
The procedure is then repeated twice. The average value of the three measurements recorded
shall be marked according to 8.2 (area C of Figure 17).
7.3.2.1 Tangential motion within the detection area (movement 1 m)
Replace the whole subclause with the following:
The test setup is given for information. Any other automated test setup can be used providing
identical results are obtained.
Tangential motion testing according to this Subclause 7.3.2 is limited to 400 measurements,
e.g., 20 m × 20 m.
For larger areas the detection area is defined following the procedure of 7.5, using the
performance criteria as defined in 8.5 for large major motion detection areas.
The test setup according to this document shall be built according to Figure 11 to be able to
measure all the grid cells given in Figure 9.

Figure 11 – Test setup for tangential movements (top view)
The test setup shall be built so that the test dummy can be moved between positions 1 and 2
according to Figure 11. The span shall be 1 m, centred towards the detector and the grid cell.
The test dummy is positioned on the mounting plate so that the side area is facing the detector.
The test dummy is placed at a starting position 1 to cover a specific grid cell outside the
expected detection distance.
© IEC 2025
The test dummy shall be moved for 1 m from position 1 to position 2 and it shall stay at this
point for approximately 1 s and then return backwards to position 1.
If the detection is positive, the cell on the grid map is marked as given in 8.2 (area B of
Figure 17). If the result is not positive, the test is repeated. If still no detection occurs, the cell
on the grid map shall be left blank.
Then the turntable moves to cover the next grid cell closer to the detector and the test is
repeated.
The grid is checked completely. The area covered by the minor motion tests can be omitted to
reduce test time. When using a scaled dummy, the grid sizes shall be calculated accordingly.
The span for tangential movements will reduce from 1 m to 0,5 m when using the 1:2 test dummy
or from 1 m to 0,2 m when using the 1:5 test dummy.
7.3.2.2 Radial motion within the detection area
Replace the first paragraph with the following two paragraphs:
The test setup is given for information. Any other automated test setup can be used providing
identical results are obtained.
The test setup according to this document shall be built according to Figure 12.
Replace the fifth paragraph with the following:
The test dummy shall be moved between position 1 and position 2 until detection occurs. This
test is done three times, and the average value is recorded.
7.4 Minor motion detection
Replace the first paragraph with the following:
The minor motion tests shall be performed in a pattern of maximum 1 m × 1 m for detectors with
presence range > 25 m , or maximum 0,5 m × 0,5 m for detectors with a presence range
≤ 25 m as given in Figure 9. The permitted grid size shall be 1 m/n (n = 1,2,5).
Delete the second and third paragraphs.
Replace the fourth paragraph with the following:
The test arm is positioned within the grid cell in such a way that the pivot point for the horizontal
movement is in the middle of the grid cell, the test arm in the starting position is in a horizontal
plane and pointing towards the detector as given in position 1. The test arm assembly shall not
be changed during the test.
– 10 – IEC 63180:2020/AMD1:2025
© IEC 2025
7.5 Determining the detection boundary
7.5.1 Determining the detection boundary for the human walking test (tangential
movement +10° from the detector)
Replace the title and contents of 7.5.1 with the following:
7.5.1 Determining the detection boundary during the human walking test (tangential
movement ±5° from the detector)
The detection boundary is outside the specified detection area.
The test person shall stand beyond the expected detection distance with arms close to the body
at position 1 as given in Figure 14.
The test person shall move from position 1 to position 2 at a speed of (1 ± 0,2) m/s and shall
stay at position 2 for approximately 1 s and then return backwards with the same speed as
before to position 1. The arms shall remain close to the body when performing the test. In no
case shall the moving distance of the test person be less than 1 m.
If no detection is registered at this position, the test person shall move to the next closer
distance to the detector (n – 1 m) and the test is repeated.
For more accurate results, distance steps of −0,5 m and angles of 5° can be used.
If a detection of at least one movement has occurred, the test will be repeated twice. In total
the test person moves 3 times from position 1 to 2 and back to position 1.
If a minimum of 2 movements from position 1 to 2 and 2 movements from position 2 to 1 are
detected, the test is passed.
When the test fails the test person moves to the next closer distance and the test is repeated.
After a positive result, the result is marked and shall be displayed according to 8.2 (area A of
Figure 17). This procedure shall be repeated for every 10°.

© IEC 2025
Figure 14 – Walking test pattern for determining the detection boundary
7.5.2 Determining the detection boundary during the automated test (tangential
movement ±5° from the detector)
Replace the third paragraph, the fourth paragraph, and the note with the following:
If no detection is registered at this position, the turntable moves to the next closer distance to
the DUT (− 0,5 m) and the test is repeated.
If a detection of at least one movement has been registered, the test will be repeated twice. In
total the test dummy moves 3 times from position 1 to 2 and back to position 1.
If a minimum of 2 movements from position 1 to 2 and 2 movements from position 2 to 1 are
detected, the test is passed.
When the test fails, the turntable shall move to the next position and the test is repeated. After
a positive result, the result is recorded. The turntable is moved again to the starting position
and turns + 10° to the next angle and the procedure shall be repeated until the complete
detection range is covered.
For more accurate results, angles of 5° may be used.
Delete the fifth paragraph (i.e., the paragraph after the note).

– 12 – IEC 63180:2020/AMD1:2025
© IEC 2025
8 Presentation of test results
8.1 General
Replace the first paragraph with the following:
The manufacturer shall declare the installation height that has been used for the detection in
the technical documentation. The manufacturer shall also declare the methodology used.
Add the following new paragraph at the end of the subclause:
A grid cell is defined to be inside the idealised area if the centre of the grid cell is inside the
idealised diagram.
8.2 Major motion radial and tangential area
Replace the first sentence of the third paragraph with the following:
The display in the diagram may be idealised. A maximum of 15 % of the measurements with
smaller ranges than the idealised area is accepted.
Add “(D)” to the title of 8.3 as follows:
8.3 Minor motion area (D)
Replace the first sentence of the second paragraph with the following:
The display in the pattern diagrams may be idealised by drawing for instance a rectangle as
given in the green zone of Figure 19. A maximum of 15 % of the measurements with smaller
ranges than the idealised area is accepted.
Add the following new paragraph at the end of the subclause:
A detector declared as a "minor motion" detector shall have a calculated idealised area of at
least 7 m for at least one mounting height declared by the manufacturer.
Add, between Subclause 8.3 and Subclause 8.4, the following new Subclause 8.5:
