IEC 61076-2-114:2020

Connectors for electrical and electronic equipment - Product requirements - Part 2-114: Circular connectors - Detail specification for connectors with M8 screw- locking with power contacts and signal contacts for data transmission up to 100 MHz

IEC 61076-2-114:2020 describes circular connectors with M8 screw locking typically used for data and power transmissions in industrial applications. These connectors consist of fixed and free connectors that are either rewireable or non-rewireable. Data transmission performance is for Category 5 up to 100 MHz.
Two coded versions, identified as D-coded and P-coded, are provided that differ by their pin size and optionally by number of poles, hence by the function provided for field applications.
Male connectors have round contacts Ø 0,8 mm for D-coded, and Ø 1 mm for P-coded connectors.
The coding provided by this document prevents the mating of accordingly coded male or female connectors to any other similarly sized interfaces covered by other standards.

Connecteurs pour équipements électriques et électroniques - Exigences de produit - Partie 2-114: Connecteurs circulaires - Spécification particulière pour les connecteurs avec verrouillage à vis M8 avec contacts de puissance et contact de signaux pour transmission de données jusqu'à 100 MHz

IEC 61076-2-114:2020 décrit des connecteurs circulaires avec verrouillage à vis M8 typiquement utilisés pour la transmission de données et de puissance dans des applications industrielles. Ces connecteurs se composent d’embases et de fiches démontables ou non. Les performances de transmission de données de la catégorie 5 vont jusqu'à 100 MHz.
Deux versions codées, identifiées par codage D et codage P, sont prévues. Elles diffèrent par la taille de leurs broches et, facultativement, par le nombre de pôles, donc par la fonction prévue pour les applications de terrain.
Les connecteurs mâles possèdent des contacts arrondis de 0,8 mm de diamètre pour les connecteurs à codage D et de 1 mm de diamètre pour les connecteurs à codage P.
Les codages prévus par le présent document empêchent l'accouplement de connecteurs mâles ou femelles codés ainsi avec toute autre interface de même taille couverte par d'autres normes.

General Information

• Status: Published
• Publication Date: 23-Sep-2020
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: SC 48B - Electrical connectors
• Current Stage: PPUB - Publication issued
• Start Date: 24-Sep-2020
• Completion Date: 14-Aug-2020

Relations

• Revises: IEC PAS 61076-2-114:2016 - Connectors for electronic equipment - Product requirements - Part 2-114: Circular connectors - Detail specification for data and power connectors with M8 screw-locking
• Effective Date: 05-Sep-2023

Overview

IEC 61076-2-114:2020 is an international standard by the IEC that specifies detailed product requirements for circular connectors featuring M8 screw-locking mechanisms. These connectors are designed primarily for electrical and electronic equipment in industrial settings. The standard covers connectors with power contacts and signal contacts supporting data transmission frequencies up to 100 MHz, aligning with Category 5 data communication performance. The specification addresses both rewireable and non-rewireable types of fixed and free connectors, ensuring versatility to meet a broad range of industrial application needs.

Key Topics

• Connector Types and Coding: The standard defines two distinct coding versions identified as D-coded and P-coded. These codings differentiate connector pin sizes-0.8 mm diameter for D-coded male contacts, and 1 mm for P-coded-and optionally vary the number of poles. This coding system prevents mismating between different connector interfaces, enhancing system reliability and safety.
• Mechanical and Electrical Specifications: Detailed mechanical characteristics include M8 screw-locking methods, which provide secure connections avoiding accidental disengagement in industrial environments. Electrical properties such as mutual impedance, insulation resistance, and current-carrying capacity are specified to ensure consistent signal and power quality.
• Data Transmission Capabilities: The connectors conform to data transmission standards up to 100 MHz, supporting Category 5 performance suitable for reliable industrial data communication, including Ethernet and other balanced cabling applications.
• Environmental and Testing Requirements: IEC 61076-2-114 specifies climatic categories, creepage and clearance distances to ensure safety and durability under harsh industrial conditions. It also outlines comprehensive test schedules covering mechanical operation, voltage proof, contact resistance, shock and vibration, and degree of protection (IP code) for connector enclosures.
• Dimensions and Mounting: The standard provides precise dimensional data for both fixed and free connectors, including multiple styles with straight or angled cable outlets. Mounting guidelines and retention force metrics guarantee proper fit and secure installation on panels or equipment.

Applications

IEC 61076-2-114:2020 connectors are critical components in numerous industrial automation and control systems where reliable power delivery and high-speed data transmission are required simultaneously. Typical applications include:

• Industrial Ethernet networks operating up to 100 MHz.
• Machinery and robotics requiring robust, vibration-resistant power and signal connectors.
• Factory automation systems where compact, standardized M8 connectors ensure easy assembly and maintenance.
• Sensors and actuators interfacing with control units using balanced signal cabling with secured connections.
• Harsh environment installations demanding high resistance to mechanical shock, dust, moisture, and temperature variations.

This standard ensures interoperability, safety, and performance adherence for manufacturers, designers, and integrators of electronic devices and electrical equipment using circular connectors with M8 locking.

Related Standards

When implementing IEC 61076-2-114:2020 connectors, consider related IEC standards that define further product requirements and compatibility levels:

• IEC 61076-1: General compatibility and performance levels for circular connectors.
• IEC 60603-7: Connectors used in industrial Ethernet, including RJ45 connectors.
• IEC 61169 Series: Connectors for RF and coaxial applications, where signal integrity is critical.
• IEC 60512: Test methods for electromechanical components and assemblies, providing additional test procedures applicable to M8 connectors.

Adherence to these complementary standards enhances overall system reliability and integration with other industrial components and communication networks.

---

Keywords: IEC 61076-2-114, M8 screw-locking connectors, circular connectors, power contacts, signal contacts, data transmission 100 MHz, Category 5 connectors, industrial connectors, D-coded connectors, P-coded connectors, electrical connector standards, industrial Ethernet connectors, connector testing, IEC connectors, industrial automation.

Standards Content (Sample)

IEC 61076-2-114 ®
Edition 1.0 2020-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment – Product requirements –
Part 2-114: Circular connectors – Detail specification for connectors with M8
screw-locking with power contacts and signal contacts for data transmission up
to 100 MHz
Connecteurs pour équipements électriques et électroniques – Exigences de
produit –
Partie 2-114: Connecteurs circulaires – Spécification particulière pour les
connecteurs avec verrouillage à vis M8 avec contacts de puissance et contact
de signaux pour transmission de données jusqu'à 100 MHz
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61076-2-114 ®
Edition 1.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment – Product requirements –

Part 2-114: Circular connectors – Detail specification for connectors with M8

screw-locking with power contacts and signal contacts for data transmission up

to 100 MHz
Connecteurs pour équipements électriques et électroniques – Exigences de

produit –
Partie 2-114: Connecteurs circulaires – Spécification particulière pour les

connecteurs avec verrouillage à vis M8 avec contacts de puissance et contact

de signaux pour transmission de données jusqu'à 100 MHz

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220.10 ISBN 978-2-8322-8654-8

– 2 – IEC 61076-2-114:2020 © IEC 2020

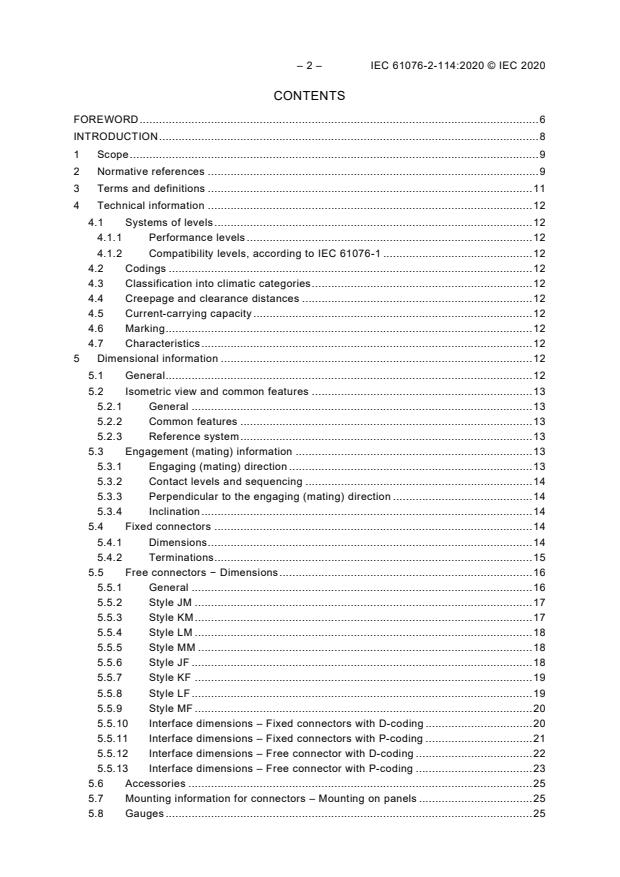

CONTENTS
FOREWORD . 6
INTRODUCTION . 8
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 11
4 Technical information . 12
4.1 Systems of levels . 12
4.1.1 Performance levels . 12
4.1.2 Compatibility levels, according to IEC 61076-1 . 12
4.2 Codings . 12
4.3 Classification into climatic categories . 12
4.4 Creepage and clearance distances . 12
4.5 Current-carrying capacity . 12
4.6 Marking . 12
4.7 Characteristics . 12
5 Dimensional information . 12
5.1 General . 12
5.2 Isometric view and common features . 13
5.2.1 General . 13
5.2.2 Common features . 13
5.2.3 Reference system . 13
5.3 Engagement (mating) information . 13
5.3.1 Engaging (mating) direction . 13
5.3.2 Contact levels and sequencing . 14
5.3.3 Perpendicular to the engaging (mating) direction . 14
5.3.4 Inclination . 14
5.4 Fixed connectors . 14
5.4.1 Dimensions . 14
5.4.2 Terminations . 15
5.5 Free connectors − Dimensions . 16
5.5.1 General . 16
5.5.2 Style JM . 17
5.5.3 Style KM . 17
5.5.4 Style LM . 18
5.5.5 Style MM . 18
5.5.6 Style JF . 18
5.5.7 Style KF . 19
5.5.8 Style LF . 19
5.5.9 Style MF . 20
5.5.10 Interface dimensions – Fixed connectors with D-coding . 20
5.5.11 Interface dimensions – Fixed connectors with P-coding . 21
5.5.12 Interface dimensions – Free connector with D-coding . 22
5.5.13 Interface dimensions – Free connector with P-coding . 23
5.6 Accessories . 25
5.7 Mounting information for connectors – Mounting on panels . 25
5.8 Gauges . 25

5.8.1 Sizing gauges and retention force gauges . 25
5.8.2 Mechanical function, engaging/separating/insertion/withdrawal force
gauges . 26
5.8.3 Probes . 26
5.8.4 Contact resistance gauge . 26
5.8.5 Test panel (for voltage proof test) . 26
5.8.6 Test panel (for EMC/ crosstalk, etc.) . 26
6 Characteristics . 26
6.1 General . 26
6.2 Pin assignment and other definitions . 27
6.3 Classification into climatic categories . 27
6.4 Electrical characteristics . 27
6.4.1 Creepage and clearance distances . 27
6.4.2 Voltage proof . 27
6.4.3 Current-carrying capacity (Table 11) . 28
6.4.4 Contact and shield resistance . 28
6.4.5 Insulation resistance . 28
6.4.6 Impedance . 28
6.5 Mechanical characteristics . 28
6.5.1 Mechanical operation . 28
6.5.2 Effectiveness of connector coupling device . 29
6.5.3 Engaging and separating forces (or insertion and withdrawal forces) . 29
6.5.4 Contact retention in insert . 29
6.5.5 Polarization and coding method . 29
6.6 Other characteristics . 30
6.6.1 Shock and vibration (method either random or sine) . 30
6.6.2 Degree of protection provided by enclosures (IP code) . 32
6.6.3 Screen and shielding properties . 32
6.7 Environmental aspects . 32
6.7.1 Marking of insulation material (plastics) . 32
6.7.2 Design/ use of material . 32
7 Test schedule . 32
7.1 General . 32
7.1.1 Overview . 32
7.1.2 Climatic category . 33
7.1.3 Creepage and clearance distances . 33
7.1.4 Arrangement for contact resistance measurement . 33
7.1.5 Arrangement for dynamic stress tests . 34
7.1.6 Wiring of specimens . 34
7.2 Test schedules . 34
7.2.1 General . 34
7.2.2 Basic (minimum) test schedule . 34
7.2.3 Full test schedule . 34
7.3 Test procedures and measuring methods . 43
7.4 Pre-conditioning . 43
7.5 Wiring and mounting of specimens . 43
7.5.1 Wiring . 43
7.5.2 Mounting . 43
Annex A (normative) Contact and pair designation for balanced cabling with D-coding . 44

– 4 – IEC 61076-2-114:2020 © IEC 2020
Annex B (normative) Contact and pair designation for balanced cabling with P-coding . 45

Figure 1 – Engagement (mating) information. 13
Figure 2 – Fixed connector with wire ends, male contacts, single hole mounting . 15
Figure 3 – Fixed connector with wire ends, female contacts, single hole mounting . 15
Figure 4 – Cable outlet orientation of male and female angled versions KM, MM, KF, MF . 16
Figure 5 – Rewireable connector, male contacts, straight version, with locking nut . 17
Figure 6 – Rewireable connector, male contacts, angled version, with locking nut . 17
Figure 7 – Non-rewireable connector, male contacts, straight version, with locking nut . 18
Figure 8 – Non-rewireable connector, male contacts, angled version, with locking nut . 18
Figure 9 – Rewireable connector, female contacts, straight version, with locking nut . 18
Figure 10 – Rewireable connector, female contacts, angled version, with locking nut. 19
Figure 11 – Non-rewireable connector, female contacts, straight version, with locking nut . 19
Figure 12 – Non-rewireable connector, female contacts, angled version, with locking nut . 20
Figure 13 – Fixed connector with D-coding . 20
Figure 14 – Fixed connector with P-coding . 21
Figure 15 – Free connector with D-coding . 22
Figure 16 – Free connector with P-coding . 24
Figure 17 – Gauge dimensions . 26
Figure 18 – Dynamic stress test arrangement . 31
Figure 19 – Contact resistance arrangement . 34
Figure A.1 – Mating side contact arrangement for balanced cabling with D-coding . 44
Figure B.1 – Mating side contact arrangement for balanced cabling with P-coding . 45

Table 1 – Connectors dimensions in mated and locked position . 14
Table 2 – Styles of fixed connectors . 14
Table 3 – Styles of free connectors . 16
Table 4 – Dimensions of fixed connector with D-coding. 21
Table 5 – Dimensions of fixed connector with P-coding . 22
Table 6 – Dimensions of free connector with D-coding . 23
Table 7 – Dimensions of free connector with P-coding . 25
Table 8 – Gauges . 26
Table 9 – Ratings of connectors . 27
Table 10 – Climatic category . 27
Table 11 – Current-carrying capacity . 28
Table 12 – Number of cycles of mechanical operations . 29
Table 13 – Insertion and withdrawal forces . 29
Table 14 – Insertion force . 29
Table 15 – Rated voltage – Rated impulse voltage – Pollution degree . 33
Table 16 – Voltage proof . 33
Table 17 – Number of test specimens and contacts . 34
Table 18 – Test group P . 35
Table 19 – Test group AP . 36

Table 20 – Test group BP . 38
Table 21 – Test group CP . 39
Table 22 – Test group DP . 40
Table 23 – Test group GP . 40
Table 24 – Test group MP . 42
Table A.1 – Contact and pair designation for balanced cabling with D-coding . 44
Table A.2 – Recommended applications for D-coded connectors . 44
Table B.1 – Contact and pair designation for balanced cabling with P-coding . 45
Table B.2 – Recommended applications for P-coded connectors . 45

– 6 – IEC 61076-2-114:2020 © IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRICAL AND ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-114: Circular connectors – Detail specification
for connectors with M8 screw-locking with power contacts and
signal contacts for data transmission up to 100 MHz

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61076-2-114 has been prepared by subcommittee 48B: Electrical
connectors, of IEC technical committee 48: Electrical connectors and mechanical structures
for electrical and electronic equipment
The text of this International Standard is based on the following documents:
FDIS Report on voting
48B/2814/FDIS 48B/2830/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.

This first edition cancels and replaces IEC PAS 61076-2-114, published in 2016.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 61076 series, under the general title Connectors for electrical and
electronic equipment – Product requirements, can be found on the IEC website.
Future standards in this series will carry the new general title as cited above. Titles of existing
standards in this series will be updated at the time of the next edition.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 8 – IEC 61076-2-114:2020 © IEC 2020
INTRODUCTION
IEC SC 48B – Electrical connectors IEC 61076-2-114 Ed. 1
Specification available from:
IEC General secretariat
or from the addresses shown on the inside cover.
DETAIL SPECIFICATION in accordance with IEC 61076-1
Circular connectors for data and
power applications with M8 screw-
locking and 4 ways
Male and female connectors
Male and female contacts
Rewireable – Non-rewireable
Free cable connectors
Straight and angled connectors
Fixed connectors
Flange mounting
Single hole mounting
IEC
CONNECTORS FOR ELECTRICAL AND ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-114: Circular connectors – Detail specification
for connectors with M8 screw-locking with power contacts and
signal contacts for data transmission up to 100 MHz

1 Scope
This part of IEC 61076 describes circular connectors with M8 screw locking typically used for
data and power transmissions in industrial applications. These connectors consist of fixed and
free connectors that are either rewireable or non-rewireable. Data transmission performance
is for Category 5 up to 100 MHz.
Two coded versions, identified as D-coded and P-coded, are provided that differ by their pin
size and optionally by number of poles, hence by the function provided for field applications.
Male connectors have round contacts Ø 0,8 mm for D-coded, and Ø 1 mm for P-coded
connectors.
The coding provided by this document prevents the mating of accordingly coded male or
female connectors to any other similarly sized interfaces covered by other standards.
NOTE M8 is the dimension of the thread of the screw-locking mechanism of these circular connectors.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60050-581, International Electrotechnical Vocabulary (IEV) – Part 581: Electromechanical
components for electronic equipment
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 60068-2-60, Environmental testing – Part 2: Tests –Test Ke: Flowing mixed gas corrosion
test
IEC 60352 (all parts), Solderless connections
IEC 60512-2-1, Connectors for electronic equipment – Tests and measurements – Part 2-1:
Electrical continuity and contact resistance tests – Test 2a: Contact resistance – Millivolt level
method
IEC 60512-3-1, Connectors for electronic equipment – Tests and measurements – Part 3-1:
Insulation tests – Test 3a: Insulation resistance
IEC 60512-4-1, Connectors for electronic equipment – Tests and measurements – Part 4-1:
Voltage stress tests – Test 4a: Voltage proof

– 10 – IEC 61076-2-114:2020 © IEC 2020
IEC 60512-5-2, Connectors for electronic equipment – Tests and measurements – Part 5-2:
Current-carrying capacity tests – Test 5b: Current-temperature derating
IEC 60512-6-3, Connectors for electronic equipment – Tests and measurements – Part 6-3:
Dynamic stress tests – Test 6c: Shock
IEC 60512-6-4, Connectors for electronic equipment – Tests and measurements – Part 6-4:
Dynamic stress tests – Test 6d: Vibration (sinusoidal)
IEC 60512-8-1, Connectors for electronic equipment – Tests and measurements – Part 8-1:
Static load tests (fixed connectors) – Test 8a: Static load, transverse
IEC 60512-9-1, Connectors for electronic equipment – Tests and measurements – Part 9-1:
Endurance tests – Test 9a: Mechanical operation
IEC 60512-12-2, Connectors for electronic equipment – Tests and measurements – Part 12-2:
Soldering tests – Test 12b: Solderability, wetting, soldering iron method
IEC 60512-13-2, Connectors for electronic equipment – Tests and measurements – Part 13-2:
Mechanical operation tests – Test 13b: Insertion and withdrawal forces
IEC 60512-13-5, Connectors for electronic equipment – Tests and measurements – Part 13-5:
Mechanical operation tests – Test 13e: Polarizing and keying method
IEC 60512-15-6, Connectors for electronic equipment – Tests and measurements – Part 15-6:
Connector tests (mechanical) – Test 15f: Effectiveness of connector coupling devices
IEC 60512-19-3, Electromechanical components for electronic equipment – Basic testing
procedures and measuring methods – Part 19: Chemical resistance tests – Section 3: Test
19c – Fluid resistance
IEC 60512-25-7:2004, Connectors for electronic equipment – Tests and measurements –
Part 25-7: Test 25g – Impedance, reflection coefficient, and voltage standing wave ratio
(VSWR)
IEC 60512-29-100, Connectors for electronic equipment – Tests and measurements –
Part 29-100: Signal integrity tests up to 500 MHz on M12 style connectors – Tests 29a to 29g
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
IEC 60603-7 (all parts), Connectors for electronic equipment – Part 7: Detail specification for
8-way, unshielded, free and fixed connectors
IEC 60603-7:2008, Connectors for electronic equipment – Part 7: Detail specification for 8-
way, unshielded, free and fixed connectors
IEC 60603-7-1:2011, Connectors for electronic equipment – Part 7-1: Detail specification for
8-way, shielded, free and fixed connectors
IEC 60664-1, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 60998-2-1, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-1: Particular requirements for connecting devices as separate entities with
screw-type clamping units
IEC 60999 (all parts), Connecting devices – Electrical copper conductors – Safety
requirements for screw-type and screwless-type clamping units
IEC 61076-1:2006, Connectors for electronic equipment – Product requirements – Part 1:
Generic specification
IEC 61131-2, Industrial-process measurement and control – Programmable controllers –
Part 2: Equipment requirements and tests
IEC 61784-5 (all parts), Industrial communication networks – Profiles
IEC 61784-5-12, Industrial communication networks – Profiles – Part 5-12: Installation of
fieldbuses – Installation profiles for CPF 12
IEC 61918, Industrial communication networks – Installation of communication networks in
industrial premises
IEC 61984, Connectors – Safety requirements and tests
IEC 62197-1, Connectors for electronic equipment – Quality assessment requirements –
Part 1: Generic specification
IEC 62430, Environmentally conscious design (ECD) – Principles, requirements and guidance
IEC Guide 109, Environmental aspects – Inclusion in electrotechnical product standards
ISO/IEC TR 11801 (all parts), Information technology – Generic cabling for customer
premises
ISO 1302, Geometrical product specifications (GPS) – Indication of surface texture in
technical product documentation
ISO 11469, Plastics – Generic identification and marking of plastic products
TIA-568 SET 2019, Commercial building telecommunications cabling standard set
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-581 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
mounting orientation
circular mounting position of the connector in relation to the polarization of the mating
interface
Note 1 to entry: Where the free connector has an angled cable entry (as opposed to a straight cable entry), the
angle between the cable entry direction and the polarization keyway should be specified.

– 12 – IEC 61076-2-114:2020 © IEC 2020
4 Technical information
4.1 Systems of levels
4.1.1 Performance levels
Performance levels for these connectors are specified in Table 12.
4.1.2 Compatibility levels, according to IEC 61076-1
Connectors according to this document are intermateable according to IEC 61076-1.
4.2 Codings
Connectors according to this document are foreseen with the following codings:
D-coding: 2 or 4 contacts, Ø 0,8 mm
P-coding: 4 contacts, Ø 1 mm
4.3 Classification into climatic categories
Classification into climatic categories is specified in 6.3.
4.4 Creepage and clearance distances
See 7.1.3.
4.5 Current-carrying capacity
Conditions: IEC 60512-5-2, test 5b
All contacts
Values at 40 °C
D-coding = 4 A
P-coding = 4 A
NOTE The current-carrying capacity depends on the terminated wires and other influences.
4.6 Marking
The marking of the connector and the package shall be in accordance with 2.7 of
IEC 61076-1:2006.
4.7 Characteristics
Recommended applications for the connectors can be found in Annex A and Annex B.
5 Dimensional information
5.1 General
Throughout this document, dimensions are in mm. Drawings are shown in the first angle
projection. The shape of the connectors may deviate from those given in the following
drawings as long as the specified dimensions are not influenced.
Missing dimensions shall be chosen according to common characteristics and intended use.

5.2 Isometric view and common features
5.2.1 General
For all connector styles with cables or wires, the length of the cable shall be agreed between
manufacturer and user. For interface dimensions, see 5.3.
5.2.2 Common features
Not applicable.
5.2.3 Reference system
Not applicable.
5.3 Engagement (mating) information
5.3.1 Engaging (mating) direction
Arrows in Figure 1 indicates the mating direction.

Housing variant 1 Housing variant 2

Housing variant 3
Figure 1 – Engagement (mating) information
Table 1 shows connectors dimensions in mated and locked position.

– 14 – IEC 61076-2-114:2020 © IEC 2020
Table 1 – Connectors dimensions in mated and locked position
Dimensions in millimetres
Housing Combination a max. d max. d1 h max. I max.
variant of styles
EM-JF --- Ø 16 Ø 11,5 --- 53
EM-LF --- Ø 11 Ø 11,5 --- 39
EF-JM --- Ø 16 Ø 11,5 --- 53
EF-LM --- Ø 11 Ø 11,5 --- 45
JM-JF --- Ø 16 --- --- 95
JM-LF --- Ø 16 --- --- 81
LM-JF --- Ø 16 --- --- 87
LM-LF --- Ø 11 --- --- 73
EM-KF 8 Ø 16 Ø 11,5 54 34
EM-MF 5,5 Ø 11 Ø 11,5 28 35
EF-KM 8 Ø 16 Ø 11,5 54 34
EF-MM 5,5 Ø 11 Ø 11,5 35 35
5.3.2 Contact levels and sequencing
The contact and disconnection sequence during the connection process is not defined.
5.3.3 Perpendicular to the engaging (mating) direction
Not applicable when connectors are mated by hand.
5.3.4 Inclination
Not applicable when connectors are mated by hand.
5.4 Fixed connectors
5.4.1 Dimensions
5.4.1.1 General
Table 2 shows styles of fixed connectors.
Table 2 – Styles of fixed connectors
Style Description
EM Fixed connector with wire ends, male contacts, single hole mounting
EF Fixed connector with wire ends, female contacts, single hole mounting

5.4.1.2 Style EM
Figure 2 shows style EM.
Figure 2 – Fixed connector with wire ends, male contacts, single hole mounting
5.4.1.3 Style EF
Figure 3 shows style EF.
Figure 3 – Fixed connector with wire ends, female contacts, single hole mounting
5.4.2 Terminations
The contact terminations shall be of the following types: screw, crimp, piercing, insulation
displacement, press-in or solder.
Solderless terminations shall be in accordance with the relevant standard from IEC 60352 (all
parts).
Screw type terminations shall be in accordance with IEC 60999 (all parts).

– 16 – IEC 61076-2-114:2020 © IEC 2020
5.5 Free connectors − Dimensions
5.5.1 General
Table 3 shows styles of free connectors.
Table 3 – Styles of free connectors
Style Description
a
JM Rewireable connector, male contacts, straight version, with locking nut
a
KM Rewireable connector, male contacts, angled version, with locking nut
a
LM Non-rewireable connector, male contacts, straight version, with locking nut
a
MM Non-rewireable connector, male contacts, angled version, with locking nut
a
JF Rewireable connector, female contacts, straight version, with locking nut
a
KF Rewireable connector, female contacts, angled version, with locking nut
a
LF Non-rewireable connector, female contacts, straight version, with locking nut
a
MF Non-rewireable connector, female contacts, angled version, with locking nut
a
Knurled ring or hexagonal ring upon agreement.

Figure 4 shows the cable orientation of angled versions of free connectors.

D-coded P-coded
Key
Direction of cable outlet relative to the mating face for male version. Female version to be fitted with the male
version.
Figure 4 – Cable outlet orientation of male and female angled versions KM, MM, KF, MF

5.5.2 Style JM
Figure 5 shows style JM.
Key
1 Cable outlet diameter range upon agreement
Figure 5 – Rewireable connector, male contacts,
straight version, with locking nut
5.5.3 Style KM
Figure 6 shows style KM.
Key
1 Cable outlet diameter range upon agreement
Figure 6 – Rewireable connector, male contacts,
angled version, with locking nut

– 18 – IEC 61076-2-114:2020 © IEC 2020
5.5.4 Style LM
Figure 7 shows style LM.
Figure 7 – Non-rewireable connector, male contacts,
straight version, with locking nut
5.5.5 Style MM
Figure 8 shows style MM.
Figure 8 – Non-rewireable connector, male contacts,
angled version, with locking nut
5.5.6 Style JF
Figure 9 shows style JF.
Key
1 Cable outlet diameter range upon agreement
Figure 9 – Rewireable connector, female contacts,
straight version, with locking nut

5.5.7 Style KF
Figure 10 shows style KF.
Key
1 Cable outlet diameter range upon agreement
Figure 10 – Rewireable connector, female contacts,
angled version, with locking nut
5.5.8 Style LF
Figure 11 shows style LF.
Figure 11 – Non-rewireable connector, female contacts,
straight version, with locking nut

– 20 – IEC 61076-2-114:2020 © IEC 2020
5.5.9 Style MF
Figure 12 shows style MF.
Figure 12 – Non-rewireable connector, female contacts,
angled version, with locking nut
5.5.10 Interface dimensions – Fixed connectors with D-coding
Figure 13 shows a fixed connector with female contacts and Table 4 shows the related
dimensions.
Figure 13 – Fixed connector with D-coding

Table 4 – Dimensions of fixed connector with D-coding
Dimensions in millimetres
Letter Minimum Nominal Maximum
AA 1,65 1,7 1,75
AB 3,3
AC 2,15 2,2 2,25
AD 1,9 1,95 2
AE 1,05 1,1 1,15
AF 134° 135° 1 366°
AG 0,5 0,55 0,6
AH  Ø 0,92
AI Ø 5,6 Ø 5,65 Ø 5,7
5.5.11 Interface dimensions – Fixed con
...
