IEC 60745-1:2001/AMD2:2003

Amendment 2 - Hand-held motor-operated electric tools - Safety - Part 1: General requirements

Amendment 2

General Information

• Status: Published
• Publication Date: 29-Jun-2003
• ICS: 25.140.20 - Electric tools
• Technical Committee: TC 116 - Safety of motor-operated electric tools
• Drafting Committee: MT 4 - TC 116/MT 4
• Current Stage: DELPUB - Deleted Publication
• Completion Date: 18-Apr-2006

Relations

• Amends: IEC 60745-1:2001 - Hand-held motor-operated electric tools - Safety - Part 1: General requirements
• Effective Date: 05-Sep-2023
• Revised: IEC 60745-1:2006 - Hand-held motor-operated electric tools - Safety - Part 1: General requirements
• Effective Date: 05-Sep-2023

Standards Content (Sample)

INTERNATIONAL IEC
STANDARD
60745-1
AMENDMENT 2
2003-06
Amendment 2
Hand-held motor-operated electric tools –
Safety –
Part 1:
General requirements
Amendement 2
Outils électroportatifs à moteur –
Sécurité –
Partie 1:
Règles générales
 IEC 2003 Droits de reproduction réservés  Copyright - all rights reserved
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail]  Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
Q
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

– 2 – 60745-1 Amend. 2  IEC:2003(E)

FOREWORD
This amendment has been prepared by subcommittee 61F: Safety of hand-held motor-

operated electric tools, of IEC technical committee 61: Safety of household and similar

electrical appliances.
The text of this amendment is based on the following documents:

FDIS Report on voting
61F/534/FDIS 61F/540/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until 2006. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
_____________
1 Scope
nd
Replace the 2 paragraph by the following:
So far as is practicable, this standard deals with the common hazards presented by hand-held
tools which are encountered by all persons in the normal use and reasonably foreseeable
misuse of the tools.
2 Normative references
Add the following normative references:
1)
IEC 60417-DB :2002, Graphical symbols for use on equipment

IEC 60760:1989, Flat, quick connect terminations
IEC 60884 (all parts), Plugs and socket-outlets for household and similar purposes
IEC 60998-2-1:2002, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-1: Particular requirements for connecting devices as separate entities with
screw-type clamping units
Delete the following normative references:
IEC 60083:1997, Plugs and socket-outlets for domestic and similar general use standardized
in member countries of IEC
___________
1)
‘DB’ refers to the on-line IEC database.

60745-1 Amend. 2  IEC:2003(E) – 3 –

3 Definitions
3.1.2
Amend the existing text to read as follows:

Where in this standard the expressions “with the aid of a tool”, “without the aid of a tool”, and

“requires the use of a tool”, are used, the word “tool” means a hand tool, for example a

screwdriver, which may be used to operate a screw or other fixing means.

Replace the existing text of the following definitions with the new text as follows:

3.2.3
working voltage
maximum voltage, without the effect of transient voltages, to which the part under
consideration is subjected when the tool is supplied at its rated voltage and operating under
normal load
3.2.9
normal load
load to be applied to a tool at rated voltage or at the upper limit of the rated voltage range, to
obtain rated input or rated current, any marking of short-time or intermittent operation being
observed and, unless otherwise specified, heating elements, if any, being operated as in
normal use
3.3.3
type X attachment
method of attachment of the supply cord so that it can easily be replaced
3.3.4
type Y attachment
method of attachment of the supply cord such that any replacement is intended to be made by
the manufacturer, its service agent or similar qualified person
3.4.1
basic insulation
insulation, not necessarily including insulation used for functional purposes, applied to live
parts to provide basic protection against electric shock
3.4.4
reinforced insulation
insulation of hazardous live parts which provides a degree of protection against electric shock

equivalent to double insulation
NOTE Examples of reinforced insulation are a single layer or several layers which cannot be tested singly as
basic insulation or supplementary insulation.
3.4.5
class I tool
tool in which protection against electric shock does not rely on basic, double or reinforced
insulation only, but which includes an additional safety precaution in that conductive
accessible parts are connected to the protective earthing conductor in the fixed wiring of the
installation in such a way that conductive accessible parts cannot become live in the event of
a failure of the basic insulation. Also considered as class I tools are tools with double
insulation and/or reinforced insulation throughout having an earthing terminal or earthing
contact

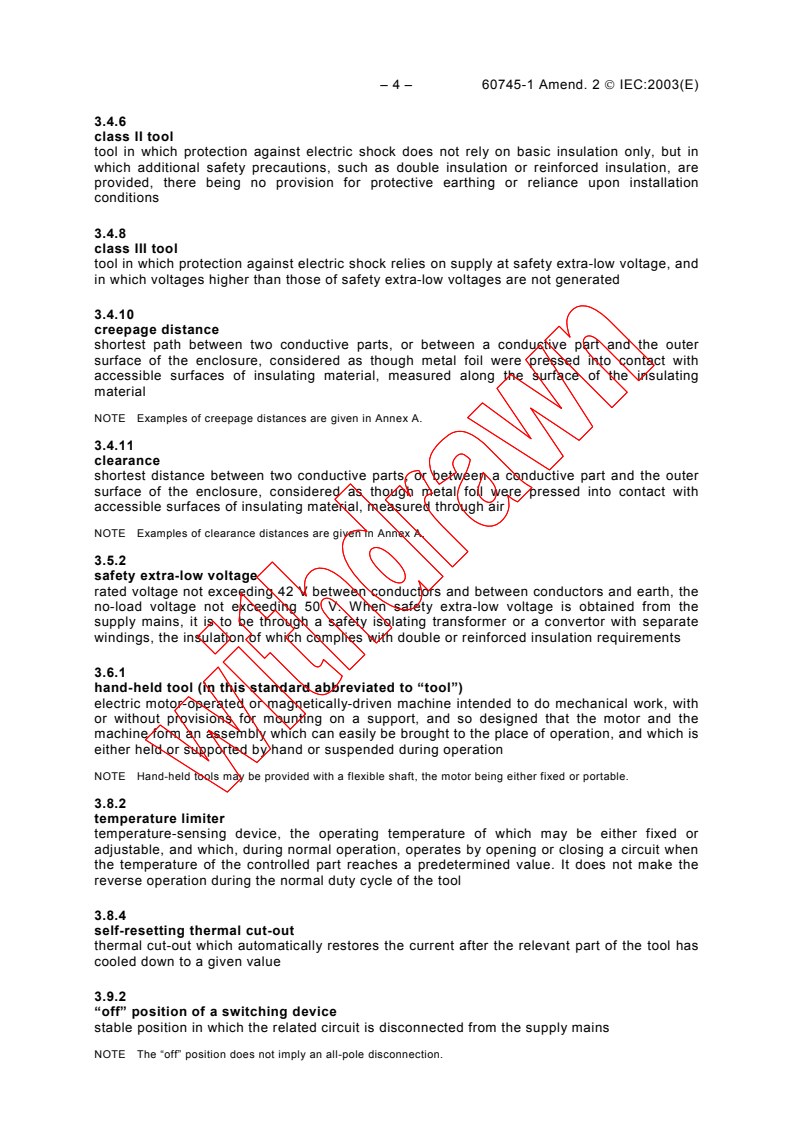

– 4 – 60745-1 Amend. 2  IEC:2003(E)

3.4.6
class II tool
tool in which protection against electric shock does not rely on basic insulation only, but in

which additional safety precautions, such as double insulation or reinforced insulation, are

provided, there being no provision for protective earthing or reliance upon installation

conditions
3.4.8
class III tool
tool in which protection against electric shock relies on supply at safety extra-low voltage, and
in which voltages higher than those of safety extra-low voltages are not generated

3.4.10
creepage distance
shortest path between two conductive parts, or between a conductive part and the outer
surface of the enclosure, considered as though metal foil were pressed into contact with
accessible surfaces of insulating material, measured along the surface of the insulating
material
NOTE Examples of creepage distances are given in Annex A.
3.4.11
clearance
shortest distance between two conductive parts, or between a conductive part and the outer
surface of the enclosure, considered as though metal foil were pressed into contact with
accessible surfaces of insulating material, measured through air
NOTE Examples of clearance distances are given in Annex A.
3.5.2
safety extra-low voltage
rated voltage not exceeding 42 V between conductors and between conductors and earth, the
no-load voltage not exceeding 50 V. When safety extra-low voltage is obtained from the
supply mains, it is to be through a safety isolating transformer or a convertor with separate
windings, the insulation of which complies with double or reinforced insulation requirements
3.6.1
hand-held tool (in this standard abbreviated to “tool”)
electric motor-operated or magnetically-driven machine intended to do mechanical work, with
or without provisions for mounting on a support, and so designed that the motor and the
machine form an assembly which can easily be brought to the place of operation, and which is
either held or supported by hand or suspended during operation
NOTE Hand-held tools may be provided with a flexible shaft, the motor being either fixed or portable.

3.8.2
temperature limiter
temperature-sensing device, the operating temperature of which may be either fixed or
adjustable, and which, during normal operation, operates by opening or closing a circuit when
the temperature of the controlled part reaches a predetermined value. It does not make the
reverse operation during the normal duty cycle of the tool
3.8.4
self-resetting thermal cut-out
thermal cut-out which automatically restores the current after the relevant part of the tool has
cooled down to a given value
3.9.2
“off” position of a switching device
stable position in which the related circuit is disconnected from the supply mains
NOTE The “off” position does not imply an all-pole disconnection.

60745-1 Amend. 2  IEC:2003(E) – 5 –

3.9.4
live part
any conductor or conductive part intended to be energized in normal use, including a neutral

conductor but, by convention, not a PEN conductor.

3.10.1
electronic component
part in which conduction is achieved principally by electrons moving through a vacuum, gas or

semiconductor, with the exclusion of neon indicators

3.10.3
protective impedance
impedance connected between live parts and accessible conductive parts, and of value so
that the current is limited to a safe value
3.11.3
short-time operation
operation under normal load for a specified period, starting from cold, the intervals between
each period of operation being sufficient to allow the tool to cool down approximately to
ambient temperature
3.12.2
attachment
device attached to the housing or other component of the tool and which may or may not be
attached to the output mechanism and does not modify the normal use of the tool within the
scope of this standard
Delete definitions 3.9.2 and 3.11.2 and renumber the subsequent definitions accordingly.
Add the following new definition:
3.2.11
normal use
use of a tool for which it is designed, taking into account the manufacturer’s instructions
4 General requirements
Amend the first paragraph to read as follows:
Tools shall be so constructed that in normal use they function safely so as to cause no danger
to persons or surroundings, even in the event of reasonably foreseeable misuse.

5 General conditions for the tests
5.5 Amend the first paragraph to read as follows:
Tools provided with controls or switching devices are tested with these controls or devices
adjusted to their most unfavourable settings, if the setting can be altered by the user.
Electronic speed control devices are set for the highest speed.
5.7.1 Amend the second paragraph to read as follows:
Tools for a.c. which are not marked with rated frequency, or marked with a frequency range of
50 Hz to 60 Hz, are tested with either 50 Hz or 60 Hz, whichever is the more unfavourable.

– 6 – 60745-1 Amend. 2  IEC:2003(E)

5.7.3 Amend the last paragraph to read as follows:

When a factor is not specified, the input corresponds to the input at the most unfavourable
rated voltage within the range.

5.8 Amend the existing text to read as follows:

When alternative attachments are made available for the tool by its manufacturer, the tool is

tested with those attachments which give the most unfavourable results.

5.14 Amend the existing text to read as follows:
For attachments performing a function which is within the scope of one of the relevant parts 2,
the tests are made in accordance with that part 2.
For other attachments, the tests are made in accordance with manufacturer's instructions; in
the absence of such instructions, the tool is operated continuously at a load at which rated
input or rated current is attained.
7 Classification
7.2 Amend the first paragraph to read as follows:
Tools shall have the appropriate degree of protection against harmful ingress of water
according to IEC 60529. If a degree other than IPX0 is required this shall be specified in the
relevant part 2.
8 Marking and instructions
8.1 Amend the fourth and fifth dashed items to read as follows:
– name or trade mark or identification mark or company name of the manufacturer or any
other person responsible for placing the tool on the market;
– designation of series or type;
8.6 Amend the first sentence to read as follows:
If units or technical data are expressed by symbols, the following symbols shall be used:

Delete the fifth paragraph, beginning “The symbol for class II tools…”.
Amend the sixth and seventh paragraphs to read as follows:
When other units are used, the units and their symbols shall be those of the international
standardized system. Multiple or submultiple units are also allowed.
Additional symbols are allowed, provided they do not give rise to misunderstanding.
8.7
Delete the note.
8.10 Amend the first paragraph to read as follows:

60745-1 Amend. 2  IEC:2003(E) – 7 –

For tools which might cause danger when started unexpectedly, the “off” position of the mains

switch shall be indicated, unless this position is obvious; the indication, if required, shall be

the figure {, as given by symbol IEC 60417-5008 (DB:2002-10).

8.11 Amend the first three paragraphs to read as follows:

Regulating devices and the like, intended to be adjusted during operation, shall be provided

with an indication for the direction of adjustment to increase or to decrease the value of the

characteristic being adjusted. An indication of + and – is considered to be sufficient.

The requirement does not apply to regulating devices provided with an adjusting means, if its

fully “on” position is opposite to its “off” position.
If figures are used for indicating the different positions, the “off” position shall be indicated by
the figure { and the other positions shall be indicated by figures reflecting the greater output,
input, speed, etc.
Delete the fourth paragraph, beginning: “An indication of + and –…”.
8.12 Amend the first paragraph to read as follows:
An instruction manual and general safety instructions shall be provided with the tool and
packaged in such a way that is noticed by the user when the tool is removed from the
packaging. The general safety instructions may be separate from the instruction manual. They
shall be written in the official language(s) of the country in which the tool is sold.
Amend the third paragraph to read as follows:
The instruction manual shall include the name and address of the manufacturer or supplier of
branded product and an explanation of the symbols used on the product.
8.12.1
Amend the first paragraph to read as follows:
General Safety Instructions. The Safety Rules specified in this clause, if in English, shall be
verbatim and in the exact order as given and in any other official language to be equivalent.
Amend the warning instruction 4) c) to read as follows:

c) Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
Amend the warning instruction 4) g) to read as follows:
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions and in the manner intended for the particular type of power tool, taking
into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.

– 8 – 60745-1 Amend. 2  IEC:2003(E)

8.14 Amend the first paragraph to read as follows:

Markings specified in 8.1 to 8.5 shall be on a main p
...
