IEC 60794-2-22:2023

Optical fibre cables - Part 2-22: Indoor cables - Detail specification for multi-simplex breakout optical cables for use in terminated breakout cable assemblies

IEC 60794-2-22: 2023 specifies breakout optical cables with multiple simplex optical fibre cables for use in terminated breakout cable assemblies. This second edition cancels and replaces the first edition published in 2016. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) changed partly the wording in the title and the scope to align with IEC 60794-2-50, IEC 60794-2-23 and IEC 60794-2-24;
b) added IEC 60793-1-40, IEC 60793-1-46 and IEC 60794-1-2 to the normative references;
c) deleted reference to IEC 60794-2-51;
d) added the definition of terminated breakout cable assembly;
e) changed the number of bend cycles from 10 to 3 to harmonise with IEC 60794-2-50;
f) changed test parameters for temperature cycling to harmonise with IEC 60794-2-50;
g) added maximum attenuation requirements after temperature cycling;
h) replaced the text for the fire performance with an improved description.

Câbles à fibres optiques - Partie 2-22: Câbles intérieurs - Spécification particulière pour câbles optiques épanouis simplex multiples destinés à être utilisés comme câbles assemblés épanouis équipés

L'IEC 60794-2-22: 2023 spécifie particulière pour câbles optiques épanouis comprenant des câbles à fibres optiques simplex multiples destinés à être utilisés comme câbles assemblés épanouis équipés. Cette deuxième édition annule et remplace la première édition parue en 2016. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) modification partielle de la formulation du titre et du domaine d'application à des fins d'harmonisation avec l’IEC 60794-2-50, l’IEC 60794-2-23 et l’IEC 60794-2-24;
b) ajout de l'IEC 60793-1-40, l'IEC 60793-1-46 et l'IEC 60794-1-2 aux références normatives;
c) suppression de la référence à l’IEC 60794-2-51;
d) ajout de la définition des câbles assemblés épanouis équipés;
e) modification du nombre de cycles en courbure de 10 à 3 aux fins d'harmonisation avec l'IEC 60794-2-50;
f) modification des paramètres de l'essai des cycles de températures aux fins d'harmonisation avec l’IEC 60794-2-50;
g) ajout des exigences d'affaiblissement maximal après les cycles de températures;
h) remplacement du texte relatif au comportement au feu par une description améliorée.

General Information

• Status: Published
• Publication Date: 30-Mar-2023
• ICS: 33.180.10 - Fibres and cables
• Technical Committee: SC 86A - Fibres and cables
• Current Stage: PPUB - Publication issued
• Start Date: 28-Apr-2023
• Completion Date: 31-Mar-2023

Relations

• Revises: IEC 60794-2-22:2016 - Optical fibre cables - Part 2-22: Indoor cables - Detail specification for multi-simplex breakout optical cables to be terminated with connectors
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 60794-2-22 ®
Edition 2.0 2023-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Optical fibre cables –
Part 2-22: Indoor cables – Detail specification for multi-simplex breakout optical
cables to be terminated with connectors for use in terminated breakout cable
assemblies
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 60794-2-22 ®
Edition 2.0 2023-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Optical fibre cables –
Part 2-22: Indoor cables – Detail specification for multi-simplex breakout optical
cables to be terminated with connectors for use in terminated breakout cable
assemblies
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.180.10 ISBN 978-2-8322-6745-5
– 2 – IEC 60794-2-22:2023 RLV © IEC 2023

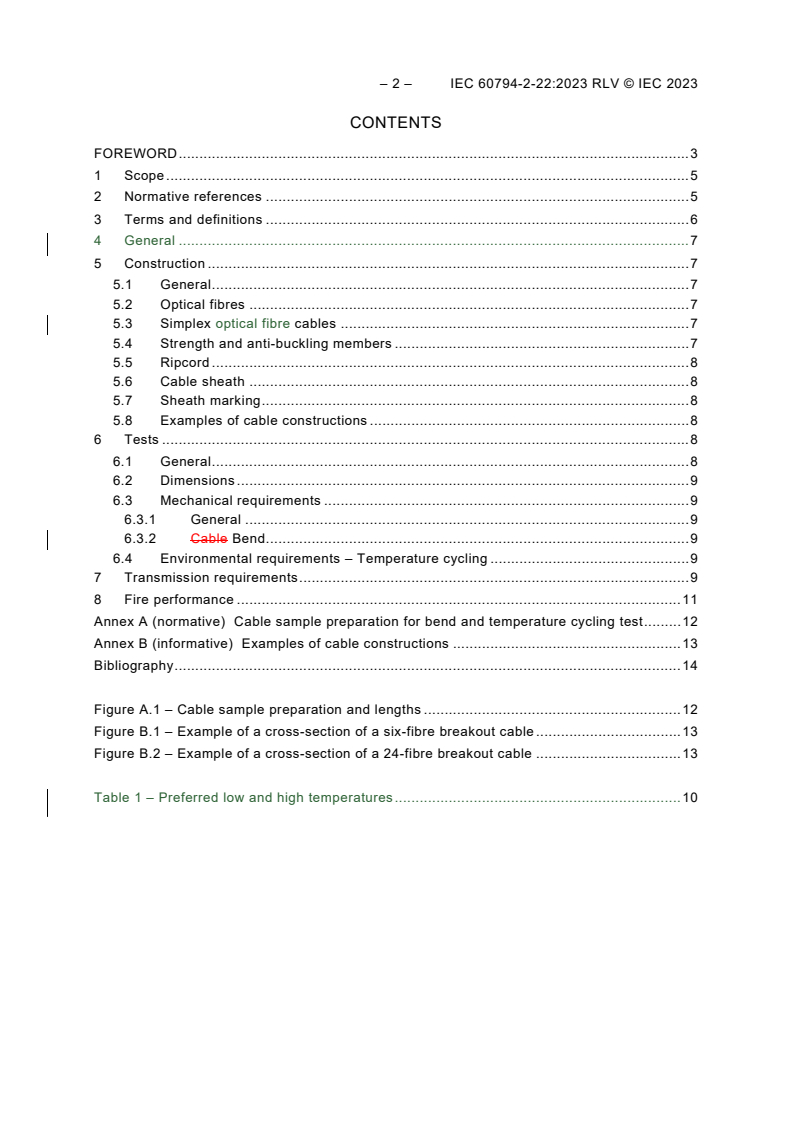

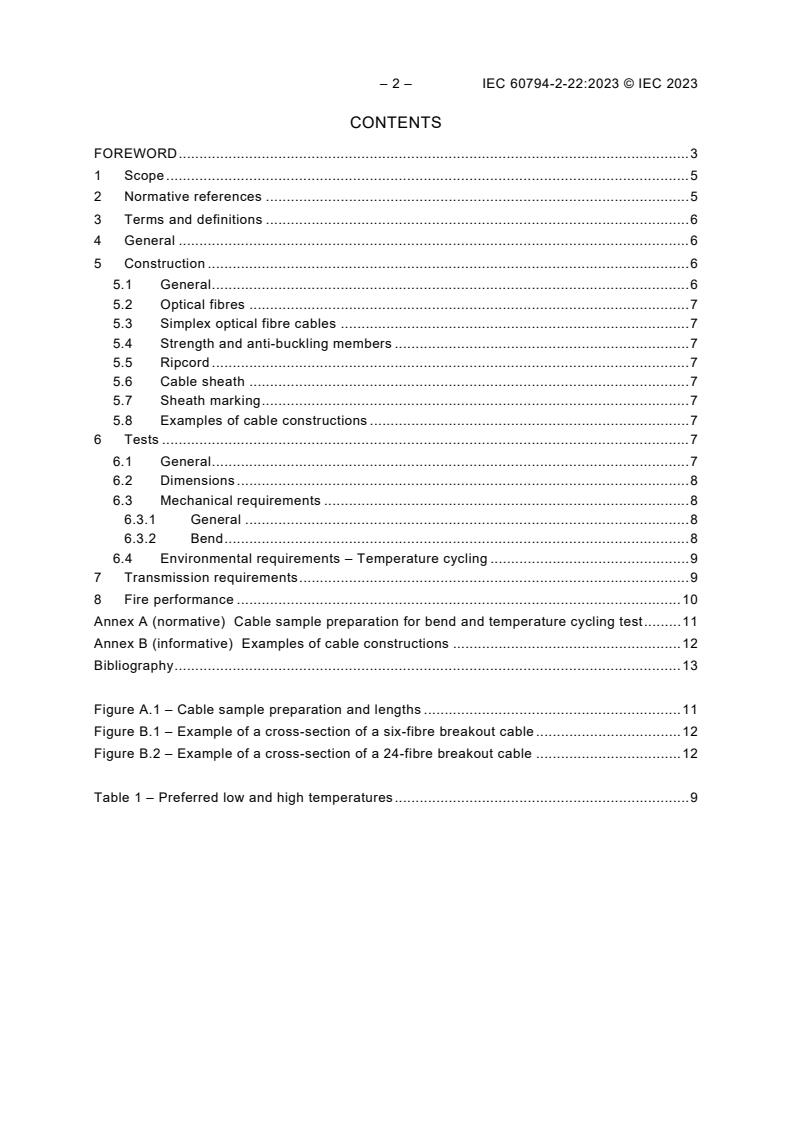

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 General . 7
5 Construction . 7
5.1 General . 7
5.2 Optical fibres . 7
5.3 Simplex optical fibre cables . 7
5.4 Strength and anti-buckling members . 7
5.5 Ripcord . 8
5.6 Cable sheath . 8
5.7 Sheath marking . 8
5.8 Examples of cable constructions . 8
6 Tests . 8
6.1 General . 8
6.2 Dimensions . 9
6.3 Mechanical requirements . 9
6.3.1 General . 9
6.3.2 Cable Bend . 9
6.4 Environmental requirements – Temperature cycling . 9
7 Transmission requirements . 9
8 Fire performance . 11
Annex A (normative) Cable sample preparation for bend and temperature cycling test . 12
Annex B (informative) Examples of cable constructions . 13
Bibliography . 14

Figure A.1 – Cable sample preparation and lengths . 12
Figure B.1 – Example of a cross-section of a six-fibre breakout cable . 13
Figure B.2 – Example of a cross-section of a 24-fibre breakout cable . 13

Table 1 – Preferred low and high temperatures . 10

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL FIBRE CABLES –
Part 2-22: Indoor cables –
Detail specification for multi-simplex breakout
optical cables to be terminated with connectors for use in terminated
breakout cable assemblies
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition IEC 60794-2-22:2016. A vertical bar appears in the margin
wherever a change has been made. Additions are in green text, deletions are in
strikethrough red text.
– 4 – IEC 60794-2-22:2023 RLV © IEC 2023
IEC 60794-2-22 has been prepared by subcommittee 86A: Fibres and cables, of IEC technical
committee 86: Fibre optics. It is an International Standard.
This second edition cancels and replaces the first edition published in 2016. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) changed partly the wording in the title and the scope to align with IEC 60794-2-50,
IEC 60794-2-23 and IEC 60794-2-24;
b) added IEC 60793-1-40, IEC 60793-1-46 and IEC 60794-1-2 to the normative references;
c) deleted reference to IEC 60794-2-51;
d) added the definition of terminated breakout cable assembly;
e) changed the number of bend cycles from 10 to 3 to harmonise with IEC 60794-2-50;
f) changed test parameters for temperature cycling to harmonise with IEC 60794-2-50;
g) added maximum attenuation requirements after temperature cycling;
h) replaced the text for the fire performance with an improved description.
The text of this International Standard is based on the following documents:
Draft Report on voting
86A/2285/FDIS 86A/2317/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60794 series, published under the general title Optical fibre cables,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it
are considered to be useful for the correct understanding of its
contains colours which
contents. Users should therefore print this document using a colour printer.

OPTICAL FIBRE CABLES –
Part 2-22: Indoor cables –
Detail specification for multi-simplex breakout
optical cables to be terminated with connectors for use in terminated
breakout cable assemblies
1 Scope
This part of IEC 60794 is a detail specification and specifies breakout optical cables with
multiple simplex optical fibre cables for termination with connectors use in terminated breakout
cable assemblies.
The requirements of the sectional specification IEC 60794-2 are applicable to cables covered
by this document.
The requirements of the family specification IEC 60794-2-20 are applicable to breakout cables
to be installed without terminated connectors.
Fan-out kits used for cable systems are not covered by this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60811-202, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 202: General tests – Measurement of thickness of non-metallic sheath
IEC 60811-203, Electric and optical fibre cables – Test methods for non-metallic materials
...

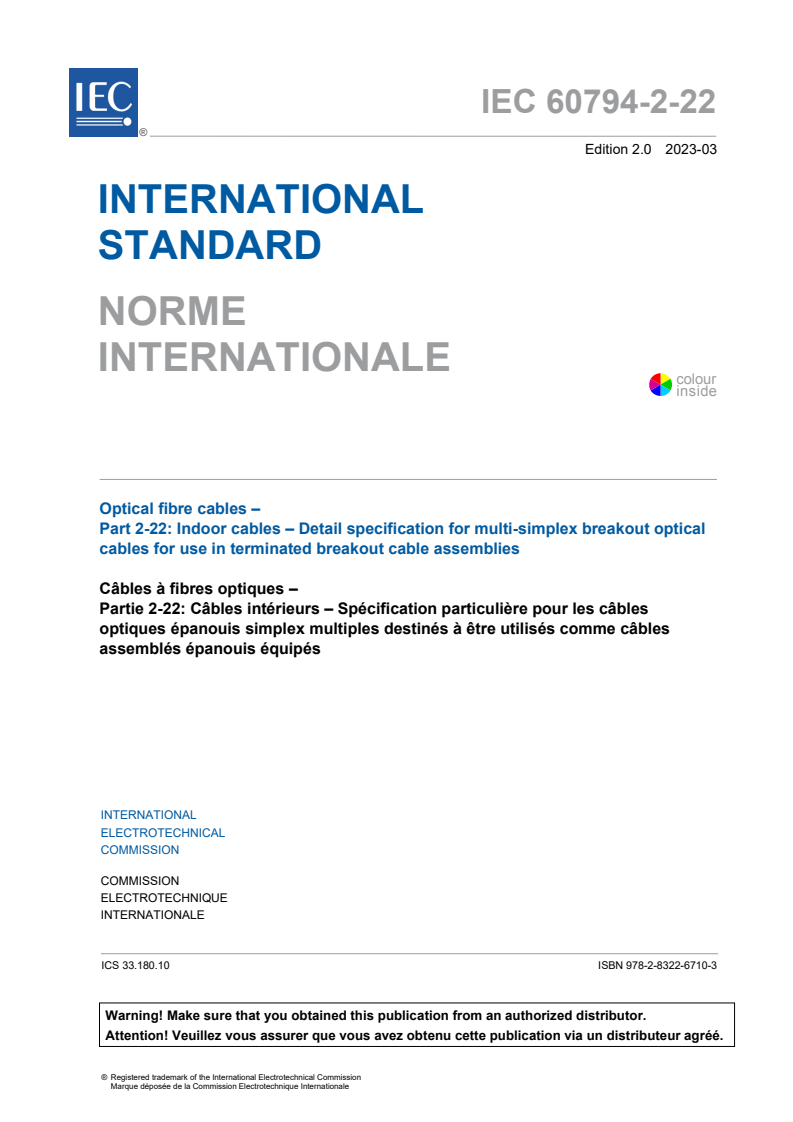

IEC 60794-2-22 ®
Edition 2.0 2023-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Optical fibre cables –
Part 2-22: Indoor cables – Detail specification for multi-simplex breakout optical
cables for use in terminated breakout cable assemblies
Câbles à fibres optiques –
Partie 2-22: Câbles intérieurs – Spécification particulière pour les câbles
optiques épanouis simplex multiples destinés à être utilisés comme câbles
assemblés épanouis équipés
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org
Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC Products & Services Portal - products.iec.ch

IEC 60794-2-22 ®
Edition 2.0 2023-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Optical fibre cables –
Part 2-22: Indoor cables – Detail specification for multi-simplex breakout optical
cables for use in terminated breakout cable assemblies
Câbles à fibres optiques –
Partie 2-22: Câbles intérieurs – Spécification particulière pour les câbles
optiques épanouis simplex multiples destinés à être utilisés comme câbles
assemblés épanouis équipés
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.10 ISBN 978-2-8322-6710-3
– 2 – IEC 60794-2-22:2023 © IEC 2023
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 General . 6
5 Construction . 6
5.1 General . 6
5.2 Optical fibres . 7
5.3 Simplex optical fibre cables . 7
5.4 Strength and anti-buckling members . 7
5.5 Ripcord . 7
5.6 Cable sheath . 7
5.7 Sheath marking . 7
5.8 Examples of cable constructions . 7
6 Tests . 7
6.1 General . 7
6.2 Dimensions . 8
6.3 Mechanical requirements . 8
6.3.1 General . 8
6.3.2 Bend . 8
6.4 Environmental requirements – Temperature cycling . 9
7 Transmission requirements . 9
8 Fire performance . 10
Annex A (normative) Cable sample preparation for bend and temperature cycling test . 11
Annex B (informative) Examples of cable constructions . 12
Bibliography . 13

Figure A.1 – Cable sample preparation and lengths . 11
Figure B.1 – Example of a cross-section of a six-fibre breakout cable . 12
Figure B.2 – Example of a cross-section of a 24-fibre breakout cable . 12

Table 1 – Preferred low and high temperatures . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL FIBRE CABLES –
Part 2-22: Indoor cables –
Detail specification for multi-simplex breakout
optical cables for use in terminated breakout cable assemblies

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 60794-2-22 has been prepared by subcommittee 86A: Fibres and cables, of IEC technical
committee 86: Fibre optics. It is an International Standard.
This second edition cancels and replaces the first edition published in 2016. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) changed partly the wording in the title and the scope to align with IEC 60794-2-50,
IEC 60794-2-23 and IEC 60794-2-24;
b) added IEC 60793-1-40, IEC 60793-1-46 and IEC 60794-1-2 to the normative references;
c) deleted reference to IEC 60794-2-51;
d) added the definition of terminated breakout cable assembly;

– 4 – IEC 60794-2-22:2023 © IEC 2023
e) changed the number of bend cycles from 10 to 3 to harmonise with IEC 60794-2-50;
f) changed test parameters for temperature cycling to harmonise with IEC 60794-2-50;
g) added maximum attenuation requirements after temperature cycling;
h) replaced the text for the fire performance with an improved description.
The text of this International Standard is based on the following documents:
Draft Report on voting
86A/2285/FDIS 86A/2317/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the devel
...
