IEC 61290-3-2:2008
(Main)Optical amplifiers - Test methods - Part 3-2: Noise figure parameters - Electrical spectrum analyzer method
Optical amplifiers - Test methods - Part 3-2: Noise figure parameters - Electrical spectrum analyzer method
IEC 61290-3-2:2008 applies to optical fibre amplifiers (OFA) using active fibres, containing rare-earth dopants, presently commercially available. Establishes uniform requirements for accurate and reliable measurements, of the noise figure, as defined in 3.1.17 of IEC 61291-1, by means of the electricial spectrum analyzer (ESA) method. This technical revision includes updates to specifically address all types of optical amplifiers - not just optical fibre amplifiers. This standard should be read in conjunction with IEC 61290-3 and IEC 61291-1.
Amplificateurs optiques - Méthodes d'essais - Partie 3-2: Paramètres du facteur de bruit - Méthode de l'analyseur spectral électrique
La CEI 61290-3-2:2008 s'applique aux amplificateurs à fibres optiques (AFO) qui utilisent des fibres actives, dopées aux terres rares, qui sont actuellement disponibles sur le marché. Etablit des prescriptions uniformes en vue de mesures précises et fiables du facteur de bruit défini en 3.1.17 de la CEI 61291-1, en utilisant la méthode d'essai d'analyseur de spectre électrique (ASE). Cette révision technique inclut des mises à jour permettant de s'adresser à tout type d'amplificateur optique - pas seulement les amplificateurs à fibres optiques. Il convient que la présente norme soit lue conjointement avec la CEI 61290-3 et la CEI 61291-1.
General Information
Relations
Standards Content (Sample)
IEC 61290-3-2
Edition 2.0 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical amplifiers – Test methods –
Part 3-2: Noise figure parameters – Electrical spectrum analyzer method
Amplificateurs optiques – Méthodes d’essais -
Partie 3-2: Paramètres du facteur de bruit – Méthode de l’analyseur spectral
électrique
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61290-3-2
Edition 2.0 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical amplifiers – Test methods –
Part 3-2: Noise figure parameters – Electrical spectrum analyzer method
Amplificateurs optiques – Méthodes d’essais -
Partie 3-2: Paramètres du facteur de bruit – Méthode de l’analyseur spectral
électrique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
Q
CODE PRIX
ICS 33.180.30 ISBN 2-8318-9898-6
– 2 – 61290-3-2 © IEC:2008

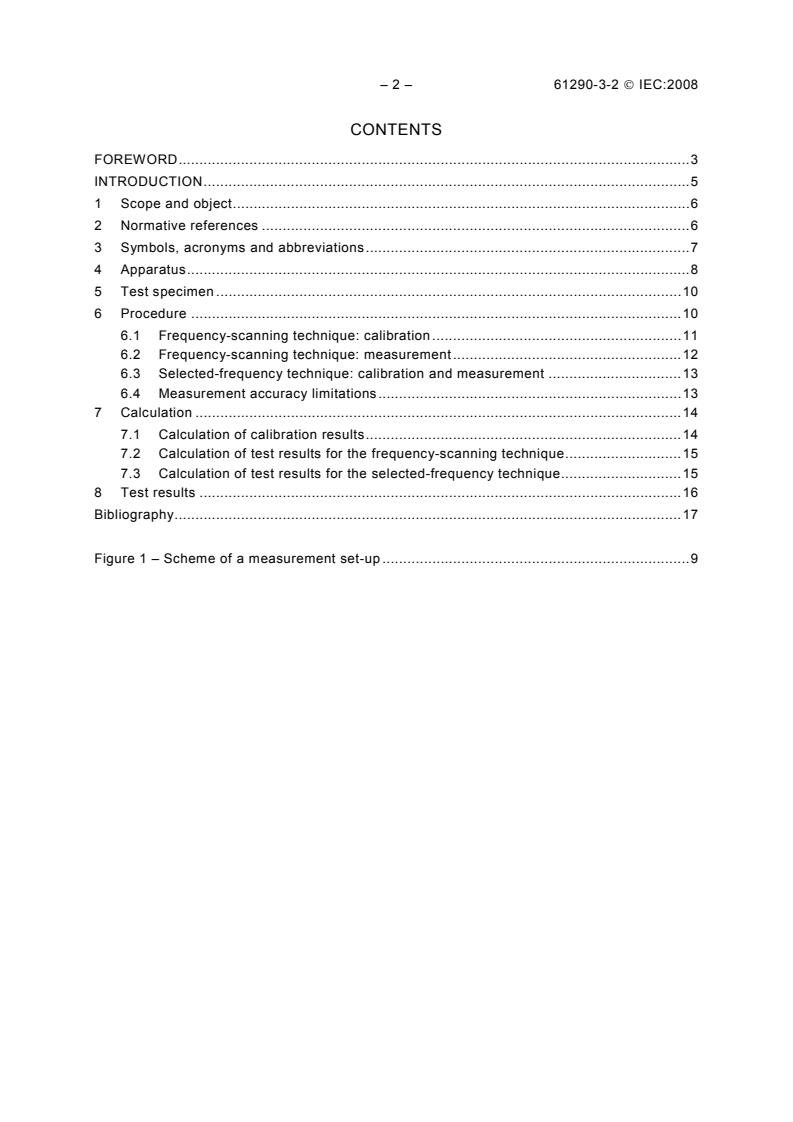

CONTENTS
FOREWORD.3
INTRODUCTION.5
1 Scope and object.6
2 Normative references .6
3 Symbols, acronyms and abbreviations.7
4 Apparatus.8
5 Test specimen .10
6 Procedure .10
6.1 Frequency-scanning technique: calibration.11
6.2 Frequency-scanning technique: measurement.12
6.3 Selected-frequency technique: calibration and measurement .13
6.4 Measurement accuracy limitations.13
7 Calculation .14
7.1 Calculation of calibration results.14
7.2 Calculation of test results for the frequency-scanning technique.15
7.3 Calculation of test results for the selected-frequency technique.15
8 Test results .16
Bibliography.17
Figure 1 – Scheme of a measurement set-up .9
61290-3-2 © IEC:2008 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL AMPLIFIERS –
TEST METHODS –
Part 3-2: Noise figure parameters –
Electrical spectrum analyzer method
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61290-3-2 has been prepared by subcommittee 86C: Fibre optic
systems and active devices, of IEC technical committee 86: Fibre optics.
This second edition cancels and replaces the first edition published in 2003 and constitutes a
technical revision. It includes updates to specifically address all types of optical amplifiers –
not just optical fibre amplifiers.
This standard should be read in conjunction with IEC 61290-3 and IEC 61291-1.
– 4 – 61290-3-2 © IEC:2008
The text of this standard is based on the following documents:
CDV Report on voting
86C/784/CDV 86C/828/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 61290 series, published under the general title Optical amplifiers –
Test methods, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the
data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
61290-3-2 © IEC:2008 – 5 –
INTRODUCTION
This part of IEC 61290 is devoted to the subject of optical amplifiers. The technology of
optical amplifiers is still rapidly evolving, hence amendments and new additions to this
standard can be expected.
Each symbol and abbreviation introduced in this standard is generally explained in the text
the first time it appears. However, for an easier understanding of the whole text, a list of all
symbols and abbreviations used in this standard is given in Clause 3.
– 6 – 61290-3-2 © IEC:2008
OPTICAL AMPLIFIERS –
TEST METHODS –
Part 3-2: Noise figure parameters –
Electrical spectrum analyzer method
1 Scope and object
This part of IEC 61290 applies to all commercially available optical amplifiers (OAs), including
OAs using optically pumped fibres (OFAs based on either rare-earth doped fibres or on the
Raman effect), semiconductor optical amplifiers (SOAs) and planar waveguide optical
amplifiers (PWOAs).
The object of this standard is to establish uniform requirements for accurate and reliable
measurements, by means of the electrical spectrum analyzer (ESA) method, of the noise
figure, as defined in IEC 61291-1.
The present test method is based on direct electrical noise measurement and it is directly
related to its definition including all relevant noise contributions. Therefore, this method can
be used for all types of optical amplifiers, including SOA and Raman amplifiers which can
have significant contributions besides amplified spontaneous emission, because it measures
the total noise figure. For further details of applicability, see IEC 61290-3. An alternative test
method based on the optical spectrum analyzer can be used, particularly for different noise
parameters (such as the signal-spontaneous noise factor) but it is not included in the object of
this standard.
NOTE 1 All numerical values followed by (‡) are suggested values for which the measurement is assured. Other
values may be acceptable but should be verified.
NOTE 2 A measurement accuracy for the average noise factor of ±20 %(‡), respectively ±1 dB, should be
attainable with this method (see
...
