Marine energy - Wave, tidal and other water current converters - Part 1: Vocabulary

IEC TS 62600-1:2020 defines the terms relevant to ocean and marine renewable energy. For the purposes of this Technical Specification, sources of ocean and marine renewable energy are taken to include wave, tidal current, and other water current energy converters. This Technical Specification is intended to provide uniform terminology to facilitate communication between organizations and individuals in the marine renewable energy industry and those who interact with them.
This second edition cancels and replaces the first edition published in 2011, and its Amendment 1, published in 2019. This edition includes the following significant technical changes from the previous edition:
- Approximately 45 % of the original terms which were either not in use, used only in a glossary sense, or which are commonly understood and found in other references were removed.
- Thirteen (13) terms considered more general than tidal were moved up from IEC TS 62600-200 and added.
- Eight (8) terms that were added in Amendment 1 to IEC TS 62600-1 were incorporated alphabetically.
- Six (6) additional new terms were added.

General Information

Status
Published
Publication Date
15-Jun-2020
Current Stage
PPUB - Publication issued
Completion Date
16-Jun-2020
Ref Project

Buy Standard

Technical specification
IEC TS 62600-1:2020 - Marine energy - Wave, tidal and other water current converters - Part 1: Vocabulary
English language
17 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

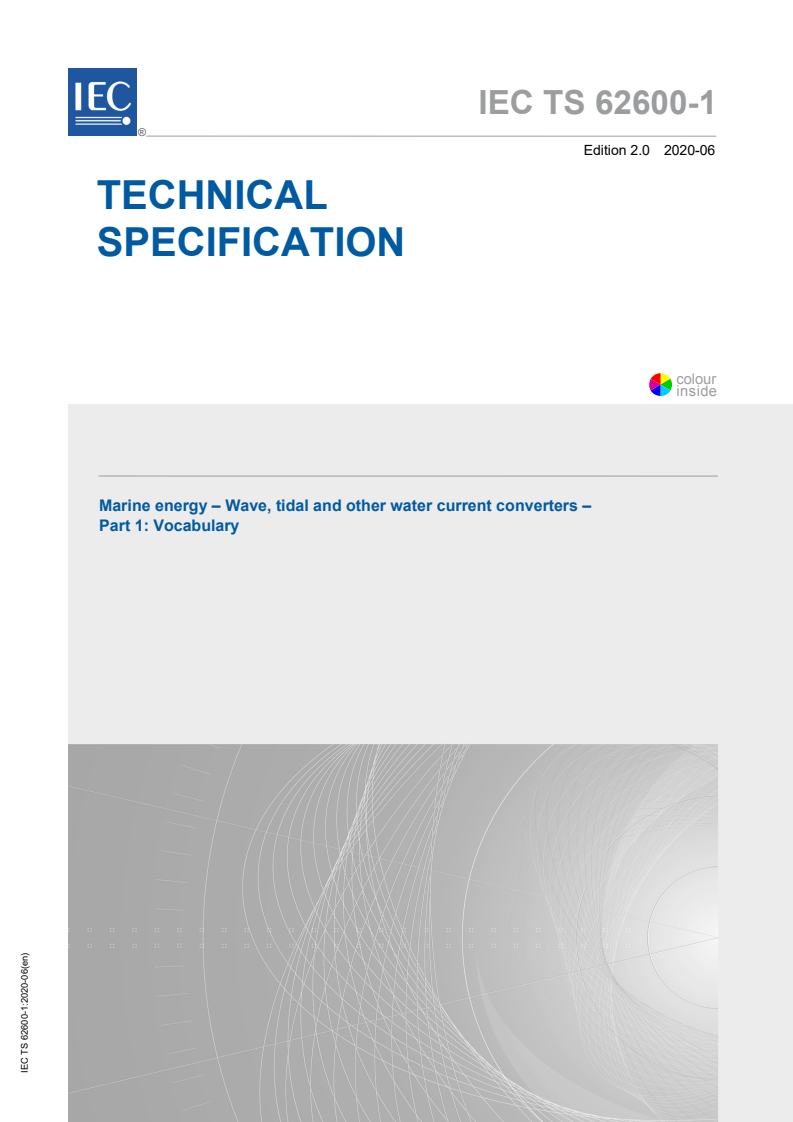

IEC TS 62600-1
Edition 2.0 2020-06
TECHNICAL
SPECIFICATION
colour
inside
Marine energy – Wave, tidal and other water current converters –
Part 1: Vocabulary
IEC TS 62600-1:2020-06(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------

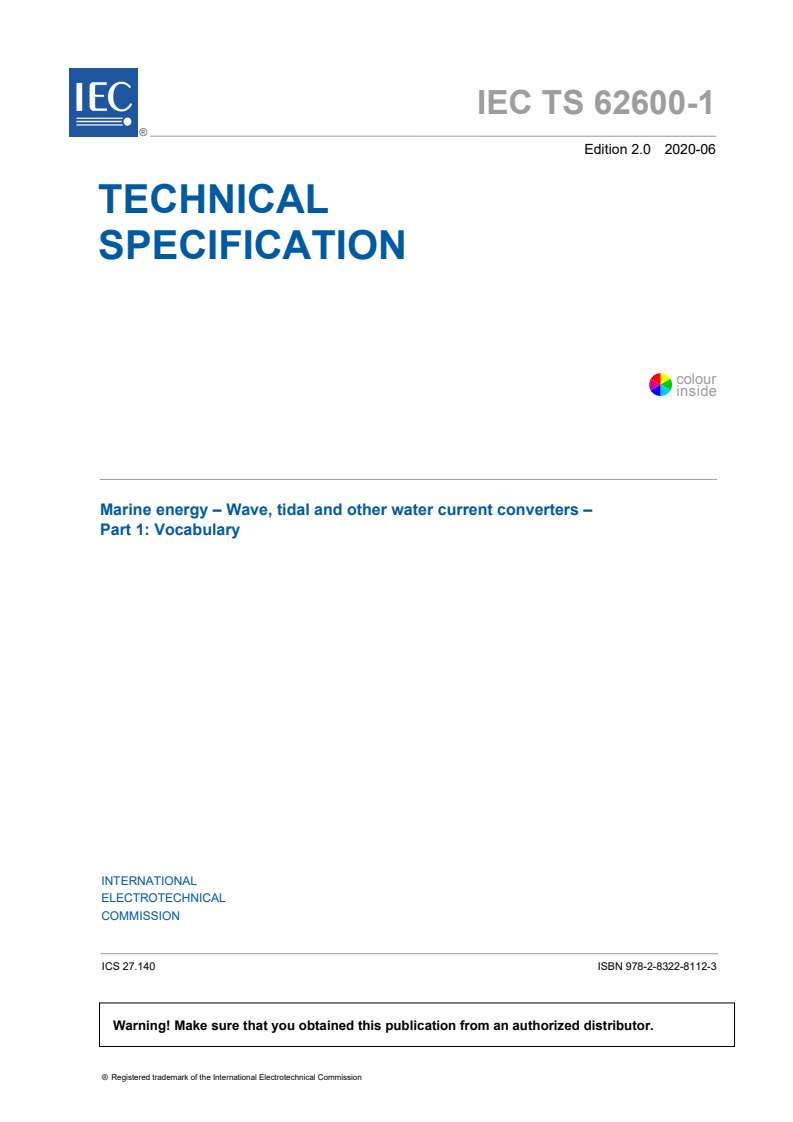

IEC TS 62600-1
Edition 2.0 2020-06
TECHNICAL
SPECIFICATION
colour
inside
Marine energy – Wave, tidal and other water current converters –
Part 1: Vocabulary
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 27.140 ISBN 978-2-8322-8112-3

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

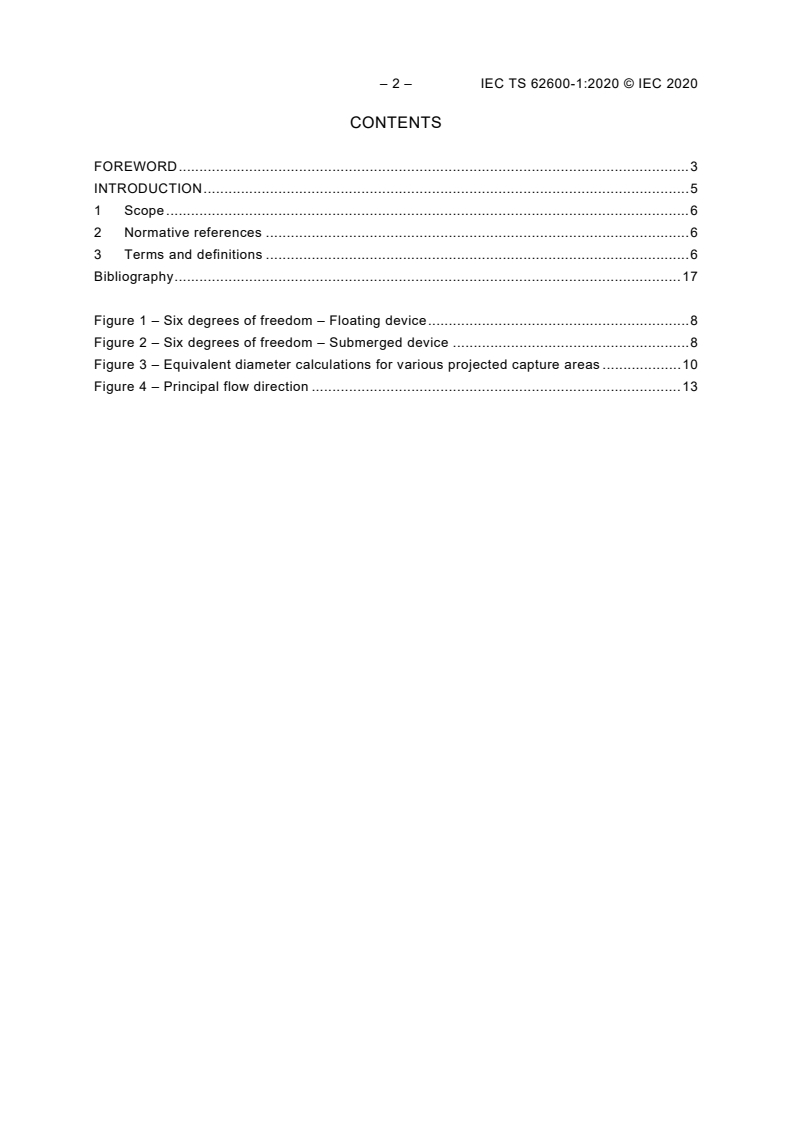

– 2 – IEC TS 62600-1:2020 © IEC 2020
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

Bibliography .......................................................................................................................... 17

Figure 1 – Six degrees of freedom – Floating device ............................................................... 8

Figure 2 – Six degrees of freedom – Submerged device ......................................................... 8

Figure 3 – Equivalent diameter calculations for various projected capture areas ................... 10

Figure 4 – Principal flow direction ......................................................................................... 13

---------------------- Page: 4 ----------------------
IEC TS 62600-1:2020 © IEC 2020 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MARINE ENERGY – WAVE, TIDAL AND OTHER
WATER CURRENT CONVERTERS –
Part 1: Vocabulary
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a Technical

Specification when

• the required support cannot be obtained for the publication of an International Standard,

despite repeated efforts, or

• the subject is still under technical development or where, for any other reason, there is the

future but no immediate possibility of an agreement on an International Standard.

Technical Specification are subject to review within three years of publication to decide

whether they can be transformed into International Standards.

IEC TS 62600-1 which is a Technical Specification, has been prepared by IEC technical

committee 114: Marine energy – Wave, tidal and other water current converters.
---------------------- Page: 5 ----------------------
– 4 – IEC TS 62600-1:2020 © IEC 2020
nd st

This 2 edition cancels and replaces the 1 edition published in 2011, and its Amendment 1,

published in 2019. This edition constitutes a technical revision.

This edition includes the following significant technical changes from the previous edition:

a) Approximately 45 % of the original terms which were either not in use, used only in a

glossary sense, or which are commonly understood and found in other references were

removed.

b) Thirteen (13) terms considered more general than tidal were moved up from IEC TS

62600-200 and added.

c) Eight (8) terms that were added in Amendment 1 to IEC TS 62600-1 were incorporated

alphabetically.
d) Six (6) additional new terms were added.
The text of this Technical Specification is based on the following documents:
Draft TS Report on voting
114/330/DTS 114/342/RVDTS

Full information on the voting for the approval of this Technical Specification can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62600 series, published under the general title Marine energy –

Wave, tidal and other water current converters, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
IEC TS 62600-1:2020 © IEC 2020 – 5 –
INTRODUCTION

This Technical Specification has been developed as a tool for the international marine energy

community, to assist in creating clarity and understanding. The wave, tidal and water current

energy industry has recently experienced a period of rapid growth and sector development.

With this expansion, it became apparent that a document defining the terms used within the

sector was required. The aim of this document is to present clear and consistent language

that will aid the development of programs, projects, and future standards.

This document lists the terms that the marine energy industry uses. It is an evolving document

that will change as new terms and symbols are added. The terminologies herein have been

harmonized with IEC 60050 and other IEC documents as far as possible. The document does

not constitute a full glossary of terms used in the marine energy community.
---------------------- Page: 7 ----------------------
– 6 – IEC TS 62600-1:2020 © IEC 2020
MARINE ENERGY – WAVE, TIDAL AND OTHER
WATER CURRENT CONVERTERS –
Part 1: Vocabulary
1 Scope

This part of IEC 62600 defines the terms relevant to marine energy. For the purposes of this

document, sources of ocean and marine renewable energy are taken to include primarily

devices that convert wave, tidal and other water current energy into electrical energy,

although other conversion methods, systems and products are included.

Terms relating to conventional dam and tidal barrage, offshore wind, marine biomass, and

salinity gradient energy conversion are not included in the scope of this document.

This document is intended to provide uniform terminology to facilitate communication between

organizations and individuals in the marine energy industry and those who interact with them.

2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
annual energy production

estimate of the total energy production of a device during a one-year period obtained by

applying the device’s power performance characteristics to a relevant energy resource

characterization, assuming 100 % availability

Note 1 to entry: Actual annual energy production is unlikely to exceed this estimate.

[SOURCE: IEC 60050-415:1999, 415-05-09, modified – The definition has been revised to be

generic by replacing "wind turbine generator system" by "device", and by replacing "the power

curve to different reference wind speed frequency distributions at hub height" by "the device’s

power performance characteristics to a relevant energy resource characterization". For clarity,

"obtained" has been added before "by applying". Note 1 to entry has been added.]
3.2
array
one or more groups of marine energy converters

Note 1 to entry: Array spacing is dictated by hydrodynamic considerations and can be very closely packed so as

to constitute a single platform or an arrangement of identical devices.
---------------------- Page: 8 ----------------------
IEC TS 62600-1:2020 © IEC 2020 – 7 –
3.3
availability,
See IEV 192-01-23
3.4
capture width
capture length

power captured by the wave energy converter divided by the

wave power of the incident wave field
3.5
current energy converter
CEC

device that converts energy from water currents to electricity or other useful forms of energy

3.6
cut-in water speed
cut-in water velocity

water speed above which there is power production

Note 1 to entry: The term "cut-in water velocity" is sometimes used in industry, although the concept is in fact a

speed.
3.7
cut-out water speed
cut-out water velocity

water speed above which there is no power production

Note 1 to entry: The term "cut-in water velocity" is sometimes used in industry, although the concept is in fact a

speed.
3.8
degrees of freedom, pl

independent displacements and/or rotations that specify the orientation of a body or system

Note 1 to entry: A marine body ca
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
