Solar thermal electric plants - Part 1-2: General - Creation of annual solar radiation data set for solar thermal electric (STE) plant simulation

IEC TS 62862-1-2:2017(E) defines the procedures for the creation of annual solar radiation data sets (ASR) for solar thermal electricity (STE) plant simulation. This document defines procedures needed for the ASR construction as well as its components and parameters. The scope of application of this document refers to the needs associated with solar thermal power plant projects and mainly related to the simulation of an annual period with a solar radiation sum close to a normal annual value (from among an estimation of all possible annual values).

General Information

Status
Published
Publication Date
28-Nov-2017
Current Stage
PPUB - Publication issued
Completion Date
29-Nov-2017
Ref Project

Buy Standard

Technical specification
IEC TS 62862-1-2:2017 - Solar thermal electric plants - Part 1-2: General - Creation of annual solar radiation data set for solar thermal electric (STE) plant simulation
English language
27 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

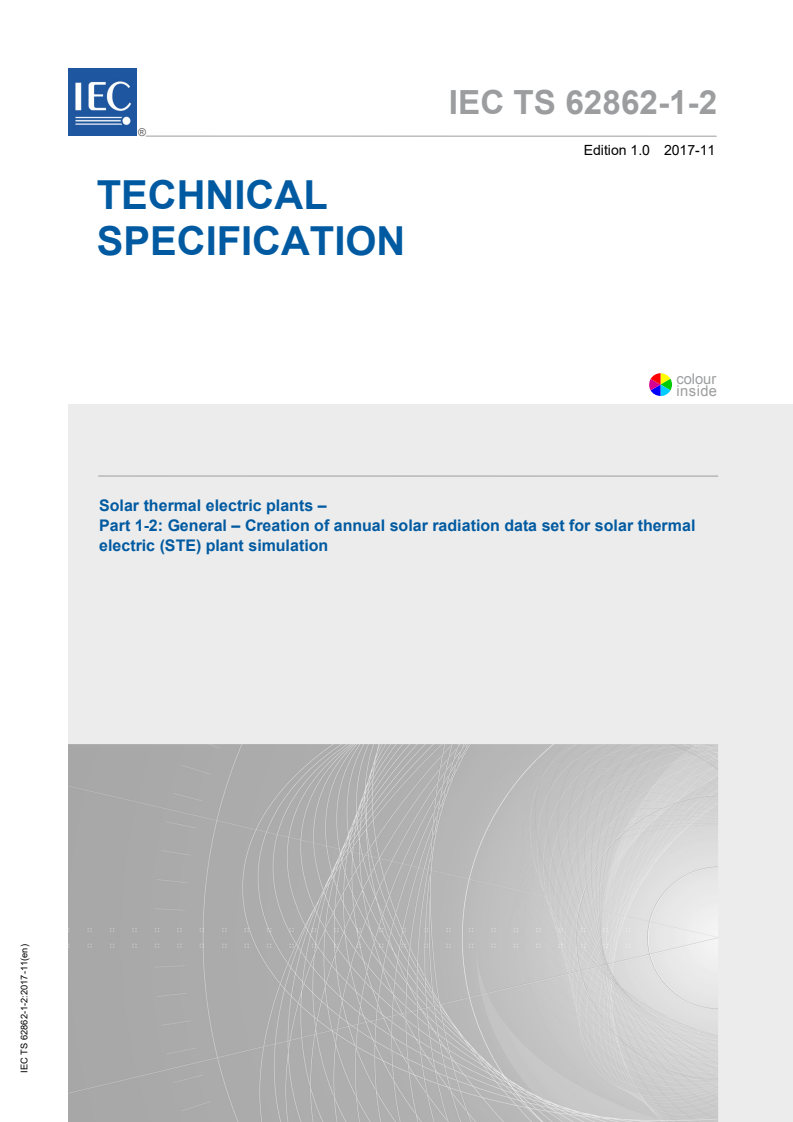

IEC TS 62862-1-2
Edition 1.0 2017-11
TECHNICAL
SPECIFICATION
colour
inside
Solar thermal electric plants –

Part 1-2: General – Creation of annual solar radiation data set for solar thermal

electric (STE) plant simulation
IEC TS 62862-1-2:2017-11(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
---------------------- Page: 2 ----------------------

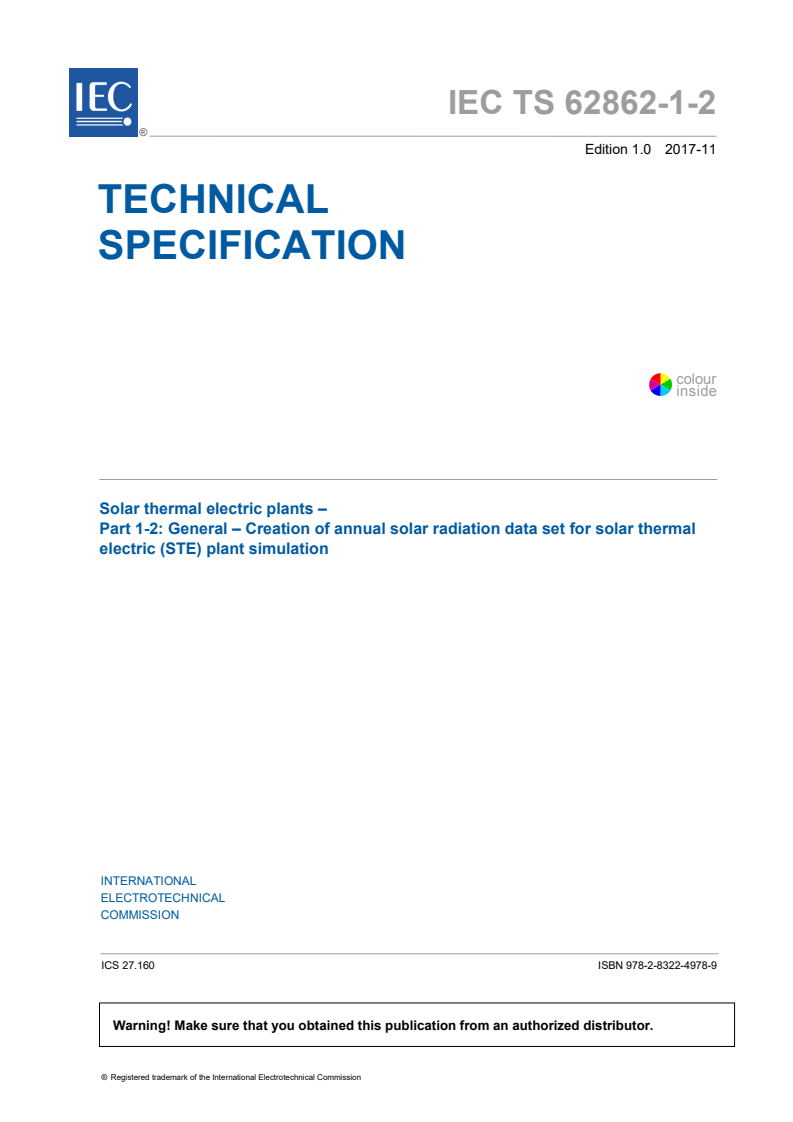

IEC TS 62862-1-2
Edition 1.0 2017-11
TECHNICAL
SPECIFICATION
colour
inside
Solar thermal electric plants –

Part 1-2: General – Creation of annual solar radiation data set for solar thermal

electric (STE) plant simulation
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 27.160 ISBN 978-2-8322-4978-9

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC TS 62862-1-2:2017 © IEC 2017

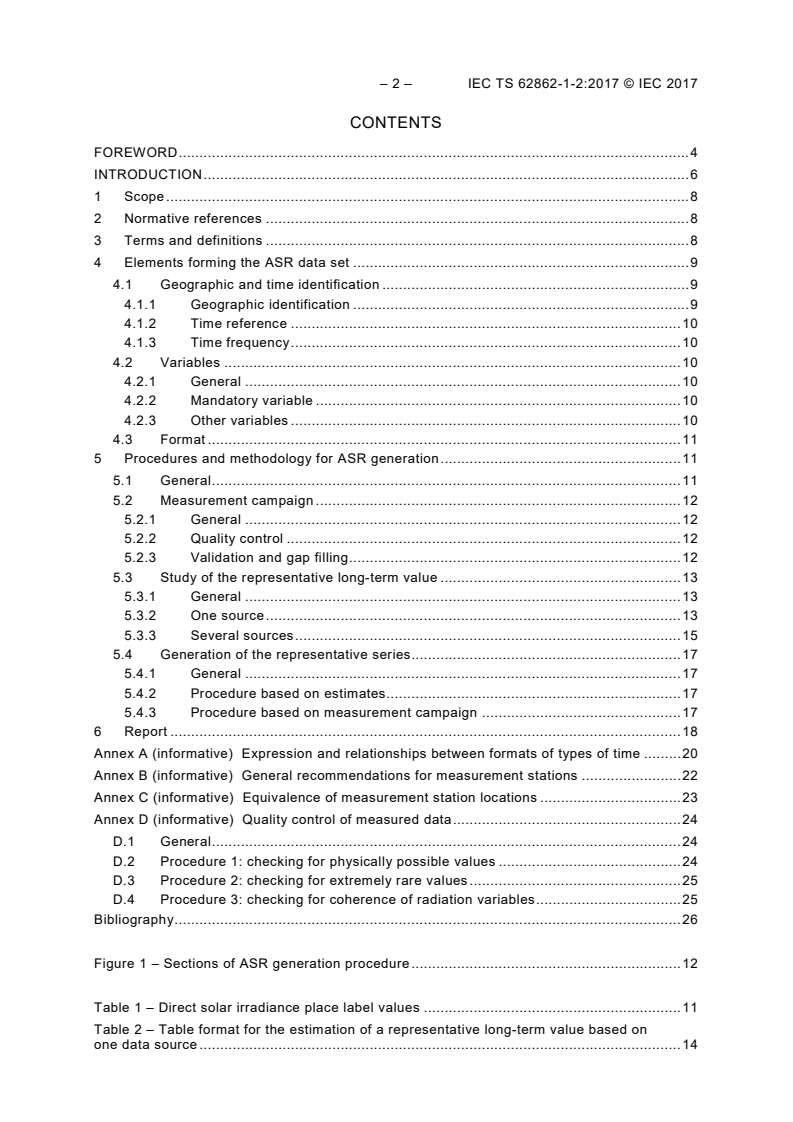

CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms and definitions ...................................................................................................... 8

4 Elements forming the ASR data set ................................................................................. 9

4.1 Geographic and time identification .......................................................................... 9

4.1.1 Geographic identification ................................................................................. 9

4.1.2 Time reference .............................................................................................. 10

4.1.3 Time frequency .............................................................................................. 10

4.2 Variables .............................................................................................................. 10

4.2.1 General ......................................................................................................... 10

4.2.2 Mandatory variable ........................................................................................ 10

4.2.3 Other variables .............................................................................................. 10

4.3 Format .................................................................................................................. 11

5 Procedures and methodology for ASR generation .......................................................... 11

5.1 General ................................................................................................................. 11

5.2 Measurement campaign ........................................................................................ 12

5.2.1 General ......................................................................................................... 12

5.2.2 Quality control ............................................................................................... 12

5.2.3 Validation and gap filling ................................................................................ 12

5.3 Study of the representative long-term value .......................................................... 13

5.3.1 General ......................................................................................................... 13

5.3.2 One source .................................................................................................... 13

5.3.3 Several sources ............................................................................................. 15

5.4 Generation of the representative series................................................................. 17

5.4.1 General ......................................................................................................... 17

5.4.2 Procedure based on estimates ....................................................................... 17

5.4.3 Procedure based on measurement campaign ................................................ 17

6 Report ........................................................................................................................... 18

Annex A (informative) Expression and relationships between formats of types of time ......... 20

Annex B (informative) General recommendations for measurement stations ........................ 22

Annex C (informative) Equivalence of measurement station locations .................................. 23

Annex D (informative) Quality control of measured data ....................................................... 24

D.1 General ................................................................................................................. 24

D.2 Procedure 1: checking for physically possible values ............................................ 24

D.3 Procedure 2: checking for extremely rare values ................................................... 25

D.4 Procedure 3: checking for coherence of radiation variables ................................... 25

Bibliography .......................................................................................................................... 26

Figure 1 – Sections of ASR generation procedure ................................................................. 12

Table 1 – Direct solar irradiance place label values .............................................................. 11

Table 2 – Table format for the estimation of a representative long-term value based on

one data source .................................................................................................................... 14

---------------------- Page: 4 ----------------------
IEC TS 62862-1-2:2017 © IEC 2017 – 3 –

Table 3 – Table format for estimating the representative long-term value from several

different data sources ........................................................................................................... 16

Table D.1 – Quality control procedure 1 – Physically possible values .................................... 24

Table D.2 – Quality control procedure 2 – Extremely rare values .......................................... 25

Table D.3 – Quality control procedure 3 – Coherence of variables ........................................ 25

---------------------- Page: 5 ----------------------
– 4 – IEC TS 62862-1-2:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SOLAR THERMAL ELECTRIC PLANTS –
Part 1-2: General – Creation of annual solar radiation data set
for solar thermal electric (STE) plant simulation
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and

non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates

closely with the International Organization for Standardization (ISO) in accordance with conditions determined

by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a Technical

Specification when

• the required support cannot be obtained for the publication of an International Standard,

despite repeated efforts, or

• the subject is still under technical development or where, for any other reason, there is the

future but no immediate possibility of an agreement on an International Standard.

Technical Specifications are subject to review within three years of publication to decide

whether they can be transformed into International Standards.

IEC TS 62862-1-2, which is a Technical Specification, has been prepared by IEC technical

committee 117: Solar thermal electric plants.
---------------------- Page: 6 ----------------------
IEC TS 62862-1-2:2017 © IEC 2017 – 5 –
The text of this Technical Specification is based on the following documents:
Enquiry draft Report on voting
117/67/DTS 117/77/RVDTS

Full information on the voting for the approval of this Technical Specification can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62862 series, published under the general title Solar thermal

electric plants, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – IEC TS 62862-1-2:2017 © IEC 2017
INTRODUCTION

During the various stages of planning, design and start-up of a solar thermal electricity (STE)

plant, engineering and economic studies often require the simulation of plant power

production, and an analysis of the response of its various components and systems. All these

simulation studies use precise, organized and standardized information of the solar resource

and other meteorological variables.

As a one-year period includes the most important meteorological cycle, the response of a

power plant is simulated for a complete year, and attempts to achieve results that can be

extrapolated to the long term. The need therefore arises for a complete year of data for the

meteorological variables that influence plant operation and provide a response to solar

thermal power plant simulation studies. This standard year of data, which is known as the

typical meteorological year (TMY), serves for both annual plant electricity production studies

and engineering studies associated with a solar thermal power plant project, except for

studies on extreme events.

The meteorological information for a specific place, especially knowledge of the solar

resource, is always subject to uncertainty. Furthermore, this information comes from quite

different sources and its availability is very irregular. Therefore, in order to generate a typical

meteorological year, a standard, characteristic methodology is used which ensures its

operability in the framework of solar thermal power plant projects, and offers adequate

support for decision-making in this type of project.

This functional typical meteorological year as defined by this document is hereinafter called

the annual solar radiation (ASR) data set.

Precise knowledge of the solar resource available is important for the design and

development of any system that intends to make use of the energy from the sun. The large

non-determining component of solar radiation and the need to simulate the response of a

solar system in the long term have led to the development of a methodology for generating a

reference year that includes information on diurnal and seasonal variations in the

meteorological variables involved as well as their long-term averages.

The typical meteorological year that has made this name best known was developed at

Sandia National Laboratories [4], and employed part of the SOLMET/ERSATZ (1951-1976)

database [5] made up of 248 stations of which 26 provide solar radiation measurements and

the rest estimated data, for the US and adjacent territories. This TMY was built up from the

concatenation of typical months to form a year with 8 760 hourly records. Each month was

selected by evaluating nine variables: the mean, maximum and minimum temperature and

dew point temperature, maximum and mean wind speed and global horizontal radiation. A

weighted sum of the Filkenstein-Schafer statistic [5] [6] was used, resulting in the selection of

five months. The final choice of the typical month considered the long-term persistence of

climate patterns.

Although various authors have proposed slight variations in the Sandia methodology, in

essence it remains practically unaltered in the generation known as TMY2 and TMY3 [5] [7].

TMY version 2 employs data from the National Solar Radiation Database (NSRDB) from 1961

to 1990, with 93 % of the data estimated by models and 7 % from data measured for

239 locations. The records include measurements of associated meteorological variables

___________

In this document, the term solar radiation is used as a generic reference to the "radiation emitted by the Sun"

(as is defined in ISO 9488:1999, 3.13), and irradiance and irradiation are used as the physical magnitudes

defined in ISO 9488:1999, 3.4 and 3.5 respectively]. On the other hand, these references notwithstanding, in

2 2

this document, it has been agreed to express irradiance in W/m and irradiation in Wh/m .

---------------------- Page: 8 ----------------------
IEC TS 62862-1-2:2017 © IEC 2017 – 7 –

such as temperature, humidity, cloud cover and visibility. The solar radiation measurement is

present at 52 NSRDB stations, but the measurement period is short.

The TMY version 3 was produced using hourly solar radiation data and meteorological data

from 1 454 stations, from NSRDB database time series (1961-1990) and its update, consisting

of NSRDB station time series (1 %) and a dataset estimated using the State University of

New York (SUNY) model based on geostationary operational environmental satellite (GOES)

images for an eight-year recording period (1998-2005).

Finally, it should be mentioned that there are other methodological proposals that differ

somewhat more from the National Renewable Energy Laboratory (NREL) TMYs, involving

other variables, with a variety of statistics and even proposing the collection of typical

meteorological data for only a few days a month instead of a whole year.

As the data necessary for generating the TMYs mentioned above are not available in the

locations of most STE plant projects, a procedure is defined for the creation of an annual

solar radiation data set for the plant simulation that standardizes the procedures currently

used for this.

In this document, a set of procedures are presented. Only the minimal requirements of these

procedures are described even when there may be additional considerations that will be more

than welcome during the application of the procedures, but there may be times that they will

not be available and the inclusion in this document will block the option of following it.

It is important that all the proposed methodologies use a measurement campaign with well-

defined quality characteristics during a whole year and at least containing direct solar

irradiance (G ) measurements in the expected location.

Two options are proposed to generate the annual solar radiation data set depending on the

data availability. One only uses measurements of G but in addition uses high quality G

b b

estimations during more than 10 years. This methodology is very similar to the classic TMY

but with a preliminary assessment of coherence with the local measurements. In this

methodology, the ASR could be formed by the estimations selected in the process, by G

measurements or by simultaneous measurements of GHI and G .

The other option uses G measurements as well as global horizontal irradiance (GHI); and

uses a methodology for GHI long-term estimation based on additional sources of information

(aimed low quality GHI estimations). In this second methodology, the ASR will always be

formed by simultaneous measurements of GHI and G .

Recent works, such as the creation of multiple annual solar radiation (MASR) data sets for the

simulation of a STE plant, are out of the scope of this document even when their use could be

better than the use of a unique annual data set of data for the prefeasibility assessment of a

STE plant project. At the moment of the elaboration of this document, there is not a

consensus or a relation of procedures for MASR creation.

MASR creation as well as annual solar radiation data sets referred to an annual percentile

(commonly the 10th percentile 10 of the estimated annual values distribution) could be

covered in future projects.

This document is related to works developed in the context of the International Energy Agency

SolarPACES and Solar Heating and Cooling agreements as a liaison organization of experts

in solar radiation for energy applications. Coordination with subcommittee 1 of ISO technical

committee 180 is also considered.
---------------------- Page: 9 ----------------------
– 8 – IEC TS 62862-1-2:2017 © IEC 2017
SOLAR THERMAL ELECTRIC PLANTS –
Part 1-2: General – Creation of annual solar radiation data set
for solar thermal electric (STE) plant simulation
1 Scope

This part of IEC 62862 defines the procedures for the creation of annual solar radiation data

sets (ASR) for solar thermal electricity (STE) plant simulation.

In addition to the definition of procedures needed for the ASR construction, its components

and parameters will be also described.

The scope of application of this document refers to the needs associated with solar thermal

power plant projects and mainly related to the simulation of an annual period with a solar

radiation sum close to a normal annual value (from among an estimation of all possible annual

values).
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.
ISO 9488:1999, Solar energy – Vocabulary
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
annual solar radiation data set
ASR

complete standardized set of solar irradiance data, which may be accompanied by other

meteorological variables considered of interest, and which attempts to establish a reference

for radiometric evolution in a specific place during the year

Note 1 to entry: This data set shall have a solar radiation sum close to a normal annual value (among an

estimation of all possible annual values).
3.2
direct measurement

value of a certain variable found with a measurement instrument on the surface at the specific

site
---------------------- Page: 10 ----------------------
IEC TS 62862-1-2:2017 © IEC 2017 – 9 –

Note 1 to entry: Direct measurement data shall be considered to be any statistic derived from values of the same

variable that meet the above definition for a given period of time. For example, those found by the arithmetic mean

of values recorded by the corresponding measurement instrument (sensor and data acquisition system) for a given

period of time are direct measurements.
3.3
indirect measurement
value of one variable found by combining direct measurements of other variables

EXAMPLE The measurement of direct solar irradiance with a pyrheliometer directed at the sun is a direct

measurement process. On the other hand, its determination from the direct measurement of global solar irradiance

and diffuse solar irradiance is an indirect measurement involving two previous direct measurements.

Note 1 to entry: Finding direct solar irradiance from a numerical model, for example, a regression equation, may

not be considered either direct or indirect measurement.
3.4
derived data

data found from a statistical function that relates to a set of simultaneous data for different

variables at the same place

EXAMPLE Data found from regression models, such as some models for calculating direct solar irradiance from

global horizontal irradiance, are derived data.
3.5
synthetic data

interpolated data of the same variable recorded in another

space and/or time frequency

EXAMPLE All data found from spatial or temporal interpolation are synthetic data.

3.6
satellite data

data found from information collected by a measurement instrument on board a satellite

Note 1 to entry: This document distinguishes between high and low quality satellite data. High quality satellite

data refers to satellite data with a temporal resolution of one hour or less, and a maximum spatial resolution of

20 km [8]. ASR data sets could be formed by high quality satellite data.
3.7
meteorological model data
NWP

data found from models that include a numerical solution of differential equations defining the

behaviour of the atmosphere based on given initial conditions

Note 1 to entry: This document distinguishes between high and low quality data from meteorological models. High

quality data from a meteorological model refers to data from a meteorological model with a temporal resolution of

one hour or less, and a maximum spatial resolution of 20 km [8]. ASR data sets could be formed by high quality

data from meteorological models.
4 Elements forming the ASR data set
4.1 Geographic and time identification
4.1.1 Geographic identification

The WGS 84 world geodetic system standard is taken as the reference ellipsoid to define the

geographical location on lambertian coordinates.

The geographic identification of the place to which the data set refers to is determined by:

• the geodetic latitude and longitude coordinates;
• the elevation above mean sea level.
---------------------- Page: 11 ----------------------
– 10 – IEC TS 62862-1-2:2017 © IEC 2017
4.1.2 Time reference

For each individual data point in the ASR, two timestamps should be given. One timestamp

should indicate the time of the value within the ASR (functional date). The other timestamp

corresponds to the time to which the original data value belongs (original date). The time in

the ASR cannot be completely defined without stating the year. In order to avoid errors and

ambiguities, the year of the ASR data set should be set to 2015. This way, the solar position

can be calculated in the same way by all users and it is clear that the ASR is no leap year.

The record date shall follow the time reference established in this document, that is, they shall

correspond to the UTC referencing system (see Annex A).
4.1.3 Time frequency

ASR data set frequency has to be hourly or higher (higher frequency corresponds to a shorter

time period). The value corresponding to the time period (one hour, ten minutes, five minutes,

etc.) may come from a high sampling frequency, which has to be an exact divider of one hour.

The corresponding record is assigned an average, maximum, minimum, or instantaneous

value for that period, depending on the variable observed. In the case of direct solar

irradiance, ASR shall at least be the average.
4.2 Variables
4.2.1 General

The ASR data set shall contain the number of records corresponding to a whole year at the

frequency of direct solar irradiance and in all available variables. There shall be records

corresponding to twelve different months from January to December, not necessarily

consecutive nor do they have to be from the same year.
4.2.2 Mandatory variable
, expressed in integer numb
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
