Standards Content (sample)

IEC TR 62271-306
Edition 1.0 2018-08
TECHNICAL
REPORT
colour
inside
AMENDMENT 1
High-voltage switchgear and controlgear –
Part 306: Guide to IEC 62271-100, IEC 62271-1 and other IEC standards related to
alternating current circuit-breakers
IEC TR 62271-306:2012-12/AMD1:2018-08(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------

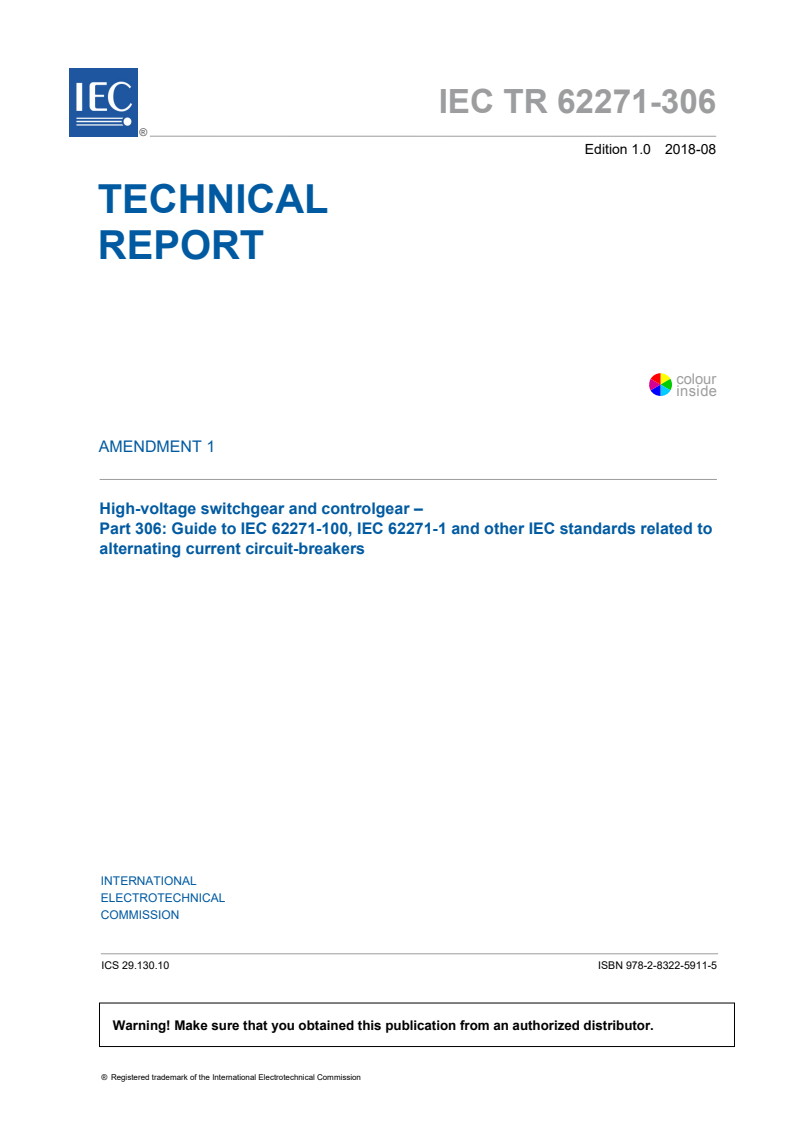

IEC TR 62271-306
Edition 1.0 2018-08
TECHNICAL
REPORT
colour
inside
AMENDMENT 1
High-voltage switchgear and controlgear –
Part 306: Guide to IEC 62271-100, IEC 62271-1 and other IEC standards related to
alternating current circuit-breakers
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.130.10 ISBN 978-2-8322-5911-5

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC TR 62271-306:2012/AMD1:2018
© IEC 2018

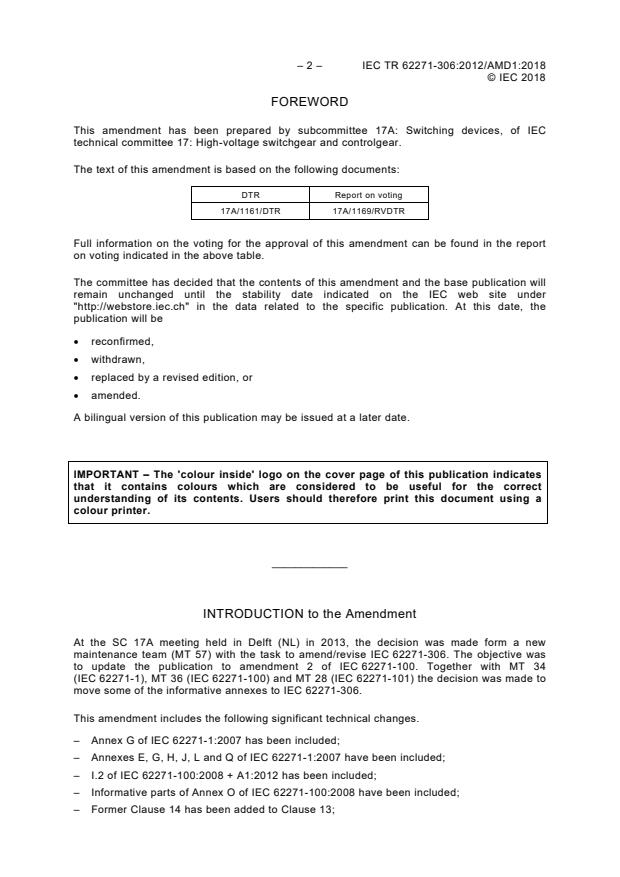

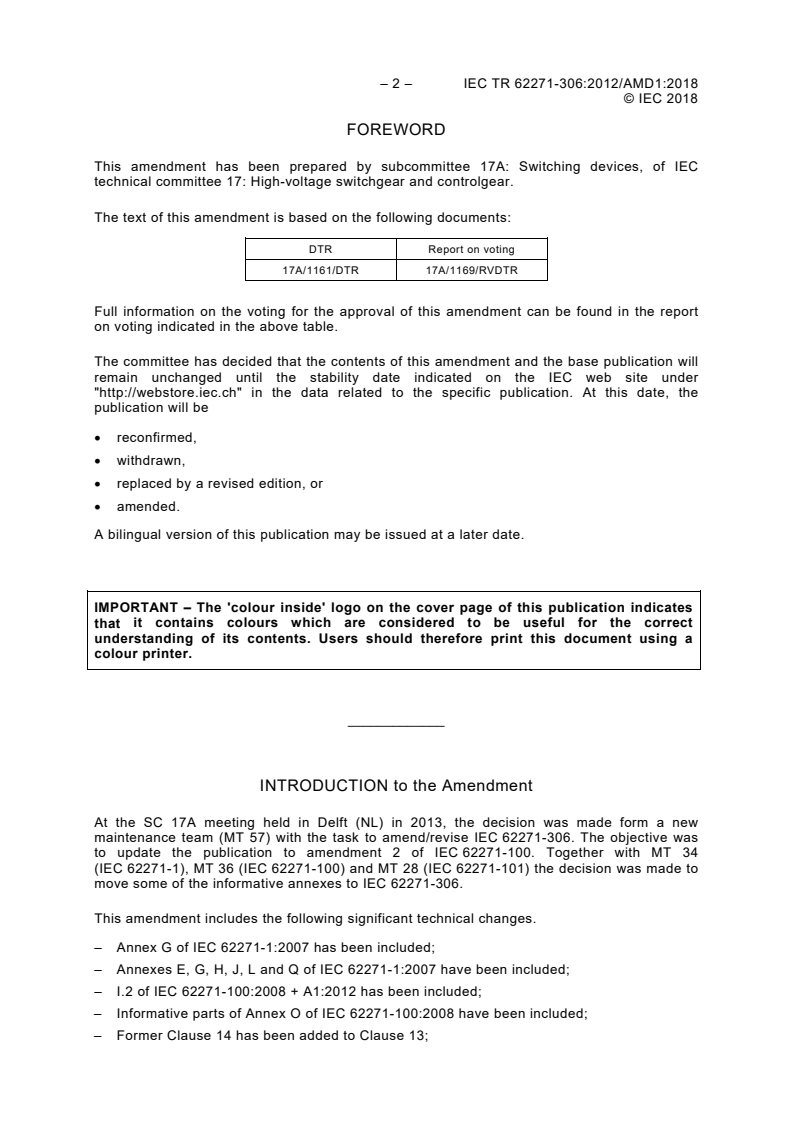

FOREWORD
This amendment has been prepared by subcommittee 17A: Switching devices, of IEC
technical committee 17: High-voltage switchgear and controlgear.
The text of this amendment is based on the following documents:
DTR Report on voting
17A/1161/DTR 17A/1169/RVDTR

Full information on the voting for the approval of this amendment can be found in the report

on voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC web site under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
_____________
INTRODUCTION to the Amendment

At the SC 17A meeting held in Delft (NL) in 2013, the decision was made form a new

maintenance team (MT 57) with the task to amend/revise IEC 62271-306. The objective was

to update the publication to amendment 2 of IEC 62271-100. Together with MT 34

(IEC 62271-1), MT 36 (IEC 62271-100) and MT 28 (IEC 62271-101) the decision was made to

move some of the informative annexes to IEC 62271-306.
This amendment includes the following significant technical changes.
– Annex G of IEC 62271-1:2007 has been included;
– Annexes E, G, H, J, L and Q of IEC 62271-1:2007 have been included;
– I.2 of IEC 62271-100:2008 + A1:2012 has been included;
– Informative parts of Annex O of IEC 62271-100:2008 have been included;
– Former Clause 14 has been added to Clause 13;
---------------------- Page: 4 ----------------------
IEC TR 62271-306:2012/AMD1:2018 – 3 –
© IEC 2018

– Clause 14 now has heading "Synthetic making and breaking tests". This clause contains

annexes A, B, C, D and G of IEC 62271-101;
– Clause 9 has been restructured;
– 16.4 (No-load transformer switching) has been rewritten;

– Annex B has been expanded to include information about fully compensated transmission

lines and cables;
– Annex D has been rewritten.
_____________
1.2 Normative references

Replace the existing references to IEC 62271-100, IEC 62271-101 and IEC 62271-110 by the

following new references:

IEC 62271-100:2008, High-voltage switchgear and controlgear – Part 100: Alternating current

circuit-breakers
Amendment 1:2012
Amendment 2:2017

IEC 62271-101:2012, High-voltage switchgear and controlgear – Part 101: Synthetic testing

IEC 62271-110:2012, High-voltage switchgear and controlgear – Part 110: Inductive load

switching
3.3 Capacitive current switching class C1 and C2
Replace the existing text of this subclause by the following new text:
Two classes are defined:
– Class C1: low probability of restrike;
– Class C2: very low probability of restrike.

IEC 60056 contained a definition of the term "restrike-free circuit-breaker". This definition was

removed when the capacitive current switching requirements and test procedures were

revised. The revised requirements and test procedures were first published in the first edition

of IEC 62271-100 (published in 2001). The reason why the term "restrike-free circuit-breaker"

was deleted from the standard was because it did not correspond to a physical reality.

The first edition of IEC 62271-100 introduced the term "restrike probability" during the type

tests, corresponding to a certain probability of restrike in service, which depends on several

parameters (see 9.4.6). For this reason, the term cannot be quantified in service.

The main differences in restrike performance between class C1 and C2 type tests are the

number of tests shots and the allowable number of restrikes. Class C2 tests are performed on

a pre-conditioned circuit-breaker. Pre-conditioning is done performing 3 breaking operations

at 60 % of the rated short-circuit current. The pre-conditioning was derived based on CIGRE

statistics and is considered to create interrupter wear that is broadly representative of long

term service conditions.
The choice for the user between class C1 and C2 depends on:
– the service conditions;
---------------------- Page: 5 ----------------------
– 4 – IEC TR 62271-306:2012/AMD1:2018
© IEC 2018
– the operating frequency;
– the consequences of a restrike to the circuit-breaker or to the system.

Class C1 is acceptable for medium-voltage circuit-breakers and circuit-breakers applied for

infrequent switching of transmission lines and cables.

Class C2 is recommended for capacitor bank circuit-breakers and those used on frequently

switched transmission lines and cables.

The above given conditions are essential when choosing the circuit-breaker for a capacitive

switching application, the needed performance class and the voltage factor should be known

and demonstrated by the relevant type test. It is important to note that the performance class

may vary for different capacitive current switching applications. For example, a circuit-breaker

used to switch an overhead line may be tested for class C1 whereas the same circuit-breaker

is tested in accordance with class C2 for capacitor bank switching.
6.1.3.1 TRVs for terminal faults
Delete the penultimate paragraph of this subclause.

Add, at the end of the existing 6.3, the following new subclauses, figures and tables.

6.4 General considerations regarding TRV
6.4.1 General

The purpose of 6.4 is to provide a background framework for some of the TRV requirements.

6.4.2 TRV waveshapes

In some cases, particularly in systems with a voltage 100 kV and above, and where the short-

circuit currents are relatively large in relation to the maximum short-circuit current at the point

under consideration, the transient recovery voltage contains first a period of high rate of rise,

followed by a later period of lower rate of rise. This waveshape is generally adequately

represented by an envelope consisting of three line segments defined by means of four

parameters (see Figure 96).

The TRVs for terminal fault test-duties T100 and T60 represent cases where the major

contribution of fault current is over transmission lines from multiple sources. The TRVs consist

of the initial component at the fault bus and the additional component due to later arriving

multiple reflected waves at the fault bus. The TRVs are overdamped (exponential) owing to

the effect of the surge impedances of the lines and represented by four parameters to cover

both of the above components. For terminal fault test duties T30 and T10 TRV cases, the fault

current is from a single source and damping is determined by the involved circuit elements.

The TRVs are underdamped (oscillatory) and thus represented by two parameters.
---------------------- Page: 6 ----------------------
IEC TR 62271-306:2012/AMD1:2018 – 5 –
© IEC 2018
IEC
Figure 96 – Representation of a four-parameter TRV and a delay line

In other cases, particularly in systems with a voltage less than 100 kV, or in systems with a

voltage greater than 100 kV in conditions where the short-circuit currents are relatively small

in relation to the maximum short-circuit currents limited by transformers, the transient

recovery voltage approximates to a damped single frequency oscillation. This waveshape is

adequately represented by an envelope consisting of two line segments defined by means of

two parameters (see Figure 97).
---------------------- Page: 7 ----------------------
– 6 – IEC TR 62271-306:2012/AMD1:2018
© IEC 2018
IEC
Figure 97 – Representation of a specified TRV by a two-parameter
reference line and a delay line

Such a representation in terms of two parameters is a special case of representation in terms

of four parameters.

The influence of local capacitance on the source side of the circuit-breaker produces a slower

rate of rise of the voltage during the first few microseconds of the TRV. This is taken into

account by introducing a time delay.
6.4.3 Earthing of the system

The system may be earthed in different ways depending on system voltage and application.

The following definitions are used (Clause 3 of IEC 62271-100:2008 and as noted below):

solidly earthed (neutral) system (3.1.106 of IEC 62271-100:2008)
a system whose neutral point(s) is (are) directly earthed
[SOURCE: IEC 60050-601:1985, 601-02-25]
effectively earthed neutral system (3.1.128 of IEC 62271-100:2008)

system earthed through a sufficiently low impedance such that for all system conditions the

ratio of the zero-sequence reactance to the positive-sequence reactance (X /X ) is positive

0 1

and less than three, and the ratio of the zero-sequence resistance to the positive-sequence

reactance (R /X ) is positive and less than one. Normally such systems are solidly earthed

0 1
(neutral) systems or low impedance earthed (neutral) systems.

Note 1 to entry: For the correct assessment of the earthing conditions not only the physical earthing conditions

around the relevant location but the total system is to be considered.
---------------------- Page: 8 ----------------------
IEC TR 62271-306:2012/AMD1:2018 – 7 –
© IEC 2018
non-effectively earthed neutral system (3.1.129 of IEC 62271-100:2008)

system other than effectively earthed neutral system, not meeting the conditions given in

3.1.128 of IEC 62271-100:2008. Normally such systems are isolated neutral systems, high

impedance earthed (neutral) systems or resonant earthed (neutral) systems

Note 1 to entry: For the correct assessment of the earthing conditions not only the physical earthing conditions

around the relevant location but the total system is to be considered.
6.4.4 Power frequency recovery voltage and first-pole-to-clear factor
6.4.4.1 General

The first-pole-to-clear factor (k ) is a function of the earthing arrangements of the system. As

defined in 3.7.152 of IEC 62271-100:2008, it is the ratio of the power frequency voltage

across the interrupting pole before current interruption in the other poles, to the power

frequency voltage occurring across the pole or poles after interruption in all three poles. For

non-effectively earthed neutral systems, this ratio is or tends towards 1,5. For rated voltages

less than 170 kV, such systems are quite common, particular within Europe and Japan.

For effectively earthed neutral systems, the realistic and practical value is dependent upon

the sequence impedances of the actual earth paths from the location of the fault to the

various system neutral points (the ratio X /X ). The value used in IEC 62271-100 is taken to

0 1

be ≤ 3 (see Equation (144)). The X /X value is a standard value confirmed by system studies

0 1

of various networks. Hence, for rating purposes, IEC 62271-100 considers two values for the

three-phase short-circuit condition. These are adequate for the many, different, system

earthing arrangements:

a) the non-effectively earthed, to cover all unearthed systems and those with some deliberate

additional impedance in the neutral system. A standardised value for k of 1,5 is used for

all such systems;

b) all effectively earthed systems where it is accepted that some impedance exists. For

standardization purposes for power systems operating at 800 kV and below the value for

k used is 1,3. For ultra-high-voltage (UHV) power systems operating above 800 kV, k

pp pp
is 1,2 based on an X /X ratio of 2.
0 1

For single-phase-to-earth faults in solidly or effectively earthed neutral systems, the pole

factor k is 1,0.

At transmission voltages, there has been an increase in interconnection and transformation,

particularly in major urban systems. The high number of transformer neutrals connected

effectively to earth causes the value of 1,3 to be questioned. Although this has been

considered, the text of IEC 62271-100 does not take these developments into account. It is

important for users with such systems to note that as k decreases towards unity the value of

the second-pole-to-clear factor will fall. In addition, the value of the phase currents will

change. The three phases become three independent single-phases each with k

approaching 1,0. In general the users of such systems are aware of this possibility and of the

need to consider the actual system conditions when assessing the suitability of their specified

requirements and the test evidence they are offered against these.

For rated voltages higher than 800 kV, systems are characterized by long transmission lines

and large transformers that contribute a relatively large part of the total short-circuit current.

The first-pole-to-clear factor is function of the X /X ratio that is in this case equal to or lower

0 1

than 2,0, as a consequence k is equal to or less than 1,2 and has been standardized to 1,2.

Where the ratio of three-phase to single-phase earth fault current is 1,0, k is also 1,0.

However, although this is normally assumed to be adequately covered by the use of the

three-phase requirements and the associated k of 1,2 or 1,3, it is important that evidence is

provided to demonstrate the extended arc condition of the single-phase fault. In accordance

with IEC 62271-100, a full extinguishing window shall be demonstrated.
---------------------- Page: 9 ----------------------
– 8 – IEC TR 62271-306:2012/AMD1:2018
© IEC 2018

It should be noted that in accordance with 6.108 of IEC 62271-100:2008, specific recovery

voltage conditions are required to demonstrate the ability of a circuit-breaker to clear double

earth faults.

Regarding earthing of the test circuit, reference is made to 6.103.3 of IEC 62271-100:2008.

6.4.4.2 Equations for the first, second and third-pole-to-clear factors
The equation for the first-pole-to-clear factor is:
k = (144)
XX+ 2

where X is the zero sequence, and X the positive sequence reactance of the system.

0 1

Table 39 gives the k values for various earthing arrangements based on the definitions

given in 6.4.1.
Table 39 – First-pole-to-clear factors k
Earthing arrangement X /X k System voltage
0 1 pp
Solidly earthed 1 1 All
Effectively earthed 2 1,2 > 800 kV
Effectively earthed 3 1,3 ≤ 800 kV
Non-effectively earthed 1,5
∞ ≤ 170 kV

NOTE Calculation of k for the effectively earthed case (X /X = 3) gives k = 1,286 which is then rounded to

pp 0 1 pp
1,3.

Following interruption of the first pole, the remaining two phases continue to conduct fault

current.

In systems with non-effectively earthed neutrals the second and third poles interrupt in series

under the phase-to-phase voltage so that for the second and third pole,
k = ,
where k is the pole-to-clear factor of the individual poles.

In systems with effectively earthed neutrals the second pole clears with a pole-to-clear factor

of,
3(X + XX + X )
0 01 1
k = (145)
XX+ 2
NOTE In Equations (144) and (145) the resistances are neglected.
Equation (145) can be expressed as a function of the ratio α = X /X :
0 1
31αα++
k =
2 + α
---------------------- Page: 10 ----------------------
IEC TR 62271-306:2012/AMD1:2018 – 9 –
© IEC 2018

For the third-pole-to-clear in an effectively earthed system k = 1. Table 40 gives k for each

p p
clearing pole as a function of X /X as appropriate.
0 1
Table 40 – Pole-to-clear factors for each clearing pole
X /X Pole-to-clear factor
0 1
Ratio First Second Third
1 1,0 1,00 1,0
2 1,2 1,15 1,0
3 1,3 1,26* 1,0
∞ 1,5 0,866 0,866
* Equation (145) assumes that system impedances are inductances only.

The respective multiplying factors for the peak value of the TRV (u ) are given in Table 6 of

IEC 62271-100:2008. It is important to note that the amplitude factor is the same for each

pole. The multiplying factors are as applied to the power frequency voltages.
6.4.4.3 Standardised values for the second- and third- pole-to-clear factors

As discussed above, IEC 62271-100 has standardised values for the second and third-pole to

clear factors for three-phase testing. Subclause 13.3 deals with this topic in relation to

demonstration of arcing times for these poles and the appropriate pole factors relevant to

each opening pole. It is important to note that on systems where the neutral earthing is solid,

both the first-pole-to-clear factor of 1,3 and the values provided above for second

pole-to-clear factors are lower. This is likely to be a rare occurrence, generally associated

with urban systems where there are numerous effectively earthed transformers in close

proximity. Where such differences are significant, the user is generally aware that it may be

necessary to specify system-specific requirements and tests (e.g. extinguishing window and

single-phase short-circuit current).

Circuit-breakers are rated on the basis of their ability to interrupt a three-phase to earth fault

in either an effectively or non-effectively earthed neutral systems. Taking the former case, the

three poles clear in sequence:

• The first pole clears with k given by Equation (144) leaving a two-phase to earth fault.

• The second pole clears with k given by Equation (145) leaving a single-phase to earth

fault. For the case of a two-phase to earth, the k for the first clearing pole is also given

by Equation (145).
= 1 which is also applicable to the single-phase to earth fault case.
• Third pole with k

Similar logic can be applied to faults in non-effectively earthed neutral systems. A summary of

the pole-to-clear factors for the different fault cases is given in Table 41.
---------------------- Page: 11 ----------------------
– 10 – IEC TR 62271-306:2012/AMD1:2018
© IEC 2018
Table 41 – Pole-to-clear factors for other types of faults
in non-effectively earthed neutral systems
Type of fault First-pole-to-clear Second-pole-to-clear Third-pole-to-clear
Phase-to-earth 1 - -
Two-phase not involving Simultaneous clearing of Simultaneous clearing of
earth
3 3
both poles: k = both poles: k =
p p
2 2
Two-phase-to-earth
31αα++
1 -
k =
2 + α
Three-phase not involving Simultaneous clearing of Simultaneous clearing of
earth
1,5 3 3
both poles: k = both poles: k =
p p
2 2
6.4.5 TRV characteristics

6.4.5.1 Terminal fault TRVs for rated voltages higher than 1 kV and less than 100 kV

6.4.5.1.1 General

Following the decision taken at the SC17A meeting in Beijing (CN) in October, 2002,

IEC SC 17A/WG35 has prepared a proposal for the revision of TRVs for circuit-breakers rated

above 1 kV and less than 100 kV.

This proposal used the input coming from former Working groups of CIGRE Study Committee

A3 (Switching Equipment) that have studied the necessity to adapt the TRV requirements for

circuit-breakers rated less than 100 kV. In 1983, a CIGRE SC A3 Task Force reported on

Transient Recovery Voltages in Medium Voltage Networks. The results of the study have been

published in Electra 88. Another CIGRE working group, WG 13.05, studied the TRVs

generated by clearing transformer fed faults and transformer secondary faults. The results

have been presented in Electra 102 (1985). In 1992, together with CIRED, CIGRE SC A3

created working group CC-03 to investigate again the definition of TRVs for medium voltage

switchgear. The outcome of these investigations has been published in CIGRE Technical

Brochure 134 (1998) and is in line with earlier studies.

The first edition of IEC 62271-100 (IEC 62271-100:2001) was amended in 2006 (Amendment

2) to include the new TRV values. The modifications can be summarized as follows:

a) In order to cover applications in all types of networks (distribution, industrial and

sub-transmission) for rated voltages higher than 1 kV and less than 100 kV, and for

standardization purposes, two types of systems and two classes of circuit-breakers are

defined:
– cable systems:
cable-systems are defined in 3.1.132 of IEC 62271-100:2008;
– line systems:
line systems are defined in 3.1.133 of IEC 62271-100:2008;
– Circuit-breaker class S1: circuit-breaker to be used in a cable system;
– Circuit-breaker class S2: circuit-breaker to be used in a line system.

b) A particular test duty T30 is specified for the special case of circuit-breakers intended to

be connected to a transformer with a connection of small capacitance (cable length less

than 20 m), in order to verify their capability to interrupt transformer-limited faults. This is

covered in Annex M of IEC 62271-100:2008.
---------------------- Page: 12 ----------------------
IEC TR 62271-306:2012/AMD1:2018 – 11 –
© IEC 2018

In the general case where the capacitance of the connection is high enough, the normal

test duty T30 demonstrates the capability to interrupt transformer-limited faults.

6.4.5.1.2 Terminal fault TRV for circuit-breakers in line systems
6.4.5.1.2.1 General

In North America, line systems are prevalent at 72,5 kV and below. Therefore, the TRV

ratings as listed in Table 2 of ANSI C37.06-2000 were the basis to define the new Table 25 of

IEC 62271-100:2008. The values for t are 0,88 times the T values specified in ANSI.

3 2

NOTE 1 The factor 0,88 is derived from a pure "1-cos"-waveshape multiplied with ½ amplitude factor. The

standard TRV wave-shape "1-cos" in ANSI C37-06-2000 for rated voltages less than 100 kV did not coincide with

the precise mathematical equation for parallel or series damped circuits, for which another ratio t /T is applicable.

3 2

NOTE 2 TRV parameters are defined in the standard for rated voltages of 15 kV to 72,5 kV, for rated voltages

less than 15 kV the TRV parameters can be derived using k = 1,5, the values of amplitude factor, time t and time

pp 3
delay given in 6.4.1.2.2.2, 6.4.1.2.2.3 and 6.4.1.2.2.4.
6.4.5.1.2.2 Amplitude factor

For T100, T60, T30 and T10 the following values were taken from ANSI C37.06-2000:

– 1,54 for T100;
– 1,65 for T60;
– 1,74 for T30;
– 1,8 for T10.
6.4.5.1.2.3 Time t
The rate-of-rise of recovery voltage (RRRV) is calculated using Equation (146),
0,305
RRRV = 0,4U (146)
0,7

Time t for terminal fault is equal to 4,65 ×U , with t in µs and U in kV. Equation (146) was

3 r 3 r

derived from the values given in Table 2 of ANSI C37.06-2000 for rated voltages 15,5 kV,

25,8 kV, 48,3 kV and 72,5 kV. The same equation is used for other rated voltages.

6.4.5.1.2.4 Time delay

The time delay in Table 25 of IEC 62271-100:2008 is derived using the following equation,

t = 0,05 × t , as in the first edition of IEC 62271-100:2001 for rated voltages 48,3 kV – 52 kV

d 3

and 72,5 kV. The equation has been extended to the lower rated voltages as no change in the

initial part of the TRV wave-shape is expected (the initial part is exponential, even with the

short line lengths that can be met in distribution and sub-transmission systems). This

requirement is not judged excessive, as in the worst case (U = 15 kV), the time delay value of

2 µs is as specified for circuit-breakers with rated voltages higher than 72,5 kV.

It recognizes the fact that this time delay can be critical during short-line fault testing and test

duty T100 with ITRV and has therefore to be taken into account. However, as shown in Tables

13 and 14 of the first edition of IEC 62271-100 published in 2001, such verification can be

made when performing short-line fault tests. Therefore, as it is already the case for rated

voltages higher than 38 kV, it is allowed to have a longer time delay during testing of T100, up

, provided that short-line fault tests are performed. This possibility is indicated in

to 0,15 × t
Table 25 of IEC 62271-100:2008.
---------------------- Page: 13 ----------------------
– 12 – IEC TR 62271-306:2012/AMD1:2018
© IEC 2018
6.4.5.1.3 Terminal fault TRV for circuit-breakers in cable systems
6.4.5.1.3.1 Amplitude factor

For T60, the value of 1,5 in the first edition of IEC 62271-100:2001 is kept, due to the positive

experience obtained.

For T30 and T10, the amplitude factor has been raised from 1,5 to respectively 1,6 and 1,7,

as the contribution to TRV comes mainly from the voltage variation across transformer(s),

which has low damping; this combined with source voltage results in a TRV with a relatively

high amplitude factor.

For T100, the value of 1,4 in the first edition of IEC 62271-100 published in 2001 is retained

owing to the positive experience with past editions of this standard.
6.4.5.1.3.2 Time delay
is as given in the first edition of IEC 62271-100 published in 2001 for rated
The time delay t

voltages less than 52 kV, t = 0,15 × t . The equation is generalized to all cable systems

d 3
(rated voltage less than 100 kV).
6.4.5.1.4 Terminal fault TRV for rated voltages equal to or higher than 100 kV
6.4.5.1.4.1 Amplitude factor

The values of the amplitude factors are given in IEC 62271-100. These values were adopted

into IEC 62271-100 as a result of system studies and generally remain acceptable.

6.4.5.1.4.2 Rate-of-rise of recovery voltage and time delay

The values for the rate-of-rise-of-recovery-voltage (RRRV) for the first-pole-to-clear, and the

associated time delay values, were derived from system studies, supported by system tests

performed in and before the mid-1970s. The values adopted (2 kV/μs etc.) have been shown

by this work to be adequate for all developed systems, and are generally acceptable for

others. IEC 62271-100 gives multipliers for the RRRV for the second and third poles-to-clear.

These values were derived by calculation.
6.4.5.1.5 Basis for the current TRV values of test-duty T10
Test-duty T10 is detailed in IEC 62271-100 and represents the following cases:

– a transformer limited fault condition with the circuit-breaker under consideration clearing a

fault
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
