IEC 60670-24:2024

Boxes and enclosures for electrical accessories for household and similar fixed electrical installations - Part 24: Particular requirements for enclosures for housing protective devices and other power dissipating electrical equipment

IEC 60670-24:2024 applies to enclosures and parts of them for housing protective devices and other power dissipating electrical equipment intended to be used with a rated voltage not exceeding 400 V and a total incoming load current not exceeding 125 A for household and similar fixed electrical installations. These enclosures are intended to be installed in locations where unskilled persons have access. They are intended to be equipped with electrical equipment by skilled persons (installers). These enclosures are intended to be installed where the prospective short circuit current does not exceed 10 kA unless they are protected by current limiting protective devices with a cut-off current not exceeding 17 kA. Enclosures complying with this document are suitable for use at ambient temperature not normally exceeding 40 °C, but their average temperature over a period of 24 h does not exceed 35 °C, with a lower limit of the ambient air temperature of −5 °C. This third edition cancels and replaces the second edition published in 2011. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) revision of requirements for protection against electric shock in Clause 10;
b) addition of requirements for functional earthing in 11.101;
c) revision of the requirements for fixing of flush type and semi-flush type enclosures in 12.12;
d) revision of the requirements for resistance of insulating material to abnormal heat and to fire in Clause 18;
e) addition of calculations to take into account the power loss of electronic devices in Clause AA.6;
f) addition of tests and requirements for enclosures exposed to direct sunlight with the related Annex CC;
g) addition of tests and requirements for enclosures with separate area to accommodate multimedia-equipment with the related Annex DD;
h) addition of tests and requirements for enclosures used with connected devices or equipment with the related Annex EE.

Boîtes et enveloppes pour appareillage électrique pour installations électriques fixes pour usages domestiques et analogues - Partie 24: Exigences particulières pour enveloppes pour appareillages de protection et autres équipements électriques ayant une puissance dissipée

L'IEC 60670-24:2024 s'applique aux enveloppes et parties d'enveloppes pour dispositifs de protection et autres matériels électriques ayant une puissance dissipée, destinés à être utilisés avec une tension assignée qui ne dépasse pas 400 V et un courant de charge total à l'arrivée qui ne dépasse pas 125 A pour les installations électriques fixes pour usages domestiques et analogues. Ces enveloppes sont destinées à être installées dans des lieux accessibles aux personnes non qualifiées. Elles sont destinées à incorporer des matériels électriques montés par des personnes qualifiées (installateurs). Ces enveloppes sont destinées à être installées dans des lieux où le courant de court-circuit présumé ne dépasse pas 10 kA, sauf si elles sont protégées par des dispositifs de protection limiteurs de courant, avec un courant coupé limité inférieur ou égal à 17 kA. Les enveloppes conformes au présent document sont adaptées à un usage à des températures ambiantes qui ne dépassent pas habituellement 40 °C, mais dont la moyenne sur une période de 24 h ne dépasse pas 35 °C, avec une limite basse de la température ambiante de –5 °C. Cette troisième édition annule et remplace la deuxième édition parue en 2011. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) les exigences pour la protection contre les chocs électriques à l'Article 10 ont été révisées;
b) des exigences pour la mise à la terre fonctionnelle ont été ajoutées au 11.101;
c) les exigences pour la fixation des enveloppes pour montage encastré et semi-encastré ont été révisées au 12.12;
d) les exigences pour la résistance du matériau isolant à la chaleur anormale et au feu à l'Article 18 ont été révisées;
e) des calculs ont été ajoutés à l'Article AA.6 pour prendre en compte la puissance dissipée par les appareils électroniques;
f) des essais et exigences ont été ajoutés pour les enveloppes exposées à la lumière directe du soleil, ainsi que l'Annexe CC associée;
g) des essais et exigences ont été ajoutés pour les enveloppes avec espace séparé pour accueillir le matériel multimédia, ainsi que l'Annexe DD associée;
h) des essais et exigences ont été ajoutés pour les enveloppes utilisées avec des appareils ou des équipements connectés, ainsi que l'Annexe EE associée.
La version française de la norme n'a pas été soumise au vote.

General Information

• Status: Published
• Publication Date: 17-Dec-2024
• ICS: 29.120.10 - Conduits for electrical purposes
• Technical Committee: SC 23B - Plugs, socket-outlets and switches
• Drafting Committee: MT 5 - TC 23/SC 23B/MT 5
• Current Stage: PPUB - Publication issued
• Start Date: 18-Dec-2024
• Completion Date: 27-Dec-2024

Relations

• Revises: IEC 60670-24:2011 - Boxes and enclosures for electrical accessories for household and similar fixed electrical installations - Part 24: Particular requirements for enclosures for housing protective devices and other power dissipating electrical equipment
• Effective Date: 05-Sep-2023

Overview

IEC 60670-24:2024 - Edition 3.0 - specifies particular requirements for boxes and enclosures that house protective devices and other power‑dissipating electrical equipment for household and similar fixed electrical installations. The standard applies to enclosures intended for use with a rated voltage ≤ 400 V and a total incoming load current ≤ 125 A, installed where unskilled persons can access them but where equipment is fitted by skilled installers. It defines performance, construction and test requirements (mechanical, thermal, electrical, EMC, ingress protection) and is intended for ambient temperatures normally not exceeding +40 °C (24 h average ≤ +35 °C, min −5 °C). This third edition (2024) revises and extends the 2011 edition.

Key topics and technical requirements

• Scope & ratings: voltage, current and short‑circuit limits (prospective short‑circuit current ≤ 10 kA unless limited by current‑limiting devices to ≤ 17 kA).
• Protection against electric shock: updated requirements for user safety (Clause 10).
• Earthing and functional earthing: added requirements for functional earthing (11.101).
• Construction & fixing: revised fixing rules for flush and semi‑flush enclosures; cover and lid fastening requirements; cable entries, knock‑outs and cable anchorage (Clause 12).
• Thermal performance: verification of maximum capability to dissipate power (Pde) and temperature‑rise tests (Clauses 101–102; Annex AA includes calculations for electronic device power loss).
• Materials & fire: revised requirements for insulating material resistance to abnormal heat and to fire (Clause 18).
• Durability & environmental resistance: ageing, UV/direct‑sunlight exposure tests (Annex CC), corrosion, tracking and low‑temperature impact.
• Mechanical protection: IK code testing and impact/compression tests (Annex B).
• EMC and modern use cases: EMC requirements and new annexes for multimedia areas (Annex DD) and enclosures used with connected/IoT devices (Annex EE).
• Manufacturer-to-installer guidance: normative instructions for GP and PD enclosures, selection, markings and installer checks (Annexes AA, BB).

Practical applications

• Design, manufacture and certification of distribution boxes, consumer units and enclosures that contain circuit breakers, residual current devices, power dissipating modules and smart/connected modules for homes, apartments, commercial and similar fixed installations.
• Test laboratories verifying compliance with mechanical, thermal, electrical, IP/IK and EMC criteria.
• Specifiers and regulatory authorities referencing safe enclosure construction, mounting and performance in building and electrical codes.

Who should use this standard

• Enclosure and electrical accessory manufacturers
• Product designers and R&D engineers
• Test labs and certification bodies
• Electrical installers, contractors and specifiers
• Standards committees and compliance officers

Related standards

• IEC 60670-1:2024 (general requirements for boxes and enclosures) - referenced and included content in this part.
• The IEC 60670 series (general + particular parts) for full guidance on boxes and enclosures.

Keywords: IEC 60670-24, enclosures for electrical accessories, protective devices, power‑dissipating equipment, household installations, IP, IK, temperature rise, earthing, EMC, thermal testing.

Standards Content (Sample)

IEC 60670-24 ®
Edition 3.0 2024-12
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This full version of IEC 60670-24:2024 includes the content of the references made to
IEC 60670-1:2024
Boxes and enclosures for electrical accessories for household and similar fixed
electrical installations –
Part 24: Particular requirements for enclosures for housing protective devices
and other power dissipating electrical equipment
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 60670-24 ®
Edition 3.0 2024-12
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This full version of IEC 60670-24:2024 includes the content of the references made to
IEC 60670-1:2024
Boxes and enclosures for electrical accessories for household and similar fixed
electrical installations –
Part 24: Particular requirements for enclosures for housing protective devices
and other power dissipating electrical equipment
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.120.10 ISBN 978-2-8327-0115-7

– 2 – IEC 60670-24:2024 EXV © IEC 2024

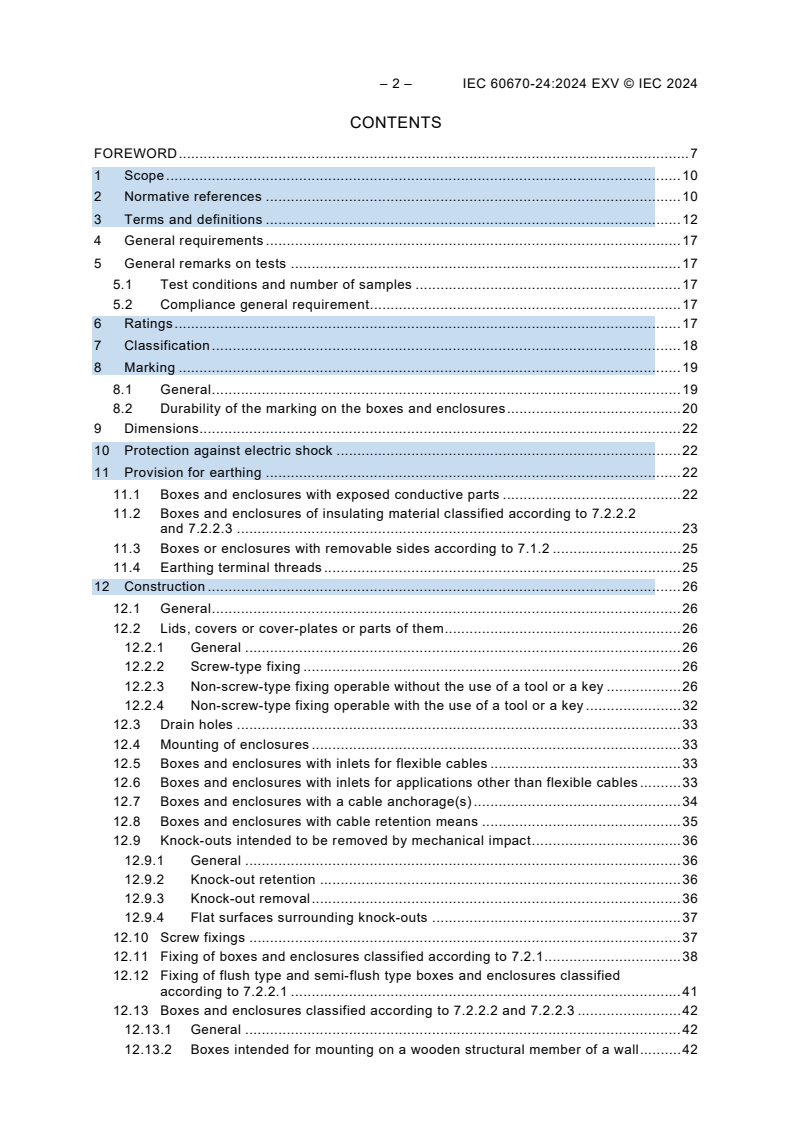

CONTENTS
