IEC 62715-6-2:2017

Flexible display devices - Part 6-2: Environmental testing methods

IEC 62715-6-2:2017(E) specifies testing methods for evaluating the environmental endurance of flexible display panels and modules for use, storage and transport under assumed usage environment. This part of IEC 62715 is applicable to flexible display panels and modules such as liquid crystal display devices (LCDs), electric paper display devices (EPDs), and organic light emitting diode display devices (OLEDs). This part of IEC 62715 will also be suitable for flexible panel or module with mechanical operation.

General Information

• Status: Published
• Publication Date: 23-May-2017
• ICS: 31.120 - Electronic display devices
• Technical Committee: TC 110 - Electronic displays
• Drafting Committee: WG 8 - TC 110/WG 8
• Current Stage: PPUB - Publication issued
• Start Date: 16-Jun-2017
• Completion Date: 24-May-2017

Overview

IEC 62715-6-2:2017 - Flexible display devices: Part 6-2 Environmental testing methods - defines standardized test methods to evaluate the environmental endurance of flexible display panels and modules during use, storage and transport. The standard applies to flexible technologies such as LCD, EPD (electronic paper) and OLED displays, and is also suitable for flexible panels or modules with mechanical operation. It focuses on reproducible conditioning, measurement and recovery procedures so manufacturers and test laboratories can assess environmental robustness and comparability.

Key topics and requirements

• Scope of tests: Environmental endurance for use, storage and transport under assumed usage environments.
• Test types covered (representative list from the standard):
  • Storage at high and low temperature
  • Temperature change (storage) and specified change rates
  • Damp heat - steady state (storage) and cyclic (storage)
  • Operation at high and low temperature
  • Damp heat - steady state (operational)
• Standard conditions and atmospheres:
  • Standard reference atmosphere: 25 °C, 101.3 kPa (no RH required for reference).
  • Standard test atmosphere: temperature 15–35 °C, relative humidity 25–85% (where appropriate), air pressure 86–106 kPa.
  • Referee measurement options: specific temperature/RH combinations (e.g., 20 °C, 25 °C, 30 °C, 35 °C with specified RH ranges) for cases where humidity/pressure effects are unknown.
  • Assisted drying: typically 55 °C ±2 °C, RH ≤ 20 %, 86–106 kPa for 6 hours (unless otherwise specified).
• Recovery procedures and measurements: Recovery conditions per IEC 60068-1, guidance on stabilisation time and when to power/load the device during recovery.
• Measurement infrastructure: Requirements for the structure of measuring equipment and guidance on measurement and analysis procedures.

Practical applications and users

• Who uses this standard:
  • Flexible display manufacturers (design, reliability and QA teams)
  • Independent test laboratories and certification bodies
  • OEMs and integrators validating display modules for product reliability
  • R&D teams optimizing materials and packaging for environmental durability
• Why it matters:
  • Ensures consistent environmental qualification for flexible OLED, LCD and EPD modules.
  • Supports design decisions for storage, transport and end‑use climates.
  • Provides reproducible methods for comparing materials, barrier layers, adhesives and mechanical components under temperature and humidity stress.

Related standards

• IEC 60068 series (general environmental testing methods and guidance)
• Other parts of IEC 62715 (mechanical stress tests, optical and visual measurement methods)
• IEC 62341 series (OLED display measurement methods)

Using IEC 62715-6-2 helps organizations implement standardized environmental testing for flexible display devices, enabling reliable product performance across real-world storage, transport and operating conditions.

Standards Content (Sample)

IEC 62715-6-2 ®
Edition 1.0 2017-05
INTERNATIONAL
STANDARD
Flexible display devices –
Part 6-2: Environmental testing methods

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 62715-6-2 ®
Edition 1.0 2017-05
INTERNATIONAL
STANDARD
Flexible display devices –
Part 6-2: Environmental testing methods

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.120 ISBN 978-2-8322-4370-1

– 2 – IEC 62715-6-2:2017 © IEC 2017

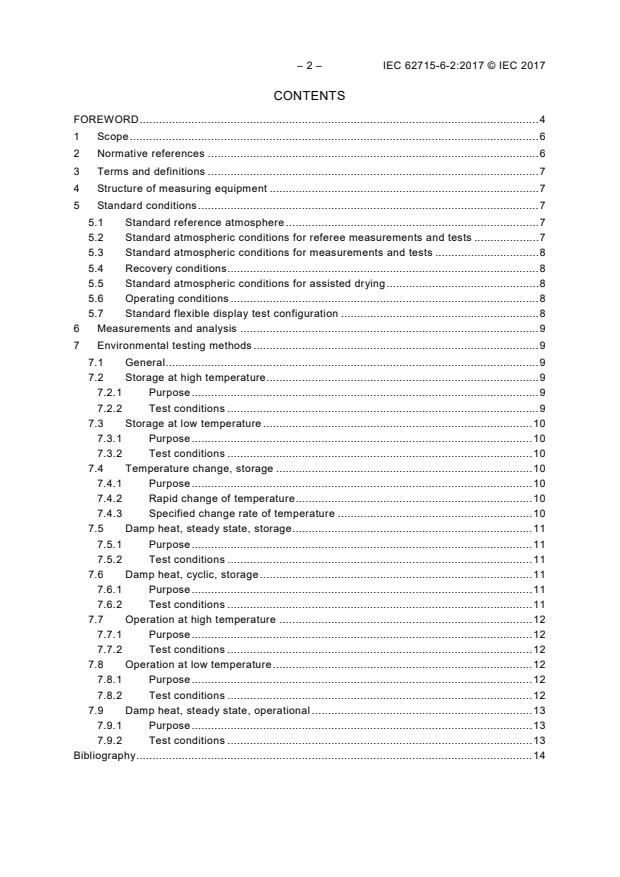

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Structure of measuring equipment . 7
5 Standard conditions . 7
5.1 Standard reference atmosphere . 7
5.2 Standard atmospheric conditions for referee measurements and tests . 7
5.3 Standard atmospheric conditions for measurements and tests . 8
5.4 Recovery conditions . 8
5.5 Standard atmospheric conditions for assisted drying . 8
5.6 Operating conditions . 8
5.7 Standard flexible display test configuration . 8
6 Measurements and analysis . 9
7 Environmental testing methods . 9
7.1 General . 9
7.2 Storage at high temperature . 9
7.2.1 Purpose . 9
7.2.2 Test conditions . 9
7.3 Storage at low temperature . 10
7.3.1 Purpose . 10
7.3.2 Test conditions . 10
7.4 Temperature change, storage . 10
7.4.1 Purpose . 10
7.4.2 Rapid change of temperature . 10
7.4.3 Specified change rate of temperature . 10
7.5 Damp heat, steady state, storage . 11
7.5.1 Purpose . 11
7.5.2 Test conditions . 11
7.6 Damp heat, cyclic, storage . 11
7.6.1 Purpose . 11
7.6.2 Test conditions . 11
7.7 Operation at high temperature . 12
7.7.1 Purpose . 12
7.7.2 Test conditions . 12
7.8 Operation at low temperature . 12
7.8.1 Purpose . 12
7.8.2 Test conditions . 12
7.9 Damp heat, steady state, operational . 13
7.9.1 Purpose . 13
7.9.2 Test conditions . 13
Bibliography . 14

Table 1 – Standard conditions for referee measurements and tests . 7
Table 2 – Assisted drying condition . 8
Table 3 – Examples of the damp heat, steady state test conditions . 11

– 4 – IEC 62715-6-2:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLEXIBLE DISPLAY DEVICES –
Part 6-2: Environmental testing methods

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62715-6-2 has been prepared by IEC technical committee 110:
Electronic display devices.
The text of this International Standard is based on the following documents:
FDIS Report on voting
110/860/FDIS 110/871/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62715 series, published under the general title Flexible display
devices, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

– 6 – IEC 62715-6-2:2017 © IEC 2017
FLEXIBLE DISPLAY DEVICES –
Part 6-2: Environmental testing methods

1 Scope
This part of IEC 62715 specifies testing methods for evaluating the environmental endurance
of flexible display panels and modules for use, storage and transport under assumed usage
environment. This part of IEC 62715 is applicable to flexible display panels and modules such
as liquid crystal display devices (LCDs), electric paper display devices (EPDs), and organic
light emitting diode display devices (OLEDs). This part of IEC 62715 will also be suitable for
flexible panel or module with mechanical operation.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60068-1:2013, Environmental testing – Part 1: General and guidance
IEC 60068-2-1, Environmental testing – Part 2-1: Tests – Test A: Cold
IEC 60068-2-2, Environmental testing – Part 2-2: Tests – Test B: Dry heat
IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: Change of temperature
IEC 60068-2-30, Environmental testing – Part 2-30: Tests – Test Db: Damp heat, cyclic
(12 h + 12 h cycle)
IEC 60068-2-78, Environmental testing – Part 2-78: Tests – Test Cab: Damp heat, steady
state
IEC 62341-6-2, Organic light emitting diode (OLED) displays – Part 6-2: Measuring methods
of visual quality and ambient performance
IEC 62341-6-3, Organic light emitting diode (OLED) displays – Part 6-3: Measuring methods
of image quality
IEC 62715-1-1, Flexible display devices – Part 1-1: Terminology and letter symbols
, Flexible display devices – Part 5-1:
...
