Connectors for electrical and electronic equipment - Tests and measurements - Part 15-2: Connector tests (mechanical) - Test 15b: Insert retention in housing (axial)

IEC 60512-15-2:2018 This part of IEC 60512, when required by the detail (product) specification, is used for testing connectors within the scope of technical committee 48. It may also be used for similar devices when specified in a detail (product) specification.
The object of this document is to detail a standard test method to assess the effectiveness of the retaining system of a connector insert within a connector housing to withstand axial forces likely to be encountered during normal use, i.e. the highest insertion and withdrawal forces into/from a mating counterpart, without the connector insert being dislodged from the connector housing.
The test method detailed in this document is a companion to the one detailed in IEC 60512-15-3
This second edition cancels and replaces the first edition, published in 2008. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition: the test method B (pressure method) suitable for testing hermetic connector has been added. This edition reflects IEC 60512-1-101, Blank detail specification.

Connecteurs pour équipements électriques et électroniques - Essais et mesures - Partie 15-2: Essais (mécaniques) des connecteurs - Essai 15b: Rétention de l'isolant dans le boîtier (axial)

IEC 60512-15-2:2018 La présente partie de l'IEC 60512 est utilisée, lorsque la spécification particulière (de produit) l’exige, pour les essais des connecteurs qui entrent dans le domaine d’application du comité d’études 48. Elle peut aussi être utilisée pour des dispositifs similaires lorsqu’une spécification particulière (de produit) le spécifie.
L’objet de ce document est de détailler une méthode d’essai normalisée pour évaluer l’efficacité du système de retenue d’un isolant de connecteur à l'intérieur d'un boîtier de connecteur à résister aux forces axiales susceptibles d'être rencontrées au cours d’une utilisation normale, c'est-à-dire les forces d'insertion et d'extraction les plus élevées dans/en provenance d'un connecteur d'accouplement correspondant, l'isolant de connecteur n'étant pas détaché du boîtier de connecteur.
La méthode d’essai détaillée dans le présent document accompagne celle détaillée dans l'IEC 60512-15-3.
Cette deuxième édition annule et remplace la première édition, parue en 2008, dont elle constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: La méthode d'essai B (méthode de la pression) appropriée aux essais du connecteur hermétique a été ajoutée. La présente édition reflète l'IEC 60512-1-101, Spécification particulière cadre.
Mots clés: connecteurs, essais des connecteurs, Rétention de l'isolant

General Information

Status
Published
Publication Date
11-Jan-2018
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
12-Jan-2018
Ref Project

Buy Standard

Standard
IEC 60512-15-2:2018 - Connectors for electrical and electronic equipment - Tests and measurements - Part 15-2: Connector tests (mechanical) - Test 15b: Insert retention in housing (axial)
English and French language
16 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60512-15-2
Edition 2.0 2018-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment – Tests and measurements –
Part 15-2: Connector tests (mechanical) – Test 15b: Insert retention in housing
(axial)
Connecteurs pour équipements électriques et électroniques – Essais et mesures –
Partie 15-2: Essais (mécaniques) des connecteurs – Essai 15b: Rétention de
l'isolant dans le boîtier (axial)
IEC 60512-15-2:2018-01(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------

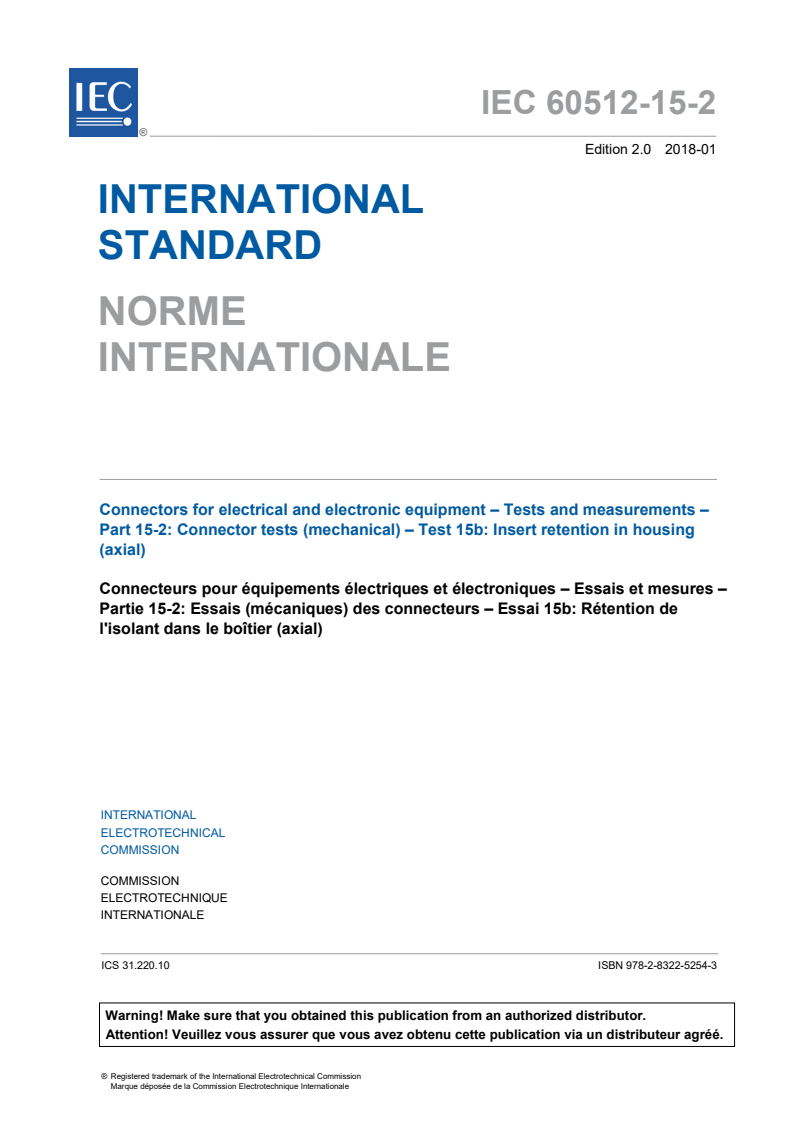

IEC 60512-15-2
Edition 2.0 2018-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment – Tests and measurements –
Part 15-2: Connector tests (mechanical) – Test 15b: Insert retention in housing
(axial)
Connecteurs pour équipements électriques et électroniques – Essais et mesures –
Partie 15-2: Essais (mécaniques) des connecteurs – Essai 15b: Rétention de
l'isolant dans le boîtier (axial)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220.10 ISBN 978-2-8322-5254-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

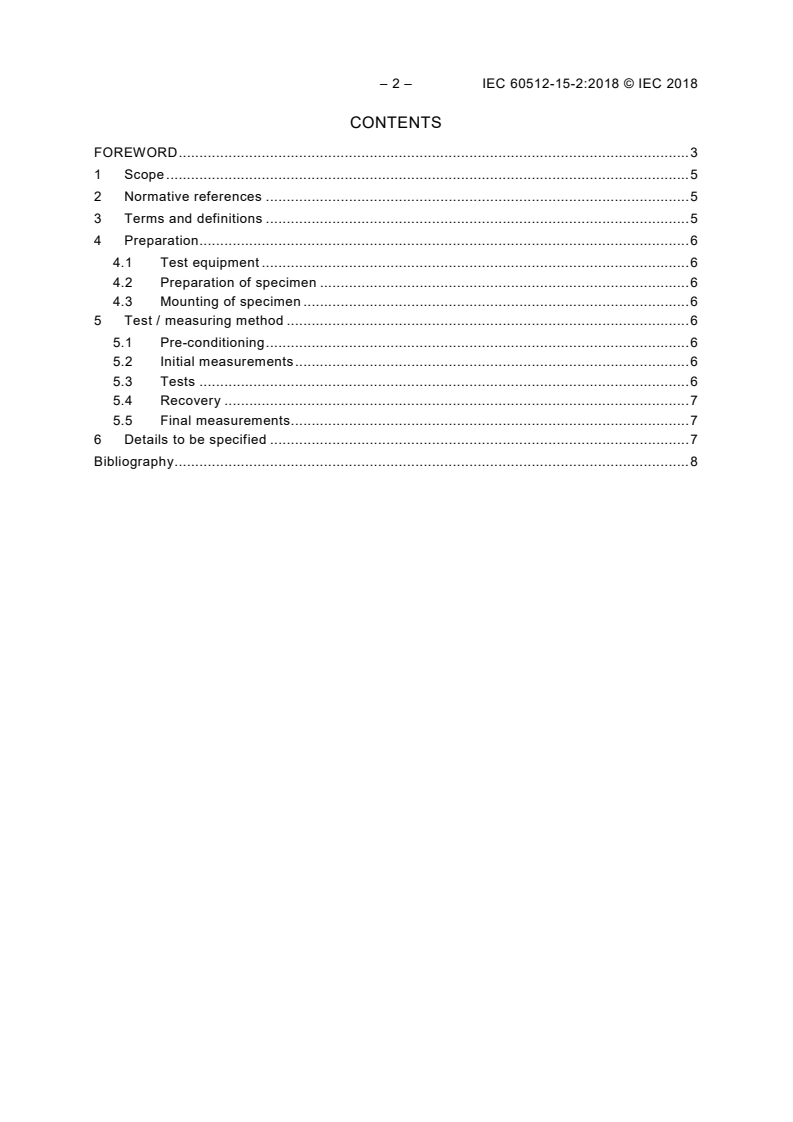

– 2 – IEC 60512-15-2:2018 © IEC 2018
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 Preparation ...................................................................................................................... 6

4.1 Test equipment ....................................................................................................... 6

4.2 Preparation of specimen ......................................................................................... 6

4.3 Mounting of specimen ............................................................................................. 6

5 Test / measuring method ................................................................................................. 6

5.1 Pre-conditioning ...................................................................................................... 6

5.2 Initial measurements ............................................................................................... 6

5.3 Tests ...................................................................................................................... 6

5.4 Recovery ................................................................................................................ 7

5.5 Final measurements ................................................................................................ 7

6 Details to be specified ..................................................................................................... 7

Bibliography ............................................................................................................................ 8

---------------------- Page: 4 ----------------------
IEC 60512-15-2:2018 © IEC 2018 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRICAL AND ELECTRONIC EQUIPMENT –
TESTS AND MEASUREMENTS –
Part 15-2: Connector tests (mechanical) –
Test 15b: Insert retention in housing (axial)
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60512-15-2 has been prepared by subcommittee 48B: Electrical

connectors, of IEC technical committee 48: Electrical connectors and mechanical structures

for electrical and electronic equipment.

This second edition cancels and replaces the first edition, published in 2008. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

– The test method B (pressure method) suitable for testing hermetic connector has been

added.
– This edition reflects IEC 60512-1-101, Blank detail specification.
---------------------- Page: 5 ----------------------
– 4 – IEC 60512-15-2:2018 © IEC 2018
The text of this International Standard is based on the following documents:
FDIS Report on voting
48B/2614/FDIS 48B/2621/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60512 series, published under the general title Connectors for

electrical and electronic equipment – Tests and measurements, can be found on the IEC

website.

Future standards in this series will carry the new general title as cited above. Titles of existing

standards in this series will be updated at the time of the next edition.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 60512-15-2:2018 © IEC 2018 – 5 –
CONNECTORS FOR ELECTRICAL AND ELECTRONIC EQUIPMENT –
TESTS AND MEASUREMENTS –
Part 15-2: Connector tests (mechanical) –
Test 15b: Insert retention in housing (axial)
1 Scope

This part of IEC 60512, when required by the detail (product) specification, is used for testing

connectors within the scope of technical committee 48. It may also be used for similar devices

when specified in a detail (product) specification.

The object of this document is to detail a standard test method to assess the effectiveness of

the retaining system of a connector insert within a connector housing to withstand axial forces

likely to be encountered during normal use, i.e. the highest insertion and withdrawal forces

into/from a mating counterpart, without the connector insert being dislodged from the

connector housing.

NOTE The test method detailed in this document is a companion to the one detailed in IEC 60512-15-3

(see Bibliography).
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60050-581, International Electrotechnical Vocabulary – Part 581: Electromechanical

components for electronic equipment
IEC 60512-1, Connectors for electronic equipment – Tests and measurements –
Part 1: General

IEC 60512-1-1, Connectors for electronic equipment – Tests and measurements – Part 1-1:

General examination – Test 1a: Visual examination
3 Terms and definitions

For the purposes of this document, terms and definitions given in IEC 60050-581 and

IEC 60512-1 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
---------------------- Page: 7 ----------------------
– 6 – IEC 60512-15-2:2018 © IEC 2018
4 Preparation
4.1 Test equipment

For the application of the axial forces, a suitable device able to provide the controls on the

forces (intensity, rate of increase, time of constant force application) shall be required (e.g.: a

universal materials testing machine).

In the case of the axial forces being applied by air or gas pressure, a chamber to contain

connectors that may be ejected in case of retention failure shall be provided. If hydraulic

pressure is used, such a chamber may not be necessary. However compatibility between

materials contained within the specimen and such fluids shall be ensured.

NOTE 1 Where air pressure is used, there is a possibility that contacts, inserts or other objects being ejected at

high velocity. Accordingly, it can be necessary to put in place appropriate safety measures.

NOTE 2 If the detail (product) specification requires special preconditioning of the specimen, all the necessary

equipment detailed in the relevant documents describing such conditioning would also be required.

4.2 Preparation of specimen
The specimen shall consist of a connector with its termi
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
