IEC 60269-2 ®
Edition 5.0 2024-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 2
AMENDEMENT 2
Low-voltage fuses –
Part 2: Supplementary requirements for fuses for use by authorized persons
(fuses mainly for industrial application) – Examples of standardized systems of
fuses A to K
Fusibles basse tension –
Partie 2: Exigences supplémentaires pour les fusibles destinés à être utilisés par
des personnes habilitées (fusibles pour usages essentiellement industriels) –
Exemples de systèmes de fusibles normalisés A à K
IEC 60269-2:2013-07/AM2:2024-06(en-fr)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

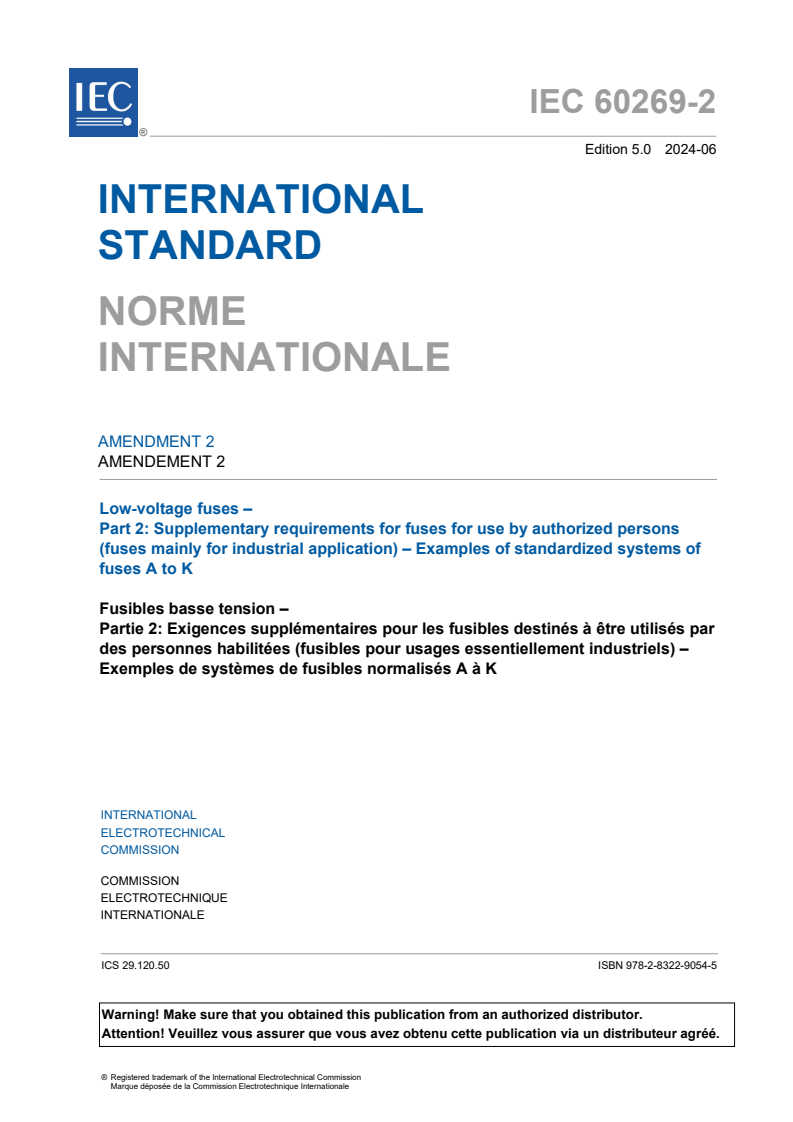

IEC 60269-2 ®
Edition 5.0 2024-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 2
AMENDEMENT 2
Low-voltage fuses –
Part 2: Supplementary requirements for fuses for use by authorized persons
(fuses mainly for industrial application) – Examples of standardized systems of
fuses A to K
Fusibles basse tension –
Partie 2: Exigences supplémentaires pour les fusibles destinés à être utilisés par
des personnes habilitées (fusibles pour usages essentiellement industriels) –
Exemples de systèmes de fusibles normalisés A à K
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.50 ISBN 978-2-8322-9054-5

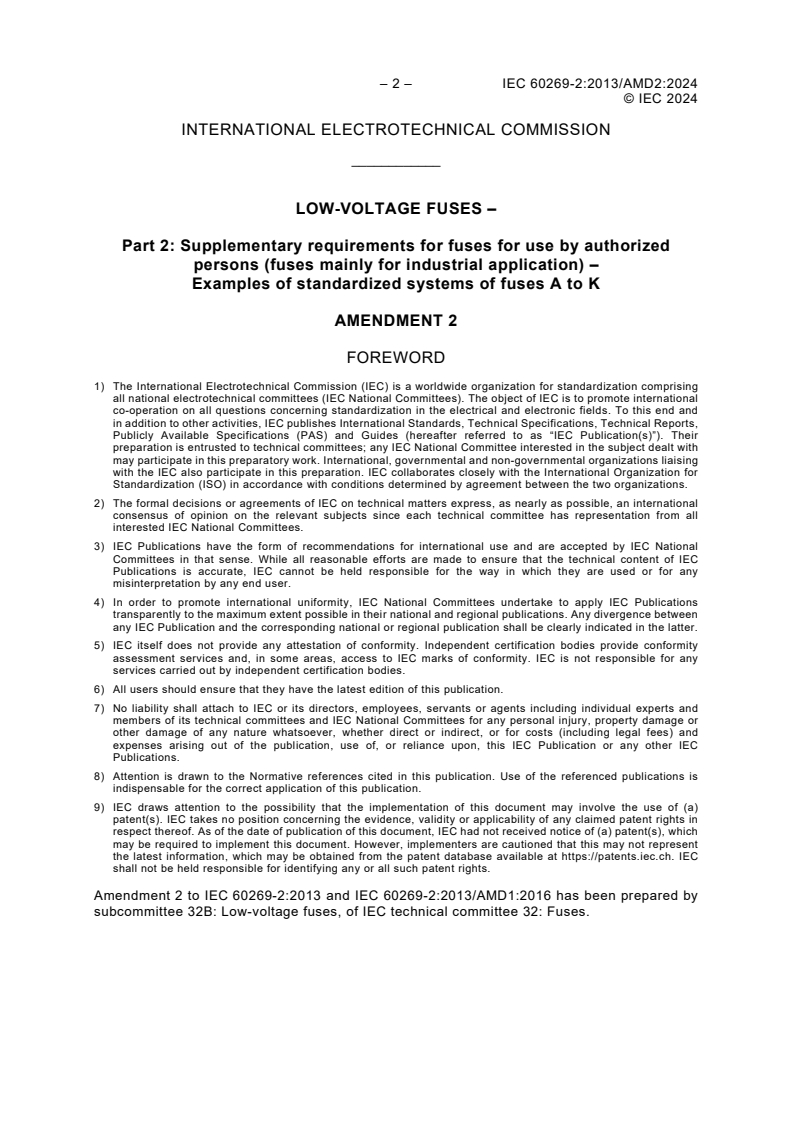

– 2 – IEC 60269-2:2013/AMD2:2024
© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LOW-VOLTAGE FUSES –
Part 2: Supplementary requirements for fuses for use by authorized
persons (fuses mainly for industrial application) –
Examples of standardized systems of fuses A to K
AMENDMENT 2
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
Amendment 2 to IEC 60269-2:2013 and IEC 60269-2:2013/AMD1:2016 has been prepared by
subcommittee 32B: Low-voltage fuses, of IEC technical committee 32: Fuses.
© IEC 2024
The text of this Amendment is based on the following documents:
Draft Report on voting
32B/743/FDIS 32B/755/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
___________
1.2 Normative references
Remove the existing reference to ISO 6988.
Add the following new normative reference:
ISO 22479, Corrosion of metals and alloys – Sulfur dioxide test in a humid atmosphere (fixed
gas method)
Fuse system A – Fuses with fuse-links with blade contacts (NH fuse system)
1 General
Replace the existing text of the first paragraph of Clause 1 with the following new text:
IEC 60269-1 applies with the following additional and modified requirements.
1.1 Scope
Replace, in the second sentence of 1.1, "1 250A" with "1 600 A".
– 4 – IEC 60269-2:2013/AMD2:2024
© IEC 2024
5.3.1 Rated current of the fuse-link
Delete the second paragraph of 5.3.1.
Table 102 – Gates for specified pre-arcing and operating times of "gG" fuse-links
Delete the last row of Table 102.
Table 103 – Minimum rated breaking capacities
Replace existing Table 103 with the following new table:
Rated voltage Minimum rated breaking capacities
≤ 690 V AC 50 kA
690 V AC < U ≤ 1 000 V AC 20 kA
≤ 750 V DC 25 kA
750 V < U ≤ 1 500 V DC 10 kA
Table 105 – Minimum cross-sectional ranges of unprepared conductors
Replace existing Table 105 by the following new table:
Size Range of the rated currents of the fuse-links Cross-sectional area ranges
mm
A Copper Aluminium
000 2 to 160 6 to 70 25 to 95
00 2 to 160 6 to 70 25 to 95
1 80 to 250 25 to 120 35 to 150
2 125 to 400 50 to 240 70 to 300
3 315 to 630 50 to 2 × 185 70 to 2 × 240
4 500 to 1 250 stated in the manufacturer’s literature
4a 500 to 1 600 stated in the manufacturer’s literature
7.7 I t characteristics
Delete, in the second sentence of the first paragraph of 7.7, the words: "and for 224A".
Table 106 – Pre-arcing and operating I t values at 0,01 s for "gG" fuse-links
Delete the last row of Table 106.
Replace the existing text of the second paragraph of 7.7 with the following new text:
The maximum operating I t values are given in Table 107 for the stated test value.
© IEC 2024
8.1.4 Arrangement of the fuse and dimensions
Replace, in the second paragraph of 8.1.4, the word "model" with "reference".
8.2.2.1 Points of application of test voltage
Replace, in the second paragraph of 8.2.2.1, the word "test fuse base" with "reference fuse-
base".
8.3.1 Arrangement of fuse
Replace the existing title of 8.3.1 with the following new title:
8.3.1 Arrangement of fuse and dimensions
Replace, in the third paragraph of 8.3.1, the number "1 250A" with "1 600A" and "are" with "shall
be".
Table 111 – Torque to be applied to the terminal screws
Replace existing Table 111 with the following new table:
Table 111 – Torque to be applied to the terminal screws
I Size Size of screws Torque
n
A Nm
160 000 M 8 10
160 00 M 8 10
250 1 M 10 32
400 2 M 10/12 32/40
630 3 M 10/12 32/40
1 250 4 M 12 40
1 600 4a 2 × M 12 40
or 1 × M16
8.4.3.1 Verification of conventional non-fusing and fusing current
Add the following new text at the end of 8.4.3.1:
(see Table 11 – Survey of
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
