Internet of Things (IoT) - Interoperability for IoT systems - Part 1: Framework

ISO/IEC 21823-1:2019(E) provides an overview of interoperability as it applies to IoT systems and a framework for interoperability for IoT systems. This document enables IoT systems to be built in such a way that the entities of the IoT system are able to exchange information and mutually use the information in an efficient way. This document enables peer-to-peer interoperability between separate IoT systems.
This document provides a common understanding of interoperability as it applies to IoT systems and the various entities within them.

General Information

Status
Published
Publication Date
14-Feb-2019
Current Stage
PPUB - Publication issued
Completion Date
15-Feb-2019
Ref Project

Buy Standard

Standard
ISO/IEC 21823-1:2019 - Internet of Things (IoT) - Interoperability for IoT systems - Part 1: Framework
English language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

ISO/IEC 21823-1
Edition 1.0 2019-02
INTERNATIONAL
STANDARD
colour
inside
Internet of things (IoT) – Interoperability for iot systems –
Part 1: Framework
ISO/IEC 21823-1:2019-02(en)
---------------------- Page: 1 ----------------------

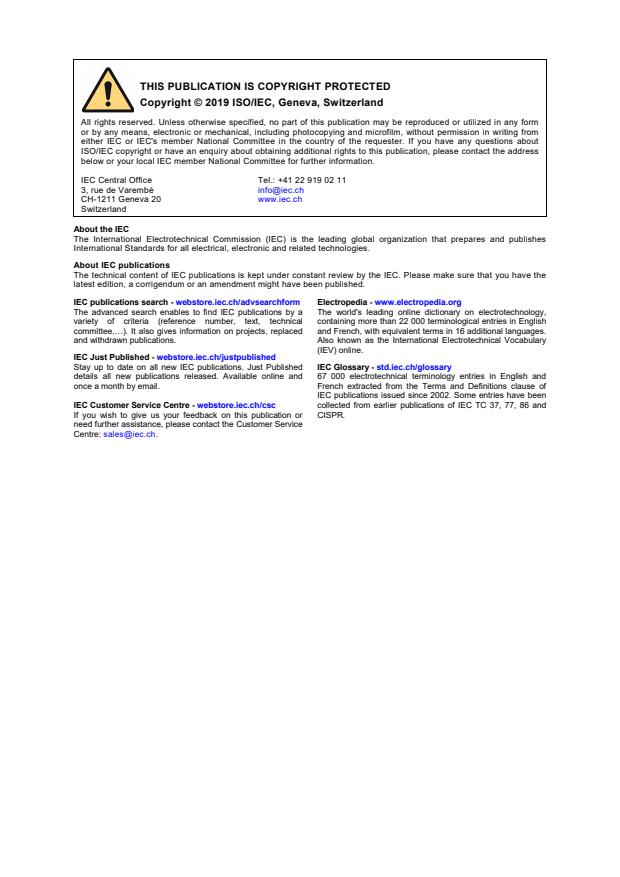

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 ISO/IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about

ISO/IEC copyright or have an enquiry about obtaining additional rights to this publication, please contact the address

below or your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
ISO/IEC 21823-1
Edition 1.0 2019-02
INTERNATIONAL
STANDARD
colour
inside
Internet of things (IoT) – Interoperability for iot systems –
Part 1: Framework
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.020 ISBN 978-2-8322-6567-3

Warning! Make sure that you obtained this publication from an authorized distributor.

---------------------- Page: 3 ----------------------
– 2 – ISO/IEC 21823-1:2019 © ISO/IEC 2019
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 Abbreviated terms ........................................................................................................... 8

5 Overview of Internet of Things interoperability ................................................................. 8

5.1 Descriptions ............................................................................................................ 8

5.2 Considerations for Internet of Things interoperability .............................................. 8

5.3 Internet of Things interoperability facet model ......................................................... 9

5.3.1 General ........................................................................................................... 9

5.3.2 Transport interoperability ............................................................................... 10

5.3.3 Syntactic interoperability ................................................................................ 10

5.3.4 Semantic interoperability ............................................................................... 11

5.3.5 Behavioural interoperability ........................................................................... 11

5.3.6 Policy interoperability .................................................................................... 11

5.3.7 Summary of Internet of Things interoperability facet model ............................ 11

5.4 Issues affecting Internet of Things interoperability ................................................ 12

6 Consideration of the interoperability requirement for IoT characteristics ........................ 13

6.1 General descriptions ............................................................................................. 13

6.2 IoT system characteristics..................................................................................... 13

6.2.1 Network communication ................................................................................. 13

6.2.2 Self-description ............................................................................................. 13

6.2.3 Other IoT system characteristics not considered in interoperability ................ 13

6.3 IoT component characteristics .............................................................................. 14

6.3.1 Discoverability ............................................................................................... 14

6.3.2 Network connectivity ...................................................................................... 14

6.3.3 Unique identification ...................................................................................... 14

6.3.4 Other IoT component characteristics not considered in interoperability .......... 14

6.4 Legacy support ..................................................................................................... 14

6.5 Security ................................................................................................................ 14

6.5.1 Confidentiality ................................................................................................ 14

6.5.2 Integrity ......................................................................................................... 14

6.5.3 Protection of personally identifiable information ............................................. 14

6.6 Heterogeneity ....................................................................................................... 14

6.7 Compliance ........................................................................................................... 14

6.8 Other IoT characteristics not considered in interoperability ................................... 15

7 Framework for interoperable IoT systems based on IoT reference architecture .............. 15

7.1 Context for interoperability within and between IoT systems ................................. 15

7.2 General description ............................................................................................... 16

7.3 Interoperability of IoT entities ................................................................................ 17

Annex A (informative) Overall IoT infrastructure at high-level ............................................... 18

Bibliography .......................................................................................................................... 20

---------------------- Page: 4 ----------------------
ISO/IEC 21823-1:2019 © ISO/IEC 2019 – 3 –

Figure 1 – Facets of IoT interoperability ................................................................................ 10

Figure 2 – Entities and interactions in IoT systems ............................................................... 15

Figure 3 – Concepts for interoperability of IoT entities .......................................................... 16

Figure A.1 – Integration of an IoT system with others ............................................................ 18

Figure A.2 – An overall IoT infrastructure .............................................................................. 19

Table 1 – Summary of different facets of IoT interoperability [1] ............................................ 12

---------------------- Page: 5 ----------------------
– 4 – ISO/IEC 21823-1:2019 © ISO/IEC 2019
INTERNET OF THINGS (IoT) –
INTEROPERABILITY FOR IoT SYSTEMS –
Part 1: Framework
FOREWORD

1) ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission)

form the specialized system for worldwide standardization. National bodies that are members of ISO or IEC

participate in the development of International Standards through technical committees established by the

respective organization to deal with particular fields of technical activity. ISO and IEC technical committees

collaborate in fields of mutual interest. Other international organizations, governmental and non-governmental, in

liaison with ISO and IEC, also take part in the work. In the field of information technology, ISO and IEC have

established a joint technical committee, ISO/IEC JTC 1.

2) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an

international consensus of opinion on the relevant subjects since each technical committee has representation

from all interested IEC National Committees and ISO member bodies.

3) IEC, ISO and ISO/IEC publications have the form of recommendations for international use and are accepted

by IEC National Committees and ISO member bodies in that sense. While all reasonable efforts are made to

ensure that the technical content of IEC, ISO and ISO/IEC publications is accurate, IEC or ISO cannot be held

responsible for the way in which they are used or for any misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees and ISO member bodies undertake to

apply IEC, ISO and ISO/IEC publications transparently to the maximum extent possible in their national and

regional publications. Any divergence between any ISO, IEC or ISO/IEC publication and the corresponding

national or regional publication should be clearly indicated in the latter.

5) ISO and IEC do not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. ISO or IEC are not responsible

for any services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or ISO or its directors, employees, servants or agents including individual experts

and members of their technical committees and IEC National Committees or ISO member bodies for any

personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for

costs (including legal fees) and expenses arising out of the publication of, use of, or reliance upon, this ISO/IEC

publication or any other IEC, ISO or ISO/IEC publications.

8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this ISO/IEC publication may be the subject of

patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.

International Standard ISO/IEC 21823-1 was prepared by subcommittee 41: Internet of Things

and related technologies, of ISO/IEC joint technical committee 1: Information technology.

The list of all currently available parts of the ISO/IEC 21823 series, under the general title

Information technology – Internet of Things (IoT) – Interoperability for IoT systems, can be

found on the IEC and ISO websites.
The text of this standard is based on the following documents:
FDIS Report on voting
JTC1-SC41/75/FDIS JTC1-SC41/87/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
ISO/IEC 21823-1:2019 © ISO/IEC 2019 – 5 –
INTRODUCTION

Internet of Things (IoT) systems involve communications between different entities. This

applies to connections between different IoT systems. It also applies to the many connections

that exist within IoT systems. The various entities and their connections are described in

ISO/IEC 30141.
The ISO/IEC 21823 series addresses issues that relate to interoperability of the
communications between IoT systems entities. ISO/IEC 21823-1 describes a general

framework for interoperability of IoT systems. This includes a facet model for interoperability

which includes five facets of interoperability (i.e. transport, syntactic, semantic, behavioural

and policy). This document addresses the framework to achieve interoperability for IoT; the

specific facets are addressed in other parts of ISO/IEC 21823.
---------------------- Page: 7 ----------------------
– 6 – ISO/IEC 21823-1:2019 © ISO/IEC 2019
INTERNET OF THINGS (IoT) –
INTEROPERABILITY FOR IoT SYSTEMS –
Part 1: Framework
1 Scope

This document provides an overview of interoperability as it applies to IoT systems and a

framework for interoperability for IoT systems. This document enables IoT systems to be built

in such a way that the entities of the IoT system are able to exchange information and

mutually use the information in an efficient way. This document enables peer-to-peer

interoperability between separate IoT systems.

This document ensures that all parties involved in building and using IoT systems have a

common understanding of interoperability as it applies to IoT systems and the various entities

within them.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.
ISO/IEC 30141, Internet of Things (IoT) – Reference architecture
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• ISO Online browsing platform: available at http://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
3.1
interface
named set of operations that characterize the behaviour of an entity
[SOURCE: ISO 19142:2010, 4.10]
3.2
operation

specification of a transformation or query that an object may be called to execute

[SOURCE: ISO 19142:2010, 4.17]
3.3
framework

structure of processes and specifications designed to support the accomplishment of a

specific task
[SOURCE: ISO/IEEE 11073-10201:2004, 3.22]
---------------------- Page: 8 ----------------------
ISO/IEC 21823-1:2019 © ISO/IEC 2019 – 7 –
3.4
interoperability

ability for two or more systems or applications to exchange information and to mutually use

the information that has been exchanged
[SOURCE: ISO/IEC 17788:2014, 3.1.5]
3.5
transport interoperability

interoperability (3.4) where information exchange uses an established communication

infrastructure between the participating systems
Note 1 to entry: System means IoT system.

Note 2 to entry: IoT device, IoT gateway, sensor and actuator are considered as a system.

[SOURCE: ISO/IEC 19941:2017, 3.1.3]
3.6
syntactic interoperability

interoperability (3.4) such that the formats of the exchanged information can be understood by

the participating systems
Note 1 to entry: System means IoT system.

Note 2 to entry: IoT device, IoT gateway, sensor and actuator are considered as a system.

[SOURCE: ISO/IEC 19941:2017, 3.1.4
3.7
behavioural interoperability
interoperability (3.4) so that the actual result achieves the expected outcome
Note 1 to entry: System means IoT system.

Note 2 to entry: IoT device, IoT gateway, sensor and actuator are considered as a system.

[SOURCE: ISO/IEC 19941:2017, 3.1.6, modified – In the definition, "result of the exchange"

has been replaced with "result".]
3.8
policy interoperability

interoperability (3.4) while complying with the legal, organizational, and policy frameworks

applicable to the participating systems
Note 1 to entry: System means IoT system.

Note 2 to entry: IoT device, IoT gateway, sensor and actuator are considered as a system.

[SOURCE: ISO/IEC 19941:2017, 3.1.7]
3.9
semantic interoperability

interoperability (3.4) so that the meaning of the data model within the context of a subject

area is understood by the participating systems
Note 1 to entry: System means IoT system.

Note 2 to entry: IoT device, IoT gateway, sensor and actuator are considered as a system.

[SOURCE: ISO/IEC 19941:2017, 3.1.5, modified – The term "semantic data interoperability"

has been replaced with "semantic interoperability".]
---------------------- Page: 9 ----------------------
– 8 – ISO/IEC 21823-1:2019 © ISO/IEC 2019
4 Abbreviated terms
AMQP Advanced Message Queuing Protocol
API Application Programming Interface
ASD Application & Service Domain
IoT Internet of Things
JSON JavaScript Object Notation
MQTT Message Queuing Telemetry Transport
OMD Operation & Management Domain
PII Personally Identifiable Information
RAID Resource Access & Interchange Domain
SCD Sensing & Controlling Domain
UD User Domain
PED Physical Entity Domain
5 Overview of Internet of Things interoperability
5.1 Descriptions

Clause 5 provides an overview and facet models for Internet of Things interoperability. The

goal is to ensure that parties involved in the IoT, particularly as specified in ISO/IEC 30141,

have a common understanding of IoT interoperability for their specific needs. This common

understanding helps to achieve interoperability in IoT by establishing common terminology

and concepts used to describe it, particularly as they relate to IoT entities.
5.2 Considerations for Internet of Things interoperability

Interoperability can be defined as a measure of the degree to which various kinds of systems

or components interact successfully. For the purposes of this document, interoperability is

defined in 3.4. In the context of IoT, interoperability is further described as the successful

interaction among the IoT entities specified in ISO/IEC 30141.

Interoperability, in the context of IoT, involves a number of different types of interacting

entities and their associated interfaces. While interoperability matters in sectors throughout

the economy, this document specifically focuses on the context of IoT and especially relating

to the framework for interoperability based on the IoT reference architecture defined in

ISO/IEC 30141.

There are many considerations when addressing IoT interoperability. These include:

• ability for communication between entities in different domains or between different IoT

systems;

• ability for the exchange of data between entities in different domains or between different

IoT systems;

• ability of an understanding of the meaning of exchanged data between entities in different

domains or different IoT systems;
• ability for an IoT service to work with other IoT services;
• roles and activities of functional components as defined in ISO/IEC 30141 for
interoperability.

By taking these considerations into account, this document provides a context of framework

for a better understanding of existing and future interoperability standards.
---------------------- Page: 10 ----------------------
ISO/IEC 21823-1:2019 © ISO/IEC 2019 – 9 –
5.3 Internet of Things interoperability facet model
5.3.1 General

Interoperability involves a number of elements, starting at the simple exchange of data bytes,

facilitating an understanding of the semantics of the exchanged information, and also an

alignment of the business processes, behaviour and policies on either side of the exchange.

Semantic, behavioural and policy interoperability can result in a significantly bigger challenge

than the bits and bytes. [1]

In dealing with the various interactions to which interoperability applies in IoT, it is necessary

to explore technological, information and human aspects. Moving forward, interoperability

related challenges are likely to intensify and get more difficult to manage as IoT systems grow

more complex and interconnected. In IoT systems where anything can be connected, the

complexities are further extended from technological aspects to global policies, regulation and

international law.

To discuss interoperability within the context of IoT, it is necessary to deal with different

perspectives of conceptual interoperability and identify with whom, with what, and

circumstances in which interoperability plays a vital role. This document describes these

various aspects of interoperability in terms of facets. Interoperability of two entities may be

described in terms of different facets, where each facet focuses on one aspect of

interoperability. To achieve interoperability, it is important that all facets are understood and

mutually agreed upon by interacting entities.

The interoperability facet model described in this document defines five facets within the

context of IoT interoperability. These five facets, shown in Figure 1, are transport, syntactic,

semantic, behavioural and policy. This model is derived by combining and abstracting the

European Interoperability Framework [2] and the Levels of Conceptual Interoperability Model

(LCIM) [3].
___________
Numbers in square brackets refer to the Bibliography.
---------------------- Page: 11 ----------------------
– 10 – ISO/IEC 21823-1:2019 © ISO/IEC 2019
Figure 1 – Facets of IoT interoperability

In Figure 1, the big circle indicates that interoperability has five facets and that they have

some effect on each other. This model was originally produced in ISO/IEC 19941 [1] and is

adapted to "Internet of Things" to achieve synergy with the system integration viewpoint in

ICT.
5.3.2 Transport interoperability

The transport interoperability is the commonality of the communication infrastructure

established to exchange data between entities. It includes the physical medium used (e.g.

wired, wireless) and the transport mechanism between various entities of an IoT system or

between different IoT systems defined as entity-based reference model in ISO/IEC 30141.

Examples include IEEE 802.3 (Ethernet), IEEE 802.11 (Wi-Fi® ) for the physical layer and

protocols such as TCP/IP, HTTP/S, AMQP (as specified in ISO/IEC 19464 [4]) and MQTT (as

specified in ISO/IEC 20922 [5]).
5.3.3 Syntactic interoperability

The syntactic interoperability is the ability of two or more systems or devices to exchange

information based on their syntaxes such as formats, rules, etc. Example syntaxes for

information include OWL (Web Ontology Language), RDFS (Resource Description Framework

Schema), UML (Unified Modelling Language), XML (eXtensible Markup Language), JSON (as

specified in ISO/IEC 21778 [6]), ASN.1 (as specified in the ISO/IEC 8824 series [7]), etc.

___________

Wi-Fi is a registered trademark of Wi-Fi Alliance. This information is given for the convenience of users of this

document and does not constitute an endorsement by ISO or IEC.
---------------------- Page: 12 ----------------------
ISO/IEC 21823-1:2019 © ISO/IEC 2019 – 11 –
5.3.4 Semantic interoperability

The semantic interoperability is the ability of the entities exchanging information to

understand the meaning of the data model within the context of a subject area. Domain

concepts in an IoT system are varied and dependent on the nature of the entities concerned.

Semantic interoperability is based on the data models of the information being exchanged at

the time of that exchange. The data models depend on the nature of the entities involved and

the functional capabilities of the interfaces between them.
5.3.5 Behavioural interoperability

The behavioural interoperability is where the results of the use of the exchanged information

match the expected outcome. IoT entities are designed for a particular purpose or intention.

However, the actual use of the entity by another entity may have a different intention without

violating the other facets of interoperability.

The behavioural interoperability of an IoT entity is defined in the interface description. The

interface description includes a declaration of the interface provided by the service, often

referred to as an API. The interface declaration describes the interface in terms of a set of

operations provided by the interface and the inputs and outputs for each operation. In terms

of the interface description, behavioural interoperability requires additional information to be

supplied in terms of the expected results of each operation, including elements such as pre-

conditions, post-conditions and any sequences of operations that are necessary for

successful use of the interface. The behavioural interoperability facet abstracts from

implementation details and describes the behaviour of IoT entities in a representation-

independent way.

The behavioural interoperability can be particularly important where a particular entity (say an

actuator) is replaced with a new version offering the same interface – while the semantic and

syntactic elements of the interface can match, the behaviour might be different, producing

unexpected results.
5.3.6 Policy interoperability

The policy interoperability is defined as the ability of two or more systems to interoperate

within the legal, organizational, and policy frameworks applicable to the participating systems.

This facet concerns governmental laws and regulations, policy terms and conditions applying

to the IoT user or IoT system provider, and organizational policies covering the interactions.

5.3.7 Summary of Internet of Things interoperability facet model
See Table 1.
---------------------- Page: 13 ----------------------
– 12 – ISO/IEC 21823-1:2019 © ISO/IEC 2019
Table 1 – Summary of different facets of IoT interoperability [1]
Facets Aim Objects Requirements Examples
Transport Data transfer between Physical Protocols of data HTTP/S, MQTT
systems connections transfer
Signals
Syntactic Receive data in an Data Standardized data JSON, XML,
understood format exchange formats ASN.1

Semantic Receive data using an Programmatic Common interpretation Directories, data

understood data interface of data information keys, ontologies
information model model
Behavioural Obtain expected Information Behavioural model(s) of UML models, pre-
outcomes to interface the invoked IoT entity and post-
operations conditions,
constraint
specifications
Policy Assurance that Regulatory and Conditions and control Security policies
interoperating organizational for use and access of IoT system
systems follow polices and stakeholders,
applicable regulatory interoperation restriction on
and organizational context cross-border data
policies transfer,
regulations
controlling PII
5.4 Issues affecting Internet of Things interoperability

One of the important aspects of IoT interoperability is the mutual understanding of the

semantic and behavioural facets which express concepts from a domain of interest.

Challenges related to the semantics of data, the intended use and the organizational realities

of people and processes, and the constraints of legal or regulatory frameworks tend to be far

more difficult to address. For example, transport interoperability can make it possible to

deliver data from one system to another, but political or regulatory restrictions may make the

data practically unavailable. A lack of agreement on governance structures may impose legal

risks that prevent the sharing of that data [1].

Full interoperability between two interacting systems requires that interoperability exists for all

interoperability facets. However, practically speaking, two systems can still interact

successfully even if interoperability is not achievable for all facets. For example, for the

transport interoperability facet, one system might communicate using a REST HTTP protocol

while another s
...
