Explosive atmospheres - Part 40: Requirements for process sealing between flammable process fluids and electrical systems

IEC TS 60079-40:2015(E) provides specific requirements for process sealing between a flammable process fluid and an electrical system where a failure could allow the migration of the process fluid directly into the premises wiring system. This document contains requirements for evaluation, construction and testing of single process seal equipment, dual process seal equipment, and add-on secondary process seals. The requirements of this document do not apply to conduit sealing devices, cable glands and other wiring sealing methods addressed in the IEC 60079 series or other standards. Requirements for basic electrical safety and explosion protection are not addressed by this document, but may apply to the equipment under investigation. The effects of leakage to the environment are not addressed by this document. Keywords: process sealing between a flammable process fluid and an electrical system

General Information

Status
Published
Publication Date
04-Feb-2015
Current Stage
PPUB - Publication issued
Start Date
05-Feb-2015
Completion Date
05-Feb-2015
Ref Project

Buy Standard

Technical specification
IEC TS 60079-40:2015 - Explosive atmospheres - Part 40: Requirements for process sealing between flammable process fluids and electrical systems
English language
17 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

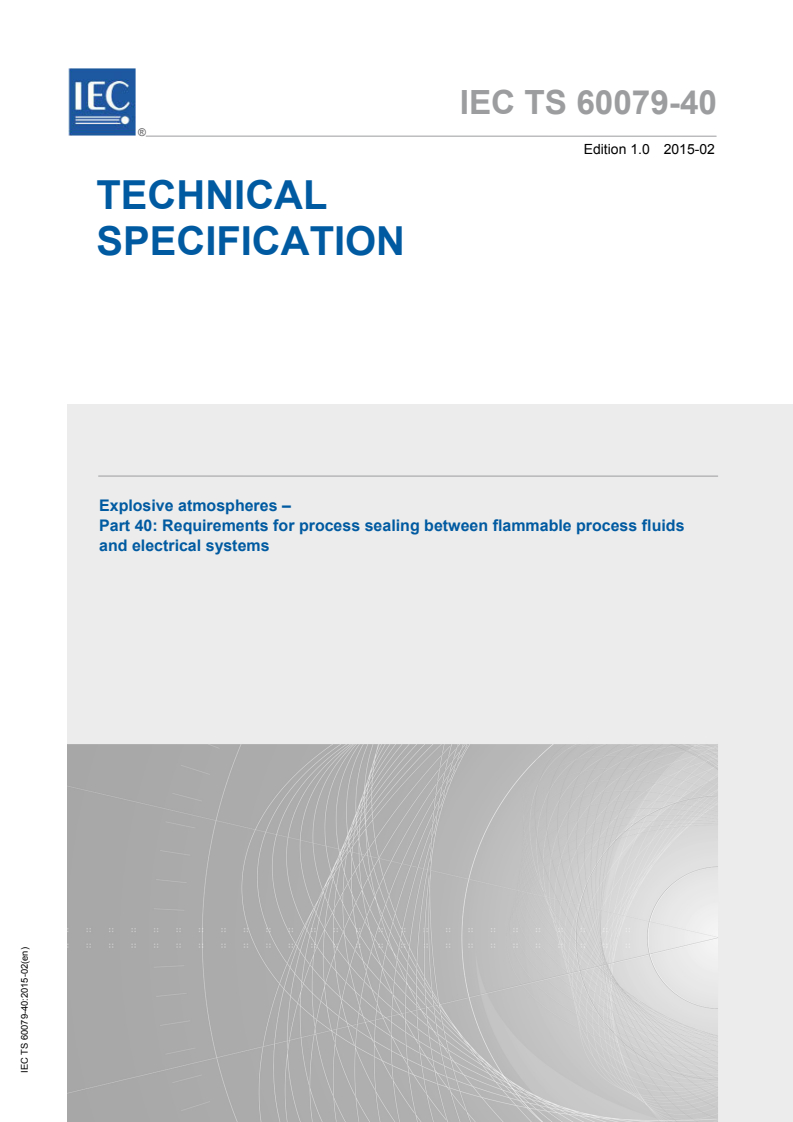

IEC TS 60079-40
Edition 1.0 2015-02
TECHNICAL
SPECIFICATION
Explosive atmospheres –
Part 40: Requirements for process sealing between flammable process fluids
and electrical systems
IEC TS 60079-40:2015-02(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2015 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and

Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15

documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International

iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in

variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions

committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries

and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
---------------------- Page: 2 ----------------------

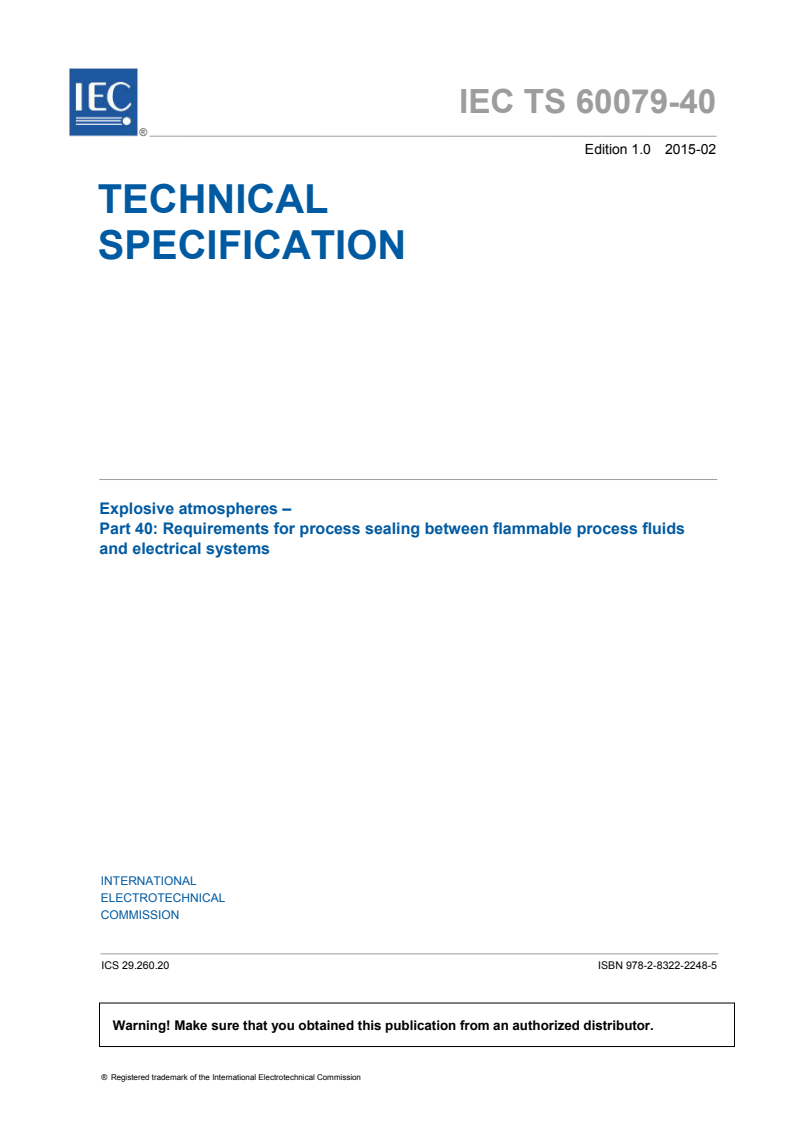

IEC TS 60079-40
Edition 1.0 2015-02
TECHNICAL
SPECIFICATION
Explosive atmospheres –
Part 40: Requirements for process sealing between flammable process fluids
and electrical systems
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.260.20 ISBN 978-2-8322-2248-5

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC TS 60079-40:2015 © IEC 2015

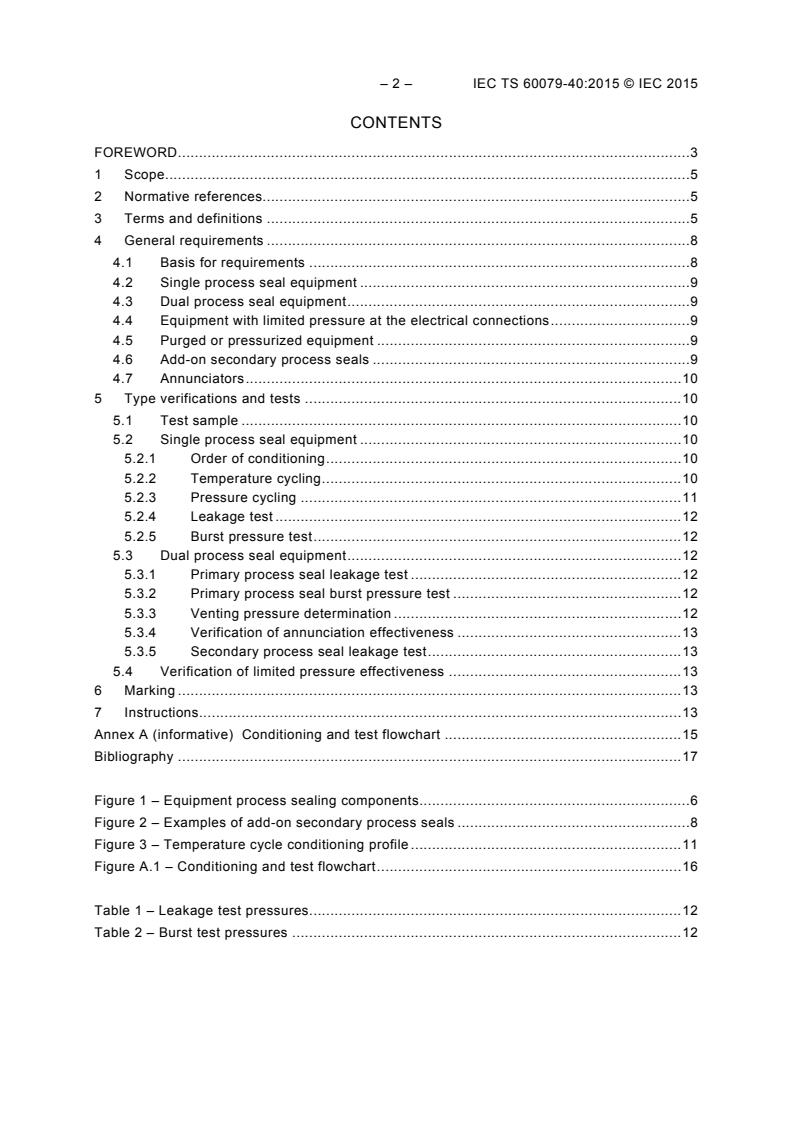

CONTENTS

FOREWORD ......................................................................................................................... 3

1 Scope ............................................................................................................................ 5

2 Normative references..................................................................................................... 5

3 Terms and definitions .................................................................................................... 5

4 General requirements .................................................................................................... 8

4.1 Basis for requirements .......................................................................................... 8

4.2 Single process seal equipment .............................................................................. 9

4.3 Dual process seal equipment ................................................................................. 9

4.4 Equipment with limited pressure at the electrical connections ................................. 9

4.5 Purged or pressurized equipment .......................................................................... 9

4.6 Add-on secondary process seals ........................................................................... 9

4.7 Annunciators ....................................................................................................... 10

5 Type verifications and tests ......................................................................................... 10

5.1 Test sample ........................................................................................................ 10

5.2 Single process seal equipment ............................................................................ 10

5.2.1 Order of conditioning .................................................................................... 10

5.2.2 Temperature cycling ..................................................................................... 10

5.2.3 Pressure cycling .......................................................................................... 11

5.2.4 Leakage test ................................................................................................ 12

5.2.5 Burst pressure test ....................................................................................... 12

5.3 Dual process seal equipment ............................................................................... 12

5.3.1 Primary process seal leakage test ................................................................ 12

5.3.2 Primary process seal burst pressure test ...................................................... 12

5.3.3 Venting pressure determination .................................................................... 12

5.3.4 Verification of annunciation effectiveness ..................................................... 13

5.3.5 Secondary process seal leakage test ............................................................ 13

5.4 Verification of limited pressure effectiveness ....................................................... 13

6 Marking ....................................................................................................................... 13

7 Instructions.................................................................................................................. 13

Annex A (informative) Conditioning and test flowchart ........................................................ 15

Bibliography ....................................................................................................................... 17

Figure 1 – Equipment process sealing components ................................................................ 6

Figure 2 – Examples of add-on secondary process seals ....................................................... 8

Figure 3 – Temperature cycle conditioning profile ................................................................ 11

Figure A.1 – Conditioning and test flowchart ........................................................................ 16

Table 1 – Leakage test pressures ........................................................................................ 12

Table 2 – Burst test pressures ............................................................................................ 12

---------------------- Page: 4 ----------------------
IEC TS 60079-40:2015 © IEC 2015 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
EXPLOSIVE ATMOSPHERES –
Part 40: Requirements for process sealing between
flammable process fluids and electrical systems
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a technical

specification when

• the required support cannot be obtained for the publication of an International Standard,

despite repeated efforts, or

• the subject is still under technical development or where, for any other reason, there is the

future but no immediate possibility of an agreement on an International Standard.

Technical specifications are subject to review within three years of publication to decide

whether they can be transformed into International Standards.

IEC 60079-40, which is a technical specification, has been prepared by IEC technical

committee 31: Equipment for explosive atmospheres.
---------------------- Page: 5 ----------------------
– 4 – IEC TS 60079-40:2015 © IEC 2015
The text of this technical specification is based on the following documents:
Enquiry draft Report on voting
31/1134/DTS 31/1170/RVC

Full information on the voting for the approval of this technical specification can be found in

the report on voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60079 series, published under the general title Explosive

atmospheres, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
---------------------- Page: 6 ----------------------
IEC TS 60079-40:2015 © IEC 2015 – 5 –
EXPLOSIVE ATMOSPHERES –
Part 40: Requirements for process sealing between
flammable process fluids and electrical systems
1 Scope

This document provides specific requirements for process sealing between a flammable

process fluid and an electrical system where a failure could allow the migration of the process

fluid directly into the premises wiring system.

NOTE Some definitions differentiate the terms “flammable” and “combustible” liquids on the basis of their

flashpoints. Combustible liquids under conditions of elevated pressure and/or temperature can lead to the

formation of flammable mists and aerosols which are within the scope of this technical specification.

This document contains requirements for evaluation, construction and testing of single

process seal equipment, dual process seal equipment, and add-on secondary process seals.

The requirements of this document do not apply to conduit sealing devices, cable glands and

other wiring sealing methods addressed in the IEC 60079 series or other standards.

Requirements for basic electrical safety and explosion protection are not addressed by this

document, but may apply to the equipment under investigation. The effects of leakage to the

environment are not addressed by this document.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60079-0, Explosive atmospheres – Part 0: Equipment – General requirements

IEC 60079-2, Explosive atmospheres – Part 2: Equipment protection by pressurized enclosure

"p"
3 Terms and definitions
For the purposes of this document the following terms and definitions apply.

NOTE See Figure 1 for a graphical representation of the various process seal components.

---------------------- Page: 7 ----------------------
– 6 – IEC TS 60079-40:2015 © IEC 2015
Premises
Wiring
System
Secondary
Process
Seals
Vent
(when provided)
Electrical Equipment
Electrical Equipment
Primary
Process
Seal
Process Fluid
IEC
Figure 1 – Equipment process sealing components
3.1
dual process seal equipment

equipment which incorporates, along any single potential leakage path, a primary process

seal and one or more secondary process seals such that the failure of two or more

independent process seals is required to allow migration of process fluids from their designed

containment into the premises wiring system
3.2
process connected equipment

electrical equipment that contains a process seal and is intended for connection to an external

system that contains the process fluid
3.3
process fluid

gas, liquid or vapour that is used in or is a by-product of an industrial process

Note 1 to entry: For the purposes of this technical specification, use of the term process fluid refers to a

flammable process fluid. For further information, refer to IEC 60079-0, IEC 60079-10-1, and IEC 60079-20-1.

3.4
process seal

seal between the electrical system and a flammable process fluid where a failure could allow

the migration of the process fluid into the premises wiring system

Note 1 to entry: Although an entire containment system may constitute a potential source of release under

unusual conditions, this technical specification recognizes the concept of infallible containment as defined in

IEC 60079-2.
3.5
single process seal equipment

equipment that incorporates, along any single potential leakage path, a single sealing

structure such that a failure of the seal would result in the migration of the process fluid from

the designed containment into the premises wiring system

Note 1 to entry: Single process seal equipment in compliance with this document is considered to have a

negligible probability of failure when used in accordance with the manufacturer's specification.

---------------------- Page: 8 ----------------------
IEC TS 60079-40:2015 © IEC 2015 – 7 –
3.6
primary process seal

process seal that is directly in contact with process fluids under conditions of normal

operation
3.7
secondary process seal

process seal that comes into contact with process fluids only in the case of a primary process

seal failure
3.8
process seal with moving parts

process seal containing mechanical parts that, under conditions of normal operation, are

capable of motion relative to other parts of the s
...
