IEC 62196-2:2016 applies to plugs, socket-outlets, vehicle connectors and vehicle inlets with pins and contact-tubes of standardized configurations, herein referred to as accessories. They have a nominal rated operating voltage not exceeding 480 V a.c., 50 Hz to 60 Hz, and a rated current not exceeding 63 A three-phase or 70 A single phase, for use in conductive charging of electric vehicles. This second edition cancels and replaces the first edition published in 2011 and constitutes a technical revision. This second edition includes the following significant technical changes with respect to the previous edition.
a) Standard sheets for configurations type 2 and type 3 have been updated.
b) Configuration type 2 is now available with optional shutter.
This publication is to be read in conjunction with IEC 62196-1:2014.

Fiches, socles de prise de courant, prises mobiles et socles de connecteurs de véhicules - Charge conductive des véhicules électriques - Partie 2: Exigences dimensionnelles de compatibilité et d'interchangeabilité pour les appareils à broches et alvéoles pour courant alternatif

L'IEC 62196-2:2016 s'applique aux fiches, aux socles de prise de courant, aux prises mobiles et socles de connecteurs de véhicule, à broches et alvéoles, de configurations normalisées, ci-après dénommés appareils. Ces appareils ont une tension d'emploi assignée ne dépassant pas 480 V en courant alternatif, 50 Hz à 60 Hz, et un courant assigné ne dépassant pas 63 A en triphasé ou 70 A en monophasé, et sont destinés à la charge conductive des véhicules électriques. Cette deuxième édition annule et remplace la première édition parue en 2011 et constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) Mise à jour des feuilles de norme des configurations type 2 et type 3;
b) Ajout d'obturateurs (en option) pour les appareils de type 2.
Cette publication doit être lue conjointement avec la IEC 62196-1:2014.

General Information

Status
Published
Publication Date
17-Feb-2016
Current Stage
PPUB - Publication issued
Start Date
18-Feb-2016
Completion Date
18-Feb-2016
Ref Project

Buy Standard

Standard
IEC 62196-2:2016 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories
English and French language
122 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

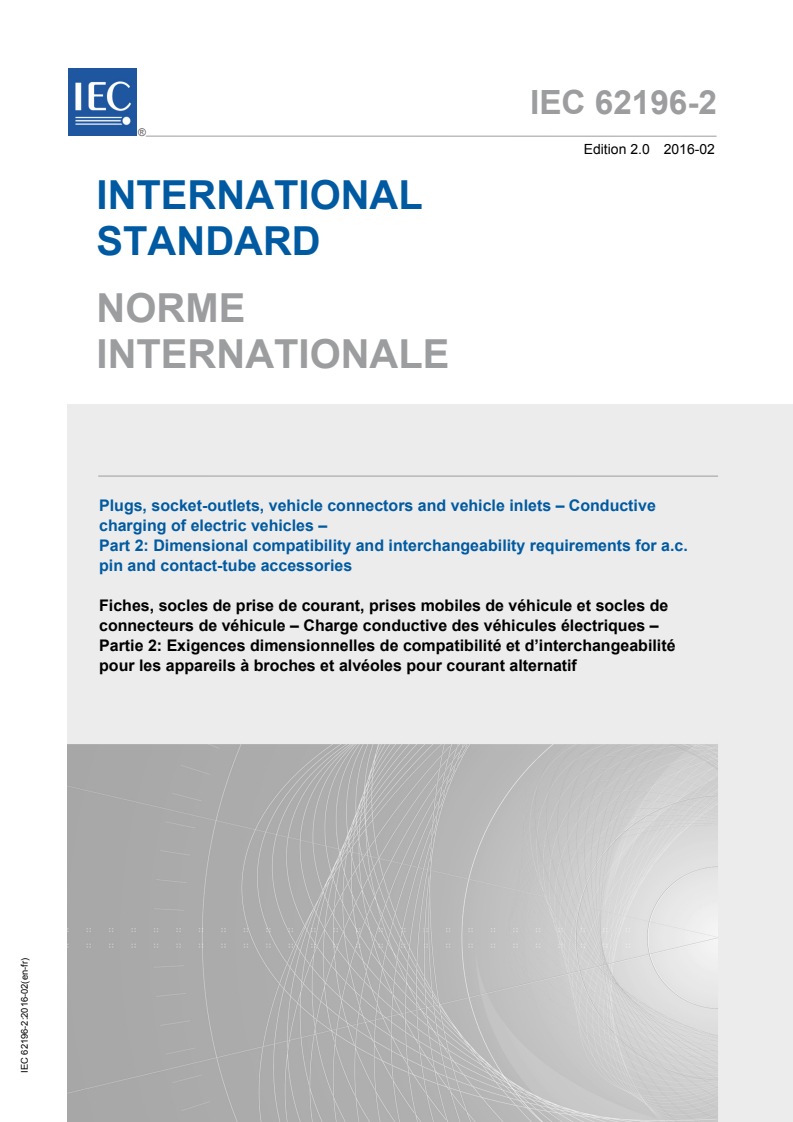

IEC 62196-2
Edition 2.0 2016-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive
charging of electric vehicles –
Part 2: Dimensional compatibility and interchangeability requirements for a.c.
pin and contact-tube accessories
Fiches, socles de prise de courant, prises mobiles de véhicule et socles de
connecteurs de véhicule – Charge conductive des véhicules électriques –
Partie 2: Exigences dimensionnelles de compatibilité et d’interchangeabilité
pour les appareils à broches et alvéoles pour courant alternatif
IEC 62196-2:2016-02(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2016 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary

La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais

en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des

comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées

projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------

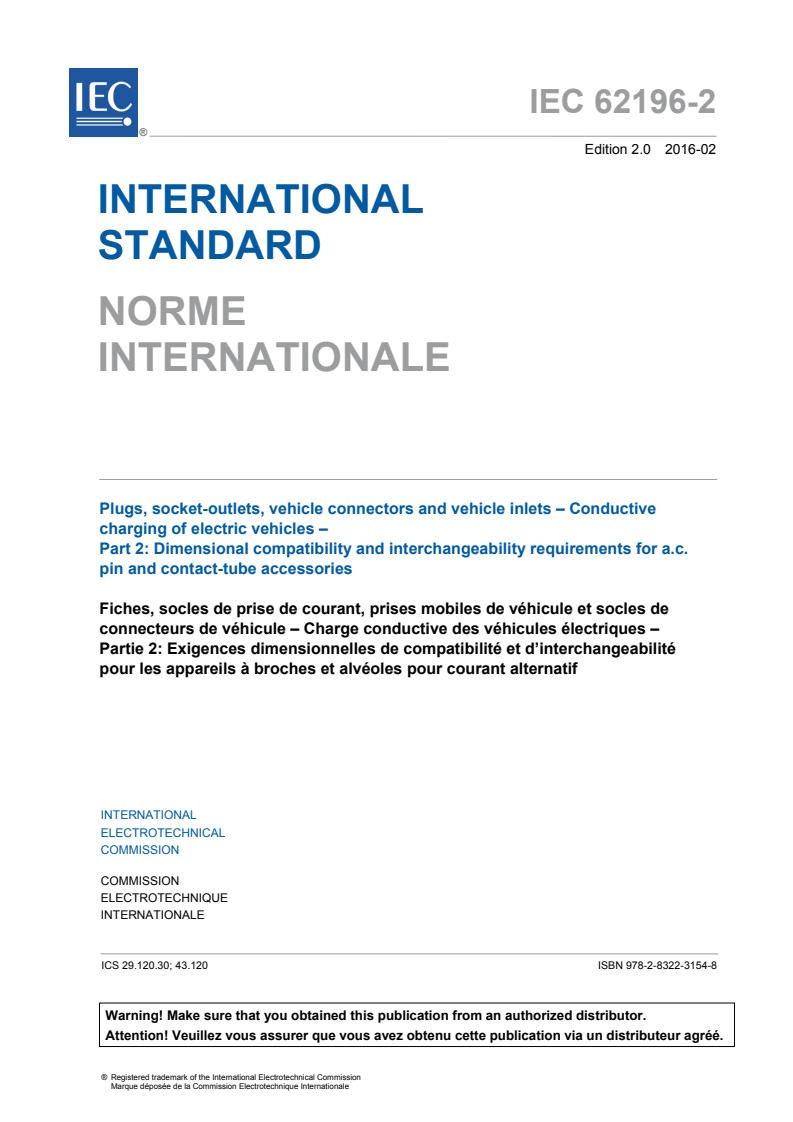

IEC 62196-2
Edition 2.0 2016-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive
charging of electric vehicles –
Part 2: Dimensional compatibility and interchangeability requirements for a.c.
pin and contact-tube accessories
Fiches, socles de prise de courant, prises mobiles de véhicule et socles de
connecteurs de véhicule – Charge conductive des véhicules électriques –
Partie 2: Exigences dimensionnelles de compatibilité et d’interchangeabilité
pour les appareils à broches et alvéoles pour courant alternatif
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.30; 43.120 ISBN 978-2-8322-3154-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 62196-2:2016 © IEC 2016

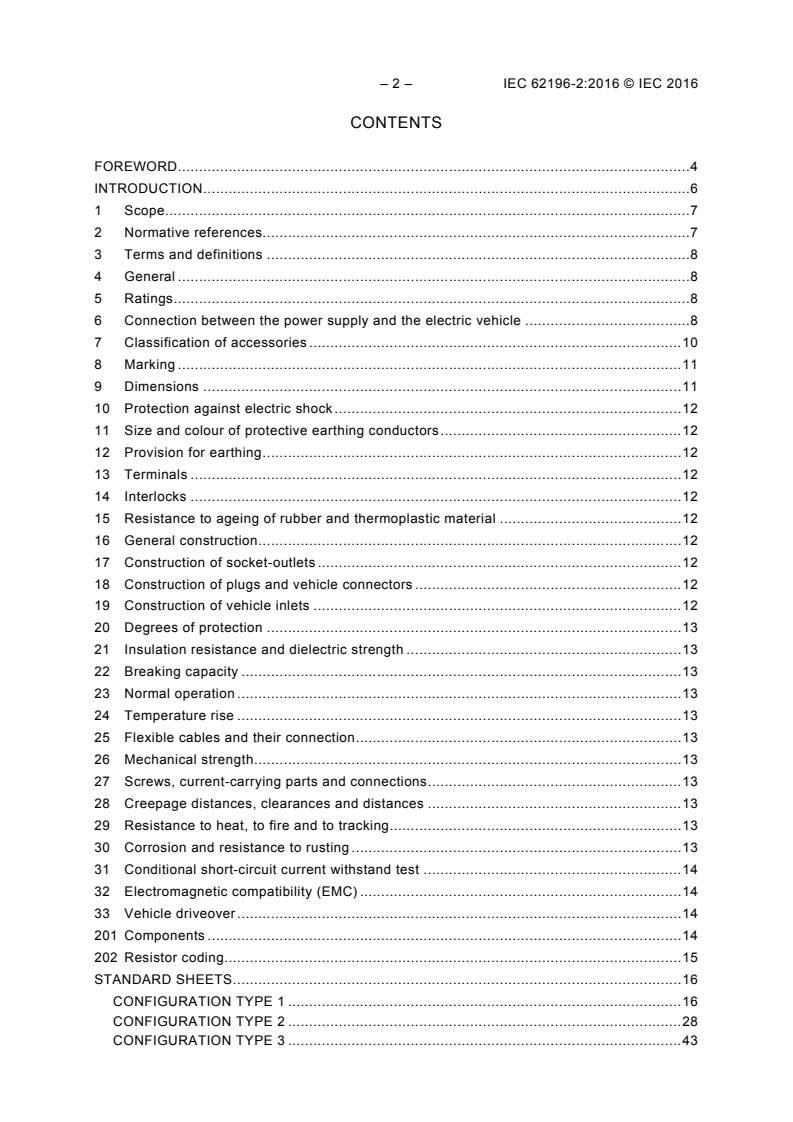

CONTENTS

FOREWORD ......................................................................................................................... 4

INTRODUCTION ................................................................................................................... 6

1 Scope ............................................................................................................................ 7

2 Normative references..................................................................................................... 7

3 Terms and definitions .................................................................................................... 8

4 General ......................................................................................................................... 8

5 Ratings .......................................................................................................................... 8

6 Connection between the power supply and the electric vehicle ....................................... 8

7 Classification of accessories ........................................................................................ 10

8 Marking ....................................................................................................................... 11

9 Dimensions ................................................................................................................. 11

10 Protection against electric shock .................................................................................. 12

11 Size and colour of protective earthing conductors ......................................................... 12

12 Provision for earthing ................................................................................................... 12

13 Terminals .................................................................................................................... 12

14 Interlocks .................................................................................................................... 12

15 Resistance to ageing of rubber and thermoplastic material ........................................... 12

16 General construction .................................................................................................... 12

17 Construction of socket-outlets ...................................................................................... 12

18 Construction of plugs and vehicle connectors ............................................................... 12

19 Construction of vehicle inlets ....................................................................................... 12

20 Degrees of protection .................................................................................................. 13

21 Insulation resistance and dielectric strength ................................................................. 13

22 Breaking capacity ........................................................................................................ 13

23 Normal operation ......................................................................................................... 13

24 Temperature rise ......................................................................................................... 13

25 Flexible cables and their connection ............................................................................. 13

26 Mechanical strength ..................................................................................................... 13

27 Screws, current-carrying parts and connections ............................................................ 13

28 Creepage distances, clearances and distances ............................................................ 13

29 Resistance to heat, to fire and to tracking ..................................................................... 13

30 Corrosion and resistance to rusting .............................................................................. 13

31 Conditional short-circuit current withstand test ............................................................. 14

32 Electromagnetic compatibility (EMC) ............................................................................ 14

33 Vehicle driveover ......................................................................................................... 14

201 Components ................................................................................................................ 14

202 Resistor coding ............................................................................................................ 15

STANDARD SHEETS .......................................................................................................... 16

CONFIGURATION TYPE 1 ............................................................................................. 16

CONFIGURATION TYPE 2 ............................................................................................. 28

CONFIGURATION TYPE 3 ............................................................................................. 43

---------------------- Page: 4 ----------------------
IEC 62196-2:2016 © IEC 2016 – 3 –

Table 201 – Overview of the basic vehicle interface, configuration type 1, single phase ......... 9

Table 202 – Overview of the basic vehicle interface, configuration types 2 and 3,

three-phase or single phase ................................................................................................ 10

Table 203 – Configuration types and standard sheets .......................................................... 11

Table 204 – Interoperation of configuration type 2 accessories ............................................ 28

---------------------- Page: 5 ----------------------
– 4 – IEC 62196-2:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PLUGS, SOCKET-OUTLETS, VEHICLE CONNECTORS AND VEHICLE
INLETS – CONDUCTIVE CHARGING OF ELECTRIC VEHICLES –
Part 2: Dimensional compatibility and interchangeability
requirements for a.c. pin and contact-tube accessories
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62196-2 has been prepared by IEC subcommittee 23H: Plugs,

socket-outlets and couplers for industrial and similar applications, and for electric vehicles, of

IEC technical committee 23: Electrical accessories.

This second edition cancels and replaces the first edition published in 2011 and constitutes a

technical revision.

This second edition includes the following significant technical changes with respect to the

previous edition.
a) Standard sheets for configurations type 2 and type 3 have been updated.
b) Configuration type 2 is now available with optional shutter.
---------------------- Page: 6 ----------------------
IEC 62196-2:2016 © IEC 2016 – 5 –
The text of this standard is based on the following documents:
CDV Report on voting
23H/324/CDV 23H/342/RVC

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all the parts in the IEC 62196 series, under the general title Plugs, socket-outlets,

vehicle connectors and vehicle inlets – Conductive charging of electric vehicles, can be found

on the IEC website.

This part of IEC 62196 is to be read in conjunction with IEC 62196-1:2014. The clauses of the

particular requirements in Part 2 supplement or modify the corresponding clauses in Part 1.

Where the text indicates "addition" to or "replacement" of the relevant requirement, test

specification or explanation of Part 1, these changes are made to the relevant text of Part 1,

which then becomes part of this standard. Where no change is necessary, the words

"Clause X of IEC 62196-1:2014 is applicable" are used.
In this standard, the following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
notes: in smaller roman type.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 7 ----------------------
– 6 – IEC 62196-2:2016 © IEC 2016
INTRODUCTION

Responding to global challenges of CO reduction and energy security, the automobile

industries have been accelerating the development and commercialization of electric vehicles

and hybrid electric vehicles. In addition to the prevailing hybrid electric vehicles, battery

electric vehicles including plug-in hybrid electric vehicles are going to be mass-marketed. To

support the diffusion of such vehicles, this standard provides the standard interface

configurations of a.c. vehicle couplers and accessories to be used in conductive charging of

electric vehicles, taking the most frequent charging situations into consideration.

IEC 62196 is divided into several parts:
Part 1: General requirements

Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and

contact-tube accessories

Part 3: Dimensional compatibility and interchangeability requirements for d.c. and a.c./d.c.

pin and contact-tube vehicle couplers
---------------------- Page: 8 ----------------------
IEC 62196-2:2016 © IEC 2016 – 7 –
PLUGS, SOCKET-OUTLETS, VEHICLE CONNECTORS AND VEHICLE
INLETS – CONDUCTIVE CHARGING OF ELECTRIC VEHICLES –
Part 2: Dimensional compatibility and interchangeability
requirements for a.c. pin and contact-tube accessories
1 Scope

This part of IEC 62196 applies to plugs, socket-outlets, vehicle connectors and vehicle inlets

with pins and contact-tubes of standardized configurations, herein referred to as accessories.

They have a nominal rated operating voltage not exceeding 480 V a.c., 50 Hz to 60 Hz, and a

rated current not exceeding 63 A three-phase or 70 A single phase, for use in conductive

charging of electric vehicles.

This part of IEC 62196 covers the basic interface accessories for vehicle supply as specified

in IEC 62196-1, and intended for use in conductive charging systems for circuits specified in

IEC 61851-1:2010.

NOTE 1 Electric road vehicles (EV) implies all road vehicles, including plug-in hybrid road vehicles (PHEV), that

derive all or part of their energy from RESS.

These accessories are intended to be used for circuits specified in IEC 61851-1:2010 which

operate at different voltages and frequencies and which may include extra-low voltage (ELV)

and communication signals.

These accessories may be used for bidirectional power transfer (under consideration).

This standard applies to accessories to be used in an ambient temperature between –30 °C

and +50 °C.

NOTE 2 In the following country, other requirements regarding the lower temperature may apply: NO.

NOTE 3 In the following country, –35 °C applies: SE.

These accessories are intended to be connected only to cables with copper or copper-alloy

conductors.

Vehicle inlet and vehicle connector to this standard are intended to be used for charging in

modes 1, 2 and 3, cases B and C. The socket-outlets and plugs covered by this standard are

intended to be used for charging mode 3 only, case A and B.
The modes and permissible connections are specified in IEC 62196-1:2014.
2 Normative references
Clause 2 of IEC 62196-1:2014 applies except as follows:
Addition:

IEC 62196-1:2014, Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive

charging of electric vehicles – Part 1: General requirements
---------------------- Page: 9 ----------------------
– 8 – IEC 62196-2:2016 © IEC 2016
3 Terms and definitions
Clause 3 of IEC 62196-1:2014 applies.
4 General
Clause 4 of IEC 62196-1:2014 applies.
5 Ratings
Clause 5 of IEC 62196-1:2014 applies except as follows:
5.1 Replacement:
Rated operating voltages:
30 V (signal or control purposes only);
250 V a.c.
480 V a.c.
5.2 Replacement:
The rated currents are:
2 A (signal or control purposes only)
13 A single phase
16 A single and three-phase
20 A single and three-phase
30 A or 32 A single and three-phase
60 A or 63 A single and three-phase
70 A single phase only

NOTE 1 In the following countries, the branch circuit overcurrent protection device is based upon 125 % of the

accessory rating: US.

NOTE 2 Reference to "30 A or 32 A" and "60 A or 63 A" rating is made in accordance with National requirements.

6 Connection between the power supply and the electric vehicle
Clause 6 of IEC 62196-1:2014 applies except as follows:
6.1 Replacement:

This Clause provides a description of the physical conductive electrical interface requirements

between the vehicle and the power supply, which allows the following design at the vehicle

interface:

– a basic interface that provides for current ratings up to 63 A a.c. three-phase and up to

70 A a.c. single phase.

Different configuration types for the basic interface may allow different application of mode

and current ratings. See introduction to relevant standard sheets for more details.

---------------------- Page: 10 ----------------------
IEC 62196-2:2016 © IEC 2016 – 9 –
6.2 Replacement:
There is one type of vehicle inlet:
– basic
6.3 Replacement:
There is one type of vehicle connector:
– basic
6.4 Not applicable.
6.5 Replacement:

The basic interface may contain up to 7 power or signal contacts, with unique physical

configurations of contact positions for single or three phases. The electrical ratings and their

function are described in Tables 201 and 202. The electrical ratings and their function are

described in the Standard Sheets.

Each vehicle inlet shall only mate with the corresponding type of vehicle connector. Each plug

shall only mate with the corresponding type of socket-outlet.
The accessories, configuration types 1, 2 or 3 are rated as follows:
– configuration type 1 vehicle coupler is rated 250 V, 32 A single phase;
– configuration type 2 vehicle coupler, socket-outlet and plug are rated:
• 250 V, 13 A or 20 A or 32 A or 63 A or 70 A single phase,
• 480 V, 13 A or 20 A or 32 A or 63 A, three-phase.
– configuration type 3 vehicle coupler, socket-outlet and plug are rated:
• 250 V, 16 A or 32 A, single phase,
• 480 V, 32 A or 63 A three-phase.
Table 201 – Overview of the basic vehicle interface,
configuration type 1, single phase
a c
Position number a.c. Functions
1 250 V 32 A L1 (mains 1)
2 250 V 32 A L2 (mains 2) / N (neutral)
3 Rated for fault PE (ground/earth)
4 30 V 2 A CP (Control pilot)
5 30 V 2 A CS (Connection switch)

Position number does not refer to the location and/or identification of the contact in the accessory.

In the following countries, the branch circuit overcurrent protection is based upon 125 % of the device rating:

US.

For contacts 4 and 5, environmental conditions may demand larger conductor cross-sections.

---------------------- Page: 11 ----------------------
– 10 – IEC 62196-2:2016 © IEC 2016
Table 202 – Overview of the basic vehicle interface,
configuration types 2 and 3, three-phase or single phase
Three phase Single phase
max
a a
I I
Position max max
Functions
number
V a.c. A A
Type 2 Type 3 Type 2 Type 3
1 480 63 70 63 L1 (mains 1)
c c
2 480 63 L2 (mains 2)
- -
c c
3 480 63 L3 (mains 3)
- -
b, e
4 480 63 70 63 N (neutral)
5 ― Rated for fault PE (ground/earth)
6 30 2 CP (Control pilot)
PP (Proximity) or
7 30 2
CS (Connection switch)

In the following countries, the branch circuit overcurrent protection is based upon 125 % of the device rating:

US.
For single phase charging, contacts 1 and 4 shall be used.

Unused contacts need not to be installed. Not provided for standard sheets 2-IIIa and 2-IIIb.

Not provided for standard sheet 2-IIIa.

For single phase system supply phase to phase this contact can be used for L2 (mains 2).

Position number does not refer to the location and/or identification of the contact in the accessory.

6.6 Not applicable.
6.7 Not applicable.
6.201 Communication and control pilot function

The control pilot and proximity detection or connection contacts are intended to be used in

accordance with IEC 61851-1:2010.
7 Classification of accessories
Clause 7 of IEC 62196-1:2014 applies except as follows:
7.4 According to electrical operation
Replacement:

– Suitable for making and breaking an electrical circuit under load for 32 A configurations

types 1 and 3;

– Not suitable for making and breaking an electrical circuit under load for configurations

type 2;

– Not suitable for making and breaking an electrical circuit under load for 63 A configuration

type 3.

NOTE Communication circuits according to this standard are deemed not to make or break load as a result of this

clause.
7.5 According to interface
Replacement:
---------------------- Page: 12 ----------------------
IEC 62196-2:2016 © IEC 2016 – 11 –
Interface is specified in Clause 6.
– Basic type.
7.201 According to the Standard Sheet used
– Configuration type 1;
– Configuration type 2;
– Configuration type 3.
8 Marking
Clause 8 of IEC 62196-1:2014 applies.
9 Dimensions
Clause 9 of IEC 62196-1:2014 applies except as follows:
9.1 Replacement:

Accessories shall comply with the relevant standard sheets as specified below and in

Table 203:
Configuration type 1
– 32 A, 250 V single-phase vehicle couplers: standard sheet 2-I.
– Optional latching system: standard sheet 2-Ia.

NOTE In the following countries, the standard sheets 2-I and 2-Ia may be applied to vehicle couplers with rated

current up to 80 A: US.
Configuration type 2

– 63 A, 480 V three-phase or 250 V, 70 A single-phase accessories: standard sheets 2-II,

IIa, IIb, IIc, IId, IIe, IIf, IIg and IIh.
Configuration type 3
– 16 A, 250 V single-phase accessories with one pilot: standard sheet 2-IIIa;
– 32 A, 250 V single-phase accessories with two pilots: standard sheet 2-IIIb;
– 63 A, 480 V three-phase accessories with two pilots: standard sheet 2-IIIc;
– Latching means and packaging room: standard sheet 2-IIId.
Table 203 – Configuration types and standard sheets
Configuration Standard Sheet Applicable Rated voltage Rated current Phase
type accessories V A
1 2-I Vehicle couplers 250 32 Single-phase
250 70 Single-phase
2 2-II Accessories
480 63 Three-phase
250 16 Single-phase
3 2-III Accessories 250 32 Single-phase
480 63 Three-phase
---------------------- Page: 13 ----------------------
– 12 – IEC 62196-2:2016 © IEC 2016
10 Protection against electric shock
Clause 10 of IEC 62196-1:2014 applies.
11 Size and colour of protective earthing conductors
Replacement:

The core connected to the earthing terminal shall be identified by the colour combination

green-and-yellow. The nominal cross/sectional area of the earthing conductor and of the

neutral conductor, if any, shall be at least equal to that of the phase conductors.

NOTE In the following countries, the colour green may be used to identify the earthing conduc

...
