IEC 62841-2-23:2024

Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 2-23: Particular requirements for hand-held die grinders and small rotary tools

IEC 62841-2-23:2024 is to be used in conjunction with IEC 62841-1:2014. This document supplements or modifies the corresponding clauses in IEC 62841-1, so as to convert it into the IEC Standard: Particular requirements for hand-held die grinders and small rotary tools. IEC 62841-1:2014, Clause 1 is applicable, except as follows:
This document applies to hand-held die grinders and to small rotary tools for mounted accessories not exceeding 55 mm in diameter and for mounted sanding accessories not exceeding 80 mm in diameter such as:
- threaded cones and plugs that are threaded on a mandrel with an unrelieved shoulder flange,
- mandrel mounted wheels, and
- rotary files
with a rated speed not exceeding a peripheral speed of the accessory of 80 m/s at rated capacity.
This document does not apply to straight and vertical grinders utilizing flanges for driving an abrasive accessory.
NOTE 101 Straight and vertical grinders are covered by IEC 62841-2-3.

Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses - Sécurité - Partie 2-23: Exigences particulières pour les meules à rectifier les matrices portatives et les outils rotatifs de petite taille

IEC 62841-2-23:2024 doit être utilisé conjointement avec l'IEC 62841-1:2014. Le présent document complète ou modifie les articles correspondants de l'IEC 62841-1 de façon à la transformer en norme IEC: Exigences particulières pour les meules à rectifier les matrices portatives et les outils rotatifs de petite taille. Le présent document s'applique aux meules à rectifier les matrices portatives et aux outils rotatifs de petite taille destinés aux accessoires installés qui ne dépassent pas 55 mm de diamètre et aux accessoires de ponçage installés qui ne dépassent pas 80 mm de diamètre, tels que:
-les meules coniques et sur écrou filetées sur un mandrin avec un flasque à épaulement intégral,
-les meules montées sur mandrin, et
-les limes rotatives
dont la vitesse assignée ne dépasse pas une vitesse périphérique de l'accessoire de 80 m/s à la capacité assignée.
Le présent document ne s'applique pas aux meuleuses droites et verticales qui utilisent des flasques pour entraîner un accessoire abrasif.
NOTE 101 Les meuleuses droites et verticales sont couvertes par l'IEC 62841-2-3.

General Information

• Status: Published
• Publication Date: 20-Jun-2024
• ICS: 25.140.20 - Electric tools
• Technical Committee: TC 116 - Safety of motor-operated electric tools
• Drafting Committee: WG 8 - TC 116/WG 8
• Current Stage: PPUB - Publication issued
• Start Date: 12-Jul-2024
• Completion Date: 21-Jun-2024

Standards Content (Sample)

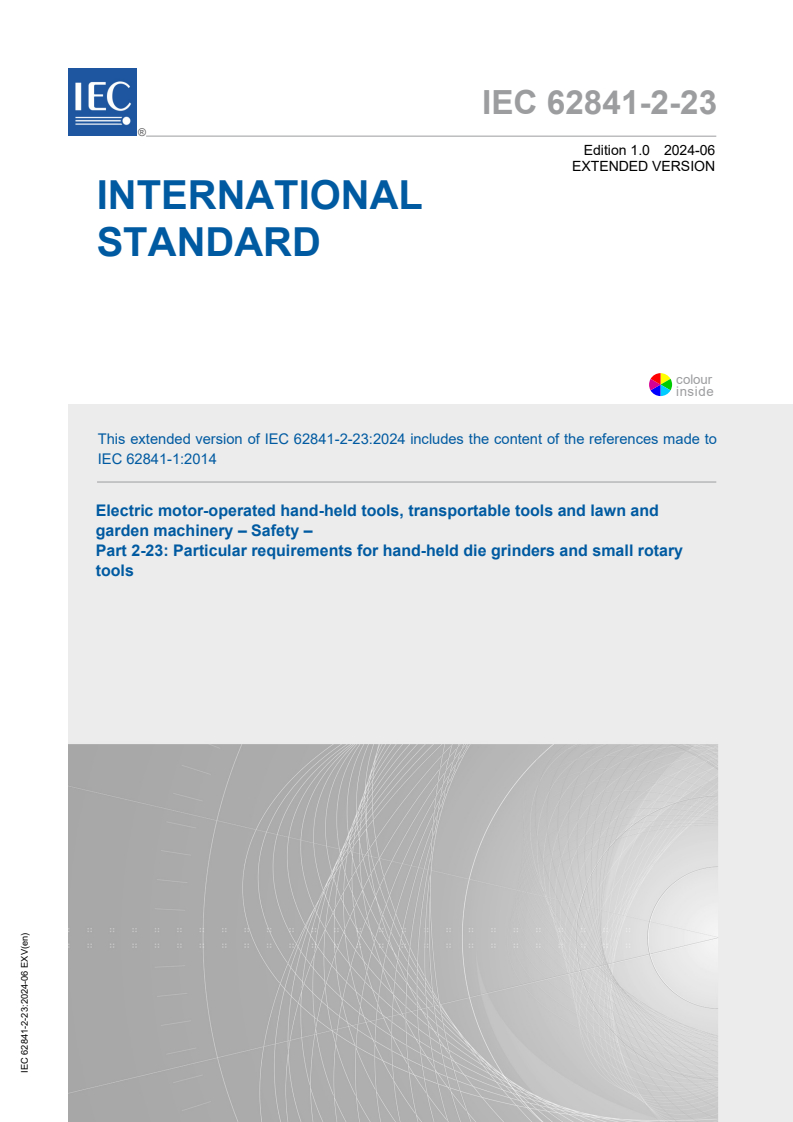

IEC 62841-2-23 ®
Edition 1.0 2024-06
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This extended version of IEC 62841-2-23:2024 includes the content of the references made to
IEC 62841-1:2014
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 2-23: Particular requirements for hand-held die grinders and small rotary
tools
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 62841-2-23 ®
Edition 1.0 2024-06
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This extended version of IEC 62841-2-23:2024 includes the content of the references made to
IEC 62841-1:2014
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 2-23: Particular requirements for hand-held die grinders and small rotary
tools
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.140.20 ISBN 978-2-8322-9277-8

– 2 – IEC 62841-2-23:2024 EXV © IEC 2024

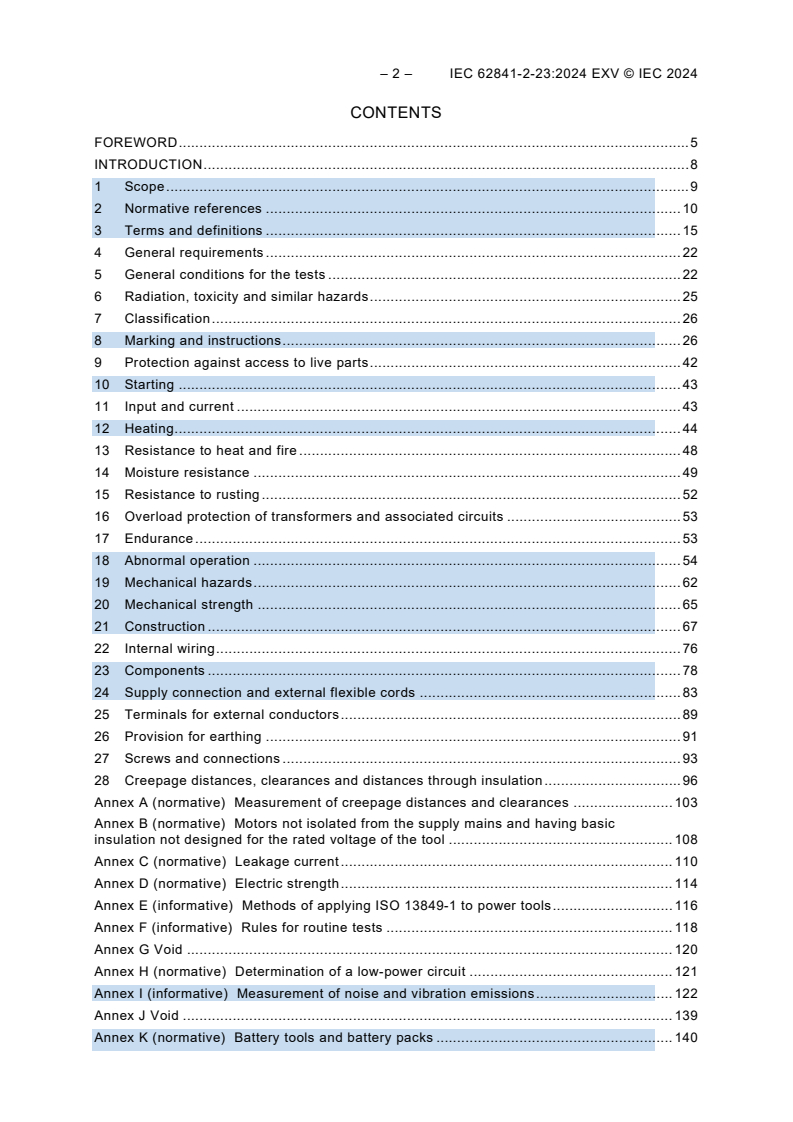

CONTENTS
FOREWORD . 5
INTRODUCTION . 8
1 Scope . 9
2 Normative references . 10
3 Terms and definitions . 15
4 General requirements . 22
5 General conditions for the tests . 22
6 Radiation, toxicity and similar hazards . 25
7 Classification . 26
8 Marking and instructions . 26
9 Protection against access to live parts . 42
10 Starting . 43
11 Input and current . 43
12 Heating . 44
13 Resistance to heat and fire . 48
14 Moisture resistance . 49
15 Resistance to rusting . 52
16 Overload protection of transformers and associated circuits . 53
17 Endurance . 53
18 Abnormal operation . 54
19 Mechanical hazards . 62
20 Mechanical strength . 65
21 Construction . 67
22 Internal wiring . 76
23 Components . 78
24 Supply connection and external flexible cords . 83
25 Terminals for external conductors . 89
26 Provision for earthing . 91
27 Screws and connections . 93
28 Creepage distances, clearances and distances through insulation . 96
Annex A (normative) Measurement of creepage distances and clearances . 103
Annex B (normative) Motors not isolated from the supply mains and having basic
insulation not designed for the rated voltage of the tool . 108
Annex C (normative) Leakage current . 110
Annex D (normative) Electric strength . 114
Annex E (informative) Methods of applying ISO 13849-1 to power tools . 116
Annex F (informative) Rules for routine tests . 118
Annex G Void . 120
Annex H (normative) Determination of a low-power circuit . 121
Annex I (informative) Measurement of noise and vibration emissions . 122
Annex J Void . 139
Annex K (normative) Battery tools and battery packs . 140

Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources. 160
Bibliography . 179

Figure 101 – Wheel overhang . 64
Figure 1 – Test fingernail . 100
Figure 2 – Flexing test apparatus . 101
Figure 3 – Overload test of a class II armature . 102
Figure A.1 – Clearance gap for parallel sided and V-shaped groove . 104
Figure A.2 – Clearance gap for rib and uncemented joint with groove . 105
Figure A.3 – Clearance gap for uncemented joint and diverging-sided groove . 106
Figure A.4 – Clearance gap between wall and screw . 107
Figure B.1 – Simulation of fault conditions . 109
Figure C.1 – Diagram for leakage current measurement for single-phase connection
and three-phase tools suitable for single-phase supply . 112
Figure C.2 – Diagram for leakage current measurement for three-phase connection . 113
Figure C.3 – Circuit of the leakage current meter . 113
Figure H.1 – Example of an electronic circuit with low-power points . 121
Figure I.101 – Positions of transducers for die grinders . 129
Figure I.102 – Positions of transducers for small rotary tools . 130
Figure I.103 – Artificial wheel . 134
Figure I.1 – Test bench . 136
Figure I.2 – Positions of a hand-held power tool and microphones for the

hemispherical / cylindrical measurement surface . 137
Figure I.3 – Microphone positions on a cubic measurement surface . 137
Figure I.4 – Directions of vibration measurement . 138
Figure K.1 – Measurement of clearances . 159
Figure L.1 – Measurement of clearances . 178

Table 1 – Maximum normal temperature rises (1 of 2) . 46
Table 2 – Maximum outside surface temperature rises . 48
Table 3 – Maximum winding temperature . 55
Table 4 – Required performance levels . 61
Table 5 – Impact energies. 65
Table 6 – Test torques . 66
Table 7 – Switch trigger force . 71
Table 8 – Minimum cross-sectional area and AWG sizes of supply cords . 84
Table 9 – Pull and torque value . 86
Table 10 – Quick-connect terminals for earthing conductors . 91
Table 11 – Torque for testing screws and nuts . 94
Table 12 – Minimum creepage distances and clearances . 97
Table D.1 – Test voltages . 114
Table F.1 – Test voltages for the electric strength test . 119
Table I.101 – Vibration test conditions . 133
Table I.102 – Dimensions of the artificial wheel of Figure I.103 . 133

– 4 – IEC 62841-2-23:2024 EXV © IEC 2024
Table K.1 – Minimum creepage distances and clearances between parts of opposite

polarity . 158
Table L.1 – Minimum creepage distances and clearances between parts of opposite
polarity . 177

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 2-23: Particular requirements for hand-held die
...

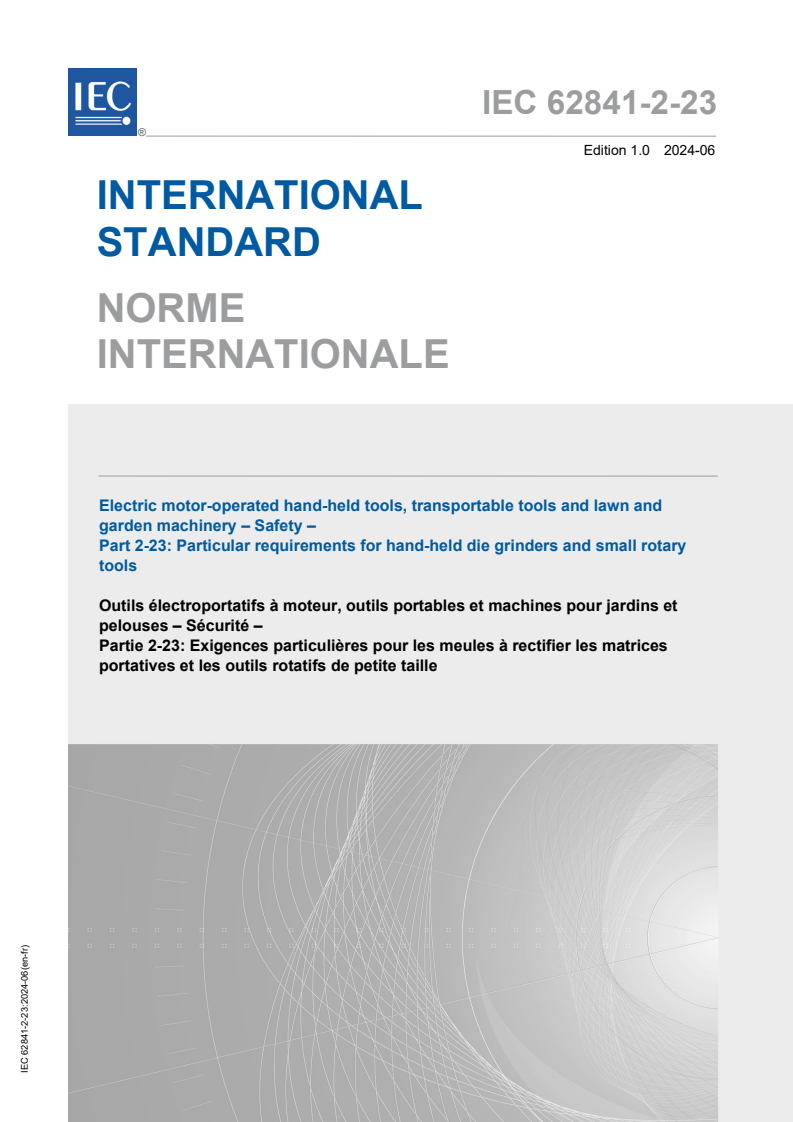

IEC 62841-2-23 ®
Edition 1.0 2024-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 2-23: Particular requirements for hand-held die grinders and small rotary
tools
Outils électroportatifs à moteur, outils portables et machines pour jardins et
pelouses – Sécurité –
Partie 2-23: Exigences particulières pour les meules à rectifier les matrices
portatives et les outils rotatifs de petite taille
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 62841-2-23 ®
Edition 1.0 2024-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric motor-operated hand-held tools, transportable tools and lawn and

garden machinery – Safety –
Part 2-23: Particular requirements for hand-held die grinders and small rotary

tools
Outils électroportatifs à moteur, outils portables et machines pour jardins et

pelouses – Sécurité –
Partie 2-23: Exigences particulières pour les meules à rectifier les matrices

portatives et les outils rotatifs de petite taille

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.140.20  ISBN 978-2-8322-9102-3

– 2 – IEC 62841-2-23:2024 © IEC 2024
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General requirements . 7
5 General conditions for the tests . 7
6 Radiation, toxicity and similar hazards . 7
7 Classification . 7
8 Marking and instructions . 7
9 Protection against access to live parts . 12
10 Starting . 12
11 Input and current . 13
12 Heating . 13
13 Resistance to heat and fire . 13
14 Moisture resistance . 13
15 Resistance to rusting . 13
16 Overload protection of transformers and associated circuits . 13
17 Endurance . 13
18 Abnormal operation . 14
19 Mechanical hazards . 14
20 Mechanical strength . 16
21 Construction . 16
22 Internal wiring . 17
23 Components . 17
24 Supply connection and external flexible cords . 17
25 Terminals for external conductors . 17
26 Provision for earthing . 17
27 Screws and connections . 17
28 Creepage distances, clearances and distances through insulation . 17
Annexes . 18
Annex K (normative) Battery tools and battery packs . 23
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources . 25
Bibliography . 26

Figure 101 – Wheel overhang . 15
Figure I.101 – Positions of transducers for die grinders. 20
Figure I.102 – Positions of transducers for small rotary tools . 20
Figure I.103 – Artificial wheel . 22

Table 4 – Required performance levels . 14
Table I.101 – Vibration test conditions . 21

Table I.102 – Dimensions of the artificial wheel of Figure I.103 . 21

– 4 – IEC 62841-2-23:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 2-23: Particular requirements for hand-held die grinders and
small rotary tools
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including lega
...
