Field device integration (FDI) - Part 109-1: Profiles - HART® and WirelessHART®

IEC 62769-109-1:2020 is available as IEC 62769-109-1:2020 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition. IEC 62769-109-1:2020 specifies an FDI profile of IEC 62769 for IEC 61784 1_CP 9/1 (HART®) and IEC 61784 1_CP 9/2 (WirelessHART®). This second edition cancels and replaces the first edition published in 2015. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) support for generic protocol extension for faster adoption of other technologies;
b) support for Package Developers to build EDDs targeted for today’s EDD bases system under a single development tool.

Intégration des appareils de terrain (FDI) - Partie 109-1: Profils - HART® et WirelessHART®

IEC 62769-109-1:2020 est disponible sous forme de IEC 62769-109-1:2020 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente. IEC 62769-109-1 spécifie un profil FDI de l'IEC 62769 pour l'IEC 61784 1_CP 9/1 (HART®) et l'IEC 61784 1_CP 9/2 (WirelessHART®). Cette deuxième édition annule et remplace la première édition parue en 2015. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) prise en charge d'extensions de protocoles génériques, pour une adoption plus rapide d'autres technologies;
b) capacité offerte aux Développeurs de Paquetages d'élaborer des EDD ciblant les systèmes actuels de bases EDD, en exploitant un seul outil de développement.

General Information

Status
Published
Publication Date
27-Apr-2020
Current Stage
PPUB - Publication issued
Completion Date
28-Apr-2020
Ref Project

Buy Standard

Standard
IEC 62769-109-1:2020 - Field device integration (FDI) - Part 109-1: Profiles - HART® and WirelessHART®
English and French language
78 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62769-109-1
Edition 2.0 2020-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Field device integration (FDI) –
Part 109-1: Profiles – HART® and WirelessHART®
Intégration des appareils de terrain (FDI) –
Partie 109-1: Profils – HART® et WirelessHART®
IEC 62769-109-1:2020-04(en-fr)
---------------------- Page: 1 ----------------------

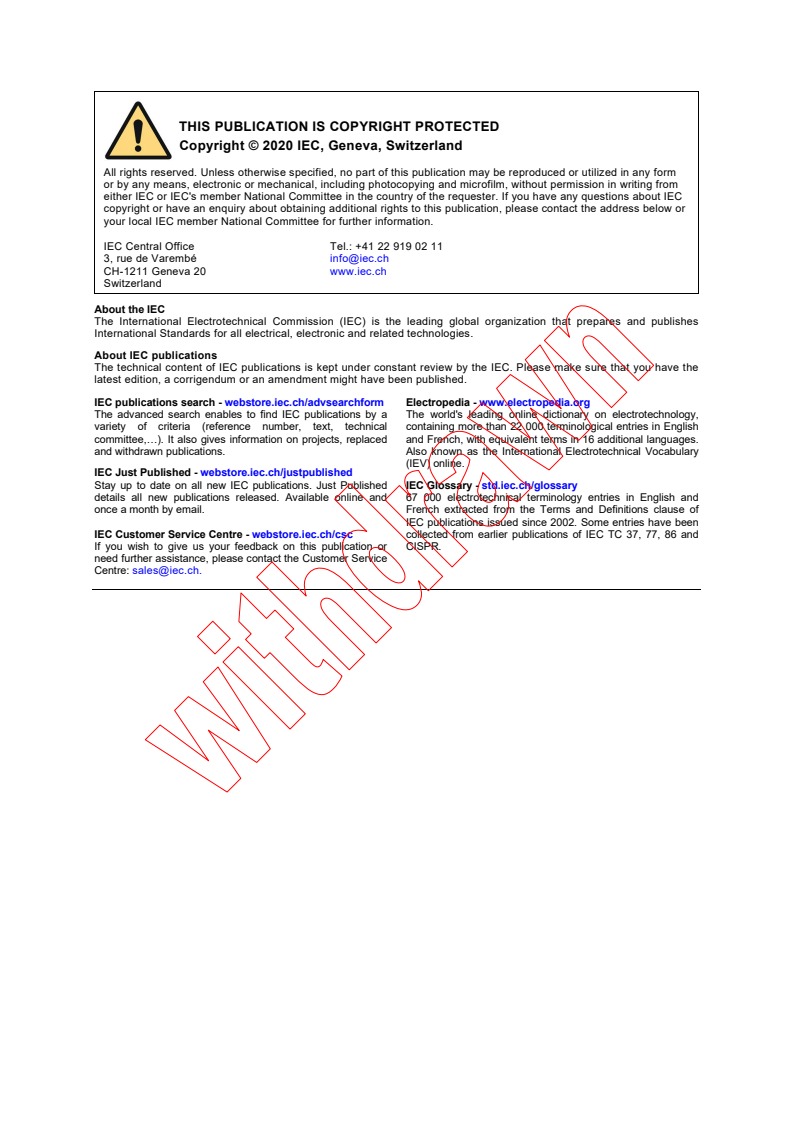

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

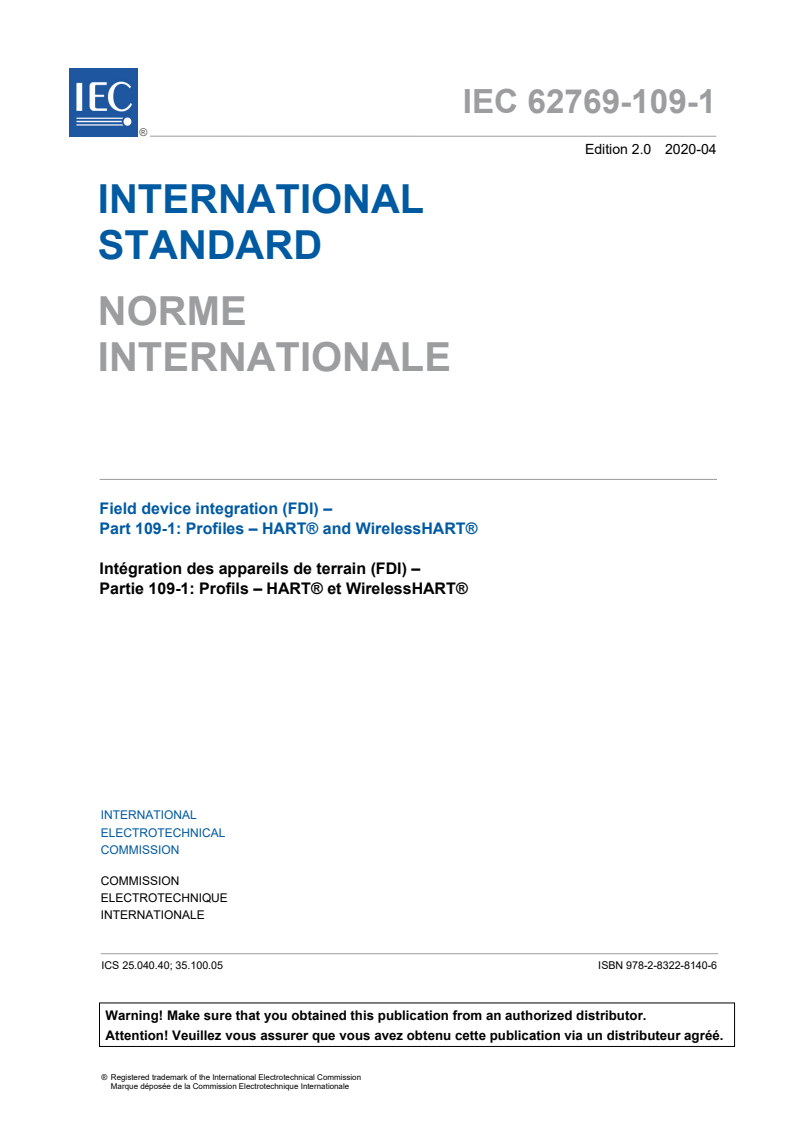

IEC 62769-109-1
Edition 2.0 2020-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Field device integration (FDI) –
Part 109-1: Profiles – HART® and WirelessHART®
Intégration des appareils de terrain (FDI) –
Partie 109-1: Profils – HART® et WirelessHART®
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40; 35.100.05 ISBN 978-2-8322-8140-6

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 62769-109-1:2020 © IEC 2020

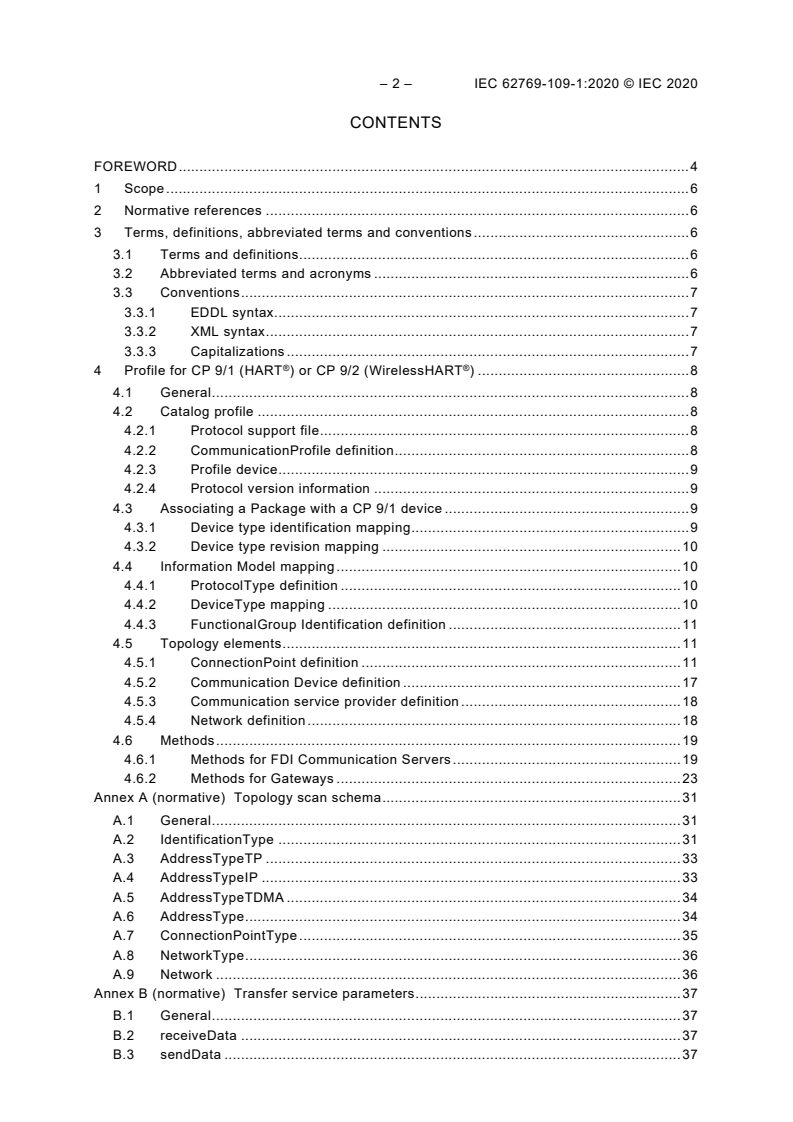

CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions, abbreviated terms and conventions .................................................... 6

3.1 Terms and definitions .............................................................................................. 6

3.2 Abbreviated terms and acronyms ............................................................................ 6

3.3 Conventions ............................................................................................................ 7

3.3.1 EDDL syntax.................................................................................................... 7

3.3.2 XML syntax ...................................................................................................... 7

3.3.3 Capitalizations ................................................................................................. 7

® ®

4 Profile for CP 9/1 (HART ) or CP 9/2 (WirelessHART ) ................................................... 8

4.1 General ................................................................................................................... 8

4.2 Catalog profile ........................................................................................................ 8

4.2.1 Protocol support file ......................................................................................... 8

4.2.2 CommunicationProfile definition ....................................................................... 8

4.2.3 Profile device ................................................................................................... 9

4.2.4 Protocol version information ............................................................................ 9

4.3 Associating a Package with a CP 9/1 device ........................................................... 9

4.3.1 Device type identification mapping ................................................................... 9

4.3.2 Device type revision mapping ........................................................................ 10

4.4 Information Model mapping ................................................................................... 10

4.4.1 ProtocolType definition .................................................................................. 10

4.4.2 DeviceType mapping ..................................................................................... 10

4.4.3 FunctionalGroup Identification definition ........................................................ 11

4.5 Topology elements ................................................................................................ 11

4.5.1 ConnectionPoint definition ............................................................................. 11

4.5.2 Communication Device definition ................................................................... 17

4.5.3 Communication service provider definition ..................................................... 18

4.5.4 Network definition .......................................................................................... 18

4.6 Methods ................................................................................................................ 19

4.6.1 Methods for FDI Communication Servers ....................................................... 19

4.6.2 Methods for Gateways ................................................................................... 23

Annex A (normative) Topology scan schema ........................................................................ 31

A.1 General ................................................................................................................. 31

A.2 IdentificationType ................................................................................................. 31

A.3 AddressTypeTP .................................................................................................... 33

A.4 AddressTypeIP ..................................................................................................... 33

A.5 AddressTypeTDMA ............................................................................................... 34

A.6 AddressType ......................................................................................................... 34

A.7 ConnectionPointType ............................................................................................ 35

A.8 NetworkType ......................................................................................................... 36

A.9 Network ................................................................................................................ 36

Annex B (normative) Transfer service parameters ................................................................ 37

B.1 General ................................................................................................................. 37

B.2 receiveData .......................................................................................................... 37

B.3 sendData .............................................................................................................. 37

---------------------- Page: 4 ----------------------
IEC 62769-109-1:2020 © IEC 2020 – 3 –

B.4 TransferResultDataT ............................................................................................. 37

B.5 TransferSendDataT ............................................................................................... 38

Bibliography .......................................................................................................................... 39

Table 1 – Device Information Files .......................................................................................... 8

Table 2 – CommunicationProfile definition .............................................................................. 8

Table 3 – Catalog values for profile devices ............................................................................ 9

Table 4 – Protocol Version Information ................................................................................... 9

Table 5 – Device type catalog mapping ................................................................................... 9

Table 6 – ProtocolType HART definition ............................................................................... 10

Table 7 – Inherited DeviceType Property mapping ................................................................ 10

Table 8 – Identification parameters ....................................................................................... 11

Table 9 – ConnectionPointType HART_TP definition ............................................................. 12

Table 10 – ConnectionPointType HART_IP Definition ........................................................... 14

Table 11 – ConnectionPointType HART_TDMA Definition ..................................................... 16

Table 12 – Method Connect arguments ................................................................................. 20

Table 13 – Method Disconnect arguments ............................................................................ 20

Table 14 – Method Transfer arguments ................................................................................. 21

Table 15 – Method GetPublishedData arguments.................................................................. 22

Table 16 – Method SetAddress arguments ............................................................................ 23

Table 17 – Method Connect arguments ................................................................................. 24

Table 18 – Method Disconnect arguments ............................................................................ 25

Table 19 – Method Transfer arguments ................................................................................. 26

Table 20 – Method GetPublishedData arguments.................................................................. 27

Table 21 – Method SetAddress arguments ............................................................................ 28

Table A.1 – Attributes of IdentificationT ................................................................................ 32

Table A.2 – Elements of AddressTypeTP .............................................................................. 33

Table A.3 – Elements of AddressTypeIP ............................................................................... 34

Table A.4 – Elements of AddressTypeTDMA ......................................................................... 34

Table A.5 – Elements of AddressT ........................................................................................ 35

Table A.6 – Elements of ConnectionPointT ........................................................................... 35

Table A.7 – Elements of NetworkT ........................................................................................ 36

Table B.1 – Attributes of TransferResultDataT ...................................................................... 37

Table B.2 – Attributes of TransferSendDataT ........................................................................ 38

---------------------- Page: 5 ----------------------
– 4 – IEC 62769-109-1:2020 © IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIELD DEVICE INTEGRATION (FDI) –
Part 109-1: Profiles – HART® and WirelessHART®
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62769-109-1 has been prepared by subcommittee 65E: Devices

and integration in enterprise systems, of IEC technical committee 65: Industrial-process

measurement, control and automation.

This second edition cancels and replaces the first edition published in 2015. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) support for generic protocol extension for faster adoption of other technologies;

b) support for Package Developers to build EDDs targeted for today’s EDD bases system

under a single development tool.
---------------------- Page: 6 ----------------------
IEC 62769-109-1:2020 © IEC 2020 – 5 –
The text of this International Standard is based on the following documents:
CDV Report on voting
65E/624/CDV 65E/687A/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62769 series, published under the general title Field Device

Integration (FDI), can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 7 ----------------------
– 6 – IEC 62769-109-1:2020 © IEC 2020
FIELD DEVICE INTEGRATION (FDI) –
Part 109-1: Profiles – HART® and WirelessHART®
1 Scope

This part of IEC 62769 specifies an FDI profile of IEC 62769 for IEC 61784-1_CP 9/1

® ® 1
(HART ) and IEC 61784-1_CP 9/2 (WirelessHART ) .
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 62541-100:2015, OPC Unified Architecture Specification – Part 100: Device Interface

IEC 62769-4:– , Field device integration (FDI) – Part 4: FDI Packages
IEC 62769-5, Field device integration (FDI) – Part 5: FDI Information Model
IEC 62769-7, Field device integration (FDI) – Part 7: FDI Communication Devices
3 Terms, definitions, abbreviated terms and conventions
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 62541-100,

IEC 62769-4, IEC 62769-5 and IEC 62769-7 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.2 Abbreviated terms and acronyms
For the purposes of this document, the following abbreviations apply:
CP Communication profile (see IEC 61784-1 or IEC 61784-2)
CPF Communication profile family (see IEC 61784-1 or IEC 61784-2)
EDD Electronic device description (see IEC 61804)
EDDL Electronic device description language (see IEC 61804)
______________

HART® and wirelessHART® are the registered trademark of FieldComm Group. This information is given for

the convenience of users of this document and does not constitute an endorsement by IEC of the product

named. Equivalent products may be used if they can be shown to lead to the same results.

Under preparation. Stage at the time of publication: IEC/RFDIS 62769-4:2020.
---------------------- Page: 8 ----------------------
IEC 62769-109-1:2020 © IEC 2020 – 7 –
FDI Field device integration
FSK Frequency-Shift-Keying
HCF HART Communication Foundation
ID Identification
IM Information Model
IP Internet protocol
PDU Protocol data unit
PSK Phase-Shift-Keying
TCP Transmission Control Protocol (see IETF RFC 793)
UDP User Datagram Protocol (see IETF RFC 768)
XML Extensible markup language
3.3 Conventions
3.3.1 EDDL syntax

This document specifies content for the EDD component that is part of FDI Communication

Packages. EDDL syntax uses the font Courier New. EDDL syntax is used for method
signature, variable, data structure and component declarations.
3.3.2 XML syntax
XML syntax examples use font Courier New. The XML syntax is used to describe XML
document schema.
EXAMPLE
3.3.3 Capitalizations

The IEC 62769 series uses capitalized terms to emphasize that these terms have an FDI

specific meaning.
Some of these terms using an acronym as a prefix, for example
• FDI Client or
• FDI Server.
Some of these terms are compound terms such as:
• FDI Communication Servers or
• Profile Package.

Parameter names or attributes are concatenated to a single term, where the original terms

start in this term with a capital letter such as:
• ProtocolSupportFile or
• ProtocolType.

Parameter names or attributes can also be constructed by using an underscore character to

concatenate two or more terms like:
• PROFILE_ID or
• HART_Network.
---------------------- Page: 9 ----------------------
– 8 – IEC 62769-109-1:2020 © IEC 2020
® ®
4 Profile for CP 9/1 (HART ) or CP 9/2 (WirelessHART )
4.1 General

This profile document to the FDI specification in IEC 62769 selects the protocol specifics

needed for FDI Packages describing FDI Communication Servers, gateways and devices.

4.2 Catalog profile
4.2.1 Protocol support file

Device information files provide metadata for the dynamic runtime data that is supplied by the

device. This metadata is a subset of information that is contained in the EDD. The device

information files may be extracted from the package by light-weight gateway or server

implementations to exchange runtime device information with minimal implementation

overhead. Device information files do not replace the need for the EDD part because device

information files only contain a subset of the information from the EDD, and do not provide

any user-interface elements.
The formats of the Device Information Files are described in Table 1.
Table 1 – Device Information Files
Part Content
Content Type Not specified here
Root Namespace Not specified here
Source http://fdi-cooperation.com/2010/relationships/attachment-protocol
Relationship
Filename Not specified here
The Device Information Files are specified in FCG AG21073.
4.2.2 CommunicationProfile definition

IEC 62769-4 defines a CommunicationProfileT string type for the Catalog XML schema.

Table 2 defines the CP 9/1 specific values for this enumeration.
Table 2 – CommunicationProfile definition
CommunicationProfile Description

hart_fsk CP 9/1 device type that supports an FSK physical layer (Frequency-Shift-Keying on

a pair of wires)

hart_psk CP 9/1 device type that supports a PSK physical layer (Phase-Shift-Keying on a pair

of wires). Devices supporting PSK are required to also inherently support FSK, and

therefore PSK will always be used only in combination with at least FSK.

hart_wirelesshart CP 9/2 device type that supports a wireless physical layer (communication between

device and gateway).

hart_ip CP 9/1 device type that supports Internet Protocol (these devices support both TCP

and UDP).
hart_rs485 CP 9/1 device type that supports EIA-485 digital communication.

hart_ir CP 9/1 device type that supports an Infrared physical layer (designed to be

transparent to FSK masters – included only as information to indicate that the device

supports IR connection).
NOTE It is possible for a single CP 9/1 device to support more than one CP.
---------------------- Page: 10 ----------------------
IEC 62769-109-1:2020 © IEC 2020 – 9 –
4.2.3 Profile device

A Profile Package shall provide the catalog values for profile devices, enabling the FDI Server

to leverage a generic device description, if a specific one is not available. The definitions in

Table 3 focus on catalog content that is vendor independent.
Table 3 – Catalog values for profile devices
Element Attribute Content
PackageType — Profile
DeviceModel — Empty
Manufacturer — Empty
4.2.4 Protocol version information
IEC 62769-4 defines an element type named InterfaceT for the Catalog XML Schema.

Element type InterfaceT contains an element named Version which is supposed to provide

version information about the applied communication protocol profile. The value has to follow

the IEC 62769-4 defined version information schema defined in element type VersionT.

Subclause 4.2.4 describes how to apply the currently known protocol versions for CP 9/1 or

CP 9/2 entries in the device catalog. The general rule is to use the Universal Revision of the

protocol for the major version part of VersionT, and the value "0" for the minor version and

build parts. Table 4 shows the Protocol Version Information.
Table 4 – Protocol Version Information
Protocol Version InterfaceT Version value
HART Universal Revision 5 5.0.0
HART Universal Revision 6 6.0.0
HART Universal Revision 7 7.0.0

The Protocol Version defined in a package is provided for informational purposes only and shall not be used to

determine the compatibility or applicability of a package to a device.
4.3 Associating a Package with a CP 9/1 device
4.3.1 Device type identification mapping

CP 9/1 device types are uniquely identified by parameters Manufacturer, Model and

DeviceRevision. These parameters are used to associate a given device instance to an FDI

Device Package. These parameters are mapped to the FDI Device Package Catalog
according to Table 5.
Table 5 – Device type catalog mapping
Catalog element CP mapping (SeeTable A.)
Manufacturer element of InterfaceT Manufacturer
(IEC 62769-4:–, Clause E.10)
String format "0xdddd" where dddd is the
MANUFACTURER_ID in hexadecimal format.
DeviceModel element of InterfaceT Model
(IEC 62769-4:–, Clause E.10)
String format "0xdddd" where dddd is the
DEVICE_TYPE in hexadecimal format.
---------------------- Page: 11 ----------------------
– 10 – IEC 62769-109-1:2020 © IEC 2020
Catalog element CP mapping (SeeTable A.)
DeviceRevision element DeviceRevision
ListOfSupportedDeviceRevisionsT String format "x.0.0" where x is the
(IEC 62769-4:–, Clause E.20) DEVICE_REVISION in decimal format (no
leading zeros).
4.3.2 Device type revision mapping
Each device type is identified as per 4.3.1. If a package with match
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
