IEC 60335-2-39:2012/AMD1:2017

Amendment 1 - Household and similar electrical appliances - Safety - Part 2-39: Particular requirements for commercial electric multi-purpose cooking pans

Amendement 1 - Appareils électrodomestiques et analogues - Sécurité - Partie 2-39: Exigences particulières pour les sauteuses électriques à usage collectif

General Information

• Status: Published
• Publication Date: 12-Apr-2017
• ICS: 97.040.50 - Small kitchen appliances
• Technical Committee: TC 61 - Safety of household and similar electrical appliances
• Drafting Committee: MT 32 - TC 61/MT 32
• Current Stage: DELPUB - Deleted Publication
• Start Date: 15-Nov-2021
• Completion Date: 26-Oct-2025

Relations

• Amends: IEC 60335-2-39:2012 - Household and similar electrical appliances - Safety - Part 2-39: Particular requirements for commercial electric multi-purpose cooking pans
• Effective Date: 05-Sep-2023
• Revised: IEC 60335-2-39:2021 - Household and similar electrical appliances - Safety - Part 2-39: Particular requirements for commercial electric multi-purpose cooking pans
• Effective Date: 05-Sep-2023

Standards Content (Sample)

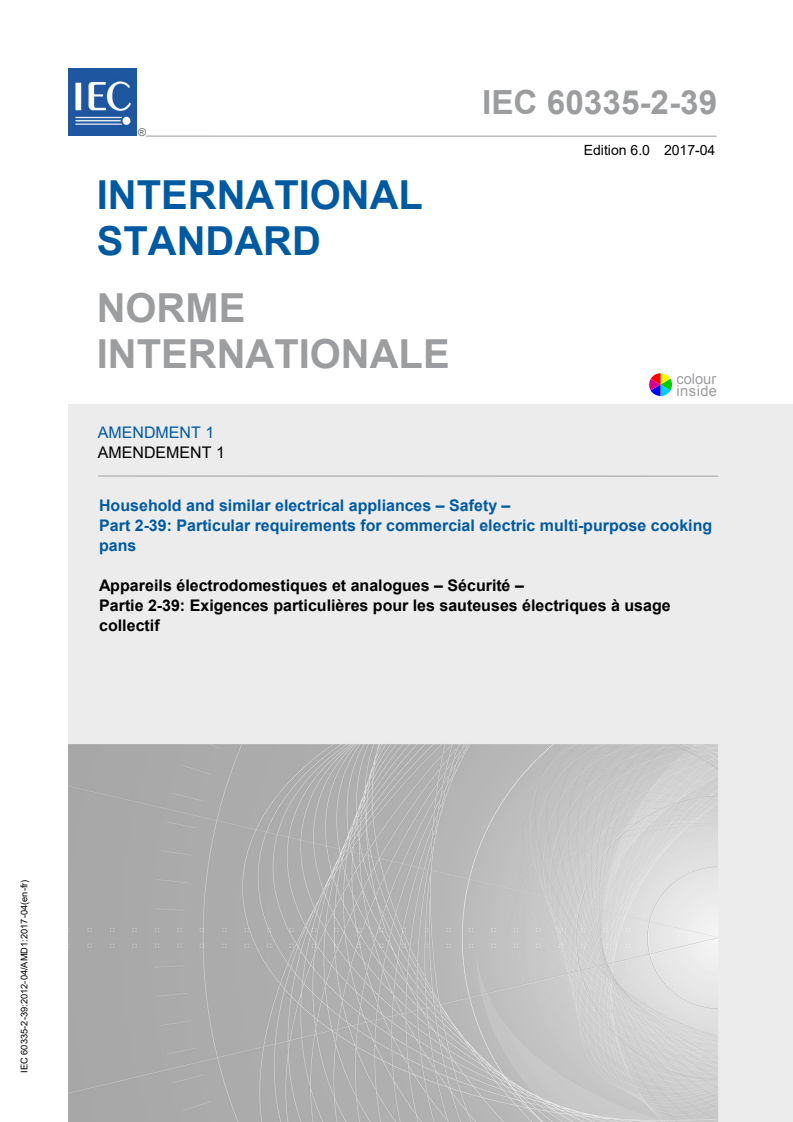

IEC 60335-2-39 ®
Edition 6.0 2017-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Household and similar electrical appliances – Safety –
Part 2-39: Particular requirements for commercial electric multi-purpose cooking
pans
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-39: Exigences particulières pour les sauteuses électriques à usage
collectif
IEC 60335-2-39:2012-04/AMD1:2017-04(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales, électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes langues additionnelles. Egalement appelé Vocabulaire
Android et iPad. Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].

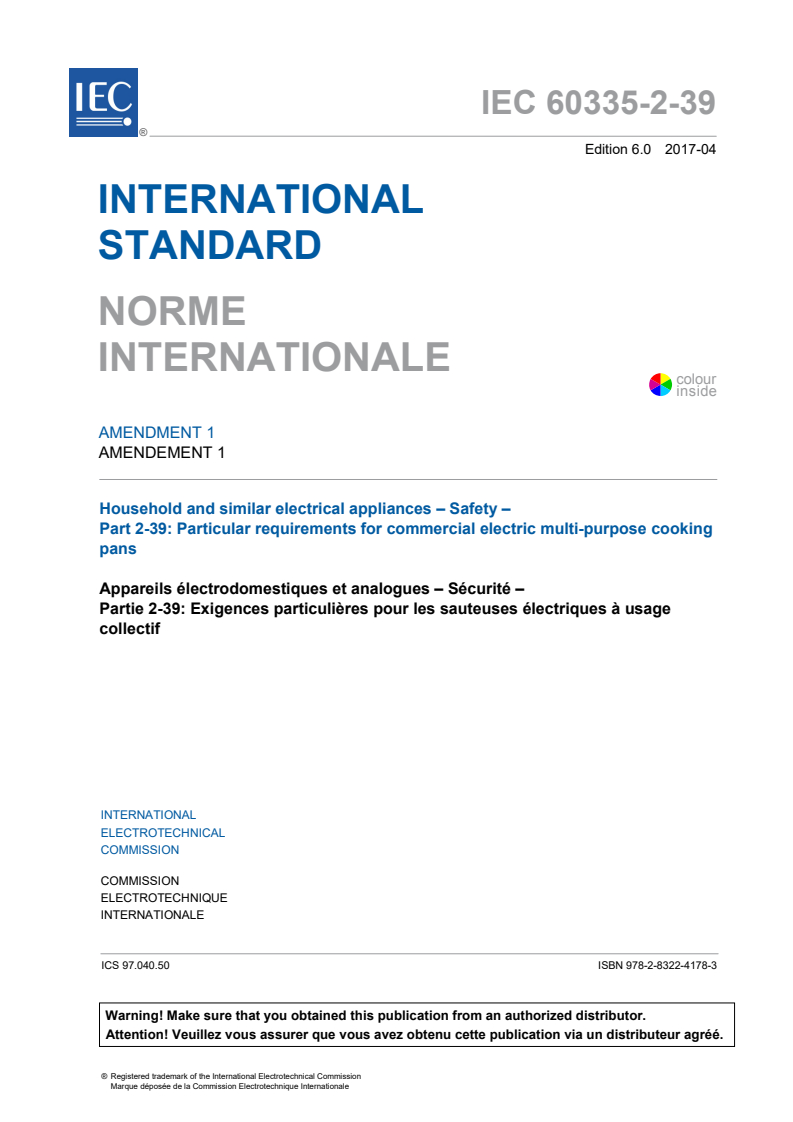

IEC 60335-2-39 ®
Edition 6.0 2017-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Household and similar electrical appliances – Safety –

Part 2-39: Particular requirements for commercial electric multi-purpose cooking

pans
Appareils électrodomestiques et analogues – Sécurité –

Partie 2-39: Exigences particulières pour les sauteuses électriques à usage

collectif
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 97.040.50 ISBN 978-2-8322-4178-3

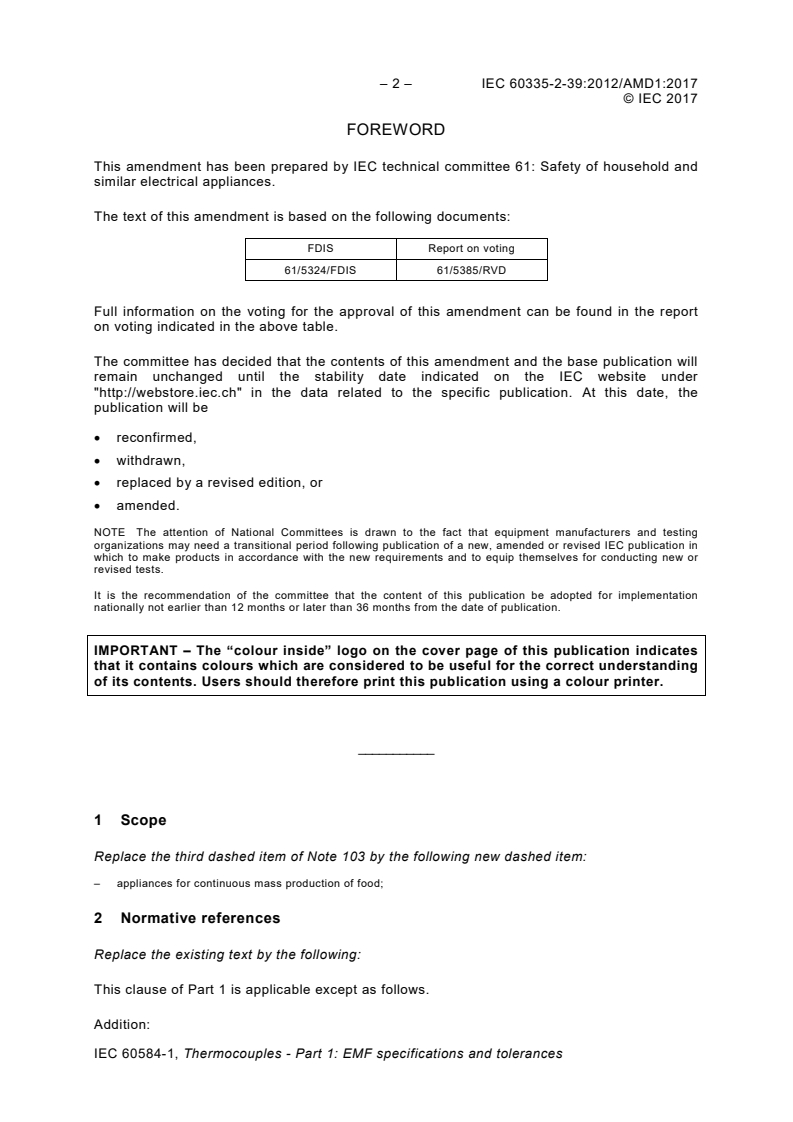

– 2 – IEC 60335-2-39:2012/AMD1:2017
© IEC 2017
FOREWORD
This amendment has been prepared by IEC technical committee 61: Safety of household and
similar electrical appliances.
The text of this amendment is based on the following documents:
FDIS Report on voting
61/5324/FDIS 61/5385/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

___________
1 Scope
Replace the third dashed item of Note 103 by the following new dashed item:
– appliances for continuous mass production of food;
2 Normative references
Replace the existing text by the following:
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60584-1, Thermocouples - Part 1: EMF specifications and tolerances

© IEC 2017
ISO 898-1, Mechanical properties of fasteners made of carbon steel and alloy steel – Part 1:
Bolts, screws and studs with specified property classes – Coarse thread and fine pitch thread
ISO 3506-1, Mechanical properties of corrosion-resistant stainless steel fasteners – Part 1:
Bolts, screws and studs
ISO 3506-2, Mechanical properties of corrosion-resistant stainless steel fasteners – Part 2:
Nuts
ISO 3506-3, Mechanical properties of corrosion-resistant stainless steel fasteners – Part 3:
Set screws and similar fasteners not under tensile stress
ISO 3506-4, Mechanical properties of corrosion-resistant stainless steel fasteners – Part 4:
Tapping screws
3 Terms and definitions
3.5.1 Delete the replacement, including the subclause number.
Add the following new definitions:
3.105
functional surface
surface that is intentionally heated by an internal heat source and has to be hot to carry out
the function for which the appliance is intended
Note 1 to entry: An example is the heated sheath of a tubular heating element.
3.106
adjacent surface
surface adjacent to an functional surface and which can become hot through conduction
7 Marking and instructions
7.1 Replace the text of the addition by the following:
Appliances shall be marked with the rated capacity, in litres (l), unless this is marked on the
appliance by another means, for example by a level mark.
If appliances have external accessible surfaces or lids, for which temperature rise limits are
specified in Table 101 and for which the provisions of footnote b to Table 101 apply, then the
appliance shall be marked with symbol IEC 60417-5041 (2002-10), or with the substance of
the following:
CAUTION: Hot surfaces.
Add the following new subclause:
7.6 Addition:
[symbol IEC 60417-5041 (2002-10)] Caution, hot surface

7.12 Replace the second paragraph by the following:
If symbols IEC 60417-5021 (2002-10) and IEC 60417-5041 (2002-10) are marked on the
appliance, their meaning shall be explained.

– 4 – IEC 60335-2-39:2012/AMD1:2017
© IEC 2017
The instructions shall include the substance of the following warnings:
WARNING: Do not open drain cocks or other emptying devices until the pressure has been
reduced to approximately atmospheric pressure.
WARNING: Opening the drain cock will lead to the outflow of the hot contents of the multi-
purpose cooking pan.
7.12.1 Replace, the last sentence of the first paragraph, "and a steam cleaner" by “or a
steam cleaner”.
Add the following before the test specification.
If a stationary appliance is intended to be moved for cleaning, this shall be stated.
For stationary appliances equipped with rollers or castors or intended to be moved for
cleaning, the instructions shall state the substance of the following.
This appliance is to be connected with flexible connections for equipotential bonding and
connection to services such as electricity supply, water supply, gas supply and steam
supply such that the appliance can be moved in the direction required for cleaning a
distance not less than the dimension of the appliance in the direction of movement plus
500 mm without the flexible connections becoming taut or being subject to strain.
Add the following new subclauses:
7.12.9 Not applicable.
7.14 Addition:
The height of the triangle used with symbol IEC 60417-5041 (2002-10) shall be at least
15 mm.
7.15 Replace the text of the addition by the following:
The marking specified for external accessible surfaces shall be visible when the appliance is
operated as in normal use, including when actuating any switch, adjusting any control or
opening a lid or door. It shall not be placed on a functional surface or adjacent surface.
Modification:
For fixed appliances, the marking of the name or trademark or identification mark of the
manufacturer or responsible vendor and the model or type reference shall be marked on the
appliance and, if not visible when the appliance is installed as in normal use, shall be included
in the instructions or on an additional label that can be fixed near the appliance after
installation.
NOTE 101 An example of such a fixed appliance is a built-in appliance.
Delete Subclause 7.103.
11 Heating
Add the following new subclause:

© IEC 2017
11.3 Addition:
Where the external accessible surfaces are suitably flat and access permits, then the test
probe of Figure 103 is used to measure the temperature rises of external accessible
surfaces specified in Table 101. The probe is applied with a force of 4 N ± 1 N to the surface
in such a way that the best possible contact between the probe and the surface is ensured.
The measurement is performed after a contact period of 30 s.
The probe may be held in place using a laboratory stand clamp or similar device. Any
measuring instrument giving the same results as the probe may be used.
11.7 Add the following new text after the first paragraph:
Steady conditions are considered to exist 60 min after reaching the temperatures defined for
normal operation.
When an appliance is assembled in combination with, equipped with or incorporating
accessories or other appliances, the interaction shall be covered if they are provided to
operate simultaneously as stated by the manufacturer or by a common control.
Add the following new subclause:
11.8 Addition:
During the test, the temperature rises are monitored continuously and shall not exceed the
values shown in Table 3 and Table 101.
Table 101 – Maximum temperature rises for specified external
accessible surfaces under normal operating conditions
a b
Surface Temperature rise of external accessible surfaces
K
Bare metal 48
c
Coated metal 59
Glass and ceramic 65
d e
Plastic and plastic coating > 0,4 mm , 74
a
Temperature rises are not measured on:
– the underside of appliances intended to be used on a working surface or floor;
– the rear surface of appliances;
– surfaces that are inaccessible to a 75 mm diameter probe having a hemispherical end;
– functional surfaces and adjacent surfaces.
b
The temperature rise on external accessible surfaces up to a distance of 100 mm from adjacent surfaces of
the appliance, (see Figure 102) may exceed the limits by up to 25 K, but the relevant part shall then be
marked with symbol IEC 60417-5041 (2002-10) or the equivalent text.
c
Metal is considered coated when a coating having a minimum thickness of 90 µm made by enamel or non-
substantially plastic coating is used.
d
The temperature rise limit of plastic also applies for plastic material having a metal finish of thickness less
than 0,1 mm.
e
When the thickness of the plastic coating does not exceed 0,4 mm, the temperature rise limits of coated metal
for underlying metal apply or the temperature rise limits for glass or ceramic material for underlying glass or
ceramic material apply.
– 6 – IEC 60335-2-39:2012/AMD1:2017
© IEC 2017
13 Leakage current and electric strength at operating temperature
13.2 Replace the text of the modification by the following:
Instead of the permissible leakage current for stationary class I appliances, the following
applies:
– for cord and plug connected appliances 0,75 mA or 1 mA per kW rated power
input of the appliance with a maximum of
10 mA, whichever is higher.
– for other appliances 0,75 mA or 1 mA per kW rated power
input of the appliance with no maximum,
whichever is higher.
For portable class I appliances, instead of the permissible leakage current, the following
applies:
– for cord and plug connected appliances 0,75 mA or 1 mA per kW rated power
input of the appliance with a maximum of
10 mA, whichever is higher.
15 Moisture resistance
15.2 Delete the modification and in the addition replace “cold water containing approximately
1 % NaCl” by “the solution”.
15.3 Delete this subclause.
16 Leakage current and electric strength
16.2 Replace the text by the following:
Modification:
For portable class I appliances, instead of the permissible leakage current, the following
applies:
– for cord and plug connected appliances 0,75 mA or 1 mA per kW rated power
input of the appliance with a maximum of
10 mA, whichever is higher.
Instead of the permissible leakage current for stationary class I appliances, the following
applies:
– for cord and plug connected appliances 0,75 mA or 1 mA per kW rated power
input of the appliance with a maximum of
10 mA, whichever is higher.
– for other appliances 0,75 mA or 1 mA per kW rated power
input of the appliance with no maximum,
whichever is higher.
© IEC 2017
19 Abnormal operation
19.4 Delete this subclause.
20 Stability and mechanical hazards
20.2 Replace the text of the addition by the following:
The requirement concerning moving parts of the appliance does not apply to parts necessary
to implement the tilting operation such as handles or wheels.
22 Construction
22.104 Replace the requirement with the following:
Appliances with tilting containers shall be provided with a mechanism that prevents accidental
tilting from any position. It shall not be possible to adversely influence the tilting action other
than by the intended means.
Control devices used to operate the mechanism shall be located and protected in such a way
that they cannot be operated accidentally.
Replace Subclause 22.115 by the following:
22.115 Baskets, lifting or tilting devices shall be constructed so as to keep them safely in
any position and a safe handling is possible. The drive mechanism shall automatically
disengage or stop at its end positions.
Compliance is checked by inspection and manual test.
25 Supply connection and external flexible cords
25.3 Replace the first paragraph of the addition by the following:
Appliances with a mass greater than 40 kg, intended for permanent connection to fixed wiring
and not provided with rollers, castors or similar means shall be constructed so that the
connection can be done after the appliance has been installed in accordance with the
manufacturer's instructions.
28 Screws and connections
Replace the existing text by the following.
This clause of Part 1 is applicable except as follows.
28.1 Addition:
Screws made of carbon steel and alloy steel shall be made in accordance with ISO 898-1.
Screws made of corrosion-resistant stainless-steel shall be made in accordance with
ISO 3506-1, or ISO 3506-2, or ISO 3506-3, or ISO 3506-4.

– 8 – IEC 60335-2-39:2012/AMD1:2017
© IEC 2017
28.4 Addition:
Screws that make mechanical connections and electrical connections shall be so designed
that the contact pressure does not change appreciably through loosening of the screwed
assembly parts during operational stress and contact corrosion.
Screws that make mechanical connections and provide earthing continuity shall be so
designed that the contact pressure does not change appreciably through loosening of the
screwed assembly parts due to operational stress and contact corrosion. They shall be
designed so that a minimum contact pressure remains.
Compliance is checked by inspection and by measuring the assembling torques for screwed
connections providing earthing continuity by applying a torque as specified in Table 102 to
turn the screw in the fastening direction. The screw shall not turn.
The screw shall not have been unfastened prior to performing this test.
Table 102 – Assembling torques for screwed connections
providing earthing continuity
Outer thread Assembling torque
diameter of the Nm
screw
Screwed connections for the mechanical Screwed connections for the mechanical
mm
strength of the screws A2-70 according to
strength of the screws > 8.8 according to
ISO 3506-1, or ISO 3506-2, or ISO 3506-3, ISO 898-1
or ISO 3506-4 and 5.8 according to
ISO 898-1
>2,8 and ≤3,6 0,8 1,3
1,9 3,0
>3,6 and ≤4,2
3,7 6,0
>4,2 and ≤5,3
>5,3 and ≤6,3 6,5 10,0
M 8 15,0 25,0
M 10 31,0 50,0
30 Resistance to heat and fire
30.2.1 Replace the text of the modification by the following:
The glow-wire test is carried out at 650 °C. The glow-wire flammability index (GWFI)
according to IEC 60695-2-12 shall be at least 650 °C.
Figures
Add the following new figures:

© IEC 2017
Key
A functional surface
B adjacent surface
C external acce
...
