INTERNATIONAL ISO
STANDARD 11012
First edition
2009-09-15
Heavy commercial vehicles and buses —
Open-loop test methods for the
quantification of on-centre handling —
Weave test and transition test
Véhicules utilitaires lourds et autobus — Méthode d'essai en boucle
ouverte pour mesurer la tenue de route en ligne — Essai de
changement de trajectoire et essai transitoire
Reference number
ISO 11012:2009(E)
ISO 2009
---------------------- Page: 1 ----------------------
ISO 11012:2009(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

COPYRIGHT PROTECTED DOCUMENT
© ISO 2009

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 11012:2009(E)
Contents Page

Foreword ............................................................................................................................................................iv

Introduction.........................................................................................................................................................v

1 Scope......................................................................................................................................................1

2 Normative references............................................................................................................................1

3 Terms, definitions and symbols ..........................................................................................................1

3.1 Terms and definitions ...........................................................................................................................1

3.2 Symbols..................................................................................................................................................2

4 Principle .................................................................................................................................................2

5 Variables.................................................................................................................................................2

5.1 Reference system..................................................................................................................................2

5.2 Variables.................................................................................................................................................3

6 Measuring equipment ...........................................................................................................................3

7 Test conditions......................................................................................................................................4

8 Test procedure.......................................................................................................................................4

8.1 General ...................................................................................................................................................4

8.2 Warm-up .................................................................................................................................................4

8.3 Initial driving condition.........................................................................................................................4

8.4 Weave test procedure ...........................................................................................................................4

8.5 Transition test procedure .....................................................................................................................5

9 Data evaluation and presentation of results.......................................................................................5

9.1 General ...................................................................................................................................................5

9.2 Time histories ........................................................................................................................................5

9.3 Characteristic values for the weave test.............................................................................................6

9.4 Characteristic values for the transition test .......................................................................................8

Annex A (normative) Test report — General data and test conditions .......................................................11

Annex B (informative) Calculating the time delay from sinusoidal data.....................................................12

Bibliography......................................................................................................................................................14

© ISO 2009 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 11012:2009(E)

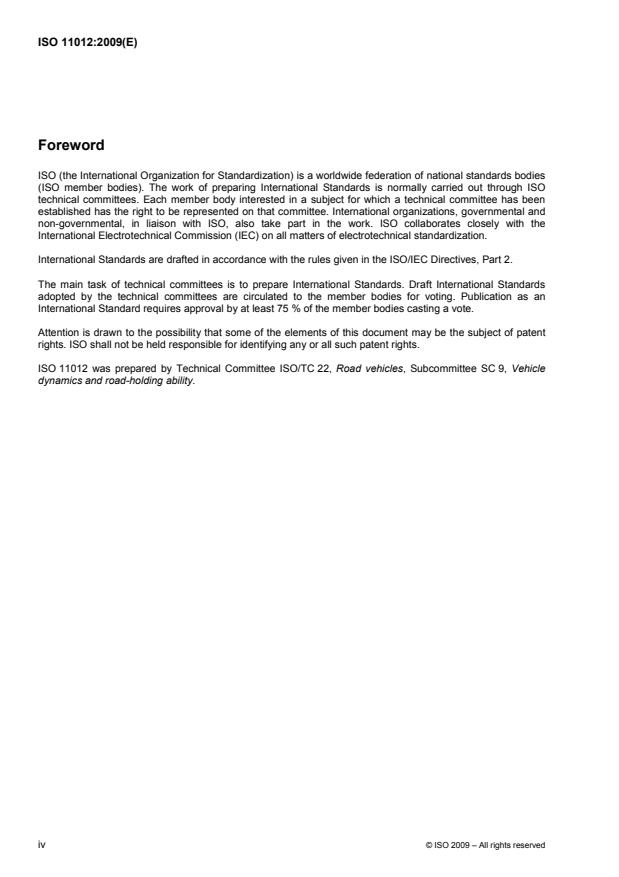

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 11012 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 9, Vehicle

dynamics and road-holding ability.
iv © ISO 2009 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 11012:2009(E)
Introduction

The main purpose of this International Standard is to provide repeatable and discriminatory test results.

The dynamic behaviour of a road vehicle is a very important aspect of active vehicle safety. Any given vehicle,

together with its driver and the prevailing environment, constitutes a closed-loop system that is unique. The

task of evaluating the dynamic behaviour is therefore very difficult, since the significant interaction of these

driver-vehicle-environment elements are each complex in themselves. A complete and accurate description of

the behaviour of the road vehicle must necessarily involve information obtained from a number of different

tests.

Since the test method described in this International Standard quantifies only one small part of the complete

vehicle handling characteristics, the results of these tests can only be considered significant for a

correspondingly small part of the overall dynamic behaviour.

Moreover, insufficient knowledge is available concerning the relationship between overall vehicle dynamic

properties and accident avoidance. A substantial amount of work is necessary to acquire sufficient and

reliable data on the correlation between accident avoidance and vehicle dynamic properties in general, and

the results of these tests in particular. Consequently, any application of the test method described in this

International Standard for regulation purposes will require proven correlation between test results and

accident statistics.
© ISO 2009 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 11012:2009(E)
Heavy commercial vehicles and buses — Open-loop test
methods for the quantification of on-centre handling — Weave
test and transition test
1 Scope

This International Standard describes two open-loop test methods for determining on-centre handling

characteristics of a vehicle in response to specific types of steering input under closely controlled test

conditions:
⎯ the weave test, and
⎯ the transition test.

This International Standard applies to heavy vehicles, i.e. commercial vehicles, commercial vehicle

combinations, buses and articulated buses as defined in ISO 3833 (trucks and trailers with maximum weight

above 3,5 tonnes and buses and articulated buses with maximum weight above 5 tonnes, in accordance with

ECE and EC vehicle classification, categories M3, N2, N3, O3 and O4).
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.
ISO 1176, Road vehicles — Masses — Vocabulary and codes
ISO 3833, Road vehicles — Types — Terms and definitions
ISO 8855, Road vehicles — Vehicle dynamics and road-holding ability — Vocabulary

ISO 15037-2:2002, Road vehicles — Vehicle dynamics test methods — Part 2: General conditions for heavy

vehicles and buses
3 Terms, definitions and symbols
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 1176, ISO 3833, ISO 8855,

ISO 15037-2 and the following apply.
3.1.1
on-centre handling

objective description of the steering feel and steering precision of a vehicle during nominally straight-line

driving and in negotiating large-radius bends at high speeds but low lateral accelerations

© ISO 2009 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 11012:2009(E)
3.1.2
ordinate deadband
vertical width of the hysteresis loops at an abscissa value of zero
3.1.3
abscissa deadband
horizontal width of the hysteresis loops at an ordinate value of zero
3.1.4
gradient
ratio of the change in the ordinate to a unit change in the abscissa
3.2 Symbols

For the purposes of this document, the symbols given in ISO 8855 and ISO 15037-2 apply.

4 Principle

On-centre handling represents that part of the straight-line directional stability characteristics of the vehicle

existing at low levels of lateral acceleration, typically not larger than 1 m/s . On-centre handling is concerned

primarily with features that directly influence the driver’s steering input, such as steering-system

characteristics and tyre characteristics. Thus, test schedules for the evaluation of on-centre handling

behaviour seek to minimize other factors that influence the wider aspects of straight-line directional stability,

such as disturbance inputs due to ambient winds and road irregularities.

This International Standard defines two test schedules that involve driving the vehicle in a nominally straight

line at a constant forward speed:

⎯ the weave test examines the response at the outer edge of the hysteretic region (see 8.4);

⎯ the transition test examines the transition from straight-line driving to the edge of the hysteretic region

(see 8.5).

During these tests, driver inputs and vehicle responses are measured and recorded. From the recorded

signals, characteristic values are calculated.
5 Variables
5.1 Reference system

The variables of motion used to describe vehicle behaviour in a test-specific driving situation shall be related

to the intermediate axis system (X, Y, Z) of the first vehicle unit (see ISO 8855).

For the purposes of this International Standard, the location of the reference point shall be in the plane of

symmetry and at the longitudinal and vertical position of the wheel centre of the first axle of the first vehicle

unit at static load and straight-ahead steering.
NOTE This provision overrides the provision of 15037-2.
2 © ISO 2009 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 11012:2009(E)
5.2 Variables

When using these test methods, the following variables shall be determined for the first vehicle unit:

a) steering-wheel angle, δ ;
b) steering-wheel torque, M ;
c) yaw velocity, dψ/dt;
d) longitudinal velocity, ν ;
e) lateral acceleration at the reference point, a .
It is also recommended that the following variable be determined:
⎯ steering-wheel angular velocity, dδ /dt .
The listed variables are defined in ISO 8855.

In order to acquire a deeper understanding of the vehicle behaviour, it may be desirable to determine motions

of various components within the steering system, especially for vehicles with more than one steering axle.

6 Measuring equipment
The measuring equipment shall be in accordance with ISO 15037-2.

Table 1 shows typical operating ranges and recommended maximum errors of the combined transducer and

recording system, which are not given in ISO 15037-2.

NOTE It is advisable that care be taken to ensure that friction or inertia added to the system by steering machines or

steering transducers does not improperly influence the measurement of steering-wheel torque.

Table 1 — Typical operating ranges and maximum errors of variables not listed in ISO 15037-2

Recommended maximum error
Variable Typical operating range
of combined system
Steering-wheel angle ± 80° ± 0,5°
Steering-wheel torque in case of power steering ± 10 Nm ± 0,1 Nm
Yaw velocity ± 10°/s ± 0,1°/s
2 2
Lateral acceleration ± 5 m/s ± 0,05 m/s
Steering wheel angular velocity ± 100°/s ± 1°/s
© ISO 2009 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 11012:2009(E)
7 Test conditions

Specifications for test conditions shall be in accordance with ISO 15037-2 together with the additional

specifications listed below.

a) The lateral gradient of the test surface should not exceed 1 % over any distance greater than or equal to

the vehicle track.

b) Special attention should be paid to the condition of the tyres, axle alignments and the steering system to

ensure that the vehicle does not lead or pull when operating on a level surface.

c) During a test, the ambient wind velocity shall not exceed 5 m/s when measured at a height above ground

of not less than 1 m. Ideally the maximum ambient wind velocity should not exceed 1,5 m/s. If this cannot

be achieved, then conditions where there is significant wind gusting should be avoided, i.e. testing should

be avoided in conditions where changes in wind velocity exceed a range of 1,5 m/s. In the event that the

ambient velocity exceeds 1,5 m/s or the range of gusting exceeds 1,5 m/s or both, the vehicle should be

tested in a direction such that the ambient wind is a tail wind.
8 Test procedure
8.1 General

The weave test requires a test track of approximately 1 000 m length and 20 m width for standard test

conditions. The transition test requires less length but approximately 40 m width.

The vehicle is driven at a nominally constant longitudinal velocity. The standard test velocity is 80 km/h. Other

velocities may be used. The test velocity should preferably be decremented or incremented by steps of

10 km/h. For each test run, the average longitudinal velocity shall be maintained within a tolerance of ± 2 km/h

of the selected speed. A deviation of vehicle longitudinal velocity of ± 3 km/h from the selected longitudinal

velocity is permissible. In addition, variation in the position of the accelerator pedal shall be kept to a minimum

consistent with maintaining vehicle longitudinal velocity within required limits.

It is preferable that the steering inputs for these tests be made with a steering machine.

Details shall be recorded in the test report (see Annex A).
8.2 Warm-up
See ISO 15037-2.
8.3 Initial driving condition

The initial driving condition shall be as described in ISO 15037-2 for the steady-state straight-ahead run. The

allowable variations for yaw velocity should be used rather than those for lateral acceleration.

In the time interval, starting no later than time t and ending at time t (see ISO 15037-2:2002, 7.2), the

1 2

steering wheel shall be held fixed within ± 3°. If possible, the steering wheel should be subject to zero input

torque. At time t , the steering input specified in 8.4 and 8.5 shall be applied.

8.4 Weave t
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
