Standards Content (sample)

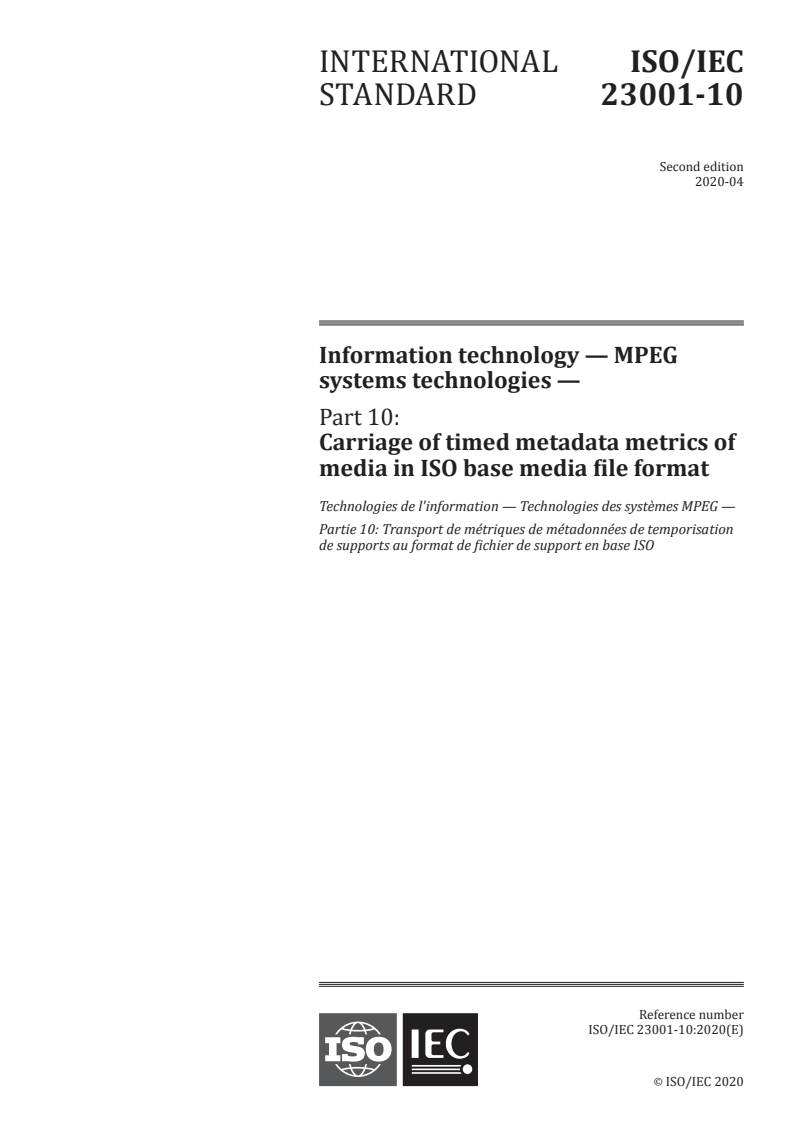

INTERNATIONAL ISO/IEC
STANDARD 23001-10
Second edition
2020-04
Information technology — MPEG
systems technologies —
Part 10:
Carriage of timed metadata metrics of
media in ISO base media file format
Technologies de l'information — Technologies des systèmes MPEG —
Partie 10: Transport de métriques de métadonnées de temporisation
de supports au format de fichier de support en base ISO
Reference number
ISO/IEC 23001-10:2020(E)
ISO/IEC 2020
---------------------- Page: 1 ----------------------
ISO/IEC 23001-10:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 23001-10:2020(E)

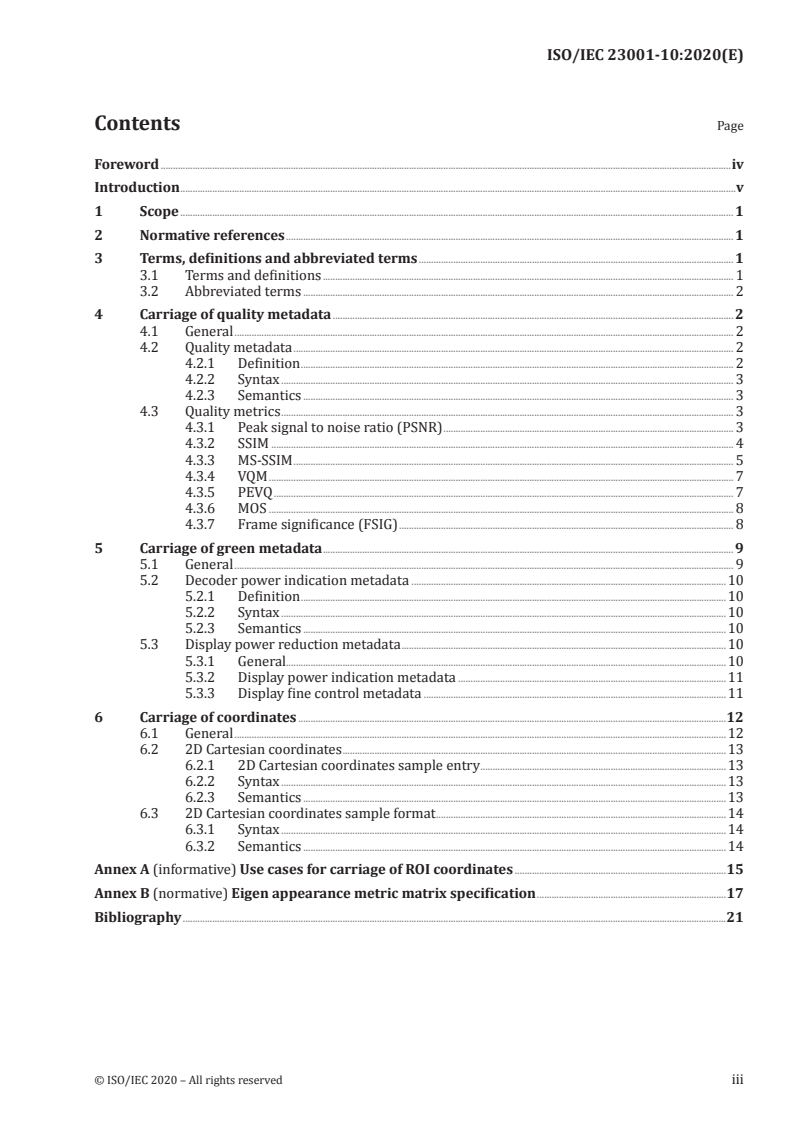

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms, definitions and abbreviated terms ................................................................................................................................ 1

3.1 Terms and definitions ....................................................................................................................................................................... 1

3.2 Abbreviated terms ............................................................................................................................................................................... 2

4 Carriage of quality metadata ................................................................................................................................................................... 2

4.1 General ........................................................................................................................................................................................................... 2

4.2 Quality metadata ................................................................................................................................................................................... 2

4.2.1 Definition ................................................................................................................................................................................ 2

4.2.2 Syntax ........................................................................................................................................................................................ 3

4.2.3 Semantics ............................................................................................................................................................................... 3

4.3 Quality metrics ........................................................................................................................................................................................ 3

4.3.1 Peak signal to noise ratio (PSNR) ...................................................................................................................... 3

4.3.2 SSIM ............................................................................................................................................................................................ 4

4.3.3 MS-SSIM ................................................................................................................................................................................... 5

4.3.4 VQM ............................................................................................................................................................................................. 7

4.3.5 PEVQ ........................................................................................................................................................................................... 7

4.3.6 MOS ............................................................................................................................................................................................. 8

4.3.7 Frame significance (FSIG) ........................................................................................................................................ 8

5 Carriage of green metadata ....................................................................................................................................................................... 9

5.1 General ........................................................................................................................................................................................................... 9

5.2 Decoder power indication metadata ................................................................................................................................10

5.2.1 Definition .............................................................................................................................................................................10

5.2.2 Syntax .....................................................................................................................................................................................10

5.2.3 Semantics ............................................................................................................................................................................10

5.3 Display power reduction metadata ....................................................................................................................................10

5.3.1 General...................................................................................................................................................................................10

5.3.2 Display power indication metadata .............................................................................................................11

5.3.3 Display fine control metadata ...........................................................................................................................11

6 Carriage of coordinates ..............................................................................................................................................................................12

6.1 General ........................................................................................................................................................................................................12

6.2 2D Cartesian coordinates ............................................................................................................................................................13

6.2.1 2D Cartesian coordinates sample entry ....................................................................................................13

6.2.2 Syntax .....................................................................................................................................................................................13

6.2.3 Semantics ............................................................................................................................................................................13

6.3 2D Cartesian coordinates sample format ......................................................................................................................14

6.3.1 Syntax .....................................................................................................................................................................................14

6.3.2 Semantics ............................................................................................................................................................................14

Annex A (informative) Use cases for carriage of ROI coordinates ......................................................................................15

Annex B (normative) Eigen appearance metric matrix specification .............................................................................17

Bibliography .............................................................................................................................................................................................................................21

© ISO/IEC 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 23001-10:2020(E)

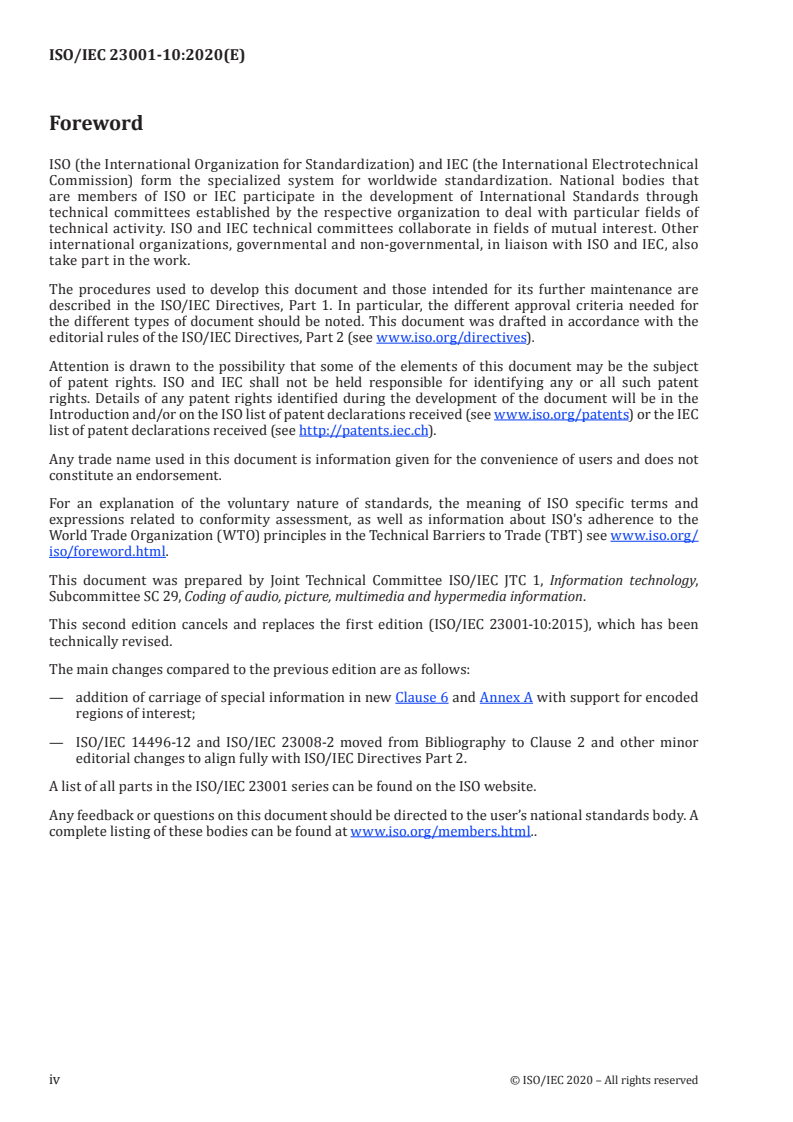

Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that

are members of ISO or IEC participate in the development of International Standards through

technical committees established by the respective organization to deal with particular fields of

technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other

international organizations, governmental and non-governmental, in liaison with ISO and IEC, also

take part in the work.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for

the different types of document should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject

of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent

rights. Details of any patent rights identified during the development of the document will be in the

Introduction and/or on the ISO list of patent declarations received (see www .iso .org/ patents) or the IEC

list of patent declarations received (see http:// patents .iec .ch).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/

iso/ foreword .html.

This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,

Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.

This second edition cancels and replaces the first edition (ISO/IEC 23001-10:2015), which has been

technically revised.
The main changes compared to the previous edition are as follows:

— addition of carriage of special information in new Clause 6 and Annex A with support for encoded

regions of interest;

— ISO/IEC 14496-12 and ISO/IEC 23008-2 moved from Bibliography to Clause 2 and other minor

editorial changes to align fully with ISO/IEC Directives Part 2.
A list of all parts in the ISO/IEC 23001 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html..
iv © ISO/IEC 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 23001-10:2020(E)
Introduction

This document specifies the carriage of timed metadata in files belonging to the family based on

ISO/IEC 14496-12. The families of metadata are ‘green’ metadata (related to energy conservation),

quality measurements of the associated media data (related to video quality metrics) and coordinates

describing relationship between media data.
© ISO/IEC 2020 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 23001-10:2020(E)
Information technology — MPEG systems technologies —
Part 10:
Carriage of timed metadata metrics of media in ISO base
media file format
1 Scope

This document defines a storage format for timed metadata. The timed metadata can be associated with

other tracks in the ISO base media file format. Timed metadata such as quality and power consumption

information and their metrics are defined in this part for carriage in files based on the ISO base media

file format (ISO/IEC 14496-12). The timed metadata can be used for multiple purposes including

supporting dynamic adaptive streaming.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 14496-10, Information technology — Coding of audio-visual objects — Part 10: Advanced

video coding

ISO/IEC 14496-12, Information technology — Coding of audio-visual objects — Part 12: ISO base media

file format

ISO/IEC 23001-11, Information technology — MPEG Systems Technologies — Part 11: Energy-Efficient

Media Consumption (Green Metadata)

ISO/IEC 23008-2, Information technology — High efficiency coding and media delivery in heterogeneous

environments — Part 2: High efficiency video coding

ITU-T Recommendation J.144, Objective perceptual video quality measurement techniques for digital cable

television in the presence of a full reference

ITU-T Recommendation J.247, Objective perceptual multimedia video quality measurement in the presence

of a full reference
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO/IEC 14496-10 and

ISO/IEC 23008 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
© ISO/IEC 2020 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 23001-10:2020(E)
3.2 Abbreviated terms
FSIG frame significance
MOS mean opinion score
MSE mean signal error
MS-SSIM multi-scale structural similarity index
ROI region of interest
PEVQ perceptual evaluation of video quality
PSNR peak signal to noise ratio
SSIM structural similarity index
VQM video quality metric
4 Carriage of quality metadata
4.1 General

If quality metrics are carried in an ISO base media file format, they shall be carried in the metadata

tracks within the ISO base media file format in accordance with ISO/IEC 14496-12. Different metric

types and corresponding storage formats are identified by their unique code names. This clause defines

those quality metrics.

The metadata track is linked to the track it describes by means of a 'cdsc' (content describes) track

reference.

Codes not defined in this document are reserved and files shall use only codes defined here.

4.2 Quality metadata
4.2.1 Definition
Sample Entry Type: 'vqme'
Container: Sample Description Box ('stsd')
Mandatory: No
Quantity: 0 or 1

The sample entry for video quality metrics is defined by the QualityMetricsSampleEntry.

The quality metrics sample entry shall contain a QualityMetricsConfigurationBox, describing metrics

that are present in each sample, and the constant field size that is used for the values. The quality

metrics are defined in subclause 4.3.

Each sample is an array of quality values, corresponding one for one to the declared metrics. Each value

is padded by preceding zero bytes, as needed, to the number of bytes indicated by field_size_bytes.

[6]

The codecs parameter value for this track as defined in RFC 6381 shall be set to 'vqme'. The sub-

parameter for the 'vqme' codec is a list of the metrics present in the track as indicated by the metrics

code names, joined by “+”, e.g., 'vqme.psnr+mssm'.
2 © ISO/IEC 2020 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 23001-10:2020(E)
4.2.2 Syntax
aligned(8) class QualityMetricsSampleEntry()
extends MetadataSampleEntry (‘vqme’) {
QualityMetricsConfigurationBox();
aligned(8) class QualityMetricsConfigurationBox
extends FullBox(‘vqmC’, version=0, 0){
unsigned int(8) field_size_bytes;
unsigned int(8) metric_count;
for (i = 1 ; i <= metric_count ; i++){
unsigned int(32) metric_code;
4.2.3 Semantics

field_size_bytes indicates the constant size in byte of the value for a metric in each sample.

metric_count the number of metrics for quality values in each sample.
metric_code is the code name of the metrics in the sample.
4.3 Quality metrics
4.3.1 Peak signal to noise ratio (PSNR)
4.3.1.1 Definition

PSNR for encoded video sequence is defined based on per-picture mean square error (MSE) differences:

m−1 n−1
MSE= Ii(),,jK− ()ij
i=0 j=0
where
I is the luma plane of the reference m×n picture;
K is the luma plane of the reconstructed picture;
i,j are indices enumerating all pixel locations.
The picture-level PSNR is defined as:
 
MAX
PSNR=×10 log
 
 
MSE
 
MAX
 
PSNR=×20 log
 
 MSE 
where MAX = 2 − 1 where B is the number of bits per sample in pictures.
© ISO/IEC 2020 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC 23001-10:2020(E)

PSNR for a given video sequence is computed as an average of all picture-level PSNR values obtained for

all pictures in the sequence, i.e., for a sequence with N pictures:
N−1
PSNR = PSNR
sequence picturen()
n=0
Only luma component of the video signal is used for PSNR computation.

NOTE 1 This is the traditional metric referred to as PSNR in academic literature and in the context of video

compression research.

NOTE 2 In cases when the spatial resolution of the reference pictures and the reconstructed ones do not

match, reconstructed pictures are up-sampled to match the spatial resolution of the reference.

NOTE 3 In cases when the pictures of reconstructed video represent only a subset of pictures in the reference

video sequence, reconstructed pictures are replicated to produce time-aligned reconstructed pictures for all

pictures in the reference sequence.
4.3.1.2 Metric code name

PSNR quality metric values shall be provided as ones under the 'psnr' metric code name.

4.3.1.3 Sample storage format
Each PSNR metric value shall be stored as an unsigned 16-bit integer value.
4.3.1.4 Decoding operation

Given stored 16-bit integer value x, the corresponding PSNR value (in dB) is derived as follows

(expressed in floating point):
PSNR = (real) x / 100; with the exception of PSNR = infinity for x=0
4.3.2 SSIM
4.3.2.1 Definition

SSIM for encoded video sequence is defined based on SSIM index map obtained for each picture. Per-

picture SSIM index map is computed as follows:
22μμ +ccσ +
()()
xy 12xy
SSIM()xy, =
22 22
μμ++ccσσ++
()()
xy 1 xy 2
where
x is the 8×8 window in the reference picture;
y is the 8×8 window in the reconstructed picture;
μ is the average sample value for pixels in x;
μ is the average sample value for pixels in y;
is the variance computed for pixel values in x;
is the variance computed for pixel values in y;
σ is the covariance computed for pixel values in x and y.
4 © ISO/IEC 2020 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 23001-10:2020(E)
and where
2 2
ck=()L , ck=()L
11 22
are constants computed using
k =00. 1 , k =00. 3 , and L=−21
1 2
where B is the number of bits per sample in reference video.

This formula is applied using an 8×8 sliding window and producing a map of SSIM index values for all

pixel positions within a picture. The overall SSIM index is then computed as the average of index values

in the SSIM map.
This formula is applied only on luma components in each picture.

SSIM for video sequence is computed as an average of all picture-level SSIM values obtained for all

pictures in the sequence, i.e., for a sequence with N pictures:
N−1
SSIM = SSIM
sequence picturen()
n=0

NOTE 1 This is the traditional metric referred to as SSIM in academic literature and in the context of video

[1]
compression research .
NOTE 2 The nominal range of SSIM index values is [−1..1].

NOTE 3 In cases when the resolution of the reference pictures and the reconstructed ones do not match,

reconstructed pictures are up-sampled to match the resolution of the reference.

NOTE 4 In cases when the pictures of reconstructed video represent only a subset of pictures in the reference

video sequence, reconstructed pictures are replicated to produce time-aligned reconstructed pictures for all

pictures in the reference sequence.
4.3.2.2 Metric code name
SSIM quality metric values shall be provided under the 'ssim' metric code name.
4.3.2.3 Sample storage format
Each SSIM metric value shall be stored as an unsigned 8-bit integer value.
4.3.2.4 Decoding operation

Given stored 8-bit integer value x, the corresponding SSIM value is derived as follows (expressed in

floating point):
SSIM = (real) (x − 127) / 128.
4.3.3 MS-SSIM
4.3.3.1 Definition

The MS-SSIM calculation procedure is described in Figure 1. Taking the reference and distorted image

signals as the input, the system iteratively applies a low-pass filter and downsamples the filtered image

by a factor of 2. The original scale is indexed by j = 1 and the highest scale is indexed by j = M, for M-1

levels of iteration. Further details can be found in Reference [2].
© ISO/IEC 2020 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/IEC 23001-10:2020(E)
Figure 1 — MS-SSIM calculation procedure

Based on such M scales of processing, MS-SSIM for encoded video sequence is defined as follows:

   
MSSSIMx(, yl)(= xy,) cx(, ys)(xy,) ,
Mj∏ j
   
j=1
where
c (x, y) is the contrast comparison at scale j ( j = 1,…M) given by
2σσ +C
xy 2
cx(, y)=
σσ++C
xy 2
s (x, y) is the structure comparison at scale j ( j = 1,…,M) given by
σ +C
xy 3
sx(, y)=
σσ +C
xy 3
l (x, y) is the luma comparison (only computed at scale M) given by
2μμ +C
xy 1
lx(,y)=
μμ++C
xy 1
where
x is the 8×8 window in the reference picture;
y is the 8×8 window in the reconstructed picture;
μ is the average sample value for pixels in x;
μ is the average sample value for pixels in y;
is the variance computed for pixel values in x;
is the variance computed for pixel values in y;
σ is the covariance computed for pixel values in x and y.
and where
2 2
C = (K L) , C = (K L) , C = C /2, α = β = γ and γ =1
1 1 2 2 3 2 j j j ∑
j=1 j
are constants computed using
6 © ISO/IEC 2020 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 23001-10:2020(E)
k =00. 1 , k =00. 3 , and L=−21
1 2
where B is the number of bits per sample in reference video.
This formula is applied only on luma components in each picture.

MS-SSIM for video sequence is computed as an average of all picture-level MS-SSIM values obtained for

all pictures in the sequence, i.e., for a sequence with N pictures:
N−1
MSSSIM = MSSSIM
sequence picturen()
n=0
4.3.3.2 Metric code name

MS-SSIM quality metric values shall be provided under the 'msim' metric code name.

4.3.3.3 Sample storage format
Each MS-SSIM metric value shall be stored as an unsigned 8-bit integer value.
4.3.3.4 Decoding operation

Given stored 8-bit integer value x, the corresponding MS-SSIM value shall be derived as follows

(expressed in floating point):
MS-SSIM = (real) (x − 127) / 128
4.3.4 VQM
4.3.4.1 Definition

VQM for encoded video sequence is defined as described in ITU-T Recommendation J.144.

4.3.4.2 Metric code name
VQM quality metric values shall be provided under the 'j144' metric code name.
4.3.4.3 Sample storage format
Each VQM metric value shall be stored as an unsigned 8-bit integer value.
4.3.4.4 Decoding operation

Given stored 8-bit integer value x, the corresponding VQM score is derived as follows (expressed in

floating point):
VQM = (real) x / 50
4.3.5 PEVQ
4.3.5.1 Definition

PEVQ for encoded video sequence is defined as described in ITU-T Recommendation J.247.

© ISO/IEC 2020 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO/IEC 23001-10:2020(E)
4.3.5.2 Metric code name

PEVQ quality metric values shall be provided as ones carrying 'j247' metric code name.

4.3.5.3 Sample storage format
Each PEVQ metric value shall be stored as an unsigned 8-bit integer value.
4.3.5.4 Decoding operation

Given stored 8-bit integer value x, the corresponding PEVQ score is derived as follows (expressed in

floating point):
PEVQ = (real) x / 50
4.3.6 MOS
4.3.6.1 Definition

MOS for encoded video sequence is defined as the arithmetic average of result of a set of standard,

[1]
subjective tests where a number of viewers rate the video sequence.

The MOS provides a numerical indication of the perceived quality from the users' perspective of

received media after compression. The MOS is expressed as a single number in the range 1 to 5, where 1

is the lowest perceived quality, and 5 is the highest perceived quality. It can be obtained with reference

[6]
to ITU-R BT.500-12 .
4.3.6.2 Metric code name

MOS quality metric values shall be provided as ones under the 'mops' metric code name.

4.3.6.3 Sample storage format
Each MOS metric value shall be stored as an unsigned 8-bit integer value.
4.3.6.4 Decoding operation

Given stored 8-bit integer value x ranging from 0 to 250 (251~255 are reserved), the corresponding

MOS value is derived as follows (expressed in floating point):
MOS = ceil((real) x / 50)
where ceil(x) is a function which gives the smallest integer not less than x.
4.3.7 Frame significance (FSIG)
4.3.7.1 Definition

FSIG, or frame significance, characterizes the relative importance of frames in a video sequence, and the

sequence level visual impact from various combinations of frame losses, e.g., from dropping a temporal

layer, can be estimated from this frame significance representation.

For a sequence with frames { f , f , ..., f }, The frame significance (FSIG) for frame f is defined as:

1 2 n k
vd= ff,
kk k−1

where d() is the frame difference function of two successive frames in the sequence.

8 © ISO/IEC 2020 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/IEC 23001-10:2020(E)
[5]

It is a differential function that captures the rate of change in the sequence , and it is computed from

[4][5]
the Eigen appearance metric of the scaled thumbnails of the frames:
df ,*fS=−fS**fA AS fS− *f
() () ()
jk jk jk
where

S is the bi-cubicle smoothing and down-scaling function that brings the frames to the size of

h × w pixels;

A is a metric of size d x (h × w), where d is the desired dimension of the metric

The metric A is computed from Eigen appearance modelling of thumbnail frames at size h = 12, w = 16,

and d = 12, its values provided in Annex B shall be used.

To characterize the QoE impact of different temporal layers in a video sequence, the visual impact

of frame losses are computed from the FSIG in the following fashion. Let the frame loss index be,

L = {l , l , .., l }, where l = 1 if there is a frame loss at time stamp k, and l = 0, if no frame loss, then the

1 2 n k k
frame losses induced distortion is computed as:
pk()+1
−−ak()j
DL()= le v
k j
k==1 jk

where p(k) is the last frame played in the sequence before the loss at frame time k.

An exponentially decaying weight function with kernel size a=1 is introduced to model the temporal

masking effects for consecutive frame losses.
4.3.7.2 Metric code name

FSIG quality metric values shall be provided as ones carrying 'fsig' metric code name.

4.3.7.3 Sample storage format

Each FSIG metric value is limited to the max value of 255 and shall be stored as an unsigned 8-bit

integer value.
4.3.7.4 Decoding operation

Given stored 8-bit unsigned integer value x, the corresponding FSIG value is directly decoded.

5 Carriage of green metadata
5.1 General

If green metadata is carried in an ISO base media file format, it shall be carried in the metadata tracks

within the ISO base media file format. Different green metadata types and corresponding storage

formats are identified by their unique sample entry codes.

A metadata track carrying green metadata is linked to the track it describes by means of a 'cdsc'

(content describes) track reference.
© ISO/IEC 2020 – All ri
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
