Standards Content (sample)

INTERNATIONAL ISO
STANDARD 16945
First edition
2014-03-01
Corrugating medium — Determination
of the edge crush resistance after
laboratory fluting
Papier cannelure pour carton ondulé — Détermination de la
résistance à la compression sur chant après cannelage en laboratoire
Reference number
ISO 16945:2014(E)
ISO 2014
---------------------- Page: 1 ----------------------
ISO 16945:2014(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2014

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 16945:2014(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Principle ........................................................................................................................................................................................................................ 1

5 Apparatus ..................................................................................................................................................................................................................... 2

6 Sampling ........................................................................................................................................................................................................................ 4

7 Conditioning .............................................................................................................................................................................................................. 4

8 Preparation of test pieces ........................................................................................................................................................................... 4

9 Procedure..................................................................................................................................................................................................................... 4

9.1 General ........................................................................................................................................................................................................... 4

9.2 Testing immediately after fluting ............................................................................................................................................ 4

9.3 Testing after 30 min of reconditioning ............................................................................................................................... 4

9.4 Fluting and testing ............................................................................................................................................................................... 4

10 Calculation .................................................................................................................................................................................................................. 5

10.1 Edge crush resistance ....................................................................................................................................................................... 5

10.2 Edge crush resistance index ........................................................................................................................................................ 5

11 Test report ................................................................................................................................................................................................................... 5

Annex A (informative) Precision ............................................................................................................................................................................... 7

Annex B (informative) Maintenance of fluting rolls (horizontal type) ............................................................................. 9

Bibliography .............................................................................................................................................................................................................................10

© ISO 2014 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 16945:2014(E)

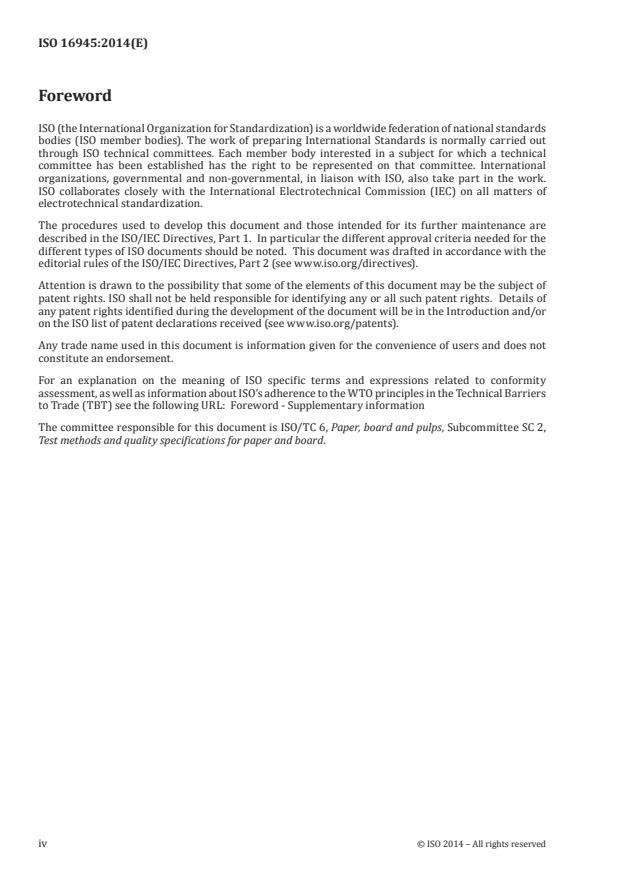

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity

assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers

to Trade (TBT) see the following URL: Foreword - Supplementary information

The committee responsible for this document is ISO/TC 6, Paper, board and pulps, Subcommittee SC 2,

Test methods and quality specifications for paper and board.
iv © ISO 2014 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 16945:2014(E)
Introduction

This International Standard evaluates the ability of corrugating medium to contribute to the compression

strength of a corrugated box. It is a procedure for measuring the edgewise compression strength of a

laboratory-fluted strip of corrugating medium. The corrugated medium is fluted by passing it between

heated rollers. Two different test procedures are then widely used.

a) The fluted corrugating medium is compressed immediately after fluting (i.e 20 s to 25 s after

fluting).

b) The fluted corrugating medium is conditioned for 30 min to 35 min after fluting under standard

laboratory test conditions before being compressed.

Procedure a) generally gives considerably higher results than those obtained with procedure b). The

differences in results are claimed to be caused by the lower moisture content (and thus higher stiffness)

of the unconditioned fluted corrugating medium.

Since considerable advantages are claimed for both procedures and both are widely used, this

International Standard describes both procedures.

Test values and failure modes in this approach are expected to be different than those for ring crush

method and short span compression test (SCT).

NOTE This test is sometimes referred to as CCT (corrugated crush test) or CFC (corrugated fluted crush test).

© ISO 2014 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 16945:2014(E)
Corrugating medium — Determination of the edge crush
resistance after laboratory fluting
1 Scope

This International Standard specifies two methods for the determination of the edge crush resistance

of a corrugating medium after laboratory fluting. The procedures are applicable to any corrugating

medium to be used after fluting in the manufacture of corrugated fibreboard.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

ISO 186, Paper and board — Sampling to determine average quality

ISO 187, Paper, board and pulps — Standard atmosphere for conditioning and testing and procedure for

monitoring the atmosphere and conditioning of samples
ISO 536, Paper and board — Determination of grammage

ISO 13820, Paper, board and corrugated fibreboard — Description and calibration of compression-testing

equipment
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
edge crush resistance
CCT

maximum edgewise compression force per unit length that a laboratory fluted test piece will withstand

before onset of break under the test conditions specified in this International Standard

Note 1 to entry: Edge crush resistance is expressed in kilonewtons per metre (kN/m).

3.2
edge crush resistance index
edge crush resistance divided by the grammage
Note 1 to entry: The result is expressed in newton metres per gram (Nm/g).
4 Principle
The principle is as follows:

a) fluting of the paper by passing it between heated rollers and mounting in a holder with the flutes

placed vertically;

b) application of a compressive force and determination of the maximum force per unit length.

© ISO 2014 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 16945:2014(E)
5 Apparatus

5.1 Cutting device, for cutting the test pieces to the required specifications, see Clause 8.

5.2 Fluter, consisting of a pair of matched steel corrugating rolls. The rolls shall be capable of being

maintained at a temperature of 175 °C ± 8 °C. The temperature is controlled by any suitable method.

Check the temperature when the rolls are in motion.

One roll is motor-driven at 4,5 r/min ± 1,0 r/min and the rolls are held in mesh by a force of (100 ± 10) N

exerted between the rolls and distributed evenly across the teeth, under test conditions. In some

instruments, the force between the rolls is applied by a spring acting in a slide. In such instruments,

friction in this device can result in the force which acts upon the test piece being considerably less than

the force required to displace the rolls initially. When verifying that an instrument conforms to the

requirements given in this subclause, it is therefore necessary to measure the force required to prevent

the undriven roll from moving towards the driven roll, from a position about 200 μm away.

The essential characteristics of each roll are the following (see also Figure 1):

...
