ISO/FDIS 24409-2

Ships and marine technology — Design, location and use of shipboard safety signs, fire control plan signs, safety notices and safety markings — Part 2: Catalogue of shipboard safety signs and fire control plan signs

Navires et technologie maritime — Conception, emplacement et utilisation des signaux de sécurité à bord des navires, des signes de lutte contre l'incendie, les consignes de sécurité et marquages de sécurité — Partie 2: Catalogue des signes de sécurité à bord des navires et des signes de lutte contre l'incendie

General Information

• Status: Withdrawn
• ICS: 47.020.01 - General standards related to shipbuilding and marine structures
• Technical Committee: ISO/TC 8/SC 1 - Maritime safety
• Drafting Committee: ISO/TC 8/SC 1/WG 3 - Fire protection
• Current Stage: 5098 - Project deleted
• Start Date: 02-Sep-2021
• Completion Date: 14-Feb-2026

Relations

• Revises: ISO 24409-2:2014 - Ships and marine technology — Design, location and use of shipboard safety signs, safety-related signs, safety notices and safety markings — Part 2: Catalogue
• Effective Date: 10-Jun-2017

Standards Content (Sample)

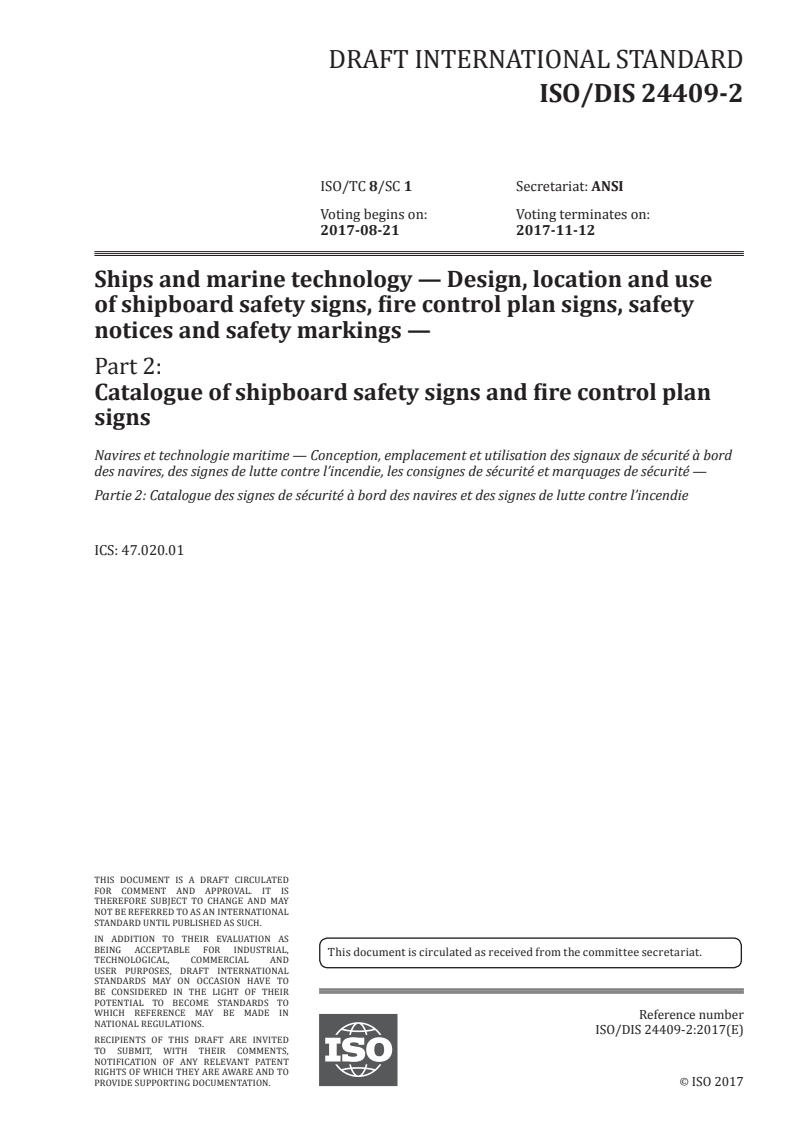

DRAFT INTERNATIONAL STANDARD
ISO/DIS 24409-2
ISO/TC 8/SC 1 Secretariat: ANSI
Voting begins on: Voting terminates on:
2017-08-21 2017-11-12
Ships and marine technology — Design, location and use
of shipboard safety signs, fire control plan signs, safety
notices and safety markings —
Part 2:
Catalogue of shipboard safety signs and fire control plan
signs
Navires et technologie maritime — Conception, emplacement et utilisation des signaux de sécurité à bord
des navires, des signes de lutte contre l’incendie, les consignes de sécurité et marquages de sécurité —
Partie 2: Catalogue des signes de sécurité à bord des navires et des signes de lutte contre l’incendie
ICS: 47.020.01
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
This document is circulated as received from the committee secretariat.
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 24409-2:2017(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2017

ISO/DIS 24409-2:2017(E)
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2017 – All rights reserved

ISO 24409-2:2017(E)

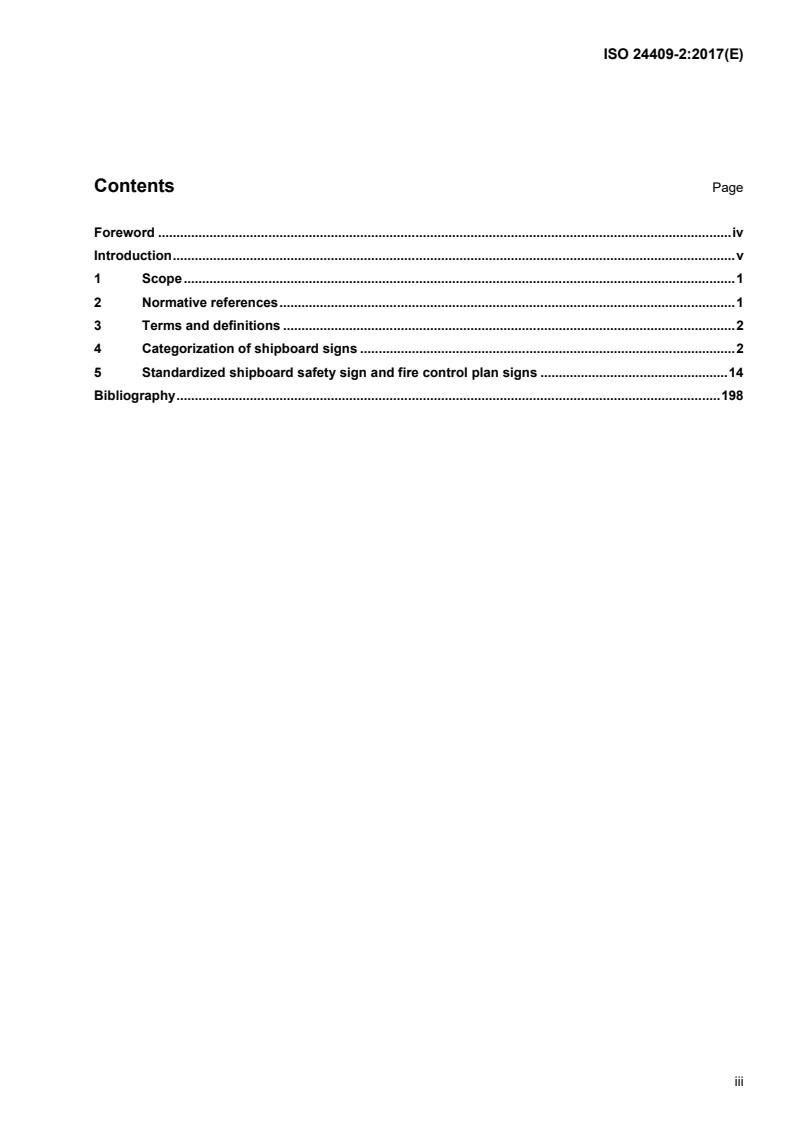

Contents Page
Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Categorization of shipboard signs . 2
5 Standardized shipboard safety sign and fire control plan signs . 14
Bibliography . 198

iii
ISO 24409-2:2017(E)

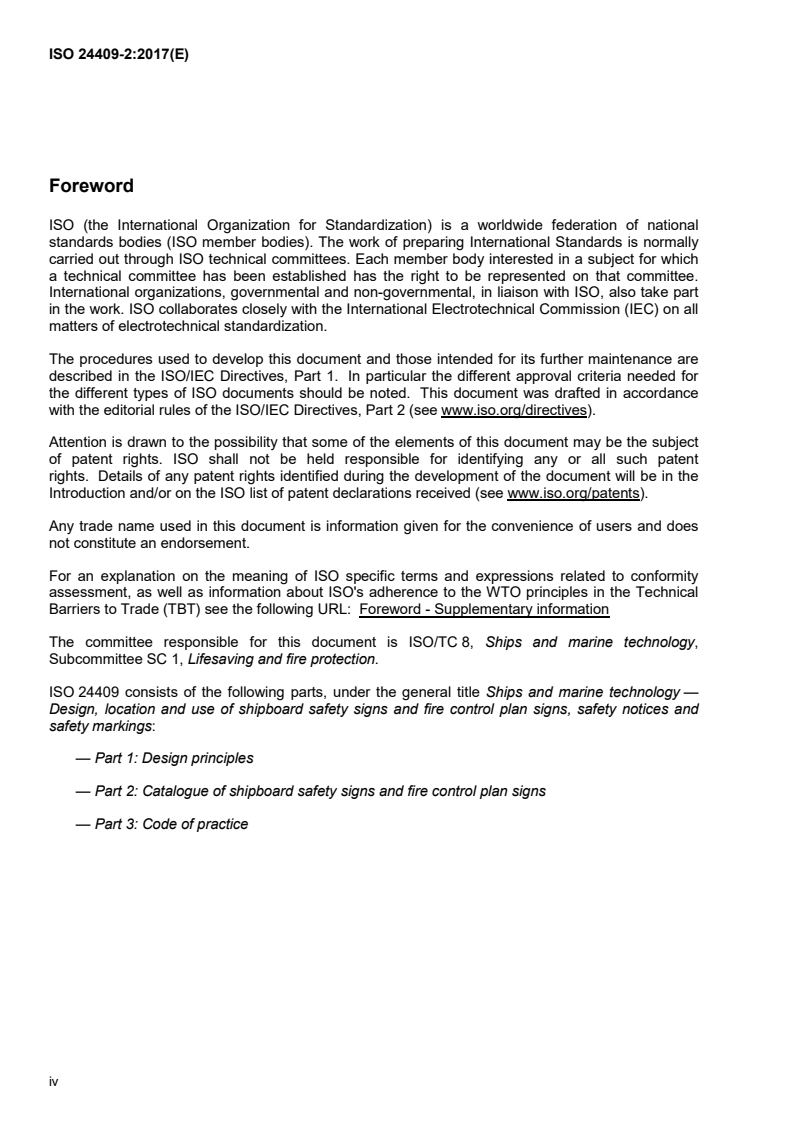

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national
standards bodies (ISO member bodies). The work of preparing International Standards is normally
carried out through ISO technical committees. Each member body interested in a subject for which
a technical committee has been established has the right to be represented on that committee.
International organizations, governmental and non-governmental, in liaison with ISO, also take part
in the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all
matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of ISO documents should be noted. This document was drafted in accordance
with the editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does
not constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO's adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 8, Ships and marine technology,
Subcommittee SC 1, Lifesaving and fire protection.
ISO 24409 consists of the following parts, under the general title Ships and marine technology —
Design, location and use of shipboard safety signs and fire control plan signs, safety notices and
safety markings:
— Part 1: Design principles
— Part 2: Catalogue of shipboard safety signs and fire control plan signs
— Part 3: Code of practice
iv
ISO 24409-2:2017(E)
Introduction
The growth of international travel by ship has created a need to provide people travelling and
working on-board ships with signs and associated systems that communicate consistent and
effective information. This part of ISO 24409 specifies a system of safety and fire control plan signs
on ships and other marine installations that is generally consistent with standardized signs with
which many will have gained familiarity in other applications.
As such, this part of ISO 24409 clarifies and supplements existing requirements set out in SOLAS
regulations II-2/13.3.2.5.1, III/9.2.3, III/11.5, III/20.10, and ISO 17631. However, it is directly
applicable to shipboard safety and fire control plan signs only, and does not deal with graphical
symbols to be used on shipboard plans or documentation.
This part of ISO 24409 contains a catalogue of safety signs developed in accordance with the
general design principles specified in Part 1, for application on ships in accordance with the code of
practice in Part 3.
v
INTERNATIONAL STANDARD ISO 24409-2:2017(E)

Ships and marine technology — Design, location and use of
shipboard safety signs fire control plan signs, safety notices
and safety markings — Part 2: Catalogue of shipboard safety
signs and fire control plan signs
IMPORTANT — The colours represented in this part of ISO 24409 can be neither viewed on
screen nor printed as true representations. Although the signs and symbols in this part of
ISO 24409 have been reproduced to correspond (with an acceptable tolerance as judged by
the naked eye) to the requirements of ISO 3864-4, it is not intended that the signs and
symbols shown in this part of 24409 be used for colour matching.
For a definitive version of all safety symbols in this part of ISO 24409, please consult ISO
7010 and the ISO Online Browsing Platform (http://www.iso.org/obp/ui/). For a definitive
version of all fire control symbols in this part of ISO 24409, please consult ISO 17631. These
are the source documents from which to create safety and fire control plans signs.
All symbols utilized in the mandatory actions for lifesaving equipment signs in table 2 of this
part of ISO 24409 have been incorporated from IMO Resolution A.760(18). Note that these
symbols are included in the ISO Online Browsing Platform.
No changes shall be made in the ISO source documents to affecting ISO 24409 without first
consulting the responsible ISO subcommittee (ISO TC8/SC1) for ISO 24409.
1 Scope
This part of ISO 24409 catalogues standardized safety signs and fire control plan signs for use on
board ships. Each sign in this part of ISO 24409 is categorized and indexed according to the
message it conveys. This part of ISO 24409 also includes signs which require supplementary text
signs to improve comprehension. Though the signs in this catalogue will largely remain static, new
signs will be added as requirements are identified and corresponding safety signs and fire control
plan signs are developed and standardised.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 3864 (all parts), Graphical symbols — Safety colours and safety signs
ISO 7010, Graphical symbols — Safety colours and safety signs — Registered safety signs
ISO 17631, Ships and marine technology — Shipboard plans for fire protection, life-saving
appliances and means of escape
ISO 24409-2:2017(E)
ISO 17724, Graphical symbols — Vocabulary
ISO 24409-1, Ships and marine technology — Design, location, and use of shipboard safety
signs — Part 1: Design principles
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 17724, ISO 24409-1, and
the following apply.
3.1
fire control signs
Signs for specialists, used to identify and locate fire control equipment, not designed according the
rules for safety signs
Note 1 to entry: These signs are related to the symbols in ISO 17631; see 4.1 h) below.
3.2
image content
written description of the elements of a graphical symbol or safety sign and their relative disposition
3.3
referent
idea or object that a graphical symbol is intended to represent
3.4
safety sign
sign giving a general safety message, obtained by a combination of a colour and geometric shape
and which, by the addition of a graphical symbol, gives a particular safety message
4 Categorization of shipboard signs
4.1 Signs in this standard are categorized according to their function as follows.
a) MES is the category for means of escape signs which provide escape route identification.
b) EES is the category for emergency equipment signs which provide use and location of first aid
facilities and portable safety equipment.
c) LSS is the category for life saving systems and appliances signs which provide use and location
of life saving systems and appliances.
d) FES is the category for fire-fighting equipment signs which provide use and location of fire-
fighting equipment.
e) PSS is the category for prohibition signs which provide prohibited actions.
f) WSS is the category for hazard warning signs which provide identification of hazards to avoid.
g) MSS is the category for mandatory action signs which provide mandatory notices and
instructions.
NOTE The PSS, WSS and MSS categories are based on the P, W and M categories of ISO 7010.
ISO 24409-2:2017(E)
h) SIS is the category for safety and operating instructions for trained personnel.
4.2 Table 1 summarizes the standardized shipboard safety signs used in workplaces and public
areas in terms of functional category, referent number, referent, graphical symbol as well as
geometric shape and colour in accordance with the design principles in ISO 24409-1.
ISO 24409-2:2017(E)
Table 1 — Summary of safety signs for shipboard use
CATEGORY
MES EES LSS FES PSS WSS MSS
Means of Emergency Lifesaving Fire-fighting Prohibition Warning Signs Mandatory
Escape Signs Equipment Signs Equipment Signs Signs
Signs Signs
WSS001
MES001 EES001 LSS001 MSS001
FES001 PSS001
(ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
W001)
P001) M001)
E032) E003) E036) F001)
General
Shipboard First Aid Lifeboat General General
Fire
warning
assembly prohibition Mandatory
extinguisher
station action
WSS002
MES002 EES002 LSS002 FES002 PSS002 MSS002
(ISO 7010-
(ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
W002)
F002) P002) M002)
E001) E004) E037)
Warning;
Refer to
Emergency Emergency Rescue boat Fire hose reel No smoking
Explosive
exit (left hand) telephone instruction
material
manual or
booklet
ISO 24409-2:2017(E)
CATEGORY
MES EES LSS FES PSS WSS MSS
WSS003
MES003 EES003 LSS003 FES003 PSS003
MSS003
(ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
W003)
(ISO 7010-
E002) E011) E038) F004) P003)
M003)
Warning;
Emergency Eyewash Liferaft Collection of No open
Radioactive
Wear ear
exit (right station fire fighting flame; fire,
material or
protection
hand) equipment open ignition
ionizing
source and
radiation
smoking
prohibited
WSS004
MES004 EES004 LSS004 FES004 PSS004
MSS004
(ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
W004)
(ISO 7010-
E033) E012) E039) F005) P004)
M004)
Warning; Laser
Door slides Safety shower Davit- Fire alarm call No
beam
Wear eye
right to open launched point thoroughfare
protection
liferaft
WSS005
MES005 EES005 LSS005 FES005 PSS005 MSS005
(ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
W005)
E034) E013) E040) F008) P005) M005)
Warning; Non-
Door slides Stretcher Lifebuoy Fixed fire Not drinking Connect an
ionizing
left to open extinguishing water earth terminal
radiation
battery to the ground
ISO 24409-2:2017(E)
CATEGORY
MES EES LSS FES PSS WSS MSS
PSS006
WSS006
MES 006
EES006 LSS006 FES006 MSS006
(ISO 7010-
(ISO 7010-
(ISO 7010- P006)
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
W006)
E018)
E027) E041) F009) M006)
No access for
fork lift trucks
Warning;
Turn anti-
Medical grab Lifebuoy with Wheeled fire Disconnect
and other
Magnetic field
clockwise to
bag line extinguisher mains plug
industrial
open
from
vehicles
electrical
outlet
PSS007
WSS007
MES007 MSS007
EES007 LSS007 FES007
(ISO 7010-
(ISO 7010-
(ISO 7010- P007) (ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010-
W007)
E019) M007)
E028) E042) F010)
No access for
people with
Warning; Floor
Turn Opaque eye
Oxygen Lifebuoy with Portable foam
active
level obstacle
clockwise to protection
resuscitator light applicator unit
implanted
open must be worn
cardiac
devices
WSS008
MES008 EES008 LSS008 FES008 PSS008 MSS008
(ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
W008)
E057) E029) E043) F011) P008) M008)
Warning; Drop
Door opens Emergency Lifebuoy with Water fog No metallic Wear safety
(fall)
by pulling on escape line & light applicator articles or footwear
left-hand side breathing watches
device
ISO 24409-2:2017(E)
CATEGORY
MES EES LSS FES PSS WSS MSS
WSS009
MES009 EES009 FES009 PSS009 MSS009
LSS023
(ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
W009)
Lifebuoy with
E058) E009) F012) P010) M009)
light and
Warning;
smoke
Door opens Doctor Fixed fire Do not touch Wear
Biological
by pulling on extinguishing protective
hazard
the right-hand installation gloves
side
WSS010
MES 010
EES010 LSS009 FES010 PSS010 MSS010
(ISO 7010-
(ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
W010)
E023)
E010) E044) F013) P011) M010)
Warning; Low
Push door on
Automated Lifejacket Fixed fire Do not Wear
temperature
the right-hand
external heart extinguishing extinguish protective
side to open
defibrillator bottle with water clothing

WSS011
EES011 LSS010 FES011 PSS011 MSS011
MES 011
(ISO 7010-
Safety (ISO 7010- (ISO 7010-
(ISO 7010-
(ISO 7010-
W011) (ISO 7010-
Equipment E045) F014)
E022) P013)
M011)
Warning;
Child's Remote
Push door on
No activated
Slippery Wash your
lifejacket release
the left-hand mobile
hands
surface
station
side to open
phones
ISO 24409-2:2017(E)
CATEGORY
MES EES LSS FES PSS WSS MSS
WSS012
PSS012 MSS012
EES012 LSS011 FES012
(ISO 7010-
(ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010-
(ISO 7010-
W012)
P014)
E031) E046) F015)
M012)
Warning;
No access for
Shipboard Infant's Fire monitor
Use handrail
Electricity
people with
general alarm lifejacket
metallic
implants
WSS013
EES013 LSS012 PSS013
MSS013
(ISO 7010-
(ISO 7010- (ISO 7010- (ISO 7010-
W013) (ISO 7010-
E008) E047) P015)
M013)
Warning;
Break to Search and No reaching
Guard dog Wear a
obtain access rescue in
faceshield
transponder
WSS014
PSS014 MSS014
LSS013
(ISO 7010-
(ISO 7010- (ISO 7010-
(ISO 7010-
W014)
P017) M014)
E048)
Warning;
No pushing Wear head
Survival craft
Forklift trucks
protection
distress signal
and other
industrial
vehicles
ISO 24409-2:2017(E)
CATEGORY
MES EES LSS FES PSS WSS MSS
PSS015
MSS015
WSS015
LSS014
(ISO 7010-
(ISO 7010-
(ISO 7010-
(ISO 7010-
P018)
M015)
W015)
E049)
No sitting
Wear high
Warning;
Rocket
visibility
Overhead load
parachute
clothing
flare
PSS016 MSS016
WSS016
LSS015
(ISO 7010- (ISO 7010-
(ISO 7010-
(ISO 7010-
P019) M016)
W016)
E050)
No stepping Wear a mask
Warning; Toxic
Line-throwing
on surface
material
appliance
PSS017
WSS017
LSS016
MSS017
(ISO 7010-
(ISO 7010-
(ISO 7010-
(ISO 7010-
P020)
W017)
E051)
M017)
Do not use lift
Warning; Hot
Two-way VHF
Wear
in the event
surface
radiotelephon
respiratory
of fire
e apparatus
protection
ISO 24409-2:2017(E)
CATEGORY
MES EES LSS FES PSS WSS MSS
PSS018
MSS018
WSS018
LSS017
(ISO 7010-
(ISO 7010-
(ISO 7010-
(ISO 7010-
P021)
M018)
W018)
E052)
No dogs
Wear a safety
Warning;
Emergency
harness
Automatic start-
position
up
indicating
radio beacon
PSS019
MSS019
WSS019
LSS018
(ISO 7010-
(ISO 7010-
(ISO 7010-
(ISO 7010-E053)
P022)
M019)
W019)
Embarkation ladder
No eating or
Wear a
Warning;
drinking
welding mask
Crushing
MSS020
PSS020
WSS020
LSS019
(ISO 7010-
(ISO 7010-
(ISO 7010-
(ISO 7010-E054)
M022)
P023)
W020)
Marine evacuation slide
Use barrier
Do not
Warning;
cream
obstruct
Overhead
obstacle
ISO 24409-2:2017(E)
MSS021
PSS021
LSS020
(ISO 7010-
(ISO 7010-
(ISO 7010-E055)
M023)
P024)
Marine evacuation chute
Use footbridge
Do not walk or
stand here
WSS021
LSS021
(ISO 7010-
(ISO 7010-E056)
W021)
Survival clothing
Warning;
Flammable
material
WSS022
LSS022
(ISO 7010-
(ISO 7010-E035)
W022)
Liferaft Knife
Warning;
Sharp element
4.3 Signs in Table 2 may be displayed together to form a sequence of critical mandatory actions to safely
launch a lifeboat, rescue boat, or liferaft.
Table 2 — Summary of mandatory action signs for launching lifesaving equipment

ISO 24409-2:2017(E)
MSS022 MSS023 MSS024 MSS025 MSS026
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
M020) M037) M038) M039) M040)
Fasten safety Close and Start engine Lower lifeboat Lower liferaft
belts secure in launch to the water in to the water in
hatches in sequence launch launch
launch sequence sequence
sequence
MSS027 MSS028 MSS029 MSS030 MSS031
(ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010- (ISO 7010-
M041) M042) M043) M044) M045)
Lower rescue Release falls Start water Start air Release
boat to the in launch spray in supply in lifeboat gripes
water in sequence launch launch in launch
launch sequence sequence sequence
sequence
4.4 Table 3 summarizes the SIS catalogue primarily adapted from IMO Resolution A.952(23) and ISO 17631
with the exception of the SIS signs listed in 4.1. Table 3 summarizes the standardized shipboard fire control
plan signs used in workplaces and public areas to assist trained persons in the operation and management of
shipboard fire control systems. The standardized symbols used in these signs are in accordance with the
symbols found in ISO 17631.
Table 3 — Summary of shipboard fire control plan signs (SIS) for shipboard use

SIS033
SIS041
SIS025 SIS049
SIS001 SIS009 SIS017
International
Inert gas
Emergency fire Emergency
Fire control Remote control Closing device
shore
installation
pump source of
plan for fire doors for ventilation
connection
electrical power
inlet or outlet
(battery)
(machinery)
SIS002 SIS010 SIS018 SIS026
SIS042
SIS034
ISO 24409-2:2017(E)
Safety plan Fire damper Closing device Fuel pump(s) Fire hydrant Space or group SIS050
(accommodatio of spaces Emergency
for ventilation remote shut-off
n and service inlet or outlet protected by a switchboard
spaces) (cargo spaces) water fire-
extinguishing
system
SIS019
Remote control
SIS003
SIS035 SIS051
SIS011 SIS027
for closing
Fire and safety Main section Air compressor
Lube oil
Fire damper SIS043
device for
plan
valve for breathing
(machinery pump(s) remote Space or group
ventilation inlet
devices
space) shut-off of spaces
and outlet
protected by a
(accomm)
foam fire-
extinguishing
system
H
SIS020
SIS052
SIS036
SIS004 SIS012 Remote control SIS028
SIS044
Sprinkler-
for closing
Ventilation Fire damper Remote control Space or group
Control panel
section valve
remote control (cargo space) device for for bilge
of spaces
for fire
ventilation inlet
or shut-off pump(s) protected by a
detection and
(accommodatio and outlet
gas other than
alarm system
(machinery)
n and service CO fire-
spaces)
extinguishing
system
SIS021
SIS037
SIS045
SIS005 SIS013 Remote control
Powder-section
SIS029
Ventilation Remote control for closing Space or group
valve
Remote control
of spaces
remote control for fire damper device for
for emergency
or shut-off (accommodatio ventilation inlet protected by a
bilge pump
powder fire-
(machinery n or service and outlet
spaces) spaces) (cargo) extinguishing
system
SIS038
SIS014
SIS022
Foam-section
Remote control SIS030
SIS006 Remote control
valve
Remote control SIS046
Ventilation for fire damper
for fire pump
Space or group
(machinery) for fuel oil
remote control
valves of spaces
or shut-off
protected by a
(cargo)
CO fire-
extinguishing
ISO 24409-2:2017(E)
system
SIS023
SIS007
Fire pump SIS039
SIS015 SIS031 SIS047
Remote control
High expansion
Remote control Remote control
Space or group
for skylight
foam supply
for fire damper for lube oil of spaces
trunk (outlet)
(cargo space) valves
protected by a
sprinkler or
high-pressure
water fire-
extinguishing
system
SIS024
SIS040
SIS032
emergency fire
Water spray
SIS008 SIS016
Remote control SIS048
pump Remote system valves
Remote control Closing device
for fire pump Emergency
control or fire
2.24
for watertight for ventilation
valves generator
pump supplied
doors inlet or outlet
by the
(accommodatio
emergency
n and service
source of
spaces)
power
5 Standardized shipboard safety sign and fire control plan signs
5.1 Tables 4 to 11 present the safety sign and fire control plan signs according to their category as follows:
 MES - Means of escape see Table 4
 EES - Emergency equipment signs see Table 5
 LSS - Life saving systems and appliances see Table 6
 FES - Fire-fighting equipment see Table 7
 PSS - Prohibition signs see Table 8
 WSS - Warning signs see Table 9
 MSS - Mandatory action signs see Table 10
 SIS - Fire control plan signs for trained personnel Table 11
ISO 24409-2:2017(E)
Table 4 — Means of escape signs (MES)
Reference No.
MES001 (ISO 7010 E032)
Referent
Shipboard Assembly Station
Function
To indicate the location of an assembly station on
board ship
Image content
Five human figures in different sizes standing on a
square, four arrows coming from the corners
pointing to them
Hazard
Not being able to locate an assembly station on board ship

Human behaviour that is intended to be caused after understanding the safety sign's meaning:

Being aware of the location of an assembly station on board ship

Additional information.
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary sign
shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
Supplementary arrow sign (type D of ISO 3864-3) in white on green to be used to give directional
information. Management information panel supplementary sign with a reference letter may be used to
indicate a specific assembly station to aid in distinguishing between multiple assembly stations.

ISO 24409-2:2017(E)
Reference No.
MES002 (ISO 7010-E001)
Referent
Emergency Exit (left hand)
Function
To indicate an escape route to a place of safety.
Image content
Human figure moving (to the left) through doorway

Hazard
Not being able to locate means of escape and/or escape routes to a place of safety which is provided for
evacuation in the event of an emergency

Human behaviour that is intended to be caused after understanding the safety sign's meaning:
Being aware of the location of an escape route to a place of safety in the event of an emergency

Additional information
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary sign
shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
Supplementary arrow sign (type D of ISO 3864-3) in white on green to be used to give directional
information:
ISO 24409-2:2017(E)
Reference No.
MES003 (ISO 7010-E002)
Referent
Emergency Exit (right hand)
Function
To indicate an escape route to a place of safety
Image content
Human figure moving (to the right) through doorway

Hazard
Not being able to locate an escape route to a place of safety which is provided for evacuation in the event
of an emergency
Human behaviour that is intended to be caused after understanding the safety sign's meaning:
Being aware of the location of an escape route to a place of safety in the event of an emergency

Additional information
Test data obtained according to ISO 9186-1:2007 are not available. However, this safety sign has been the
subject of extensive research in Japan and the design selected has received the best comprehension
results. A supplementary text sign shall be used to increase comprehension except when the safety sign is
supplemented by manuals, instructions or training. Supplementary arrow sign (type D of ISO 3864-3) in
white on green to be used to give directional information (direction examples, the arros may be rotated in
increments of 45 degrees)
ISO 24409-2:2017(E)
Reference No.
MES004 (ISO 7010 E033)
Referent
Door slides right to open
Function
To indicate the direction in which a sliding door
opens
Image content
Rectangle bordered top and bottom, arrow pointing
to the right
Hazard
Not being able to determine the direction of movement of a sliding door

Human behaviour that is intended to be caused after understanding the safety sign's meaning:

Being able to discern a sliding door which opens to the right.

Additional information
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary sign
shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
ISO 24409-2:2017(E)
Reference No.
MES005 (ISO 7010-E034)
Referent
Door slides left to open
Function
To indicate the direction in which a sliding door
opens.
Image content
White rectangle bordered top and bottom with arrow
pointing to left
Hazard
Not being able to determine the direction of movement of a sliding door

Human behaviour that is intended to be caused after understanding the safety sign's meaning:
Being able to discern a sliding door which opens to the left.

Additional information
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary sign
shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
ISO 24409-2:2017(E)
Reference No.
MES006 (ISO 7010-E018)
Referent
Turn anticlockwise to open
Function
To signify that the doorknob of a security door on an
escape route must be turned in an anticlockwise
direction in order for the opening device to operate
Image content
Doorknob with semicircular anticlockwise arrow

Hazard
Being unable to open a door on an escape route which has a security lock and an emergency opening
device, in the event of an emergency

Human behaviour that is intended to be caused after understanding the safety sign's meaning:
Turning the doorknob in an anticlockwise direction in order to open a door on an escape route which has a
security lock in the event of an emergency

Additional information
This safety sign is intended to be used only on doors with a security locking mechanism. Test data
obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary sign shall be
used to increase comprehension except when the safety sign is supplemented by manuals, instructions or
training.
ISO 24409-2:2017(E)
Reference No.
MES007 (ISO 7010 E019)
Referent
Turn clockwise to open
Function
To signify that the doorknob of a security door on an
escape route must be turned in a clockwise direction
in order for the opening device to operate
Image content
Doorknob with semicircular clockwise arrow

Hazard
Being unable to open a door on an escape route which has a security lock and an emergency opening
device, in the event of an emergency

Human behaviour that is intended to be caused after understanding the safety sign's meaning:
Turning the doorknob in a clockwise direction in order to open a door on an escape route which has a
security lock, in the event of an emergency

Additional information
This safety sign is intended to be used only on doors with a security locking mechanism. Test data
obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary sign shall be
used to increase comprehension except when the safety sign is supplemented by manuals, instructions or
training.
ISO 24409-2:2017(E)
Reference No.
MES008 (ISO 7010 E057)
Referent
Door opens by pulling on the left-hand side
Function
To indicate that the door opens by pulling on the
left-hand side.
Image content
Doorway with door opening inwards, curved arrow
pointing to the right
Hazard
Not being able to open the door

Human behaviour that is intended to be caused after understanding the safety sign's meaning:
Being aware that the door opens by pulling on the left-hand side

Additional information
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary sign
shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
ISO 24409-2:2017(E)
Reference No.
MES009 (ISO 7010 E058)
Referent
Door opens by pulling on the right-hand side
Function
To indicate that the door opens by pulling on the
right-hand side.
Image content
Doorway with door opening inwards, curved arrow
pointing to left
Hazard
Not being able to open the door

Human behaviour that is intended to be caused after understanding the safety sign's meaning:
Being aware that the door opens y pulling on the right-hand side

Additional information
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary sign
shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
ISO 24409-2:2017(E)
Reference No.
MES010 (ISO 7010 E023)
Referent
Door opens by pushing on the right-hand side

Function
To indicate that the door opens by pushing on the
right hand side
Image content
Doorway with door opening outwards, curved arrow
pointing to the right
Hazard
Not being able to open the door

Human behaviour that is intended to be caused after understanding the safety sign's meaning:
Being aware that the door opens by pushing on the right-hand side

Additional information
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary sign
shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
ISO 24409-2:2017(E)
Reference No.
MES011 (ISO 7010 E022)
Referent
Door opens by pushing on the left-hand side

Function
To indicate that the door opens by pushing on the
left hand side
Image content
Doorway with door opening outwards, curved arrow
pointing to the left
Hazard
Not being able to open the door

Human behaviour that is intended to be caused after understanding the safety sign's meaning:
Being aware that the door opens by pushing on the left-hand side

Additional information
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary sign
shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
ISO 24409-2:2017(E)
Table 5 — Emergency equipment signs (EES)
Reference No.
EES001 (ISO 7010-E003)
Referent
First aid
Function
To indicate the location of first aid equipment or
facilities or staff.
Image content
First aid cross
Hazard
Not being able to locate first aid equipment or facilities or staff in the event of injury or emergency

Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of first aid equipment or facilities or staff.

Additional information
This safety sign should be used for first aid equipment or facilities or staff for which/whom there is no
registered safety sign. The first aid cross may be replaced with another element appropriate to cultural
requirements. Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a
supplementary text sign shall be used to increase comprehension except when the safety sign is
supplemented by manuals, instructions or training.

ISO 24409-2:2017(E)
Reference No.
EES002 (ISO 7010-E004)
Referent
Emergency telephone
Function
To indicate the location of an emergency telephone.
Image content
Telephone receiver (profile), first aid cross

Hazard
Not being able to locate a telephone which is provided for use in the event of an emergency

Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an emergency telephone

Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements.
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary text
sign shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
ISO 24409-2:2017(E)
Reference No.
EES003 (ISO 7010-E011)
Referent
Eyewash station
Function
To indicate the location of an eyewash station.
Image content
Eye above running water coming out of a shower
head, first aid cross
Hazard
Not being able to locate an eyewash stationHuman behaviour that is intended to be caused after
understanding the safety sign's meaning
Being aware of the location of an eyewash station
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements of the target
group. Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a
supplementary text sign shall be used to increase comprehension except when the safety sign is
supplemented by manuals, instructions or training.

ISO 24409-2:2017(E)
Reference No.
EES004 (ISO 7010-E012)
Referent
Safety shower
Function
To indicate the location of a safety shower.
Image content
Human figure under running water coming out of a
shower head, first aid cross
Hazard
Not being able to locate a safety shower
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of a safety shower
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements of the target
group. Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a
supplementary text sign shall be used to increase comprehension except when the safety sign is
supplemented by manuals, instructions or training.

ISO 24409-2:2017(E)
Reference No.
EES005 (ISO 7010-E013)
Referent
Stretcher
Function
To indicate the location of a stretcher.
Image content
Human figure on a stretcher, first aid cross

Hazard
Not being able to locate a stretcher
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of a stretcher
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements of the target
group. Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a
supplementary text sign shall be used to increase comprehension except when the safety sign is
supplemented by manuals, instructions or training.

ISO 24409-2:2017(E)
Reference No.
EES006 (ISO 7010 E027)
Referent
Medical grab bag
Function
To indicate the location of a medical grab bag.
Image content
Bag (outlined) with handles, first aid cross

Hazard
Not being able to locate a medical grab bag.

Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of a medical grab bag.Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements of the target
group. Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a
supplementary text sign shall be used to increase comprehension except when the safety sign is
supplemented by manuals, instructions or training.

ISO 24409-2:2017(E)
Reference No.
EES007 (ISO 7010 E028)
Referent
Oxygen resuscitator
Function
To indicate the location of an oxygen resuscitator.
Image content
Oxygen cylinder with manual control, hose line and
mask, first aid cross.
Hazard
Not being able to locate an oxygen resuscitator
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an oxygen resuscitator
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements of the target
. Consequently, a
group. Test data obtained according to ISO 9186-1:2007 are not available
supplementary text sign shall be used to increase comprehension except when the safety sign is
supplemented by manuals, instructions or training.

ISO 24409-2:2017(E)
Reference No.
EES008 (ISO 7010 E029)
Referent
Emergency escape breathing device
Function
To indicate the location of an emergency escape
breathing device (EEBD)
Image content
Full-face mask with regulator (front view), first aid
cross
Hazard
Not being able to locate an EEBD
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an EEBD
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements. Test data
obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary text sign shall
be used to increase comprehension except when the safety sign is supplemented by manuals, instructions
or training.
ISO 24409-2:2017(E)
Reference No.
EES009 (ISO 7010-E009)
Referent
Doctor
Function
To indicate the location of a doctor for medical
emergencies
Image content
Upper human figure with stethoscope, first aid cross

Hazard
Not being able to locate an emergency doctor

Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an emergency doctor
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements. Test data
obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary text sign shall
be used to increase comprehension except when the safety sign is supplemented by manuals, instructions
or training.
ISO 24409-2:2017(E)
Reference No.
EES010 (ISO 7010-E010)
Referent
Automated external heart defibrillator
Function
To indicate the location of an automated external
heart defibrillator.
Image content
Heart with lightning bolt in the middle, first aid cross

Hazard
Not being able to locate an automated external heart defibrillator

Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an automated external heart defibrillator
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements of the target
group. Test data obtained according to ISO 9186-1:2007 are available from more than one country.
Findings from testing showed that the graphical symbol did not reach the criteria of acceptability.
Consequently, a supplementary text sign shall be used to increase
...
