Information technology -- Automatic identification and data capture techniques -- Syntax for high-capacity ADC media

This document specifies a transfer structure, syntax, and coding of messages and data formats when using high-capacity ADC media between trading partners (specifically between suppliers and recipients) and, where applicable, in support of carrier applications, such as bills of lading, and carrier sortation and tracking. The data encoded according to this document include: — data which can be used in the shipping, receiving and inventory of transport units; — data which can be contained within supporting documentation, in paper or electronic form, related to unit loads or transport packages; — data which can be used in the sortation and tracking of transport units. This document describes the ISO/IEC 646 characters used for automatic data capture; it is not the controlling specification for data structures (e.g. CII) referenced in this International Standard. This document does not supersede or replace any applicable safety or other marking or labelling requirements. It is intended to be applied in addition to any other mandated labelling requirements.

Technologies de l'information -- Techniques automatiques d'identification et de capture des données -- Syntaxe pour supports de CAD à haute capacité

General Information

Status
Published
Publication Date
26-Feb-2019
Current Stage
6060 - International Standard published
Start Date
06-Feb-2019
Completion Date
27-Feb-2019
Ref Project

RELATIONS

Buy Standard

Standard
ISO/IEC 15434:2019 - Information technology -- Automatic identification and data capture techniques -- Syntax for high-capacity ADC media
English language
17 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

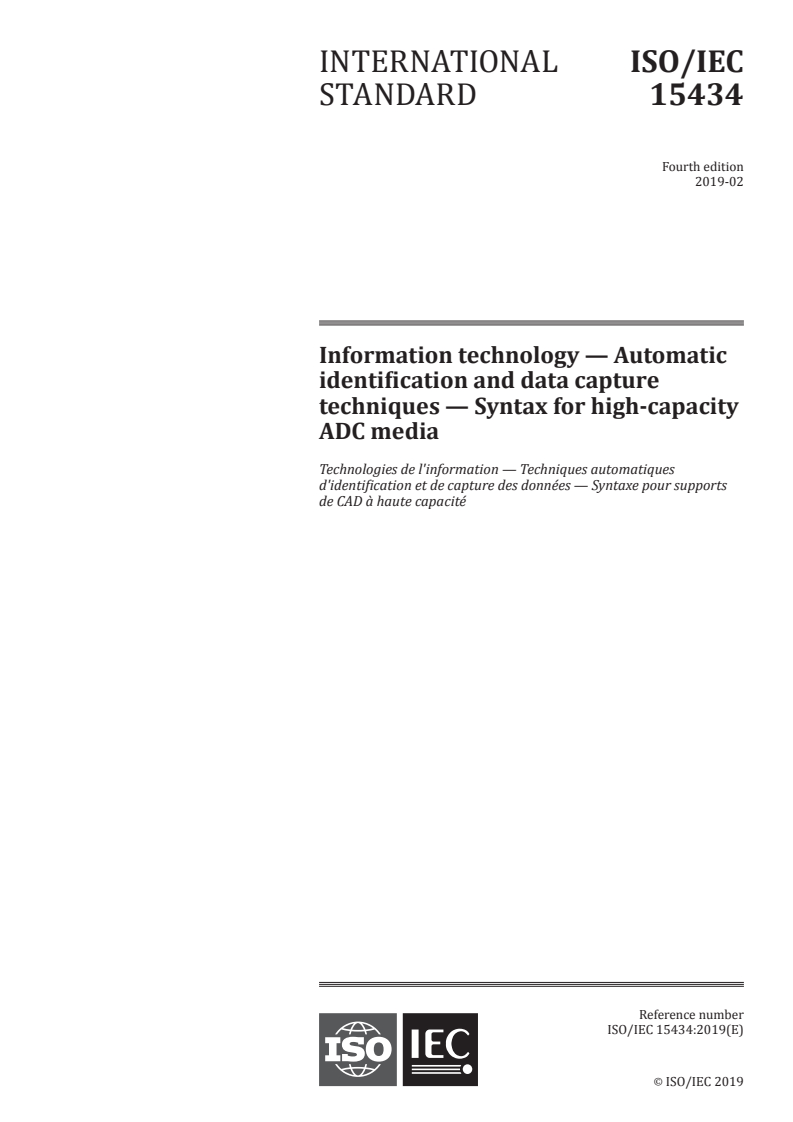

INTERNATIONAL ISO/IEC
STANDARD 15434
Fourth edition
2019-02
Information technology — Automatic
identification and data capture
techniques — Syntax for high-capacity
ADC media
Technologies de l'information — Techniques automatiques
d'identification et de capture des données — Syntaxe pour supports
de CAD à haute capacité
Reference number
ISO/IEC 15434:2019(E)
ISO/IEC 2019
---------------------- Page: 1 ----------------------
ISO/IEC 15434:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 15434:2019(E)

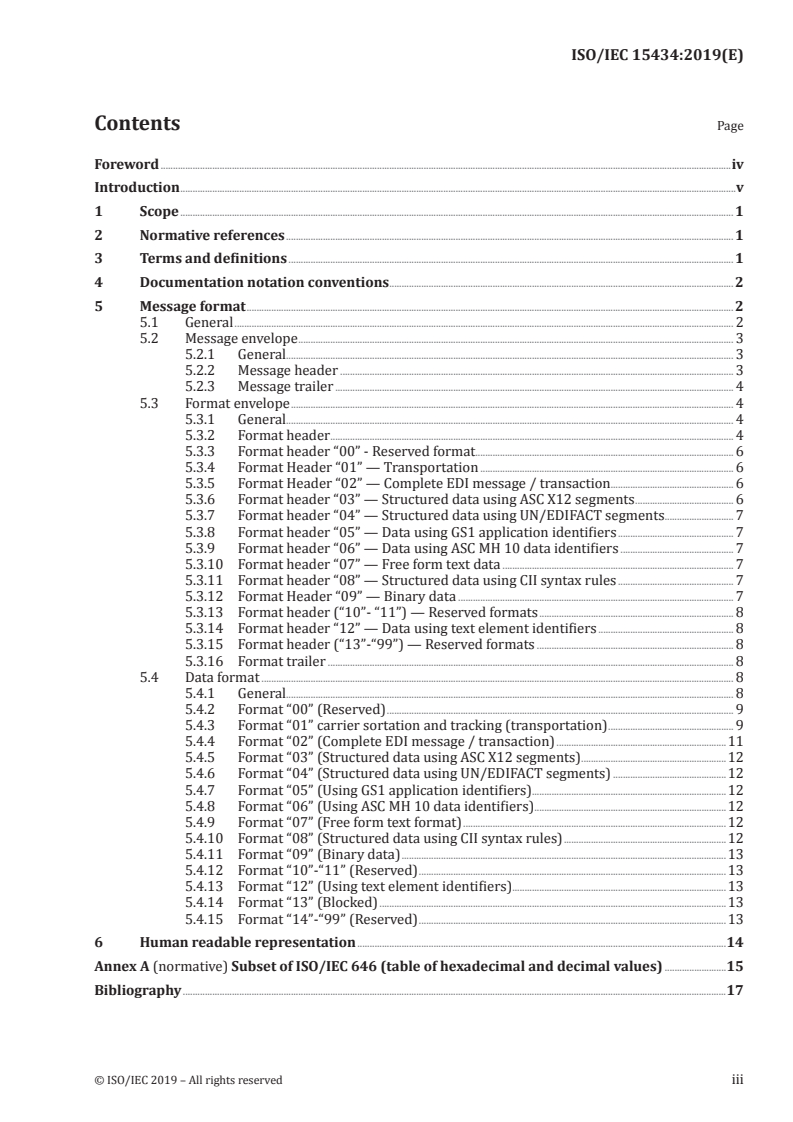

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Documentation notation conventions ............................................................................................................................................ 2

5 Message format ...................................................................................................................................................................................................... 2

5.1 General ........................................................................................................................................................................................................... 2

5.2 Message envelope ................................................................................................................................................................................. 3

5.2.1 General...................................................................................................................................................................................... 3

5.2.2 Message header ................................................................................................................................................................ 3

5.2.3 Message trailer .................................................................................................................................................................. 4

5.3 Format envelope .................................................................................................................................................................................... 4

5.3.1 General...................................................................................................................................................................................... 4

5.3.2 Format header .................................................................................................................................................................... 4

5.3.3 Format header “00” - Reserved format......................................................................................................... 6

5.3.4 Format Header “01” — Transportation ....................................................................................................... 6

5.3.5 Format Header “02” — Complete EDI message / transaction .................. ................................ 6

5.3.6 Format header “03” — Structured data using ASC X12 segments ........................................ 6

5.3.7 Format header “04” — Structured data using UN/EDIFACT segments ............................ 7

5.3.8 Format header “05” — Data using GS1 application identifiers ............................................... 7

5.3.9 Format header “06” — Data using ASC MH 10 data identifiers .............................................. 7

5.3.10 Format header “07” — Free form text data .............................................................................................. 7

5.3.11 Format header “08” — Structured data using CII syntax rules ............................................... 7

5.3.12 Format Header “09” — Binary data ................................................................................................................ 7

5.3.13 Format header (“10”- “11”) — Reserved formats ............................................................................... 8

5.3.14 Format header “12” — Data using text element identifiers ....................................................... 8

5.3.15 Format header (“13”-“99”) — Reserved formats ................................................................................ 8

5.3.16 Format trailer ..................................................................................................................................................................... 8

5.4 Data format ................................................................................................................................................................................................ 8

5.4.1 General...................................................................................................................................................................................... 8

5.4.2 Format “00” (Reserved) ............................................................................................................................................. 9

5.4.3 Format “01” carrier sortation and tracking (transportation) ................................................... 9

5.4.4 Format “02” (Complete EDI message / transaction) .....................................................................11

5.4.5 Format “03” (Structured data using ASC X12 segments) ...........................................................12

5.4.6 Format “04” (Structured data using UN/EDIFACT segments) ..............................................12

5.4.7 Format “05” (Using GS1 application identifiers)...............................................................................12

5.4.8 Format “06” (Using ASC MH 10 data identifiers) ..............................................................................12

5.4.9 Format “07” (Free form text format) ...........................................................................................................12

5.4.10 Format “08” (Structured data using CII syntax rules) ..................................................................12

5.4.11 Format “09” (Binary data) ....................................................................................................................................13

5.4.12 Format “10”-“11” (Reserved) .............................................................................................................................13

5.4.13 Format “12” (Using text element identifiers) .......................................................................................13

5.4.14 Format “13” (Blocked) .............................................................................................................................................13

5.4.15 Format “14”-“99” (Reserved) .............................................................................................................................13

6 Human readable representation ......................................................................................................................................................14

Annex A (normative) Subset of ISO/IEC 646 (table of hexadecimal and decimal values) .........................15

Bibliography .............................................................................................................................................................................................................................17

© ISO/IEC 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 15434:2019(E)

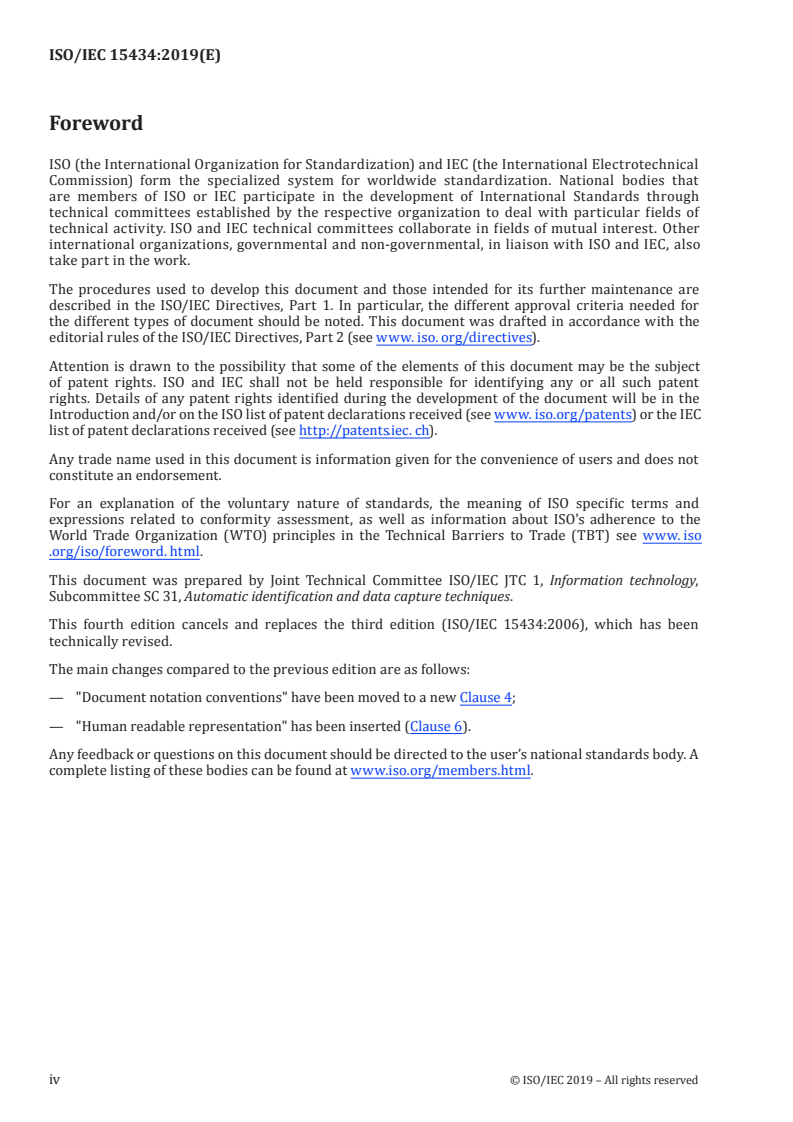

Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that

are members of ISO or IEC participate in the development of International Standards through

technical committees established by the respective organization to deal with particular fields of

technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other

international organizations, governmental and non-governmental, in liaison with ISO and IEC, also

take part in the work.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for

the different types of document should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www. iso. org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject

of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent

rights. Details of any patent rights identified during the development of the document will be in the

Introduction and/or on the ISO list of patent declarations received (see www. iso. org/patents) or the IEC

list of patent declarations received (see http:/ /patents.i ec. ch).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www. iso

.org/iso/foreword. html.

This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,

Subcommittee SC 31, Automatic identification and data capture techniques.

This fourth edition cancels and replaces the third edition (ISO/IEC 15434:2006), which has been

technically revised.
The main changes compared to the previous edition are as follows:
— "Document notation conventions" have been moved to a new Clause 4;
— "Human readable representation" has been inserted (Clause 6).

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www. iso. org/members. html.
iv © ISO/IEC 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 15434:2019(E)
Introduction

This document defines the manner in which data is transferred to high-capacity automatic data capture

(ADC) media from a supplier’s information system and the manner in which data is transferred to the

recipient’s information system. It does not define the internal data storage format for specific high-

capacity ADC media. This document does not specify the application of data structures provided by a

specific data syntax format. The application of the data structure is specified by industry conventions.

Users of ADC technologies benefit by being able to receive data in a standard form and by being able to

provide data in a standard form. Static ADC technologies such as bar code symbologies, magnetic stripe,

optical character recognition, surface acoustical wave (SAW) and Weigand effect typically encode a

single field of data. Most applications of these technologies involve the encoding of a single field of data

by the supplier of the medium and the subsequent decoding of the data field by the recipient. Encoding

single fields of data permits the supplier to perform the encodation from a single field within the

supplier’s information system. Decoding single fields of data permits the recipient to input this data

into a single field in the recipient’s information system, in lieu of key entry.

High-capacity ADC technologies, such as two-dimensional symbols, RFID transponders, contact

memories and smart cards, encode multiple fields of data. These multiple fields are usually parsed by the

recipient’s information system and then mapped to specific fields of data in the recipient’s information

system. This document defines the syntax for high-capacity ADC media, so as to enable ADC users to

utilize a single mapping utility, regardless of which high-capacity ADC medium is employed.

© ISO/IEC 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 15434:2019(E)
Information technology — Automatic identification and data
capture techniques — Syntax for high-capacity ADC media
1 Scope

This document specifies a transfer structure, syntax, and coding of messages and data formats

when using high-capacity ADC media between trading partners (specifically between suppliers and

recipients) and, where applicable, in support of carrier applications, such as bills of lading, and carrier

sortation and tracking.
The data encoded according to this document include:

— data which can be used in the shipping, receiving and inventory of transport units;

— data which can be contained within supporting documentation, in paper or electronic form, related

to unit loads or transport packages;
— data which can be used in the sortation and tracking of transport units.

This document describes the ISO/IEC 646 characters used for automatic data capture; it is not the

controlling specification for data structures (e.g. CII) referenced in this International Standard.

This document does not supersede or replace any applicable safety or other marking or labelling

requirements. It is intended to be applied in addition to any other mandated labelling requirements.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 646, Information technology — ISO 7-bit coded character set for information interchange

ISO/IEC 19762, Information technology — Automatic identification and data capture (AIDC) techniques —

Harmonized vocabulary
ANS MH10.8.2, ASC MH 10 Data Identifiers and Application Identifiers
ANS X12, Electronic Data Interchange

Syntax Rule CII (Vers 3.00), CII Syntax Rule Specifications (3.00) (Electronic Data Interchange — Japan)

GS1 General Specification. GS1
ATA Common Support Data Dictionary (CSDD), Air Transport Association
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO/IEC 19762 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
© ISO/IEC 2019 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 15434:2019(E)
4 Documentation notation conventions
This document uses the following typographical conventions in message examples.

a) BOLD, ALL CAPITALS Text that shall be entered exactly as it appears. (In this document,

F G U R E
, , , , o are used to represent non-printable special char-
S S S S T
acters. The ISO/IEC 646 representation of special characters that
shall be used and is used in this document can be found in Annex A.)

b) italic, lower case Variable parameters. The user shall supply an appropriate value. In

some cases, default values are recommended in this document.
5 Message format
5.1 General

This clause defines how data shall be transferred from a high capacity ADC media reading device to the

user's application software.

To allow multiple data formats to be contained within a data stream, a two-level structure of enveloping

is employed. The outermost layer of the message is a message envelope that defines the beginning and

end of the message. Within the message envelope, there is one or more format envelopes that contain

the data (see Figure 1). Multiple formats in a single message should only be employed with bilateral

agreements of the trading partners.
The message envelope shall consist of
— a message header,
— one or more format envelope(s), and
— a message trailer (when required).
Each format envelope within the message envelope shall consist of
— a format header,
— data, formatted according to the rules defined for that format, and
— a format trailer (when required).
2 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 15434:2019(E)
Figure 1 — Enveloping structure

NOTE Annex A shows the decimal and hexadecimal values of ASCII characters used in this document.

5.2 Message envelope
5.2.1 General

The message envelope defines the start and end of the data contained within the data stream and

provides the following functions:

— indicates that the message contained within this media is formatted in conformance with the rules

of this document;

— indicates the character which has been defined to separate formats within this message;

— provides a unique character to indicate the end of the message.
The structure within a data stream is as follows:
a Message, containing one or more formats;
a Format, containing one or more segments;
a Segment, containing one or more data elements;

a Data element (field), potentially containing one or more sub-elements (sub-fields).

5.2.2 Message header
5.2.2.1 General
The message header consists of two parts:
— the three-character conformance indicator, and
— the format trailer character.
© ISO/IEC 2019 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC 15434:2019(E)
The complete message header is: [)>
5.2.2.2 Conformance indicator

The conformance indicator shall be the first three characters in the message header. It shall be [)> (left

bracket, right parenthesis and greater than). See Annex A for a table of ASCII decimal and hexadecimal

values used in this document.
5.2.2.3 Format trailer character

The format trailer character shall be the fourth character in the message header. It shall be the non-

printable ASCII character “ ” (see Annex A). The format trailer character is used throughout the

message to indicate the end of a data format envelope (see 5.3.16).
5.2.3 Message trailer

The message trailer identifies the end of the message within the data stream. It shall be the end of

transaction character, “ o ” (see Annex A). The message trailer character shall not be used elsewhere in

the message except in format “09” (binary data) where the “ o ” character may appear.

The message trailer shall not be used with formats “02” (complete EDI message / transaction) and “08”

(structured data using CII syntax rules).
5.3 Format envelope
5.3.1 General

The format envelope defines the start and end of data in a given format and provides the following

functions:
— identifies the data format used within the envelope;

— defines the character(s) used to separate the segments, data elements (fields) and sub-elements

(sub-fields) within this data format;
— indicates any applicable date, release or control information.
5.3.2 Format header
5.3.2.1 General
A format header shall consist of two parts:

— a format indicator (a two-digit numeric identifier which identifies the rules governing the format);

— variable data (if any) which defines the separators used and version and release, date or control

information of the applicable standards.

Table 1 lists the format indicators and variable data associated with the format header.

4 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 15434:2019(E)
Table 1 — Format header table showing associated separators
Format Format
Variable header data Format description
indicator trailer
00 Reserved for future use
G R
01 vv Transportation
S S
02 Complete EDI message / transaction
F G U R
03 vvvrrr Structured data using ANSI ASC X12 segments
S S S S
F G U R
04 vvvrrr Structured data using UN/EDIFACT segments
S S S S
G R
05 Data using GS1 application identifiers
S S
G R a
06 Data using ASC MH10 data identifiers
S S
07 Free form text
08 vvvvrrnn Structured data using CII syntax rules
Binary data (file type) (compression technique)
G G G G R
09 ttt...t ccc...c nnn...n
S S S S S
(number of bytes)
10-11 Reserved for future use
Structured data following text element identifier
G R
S S
rules
Blocked for use to avoid conflict with ISO/
IEC 15961-2
14-99 Reserved for future use
Previously known as FACT data identifiers.
NOTE 1 vv represents the two-digit version of format “01” being used
NOTE 2 represents the format trailer character (see 5.3.16).
NOTE 3 represents the segment terminator (see 5.3.2.2.2).
NOTE 4 represents the data element separator (see 5.3.2.2.3).
NOTE 5 represents the sub-element separator (see 5.3.2.2.4).

NOTE 6 vvvrrr represents the three-digit version (vvv) followed by the three-digit release

(rrr) (see 5.3.6).

NOTE 7 vvvvrrnn represents the four-digit version (vvvv) followed by the two-digit release (rr)

followed by the two-digit edition indicator (nn) (see 5.3.11).
NOTE 8 ttt...t represents the file type name (see 5.3.12).
NOTE 9 ccc...c represents the compression technique name (see 5.3.12).
NOTE 10 nnn...n represents the number of bytes (see 5.3.12).
5.3.2.2 Separators and terminators
5.3.2.2.1 General

The separators and terminators are an integral part of the data stream. The separator and terminator

characters shall not be used in non-binary data elsewhere in the message. For binary data strings

(format “09”), special considerations apply (see 5.3.12).
© ISO/IEC 2019 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/IEC 15434:2019(E)
5.3.2.2.2 Segment terminator

Each segment in format “03” shall be terminated by the segment terminator character, the non-printable

character “ ” (see Annex A).
5.3.2.2.3 Data element separator

Data elements in formats “01,” “03,” “05,” and “06” shall be separated by the data element separator, the

non-printable character “ ” (see Annex A).
5.3.2.2.4 Sub-element separator

Sub-elements in format “03” shall be terminated by the sub-element separator character, the non-

printable character “ ” (see Annex A).
5.3.3 Format header “00” - Reserved format
Format header “00” is reserved for future use.
5.3.4 Format Header “01” — Transportation
The format header shall be represented as
01 vv
where
is the data element separator to be used between data elements;
vv represents the two-digit version as given in 5.4.3.1.
5.3.5 Format Header “02” — Complete EDI message / transaction
The format header shall be represented as
There is no variable header data for this data format (see 5.4.4).
5.3.6 Format header “03” — Structured data using ASC X12 segments
The format header shall be represented as
F G U
03vvvrrr
S S S
where

vvvrrr represents the three-digit version (vvv) and three-digit release (rrr) indicator for the drafts

of ASC X12 used;
is the segment terminator to be used to indicate the end of an EDI segment;
is the data element separator to be used between EDI data elements;

is the sub-element separator to be used between EDI sub-elements in a composite data

element.

Format header “03” shall employ ANSI ASC X12 segments, as specified in ANS X12, used in North

America. For international trade, format header “04” should be used. Format “03” is intended for use

within North America only.
6 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 15434:2019(E)
5.3.7 Format header “04” — Structured data using UN/EDIFACT segments
The format header shall be represented as
F G U
04vvvrrr
S S S
where

vvvrrr represents the three-digit version (vvv) and three-digit release (rrr) indicator for the UN/

EDIFACT level used;
is the segment terminator to be used to indicate the end of an EDI segment;
is the data element separator to be used between EDI data elements;

is the sub-element separator to be used between EDI sub-elements in a composite data

element.
5.3.8 Format header “05” — Data using GS1 application identifiers
The format header shall be represented as
where is the data element separator to be used between data fields.
5.3.9 Format header “06” — Data using ASC MH 10 data identifiers
The format header shall be represented as
where is the data element separator to be used between data fields.
5.3.10 Format header “07” — Free form text data
The format header shall be represented as
There is no variable header data for this data format (see 5.4.7).
5.3.11 Format header “08” — Structured data using CII syntax rules
The format header shall be represented as
08vvvvrrnn

where vvvvrrnn represents the four-digit version (vvvv), two-digit release (rr) and two-digit edition (nn)

indicator for the CII level used. This equates to the BPID in CII syntax rules (see 5.4.10).

Format header “08” shall employ CII syntax rules, as specified in CII Syntax Rule Specifications, used

in Japan. For international trade, format header “04” should be used. Format “08” is intended for use

within Japan only.
5.3.12 Format Header “09” — Binary data
The format header shall be represented as
G G G G
09 ttt...t ccc...c nnn...n
S S S S
© ISO/IEC 2019 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO/IEC 15434:2019(E)
where

is the data element separator to be used between fields in this header and at the end of the

last data field.

ttt...t represents the identification of the binary file type, e.g., JPEG, TIFF, PCX, BMP, CSV, CGM,

GIF. This field is a variable length of 1-30 characters (including version if applicable).

This field shall be terminated by the “ ” character. The binary file type and the means

by which to represent the binary file type should be mutually agreed upon between the

trading partners.

ccc...c represents the compression technique employed. This field is a variable length of 0-30

characters. If no compression is used, this field shall be left blank. In any case, this field

shall be terminated by the “ ” character. The compression technique and the means by

which to represent the compression technique should be mutually agreed upon between

the trading partners.

nnn...n represents the number of bytes in the binary message. This field is a variable length field

of 1-15 digits. The count does not include the length of the data format header or the data

format trailer. This field shall be terminated by the “ ” character, which is not part of the

byte count.
5.3.13 Format header (“10”- “11”) — Reserved formats
Format headers “10” - “11” are reserved for future use.
5.3.14 Format header “12” — Data using text element identifiers
The format header shall be represented as
where is the data element separator to be used between data fields.
5.3.15 Format header (“13”-“99”) — Reserved formats
Format headers “13” - “99” are reserved for future use.
5.3.16 Format trailer

The format trailer identifies the end of a format envelope. The format trailer shall consist of the format

trailer character, the non-printable ASCII character “ ” (see Annex A). The format trailer character

shall not be used in non-binary data elsewhere in the message.

The format trailer shall not be used with formats “02” (Complete EDI message / transaction) and “08”

(CII - complete message).
5.4 Data format
5.4.1 General

Within a given format envelope, the data shall be formatted using one and only one of the following

methods.
— transportation;
— complete EDI message / transaction (ASC X12, UN/EDIFACT or CII standard);
— structured text (ASC X12 or UN/EDIFACT subset);
8 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/IEC 15434:2019(E)
— data structured using the rules of GS1 application identifiers;
— data structured using the rules of ASC MH 10 data identifiers;
— free form text;
— CII message record without message-group header and trailer;
— binary data;
— data structured using the rules of text element identifiers.

If more than one format is included in a message, Format “01”, if used, shall be the

...
