ISO 20673:2022

Ships and marine technology — Electric rudder angle indicators

This document specifies the construction, performance requirements, methods of testing and required test results for electric rudder angle indicators required to comply with Clause 2.5.4, Regulation 19, chapter V, SOLAS 1974 (as amended, 2000). This document is associated with IMO Resolution A.694 (17) and IEC 60945. Where a requirement in this document is different from IEC 60945, the requirement in this document takes precedence.

Navires et technologie maritime — Indicateurs de direction des gouvernails électriques

General Information

• Status: Published
• Publication Date: 27-Feb-2022
• ICS: 47.020.70 - Navigation and control equipment
• Technical Committee: ISO/TC 8/SC 6 - Navigation and ship operations
• Drafting Committee: ISO/TC 8/SC 6/WG 9 - Indicators
• Current Stage: 6060 - International Standard published
• Start Date: 28-Feb-2022
• Due Date: 13-Feb-2023
• Completion Date: 28-Feb-2022

Relations

• Revises: ISO 20673:2007 - Ships and marine technology — Electric rudder angle indicators
• Effective Date: 21-Oct-2017
• Consolidated By: ISO 16212:2017/Amd 1:2022 - Cosmetics — Microbiology — Enumeration of yeast and mould — Amendment 1
• Effective Date: 06-Jun-2022

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 20673
Second edition
2022-02
Ships and marine technology —
Electric rudder angle indicators
Navires et technologie maritime — Indicateurs de direction des
gouvernails électriques
Reference number
ISO 20673:2022(E)
© ISO 2022

---------------------- Page: 1 ----------------------
ISO 20673:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
  © ISO 2022 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 20673:2022(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Construction of the indicator system . 2
4.1 General . 2
4.2 Transmitter . 2
4.3 Receiver (indicator) . . 2
4.4 Alert . . 2
5 Performance requirements . .3
5.1 General . 3
5.2 Calibration accuracy . 3
5.3 Damping efficiency . 3
5.4 Power supply fluctuation . 3
5.5 Insulation resistance and high voltage . 3
6 Methods of testing and required test results . 3
6.1 Construction . 3
6.2 Environmental test . 4
6.3 Calibration test . 4
6.4 Damping test . 4
6.5 Power supply fluctuation test . 4
6.6 Alert test . . . 4
7 Interface . 4
8 Marking and identification .4
8.1 Identification . 4
8.2 Compass safe distance . 4
9 Information . 4
Bibliography . 5
iii
© ISO 2022 – All rights reserved

---------------------- Page: 3 ----------------------
ISO 20673:2022(E)

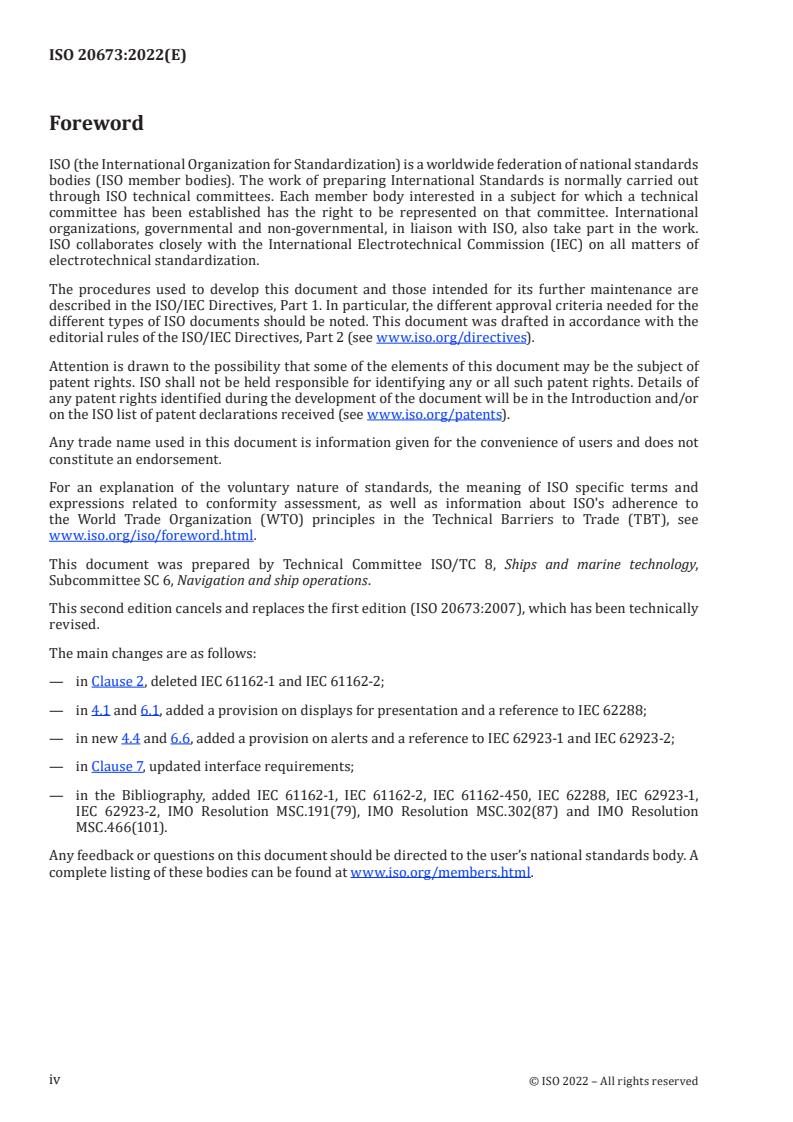

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 8, Ships and marine technology,
Subcommittee SC 6, Navigation and ship operations.
This second edition cancels and replaces the first edition (ISO 20673:2007), which has been technically
revised.
The main changes are as follows:
— in Clause 2, deleted IEC 61162-1 and IEC 61162-2;
— in 4.1 and 6.1, added a provision on displays for presentation and a reference to IEC 62288;
— in new 4.4 and 6.6, added a provision on alerts and a reference to IEC 62923-1 and IEC 62923-2;
— in Clause 7, updated interface requirements;
— in the Bibliography, added IEC 61162-1, IEC 61162-2, IEC 61162-450, IEC 62288, IEC 62923-1,
IEC 62923-2, IMO Resolution MSC.191(79), IMO Resolution MSC.302(87) and IMO Resolution
MSC.466(101).
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
  © ISO 2022 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 20673:2022(E)
Ships and marine technology — Electric rudder angle
indicators
1 Scope
This document specifies the construction, performance requirements, methods of testing and required
test results for electric rudder angle indicators required to comply with Clause 2.5.4, Regulation 19,
chapter V, SOLAS 1974 (as amended, 2000).
This document is associated with IMO Resolution A.694 (17) and IEC 60945.
Where a requirement in this document is different from IEC 60945, the requirement in this document
takes precedence.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
...
