Standards Content (Sample)

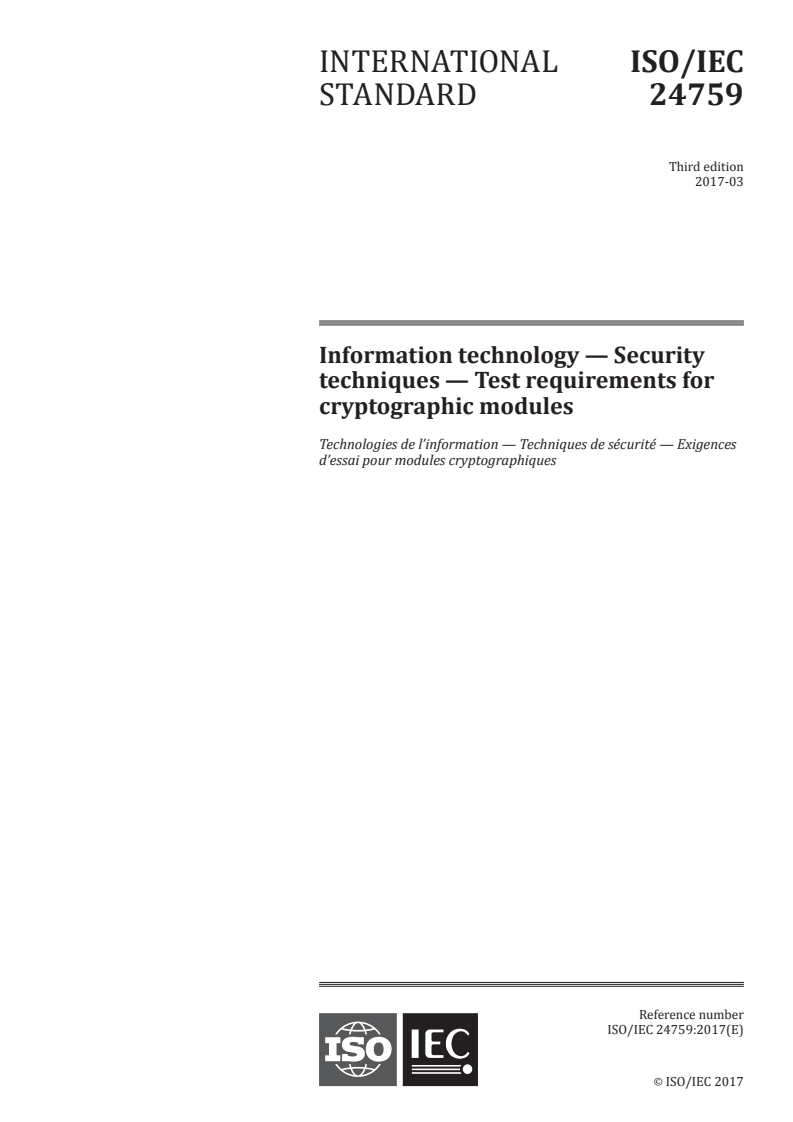

INTERNATIONAL ISO/IEC
STANDARD 24759
Third edition
2017-03
Information technology — Security
techniques — Test requirements for
cryptographic modules
Technologies de l’information — Techniques de sécurité — Exigences
d’essai pour modules cryptographiques
Reference number
ISO/IEC 24759:2017(E)
©
ISO/IEC 2017

---------------------- Page: 1 ----------------------
ISO/IEC 24759:2017(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO/IEC 2017 – All rights reserved

---------------------- Page: 2 ----------------------

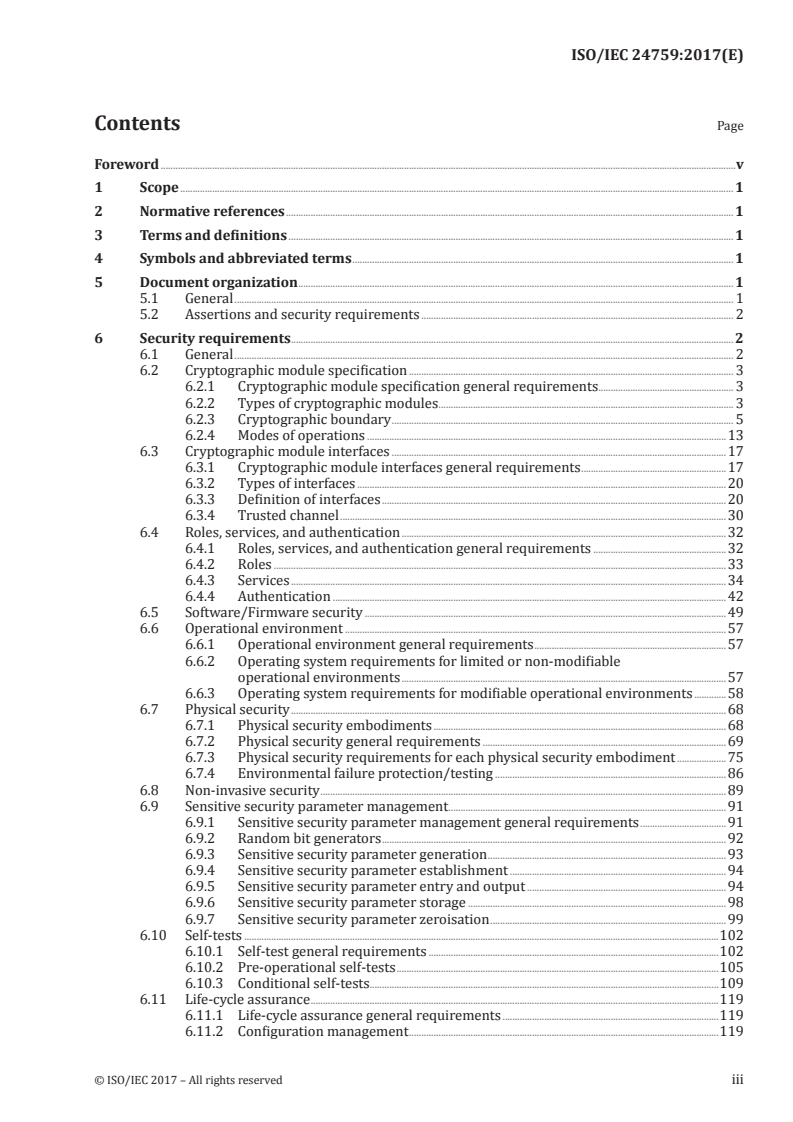

ISO/IEC 24759:2017(E)

Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 1
5 Document organization . 1
5.1 General . 1
5.2 Assertions and security requirements . 2
6 Security requirements . 2
6.1 General . 2
6.2 Cryptographic module specification . 3
6.2.1 Cryptographic module specification general requirements . 3
6.2.2 Types of cryptographic modules . 3
6.2.3 Cryptographic boundary . 5
6.2.4 Modes of operations .13
6.3 Cryptographic module interfaces .17
6.3.1 Cryptographic module interfaces general requirements .17
6.3.2 Types of interfaces .20
6.3.3 Definition of interfaces .20
6.3.4 Trusted channel .30
6.4 Roles, services, and authentication .32
6.4.1 Roles, services, and authentication general requirements .32
6.4.2 Roles .33
6.4.3 Services .34
6.4.4 Authentication .42
6.5 Software/Firmware security .49
6.6 Operational environment .57
6.6.1 Operational environment general requirements .57
6.6.2 Operating system requirements for limited or non-modifiable
operational environments .57
6.6.3 Operating system requirements for modifiable operational environments .58
6.7 Physical security .68
6.7.1 Physical security embodiments .68
6.7.2 Physical security general requirements .69
6.7.3 Physical security requirements for each physical security embodiment .75
6.7.4 Environmental failure protection/testing .86
6.8 Non-invasive security .89
6.9 Sensitive security parameter management .91
6.9.1 Sensitive security parameter management general requirements .91
6.9.2 Random bit generators .92
6.9.3 Sensitive security parameter generation .93
6.9.4 Sensitive security parameter establishment .94
6.9.5 Sensitive security parameter entry and output .94
6.9.6 Sensitive security parameter storage .98
6.9.7 Sensitive security parameter zeroisation .99
6.10 Self-tests .102
6.10.1 Self-test general requirements .102
6.10.2 Pre-operational self-tests .105
6.10.3 Conditional self-tests.109
6.11 Life-cycle assurance .119
6.11.1 Life-cycle assurance general requirements .119
6.11.2 Configuration management .119
© ISO/IEC 2017 – All rights reserved iii

---------------------- Page: 3 ----------------------

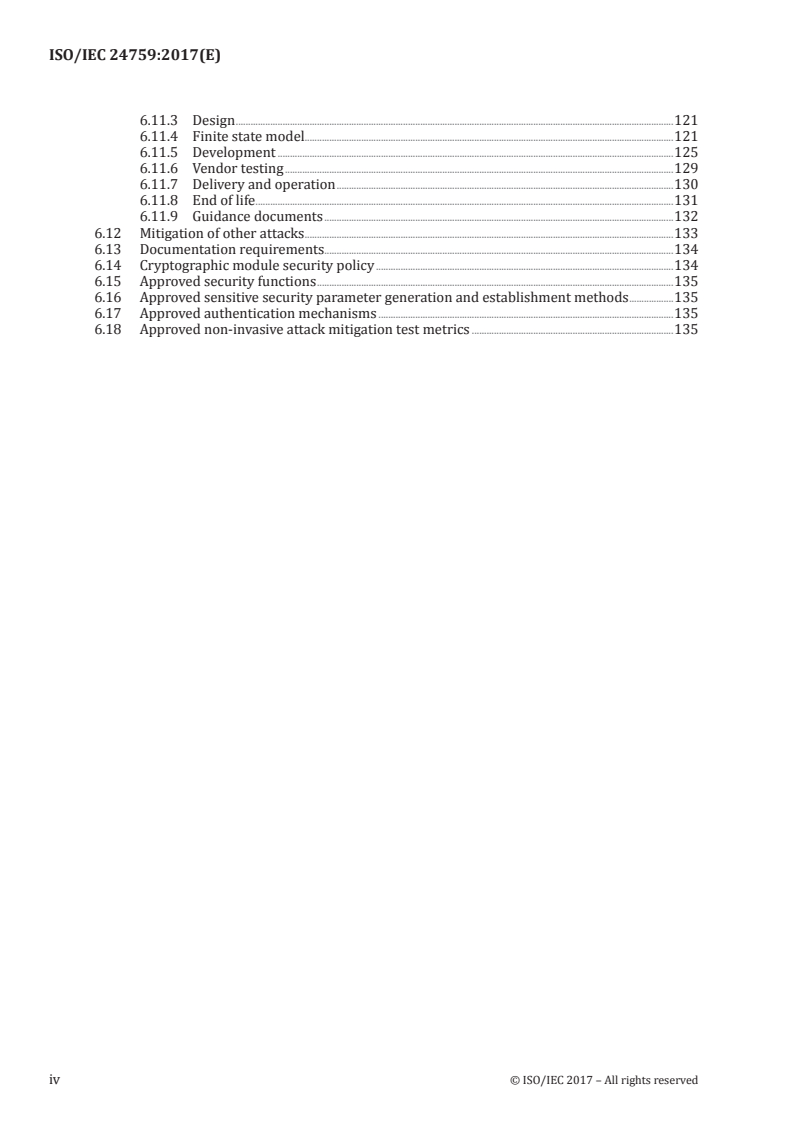

ISO/IEC 24759:2017(E)

6.11.3 Design .121
6.11.4 Finite state model.121
6.11.5 Development .125
6.11.6 Vendor testing .129
6.11.7 Delivery and operation .130
6.11.8 End of life .131
6.11.9 Guidance documents .132
6.12 Mitigation of other attacks .133
6.13 Documentation requirements.134
6.14 Cryptographic module security policy .134
6.15 Approved security functions .135
6.16 Approved sensitive security parameter generation and establishment methods .135
6.17 Approved authentication mechanisms .135
6.18 Approved non-invasive attack mitigation test metrics .135
iv © ISO/IEC 2017 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 24759:2017(E)

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: w w w . i s o .org/ iso/ foreword .html.
This document was prepared by ISO/IEC JTC 1, Information technology, Subcommittee SC 27, IT Security
techniques.
This third edition cancels and replaces the second edition (ISO/IEC 24759:2014), of which it constitutes
a minor revision. It also incorporates the Technical Corrigendum ISO/IEC 24759:2014/Cor.1:2015.
The main changes compared to the previous edition (plus other minor editorial modifications) are as
follows:
— References to ISO/IEC 19790:2012 have been corrected throughout:
— 6.2.3.2: AS02.15, AS02.16, AS02.17 and AS02.18 modified;
— 6.3.3: AS03.04, AS03.07, AS03.10 and AS03.15 modified;
— 6.3.4: AS03.19 modified;
— 6.4.1: AS04.02 modified;
— 6.4.2; AS04.05, AS04.06 and AS04.07 modified;
— 6.4.3.1: AS04.11, AS04.13 and AS04.14;
— 6.4.3.2 and AS04.20;
— 6.4.4: AS04.39, AS04.40 and AS04.42 modified;
— 6.5: AS05.05, AS05.06, AS05.07, AS05.08, AS05.13, AS05.17 and AS05.18 modified;
— 6.8: AS08.04 modified;
— 6.10.1: AS10.17 modified.
© ISO/IEC 2017 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO/IEC 24759:2017(E)

vi © ISO/IEC 2017 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO/IEC 24759:2017(E)
Information technology — Security techniques — Test
requirements for cryptographic modules
1 Scope
This document specifies the methods to be used by testing laboratories to test whether the
cryptographic module conforms to the requirements specified in ISO/IEC 19790:2012. The methods are
developed to provide a high degree of objectivity during the testing process and to ensure consistency
across the testing laboratories.
This document also specifies the requirements for information that vendors provide to testing
laboratories as supporting evidence to demonstrate their cryptographic modules’ conformity to the
requirements specified in ISO/IEC 19790:2012.
Vendors can use this document as guidance in trying to verify whether their cryptographic modules
satisfy the requirements specified in ISO/IEC 19790:2012 before they apply to the testing laboratory
for testing.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 19790:2012, Information technology — Security techniques — Security requirements for
cryptographic modules
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 19790:2012 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
4 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in ISO/IEC 19790:2012 apply.
5 Document organization
5.1 General
Clause 6 specifies the methods that shall be used by testing laboratories and the requirements for
information that vendors shall provide to testing laboratories. Clause 6, besides a general subclause,
6.1, includes eleven subclauses corresponding to the eleven areas of security requirements and six
subclauses corresponding to the six annexes, Annex A to Annex F, of ISO/IEC 19790:2012.
© ISO/IEC 2017 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO/IEC 24759:2017(E)

5.2 Assertions and security requirements
Within each subclause, the corresponding security requirements from ISO/IEC 19790:2012 are divided
into a set of assertions (i.e. statements that have to be true for the module to satisfy the requirement of
a given area at a given level). All of the assertions are direct quotations from ISO/IEC 19790:2012.
The assertions are denoted by the form
AS.
where “requirement_number” is the number of the corresponding area specified in ISO/IEC 19790:2012
(i.e. one to twelve and A to F), and “sequence_number” is a sequential identifier for assertions within a
subclause. After the statement of each assertion, the security levels to which the assertion applies (i.e.
levels 1 to 4) are listed in parentheses.
Following each assertion is a set of requirements levied on the vendor. These requirements describe the
types of documentation or explicit information that the vendor shall provide in order for the tester to
verify conformity to the given assertion. These requirements are denoted by the form
VE..
where “requirement_number” and “assertion_sequence_number” are identical to the corresponding
assertion requirement number and sequence number, and “sequence_number” is a sequential identifier
for vendor requirements within the assertion requirement.
Also following each assertion and the requirements levied on the vendor is a set of requirements
levied on the tester of the cryptographic module. These requirements instruct the tester as to what
he or she shall do in order to test the cryptographic module with respect to the given assertion. These
requirements are denoted by the form
TE..
where “requirement_number” and “assertion_sequence_number” are identical to the corresponding
assertion requirement number and sequence number, and “sequence_number” is a sequential identifier
for tester requirements within the assertion requirement.
A validation authority may modify, add, or delete VEs and/or TEs in this document.
5.3 Assertions with cross references
For clarity in some assertions, cross references to ISO/IEC 19790:2012 or other assertions numbers
have been put between curly brackets “{“ and ”}”. Those cross references are written in italics.
6 Security requirements
6.1 General
NOTE 6.1 states general requirements to meet the assertions of the other subclauses in Clause 6, and
ISO/IEC 19790:2012, Annex A to Annex F. 6.1 sets no assertion of itself and is not separately tested.
AS01.01: (General — Levels 1, 2, 3, and 4)
This clause specifies the security requirements that shall be satisfied by the cryptographic
module’s compliance to {ISO/IEC 19790:2012}.
AS01.02: (General — Levels 1, 2, 3, and 4)
A cryptographic module shall be tested against the requirements of each area addressed in
this clause.
NOTE The tests can be performed in one or more of the following manners.
2 © ISO/IEC 2017 – All rights reserved

---------------------- Page: 8 ----------------------
ISO/IEC 24759:2017(E)

a)  Tester performs tests at the tester’s facility.
b)  Tester performs tests at the vendor’s facility.
c)  Tester supervises vendor performing tests at the vendor’s facility.
   —  Rationale is included that explains why tester could not perform the tests.
   —  Tester develops the required test plan and required tests.
   —  Tester directly observes the tests being performed.
An assertion fails if any of its subsequent tests fails.
AS01.03: (General — Levels 1, 2, 3, and 4)
The cryptographic module shall be independently rated in each area.
AS01.04: (General — Levels 1, 2, 3, and 4)
All documentation, including copies of the user and installation manuals, design specifications,
life-cycle documentation shall be provided for a cryptographic module that is to undergo an
independent verification or evaluation scheme.
6.2 Cryptographic module specification
6.2.1 Cryptographic module specification general requirements
AS02.01: (Specification — Levels 1, 2, 3, and 4)
A cryptographic module shall be a set of hardware, software, firmware, or some combination
thereof, that at a minimum, implements a defined cryptographic service employing an
approved cryptographic algorithm, security function or process and contained within a defined
cryptographic boundary.
NOTE This assertion is not separately tested.
AS02.02: (Specification — Levels 1, 2, 3, and 4)
The documentation requirements specified in {ISO/IEC 19790:2012} A.2.2 shall be provided.
NOTE This assertion is tested as part of ASA.01.
6.2.2 Types of cryptographic modules
AS02.03: (Specification — Levels 1, 2, 3, and 4)
A cryptographic module shall be defined as one of the following module types:
— Hardware module is a module whose cryptographic boundary is specified at a hardware
perimeter. Firmware and/or software, which may also include an operating system, may be
included within this hardware cryptographic boundary.
— Software module is a module whose cryptographic boundary delimits the software exclusive
component(s) (may be one or multiple software components) that execute(s) in a modifiable
operational environment. The computing platform and operating system of the operational
environment which the software executes in are external to the defined software module
boundary.
— Firmware module is a module whose cryptographic boundary delimits the firmware exclusive
component(s) that execute(s) in a limited or non-modifiable operational environment.
The computing platform and operating system of the operational environment which the
© ISO/IEC 2017 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO/IEC 24759:2017(E)

firmware executes in are external to the defined firmware module boundary but explicitly
bound to the firmware module.
— Hybrid Software module is a module whose cryptographic boundary delimits the composite of
a software component and a disjoint hardware component (i.e. the software component is not
contained within the hardware module boundary). The computing platform and operating
system of the operational environment which the software executes in are external to the
defined hybrid software module boundary.
— Hybrid Firmware module is a module whose cryptographic boundary delimits the composite
of a firmware component and a disjoint hardware component (i.e. the firmware component
is not contained within the hardware module boundary). The computing platform and
operating system of the operational environment which the firmware executes in are
external to the defined hybrid firmware module boundary but explicitly bound to the hybrid
firmware module.
Required Vendor Information
VE02.03.01: The vendor shall provide a description of the cryptographic module describing the type of
cryptographic module. It will explain the rationale of the module type selection.
VE02.03.02: The vendor shall provide a specification of the cryptographic module identifying all
hardware, software, and/or firmware components of the cryptographic module.
Required Test Procedures
TE02.03.01: The tester shall verify that the vendor provided documentation identifies one of the module
types listed in AS02.03.
TE02.03.02: The tester shall verify from the vendor provided specification documentation, by
identifying all hardware, software, and/or firmware components (AS02.15 to AS02.18), that the
cryptographic module is consistent with the type of the cryptographic module.
AS02.04: (Specification — Levels 1, 2, 3, and 4)
For hardware and firmware modules, the applicable physical security and non-invasive security
requirements found in {ISO/IEC 19790:2012} 7.7 and 7.8 shall apply.
NOTE This assertion is not tested separately.
AS02.05: (Specification — Levels 1, 2, 3, and 4)
For software modules executing in a modifiable environment, the physical security
requirements found in {ISO/IEC 19790:2012} 7.7 are optional and the applicable non-invasive
security requirements in {ISO/IEC 19790:2012} 7.8 shall apply.
NOTE This assertion is not tested separately.
4 © ISO/IEC 2017 – All rights reserved

---------------------- Page: 10 ----------------------
ISO/IEC 24759:2017(E)

AS02.06: (Specification — Levels 1, 2, 3, and 4)
For hybrid modules, all applicable requirements of {ISO/IEC 19790:2012} 7.5, 7.6, 7.7 and 7.8
shall apply.
NOTE This assertion is not tested separately.
6.2.3 Cryptographic boundary
6.2.3.1 Cryptographic boundary general requirements
AS02.07: (Specification — Levels 1, 2, 3, and 4)
The cryptographic boundary shall consist of an explicitly defined perimeter (i.e. set of hardware,
software or firmware components) that establishes the boundary of all components of the
cryptographic module.
Required Vendor Information
VE02.07.01: The vendor documentation shall specify all components within the cryptographic
boundary.
Required Test Procedures
TE02.07.01: The tester shall verify by inspection and from the vendor documentation that all the
components specified in AS02.15 to AS02.18 are within the cryptographic boundary.
TE02.07.02: The tester shall verify by inspection and from the vendor documentation that there are
no unidentified components which are not specified in AS02.15 to AS02.18 within the cryptographic
boundary.
AS02.08: (Specification — Levels 1, 2, 3, and 4)
The requirements of {ISO/IEC 19790:2012} shall apply to all algorithms, security functions,
processes, and components within the module’s cryptographic boundary.
NOTE This assertion is not tested separately.
AS02.09: (Specification — Levels 1, 2, 3, and 4)
The cryptographic boundary shall, at a minimum, encompass all security relevant algorithms,
security functions, processes, and components of a cryptographic module (i.e. security relevant
within the scope of this document).
Required Vendor Information
VE02.09.01: The vendor shall provide a list of all the security relevant algorithms, security functions,
processes, and components within the cryptographic boundary.
Required Test Procedures
TE02.09.01: The tester shall verify that the vendor provided documentation clearly identifies and lists
all the security relevant algorithms, security functions, processes, and components of the module
within the cryptographic boundary.
AS02.10: (Specification — Levels 1, 2, 3, and 4)
Non-security relevant algorithms, security functions, processes or components which are
used in an approved mode of operation shall be implemented in a manner to not interfere or
compromise the approved operation of the cryptographic module.
© ISO/IEC 2017 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO/IEC 24759:2017(E)

Required Vendor Information
VE02.10.01: The vendor provided documentation shall list the non-security relevant functions used in
an approved mode of operation and justify that they are not interfering with the approved mode of
operation of the module.
Required Test Procedures
TE02.10.01: The tester shall verify through documentation review and inspection of the module that the
non-security relevant functions are not interfering or compromising the approved mode of operation of
the module.
TE02.10.02: The tester shall verify the correctness of any rationale for not interfering nor compromising
provided by the vendor. The burden of proof is on the vendor; if there is any uncertainty or ambiguity,
the tester shall require the vendor to produce additional information as needed.
AS02.11: (Specification — Levels 1, 2, 3, and 4)
The defined name of a cryptographic module shall be representative of the composition of the
components within the cryptographic boundary and not representative of a larger compositi
...
