ISO 24224:2022

Ships and marine technology — Tanker cargo manifold shore connection — Technical requirements

This document specifies the types, structure, dimensions and technical requirements of manifolds for oil and chemical tankers. It applies to the cargo and vapour piping systems for the transfer of cargoes of oil or chemical tankers. NOTE This document can be also be applied to the design of bunker (ship fuel) transfer system manifolds for oil or chemical tankers at terminals. ISO 23212 is generally applicable to flanged connections for bunker fuel and lubricating oil transfer to ships from supply vessels or onshore facilities.

Navires et technologie maritime — Connection à quai de la traverse des pétroliers — Exigences techniques

General Information

• Status: Published
• Publication Date: 18-Aug-2022
• ICS: 47.020.30 - Piping systems
• Technical Committee: ISO/TC 8/SC 3 - Piping and machinery
• Drafting Committee: ISO/TC 8/SC 3 - Piping and machinery
• Current Stage: 6060 - International Standard published
• Start Date: 19-Aug-2022
• Due Date: 24-Jun-2022
• Completion Date: 19-Aug-2022

Standards Content (Sample)

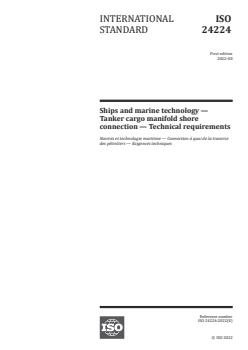

INTERNATIONAL ISO
STANDARD 24224
First edition
2022-08
Ships and marine technology —
Tanker cargo manifold shore
connection — Technical requirements
Navires et technologie maritime — Connection à quai de la traverse
des pétroliers — Exigences techniques
Reference number
ISO 24224:2022(E)
© ISO 2022

---------------------- Page: 1 ----------------------
ISO 24224:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
  © ISO 2022 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 24224:2022(E)

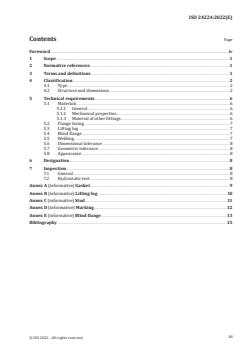

Contents Page
