INTERNATIONAL ISO
STANDARD 21308-6
First edition
2018-10
Road vehicles — Product data
exchange between chassis and
bodywork manufacturers (BEP) —
Part 6:
Coding of hook loader bodywork
Véhicules routiers — Echange de données de produit entre les
fabricants de châssis et de carrosseries (BEP) —
Partie 6: Codage des bras hydrauliques pour bennes amovibles
Reference number
ISO 21308-6:2018(E)
ISO 2018
---------------------- Page: 1 ----------------------
ISO 21308-6:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 21308-6:2018(E)
Contents Page
Foreword ........................................................................................................................................................................................................................................iv
Introduction ..................................................................................................................................................................................................................................v
1 Scope ................................................................................................................................................................................................................................. 1
2 Normative references ...................................................................................................................................................................................... 1
3 Terms and definitions ..................................................................................................................................................................................... 1
4 Coding principles ................................................................................................................................................................................................. 3
4.1 BEP codes of bodywork for hook loaders ........................................................................................................................ 3
4.2 Units of BEP code values ................................................................................................................................................................ 3
4.3 References for measurements ................................................................................................................................................... 4
4.3.1 Global coordinate system (X, Y, Z) ..................................................................................................................... 4
4.3.2 Hook loader coordinate system .......................................................................................................................... 4
4.4 Related XML coding ............................................................................................................................................................................ 6
5 Coding of geometrical data and space requirements ..................................................................................................... 7
5.1 Installation of hook loader on vehicle ................................................................................................................................. 7
5.2 Main dimensions hook loaders ................................................................................................................................................. 9
5.2.1 Transport position ...................................................................... .................................................................................... 9
5.2.2 Tipping/dumping position .................. .................................................................................................................12
5.2.3 Loading/unloading position ...............................................................................................................................14
6 Coding of container dimensions and features necessary for the handling ..........................................17
7 Coding of masses ...............................................................................................................................................................................................20
7.1 Mass point in transport position ..........................................................................................................................................20
7.2 Mass point in working position .............................................................................................................................................21
7.3 Mass point for container ..............................................................................................................................................................23
8 Coding of general hook loader data ...............................................................................................................................................23
8.1 General hook loader data ............................................................................................................................................................23
8.2 Mechanical interfaces to truck ...............................................................................................................................................24
8.3 Mechanical interfaces to container ....................................................................................................................................24
8.4 Hydraulics equipment and interfaces ..............................................................................................................................24
8.5 Electrical/electronic equipment and interfaces .....................................................................................................24
Annex A (normative) XML coding related to this document .....................................................................................................25
Annex B (informative) Overview of container frame dimensions ......................................................................................27
Bibliography .............................................................................................................................................................................................................................32
© ISO 2018 – All rights reserved iii---------------------- Page: 3 ----------------------
ISO 21308-6:2018(E)

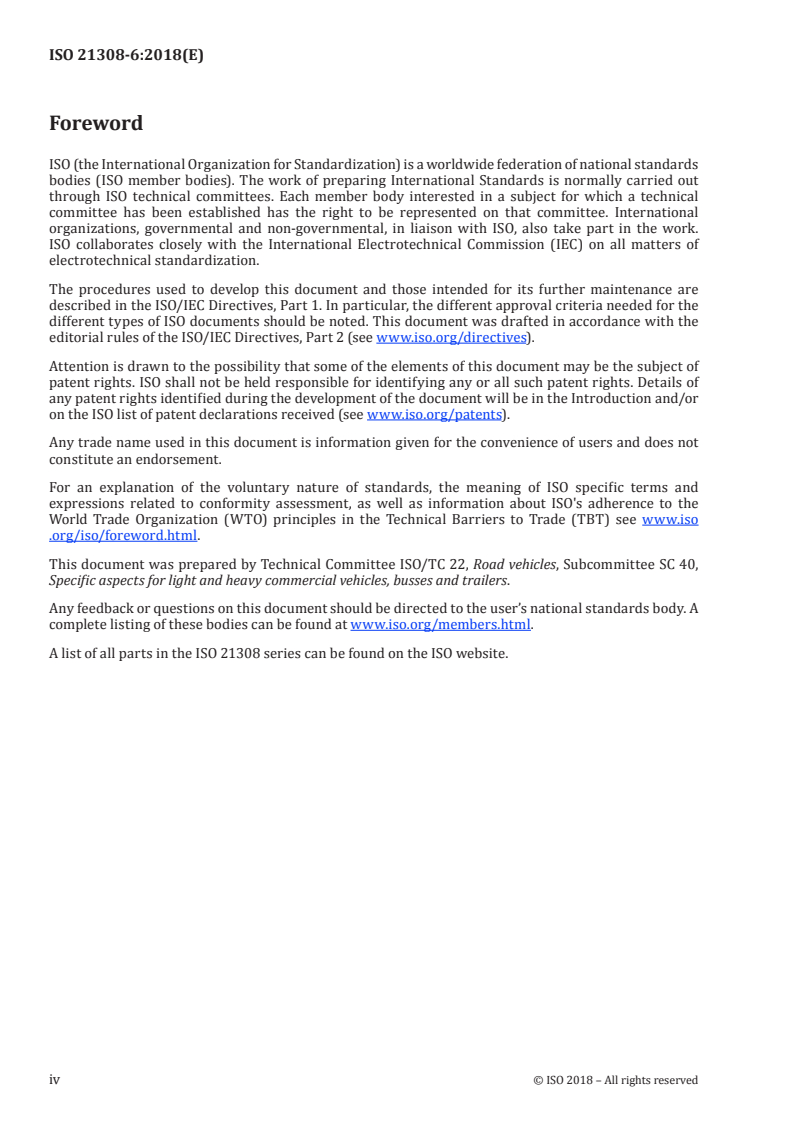

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 40,
Specific aspects for light and heavy commercial vehicles, busses and trailers.Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.A list of all parts in the ISO 21308 series can be found on the ISO website.
iv © ISO 2018 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 21308-6:2018(E)
Introduction
Based on the ISO BEP (bodywork exchange parameters) system, this document specifically deals with
the coding of dimensions and other characteristics of hook loaders. The aim is to ensure an efficient and
unambiguous communication of dimensional installation data between the parties involved.
The document also covers coding of characteristics of hydraulic, electrical and electronic interfaces to
the vehicle.The document is useful for all parties involved in the installation of hook loaders to vehicles, e.g. hook
loader manufacturers, truck chassis manufacturers, and bodywork manufacturers.© ISO 2018 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 21308-6:2018(E)
Road vehicles — Product data exchange between chassis
and bodywork manufacturers (BEP) —
Part 6:
Coding of hook loader bodywork
1 Scope
This document series describes a generic system for the exchange of data between truck chassis
manufacturers and bodywork manufacturers. It applies to commercial vehicles as defined in ISO 3833,
having a maximum gross vehicle mass above 3 500 kg.The process of exchanging the above information can involve:
— chassis manufacturer;
— chassis importer;
— chassis dealer;
— one or more bodywork manufacturers; and
— bodywork component suppliers, e.g. manufacturers of demountable bodies, cranes and loading
equipment, tipping equipment.This document specifically deals with the coding of dimensions and other characteristics of hook
loaders, to ensure an efficient and unambiguous communication of installation data between the
parties involved.2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 21308-1, Road vehicles — Product data exchange between chassis and bodywork manufacturers
(BEP) — Part 1: General principlesISO 21308-2, Road vehicles — Product data exchange between chassis and bodywork manufacturers
(BEP) — Part 2: Dimensional bodywork exchange parametersISO 21308-3, Road vehicles — Product data exchange between chassis and bodywork manufacturers
(BEP) — Part 3: General, mass and administrative exchange parameters3 Terms and definitions
For the purposes of this document the terms and definitions given in ISO 21308-2 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/— ISO Online browsing platform: available at https: //www .iso .org/obp
© ISO 2018 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 21308-6:2018(E)
3.1
hook loader
hook lift
vehicle or trailer mounted powered equipment comprising of a hook arm column that can move
longitudinally in a telescopic and articulated path, designed for loading, unloading and tipping
containers and other demountables equipped with hook lift framesNote 1 to entry: Both expressions (hook loader and hook lift) are used worldwide. In this document, the term
hook loader is used.Note 2 to entry: Figure 1 shows the main parts of a hook loader referred to in this document.
Key1 hook loader subframe 9 container load bed
2 hook arm 10 reference point
3 rear roller 11 middle frame highest point
4 hook 12 main cylinder
5 push-back block 13 non-articulated hook arm
6 container locking mechanism 14 articulated hook arm
7 container support 15 telescopic movement
8 tipping pivot point 16 articulation movement
Figure 1 — Main parts and characteristics of hook loader
2 © ISO 2018 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 21308-6:2018(E)
4 Coding principles
4.1 BEP codes of bodywork for hook loaders
Each characteristic, related to the hook loader and its interfaces to truck chassis, is assigned a code
composed of the items given below. A prefix “BEP”, followed by a dash (-), shall be used to avoid
confusion with other coding systems.BEP codes are formatted according to the principles in Table 1.
Table 1 — BEP coding principles
BEP-ppMccc.n.p.q.s.t
Item Assignment Description
pp Bodywork category pp = None or 00 for codes related to vehicle chassis (ISO 21308-2 and
ISO 21308-3)pp = 01 for codes related to loader cranes (ISO 21308-5)
pp = 02 for codes related to hook loaders (ISO 21308-6)
pp = 03 for codes related to skip loaders (ISO 21308-7)
Future parts of the ISO 21308 series may introduce new pp numbers.
M Measure type A capital letter, which denotes the type of code:
H = Z direction, coordinate system in accordance with ISO 4130
L = X direction, coordinate system in accordance with ISO 4130
W = Y direction, coordinate system in accordance with ISO 4130
C = Coordinate (x,y) or (x,y,z) in the Cartesian coordinate system
R = Radius
V = Angle
M = Mass (m), or mass point (m,x,y,z)
F = Force (static or dynamic)
T = Moment (static or dynamic)
G = General
A = Administrative
ccc BEP code number Code number given by the standard
.n Index number .n is used to designate object number n
.p Entity number .p is used to designate a certain set of object characteristics or entities (e.g.
dimensions, coordinates, address information)Where both .n and .p are specified, they are given in the .n .p order.
.q Corner number .q is used to designate contour corner index number
.s Side designator L or R
.t Type designator .t is used to designate a certain type (e.g. “Rigid” or “Flexible”)
NOTE Dimensions, except for radius, can be positive or negative.4.2 Units of BEP code values
The following units are preferred when reporting values related to BEP codes (see also ISO 21308-1):
— dimensions (L, W, H, R) and coordinates (x, y, z) in millimetres (mm);— masses in kilograms (kg);
© ISO 2018 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 21308-6:2018(E)
— forces in Newtons (N), or kN;
— moments in Newtonmetres (Nm), or kNm; and
— angles in degrees (°).
NOTE Guidance on units is shown in the unit column for each BEP code.
4.3 References for measurements
4.3.1 Global coordinate system (X, Y, Z)
A vehicle coordinate system according to ISO 4130 is applied, see Figure 2. Global coordinates for the
vehicle are denominated X, Y and Z (uppercase letters).Figure 2 — Vehicle coordinate system according to ISO 4130
4.3.2 Hook loader coordinate system
For a default mounting position, the principle should be that the hook loader coordinate directions
should coincide with those of the vehicle. Local bodywork coordinates are denominated x, y and z
(lowercase letters), see Figure 3.4 © ISO 2018 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 21308-6:2018(E)
Figure 3 — Local coordinate system for hook loader
The origin of the coordinate system for a hook loader (referred to as zero reference point in this
document) is defined by:— Local x = 0 for the plane through the centre of the tipping shaft;
© ISO 2018 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO 21308-6:2018(E)
— Local y = 0 for the longitudinal plane through the single pickup point of the hook loader; and
— Local z = 0 at the lower mounting plane of the hook loader subframe.NOTE For installation of a hook loader on a truck chassis, an additional frame could be required between the
chassis top mounting plane and hook loader lower mounting plane.4.4 Related XML coding
Any XML implementation for the communication of BEP codes shall follow the requirements given in
ISO 21308-1. The XML coding related to this document shall be written according to the indications
in Annex A6 © ISO 2018 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 21308-6:2018(E)
5 Coding of geometrical data and space requirements
5.1 Installation of hook loader on vehicle
BEP-code Assignment Description Unit Presented
BEP-02L001 Front axle to Distance from the centre of the first front axle mm 2D, 3D, TD
zero point of to the zero reference point of the hook loader.hook loader
BEP-02L002.p.s.t Distance Fixed distance, or minimum distance, from the mm 2D, 3D, TD
between zero zero reference point to the centre of interface ofreference the installation interface p of the hook loader.
point and
NOTE 1 If the installation interfaces are not
installation
symmetrical, different values for right and left
interface
hand side apply, marked with .R or .L.
bracket, mini-
mum
NOTE 2 The method of installation is defined
in different types (t), specified e.g. "Rigid" or
"Flexible".
NOTE 3 If L003 exists, L002 is the minimum
distance, otherwise it is the fixed distance.
EXAMPLE BEP-02L002.3.L.Rigid.
BEP-02L003.p.s Maximum Maximum distance from the zero reference mm 2D, 3D, TD
distance point to the centre of interface of the installa-
between zero tion interface p of the hook loader.
reference
NOTE 1 If the installation interfaces are not
point and
symmetrical, different values for right and left
installation
hand side apply, marked with .R or .L.
interface
bracket NOTE 2 If L002 is a fixed distance, L003 is
omitted.
BEP-02L004.p.s Distance Distance from the zero reference point to the mm 2D, 3D, TD
between zero first (index) hole of the installation interface preference of the hook loader.
point and
installation
interface hole
© ISO 2018 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO 21308-6:2018(E)
BEP-code Assignment Description Unit Presented
BEP-02H001 Distance to Distance between mounting plane and the mm 2D, 3D, TD
reference reference plane of the hook loader
plane of hook
NOTE 1 Mounting plane is either the upper
loader
plane of the chassis frame or the upper plane
of the additional subframe. The height of an ad-
ditional subframe is defined in ISO 21308-2 by
the code BEP-H070.
NOTE 2 02H001 can be used to describe e.g. a
space needed for weighing cells.
NOTE 3 If there is no distance, 02H001 can be
omitted.
8 © ISO 2018 – All rights reserved
---------------------- Page: 13 ----------------------
ISO 21308-6:2018(E)
5.2 Main dimensions hook loaders
5.2.1 Transport position
BEP-code Assignment Description Unit Presented in
BEP-02L020 Subframe over- Horizontal distance between reference point and mm 2D, 3D, TD
hang rear rear end of hook loader subframeBEP-02L021 Minimum Minimum required installation length mm 2D, 3D, TD
length
NOTE The frontmost part can be the vertical hook
arm or a cross-member.
BEP-02L022 Rear roller Horizontal distance between reference point and mm 2D, 3D, TD
displacement centre of rear rollersBEP-02L023 Front overhang Horizontal distance between the frontmost part of mm 2D, 3D, TD
the hook arm and the frontmost part of the subframeBEP-02L024 Rear roller to Horizontal distance between the nominal position of mm 2D, 3D, TD
hook distance the container bar and the centre of rear rollersBEP-02L025 Push-back Horizontal distance between the nominal position of mm 2D, 3D, TD
plane the container bar and the rearmost part of the push-back block
BEP-02L026.p Hydraulic lock Horizontal distance between the n-th hydraulic con- mm 2D, 3D, TD
distance tainer locking mechanism and the reference pointBEP-02L027.p Mechanical Horizontal distance between the n-th mechanical mm 2D, 3D, TD
lock distance container locking mechanism and reference point© ISO 2018 – All rights reserved 9
---------------------- Page: 14 ----------------------
ISO 21308-6:2018(E)
BEP-code Assignment Description Unit Presented in
BEP-02H020 Tipping pivot Vertical distance between the reference point and mm 2D, 3D, TD
height the centre of the tipping pivot pointBEP-02H021 Subframe Vertical distance between the reference point and mm 2D, 3D, TD
height the top plane of the subframeBEP-02H022 Rear roller Vertical distance between the reference point and mm 2D, 3D, TD
height the centre of the rear rollersBEP-02H023 Nominal Vertical distance between the container load bed and mm 2D, 3D, TD
container bar the nominal position of the container barheight
BEP-02H024 Overall hook Vertical distance between the reference point and mm 2D, 3D, TD
height the top of the hook armBEP-02H025 Load bed height Vertical distance between reference point and the mm 2D, 3D, TD
container load bedBEP-02H026 Lower buffer Vertical distance between the container load bed and mm 2D, 3D, TD
height the lowest edge of the push-back blockBEP-02H027 Required tun- Vertical distance between the container load bed and mm 2D, 3D, TD
nel height the highest point of the middle frameNOTE Items connected to the middle frame, e.g.
parts of the main cylinder, can be the highest point.
BEP-02L028 Telescopic Horizontal distance between nominal position of the mm 2D, 3D, TD
range container bar and the position of the container barwhen shifted to the rearmost position
BEP-02L029 Articulation Horizontal distance of the container bar between the mm 2D, 3D, TD
range non-articulated hook arm and the maximum articu-lated hook arm
10 © ISO 2018 – All rights reserved
---------------------- Page: 15 ----------------------
ISO 21308-6:2018(E)
BEP-code Assignment Description Unit Presented in
BEP-02L030.p Distance in ac- Horizontal distance of the container bar between mm 2D, 3D, TD
tual transport the frontmost position and the position applied forposition transporting container p
NOTE 1 This distance can be obtained by any combi-
nation of telescopic and articulation movement.
NOTE 2 The total length of the hook loader and con-
tainer combination, measured from the frontmost bar
position, is given by 02L030.n + 02R200 + 02L204.
© ISO 2018 – All rights reserved 11
---------------------- Page: 16 ----------------------
ISO 21308-6:2018(E)
5.2.2 Tipping/dumping position
BEP-code Assignment Description Unit Presented in
BEP-02H040 Topmost hook Distance from mounting plane to the topmost mm 2D, 3D, TD
bar point hook bar centre point at maximum tipping angle.BEP-02H041 Topmost hook Distance from the topmost hook bar centre mm 2D, 3D, TD
point point to the highest point of the hook at maxi-
mum tipping angle.
BEP-02V040 Maximum tip- The maximum angle when tipping. ° 2D, 3D, TD
ping angle
12 © ISO 2018 – All rights reserved
---------------------- Page: 17 ----------------------
ISO 21308-6:2018(E)
BEP-code Assignment Description Unit Presented in
BEP-02L042.p Rearmost tip- Distance from reference point to rearmost point mm 2D, 3D, TD
ping point of container p when tipping.BEP-02H042.p Highest tipping Distance from ground to highest point of con- mm 2D, 3D, TD
point tainer p when tipping.BEP-02H043.p Lowest tipping Distance from ground to lowest point of con- mm 2D, 3D, TD
point tainer p when tippingNOTE Distance can be negative if below ground.
BEP-02V042.p Maximum tip- Maximum angle between truck chassis and the ° 2D, 3D, TD
ping angle container when tipping container p.© ISO 2018 – All rights reserved 13
---------------------- Page: 18 ----------------------
ISO 21308-6:2018(E)
5.2.3 Loading/unloading position
BEP-code Assignment Description Unit Presented in
BEP-02L050.p Horizontal Horizontal distance from reference point to mm 2D, 3D, TD
distance at container bar of container p when touching bothcontainer rear rollers and ground.
touch down
BEP-02H050.p Vertical Vertical distance from reference point to con- mm 2D, 3D, TD
distance at tainer bar of container p when touching bothcontainer touch rear rollers and ground.
down
BEP-02L051 Horizontal Maximum horizontal distance from reference mm 2D, 3D, TD
distance to point to container bar.
highest point
BEP-02H051 Vertical dis- Vertical distance from reference point to mm 2D, 3D, TD
tance to high- container bar when the maximum horizontal
est point distance applies.
14 © ISO 2018 – All rights reserved
---------------------- Page: 19 ----------------------
ISO 21308-6:2018(E)
BEP-code Assignment Description Unit Presented in
BEP-02L052.p Horizontal dis- Horizontal distance from reference point to mm 2D, 3D, TD
tance at maxi- container bar of container p with container p atmum container the maximum loading/unloading angle and at
angle, ground ground level.
level
BEP-02H052.p Vertical dis- Vertical distance from reference point to con- mm 2D, 3D, TD
tance at maxi- tainer bar of container p with container p atmum container the maximum loading/unloading angle and at
angle, ground ground level.
level
NOTE Distance can be negative if below mount-
ing plane.
BEP-02V052.p Maximum Maximum loading angle with container p at ° 2D, 3D, TD
container angle, ground level.
ground level
NOTE Mounting plane is used as zero reference
for the maximum container angle.
BEP-02L053.p Horizontal dis- Horizontal distance from reference point to mm 2D, 3D, TD
tance at maxi- container bar of container p with container p atmum container the maximum loading/unloading angle when
angle, below loading and unloading from the lowest possible
ground level distance below ground.
BEP-02H053.p Vertical dis- Vertical distance from reference point to con- mm 2D, 3D, TD
tance at maxi- tainer bar of container p with container p atmum container the maximum loading/unloading angle when
angle, below loading and unloading from the lowest possible
ground level distance below ground.
NOTE Distance can be negative if below mount-
ing plane.
© ISO 2018 – All rights reserved 15
---------------------- Page: 20 ----------------------
ISO 21308-6:2018(E)
BEP-code Assignment Description Unit Presented in
BEP-02V053.p Maximum Maximum loading angle with container p below ° 2D, 3D, TD
container angle, ground level.
below ground
NOTE Mounting plane is used as zero reference
level
for the maximum container angle.
BEP-02H054 Lowest possible Vertical distance from reference point to the mm 2D, 3D, TD
pickup plane lowest possible container bar pickup plane.NOTE Distance can be negative if below mount-
ing plane.
16 © ISO 2018 – All rights reserved
---------------------- Page: 21 ----------------------
ISO 21308-6:2018(E)
6 Coding of container dimensions and features necessary for the handling
NOTE 1 Only main dimensions are considered in the coding of hook lift containers.
NOTE 2 Annex B shows an overview of main dimensions included in container frame standards and other
technical specifications.© ISO 2018 – All rights reserved 17
---------------------- Page: 22 ----------------------
ISO 21308-6:2018(E)
BEP-code Assignment Description Unit Presented in
BEP-02G200.p Profile type Type of profile of the frame beam of the container mm 2D, 3D, TD
EXAMPLE IPN / UPN extern / UPN Intern / Tube.BEP-02H200.p Bar height Distance between the centre of the bar and the mm 2D, 3D, TD
lowest point of the container railBEP-02W200.p Bar width Width of the container bar mm 2D, 3D, TD
BEP-02H201.p Bar diam- Diameter of the container bar mm 2D, 3D, TD
eter
BEP-02H202.p Tunnel Distance between the lowest point of the contain- mm 2D, 3D, TD
height er rail and the lowest point of the cross sectionBEP-02H203.p Load bed Distance between the lowest point of the rail and mm 2D, 3D, TD
height the top of the load bedBEP-02W201.p Inner rail Horizontal distance between the container rails mm 2D, 3D, TD
width (excluding the rail width)BEP-02W202.p Outer rail Horizontal distance between the container rails mm 2D, 3D, TD
width (including the rail width)BEP-02H204.p Container Distance between the lowest point of the rail and mm 2D, 3D, TD
height the highest point of the container bodyBEP-02H205 Container Distance between the lowest point of the rail and mm 2D, 3D, TD
height, max the highest allowed point of the container bodyallowed for keeping the overall height within legal limits
BEP-02W204.p Container Distance between the left most point and the right mm 2D, 3D, TD
width most point of the container18 © ISO 2018 – All rights reserved
---------------------- Page: 23 --------------------
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
