ISO/IEC 23003-4:2020/Amd 1:2022

Information technology — MPEG audio technologies — Part 4: Dynamic range control — Amendment 1: Side chain normalization

Technologies de l'information — Technologies audio MPEG — Partie 4: Contrôle de gamme dynamique — Amendement 1: Normalisation de l’entrée latérale

General Information

• Status: Published
• Publication Date: 04-Jul-2022
• ICS: 35.040.40 - Coding of audio, video, multimedia and hypermedia information
• Technical Committee: ISO/IEC JTC 1/SC 29 - Coding of audio, picture, multimedia and hypermedia information
• Drafting Committee: ISO/IEC JTC 1/SC 29/WG 6 - MPEG Audio coding
• Current Stage: 6060 - International Standard published
• Start Date: 05-Jul-2022
• Due Date: 02-Aug-2022
• Completion Date: 05-Jul-2022

Relations

• Amends: ISO/IEC 23003-4:2020 - Information technology — MPEG audio technologies — Part 4: Dynamic range control
• Effective Date: 21-Aug-2021

Standards Content (Sample)

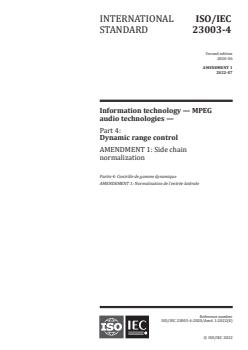

INTERNATIONAL ISO/IEC
STANDARD 23003-4
Second edition
2020-06
AMENDMENT 1
2022-07
Information technology — MPEG
audio technologies —
Part 4:
Dynamic range control
AMENDMENT 1: Side chain
normalization
Partie 4: Contrôle de gamme dynamique
AMENDEMENT 1: Normalisation de l’entrée latérale
Reference number
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
© ISO/IEC 2022

---------------------- Page: 1 ----------------------
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
  © ISO/IEC 2022 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work.
The procedures used to develop this document and those intended for its further maintenance
are described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria
needed for the different types of document should be noted. This document was drafted in
accordance with the editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives or
www.iec.ch/members_experts/refdocs).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents) or the IEC
list of patent declarations received (see https://patents.iec.ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see
www.iso.org/iso/foreword.html. In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information Technology,
Subcommittee SC 29, Coding of audio, picture, multimedia, and hypermedia.
A list of all parts in the ISO/IEC 23003 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.
iii
© ISO/IEC 2022 – All rights reserved

---------------------- Page: 3 ----------------------
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
Information technology — MPEG audio technologies —
Part 4:
Dynamic range control
AMENDMENT 1: Side chain normalization

6.1.1
In the second last paragraph replace "UNIDRCCONFEXT_V1" with "UNIDRCCONFEXT_V1 or
UNIDRCCONFEXT_V2".

6.1.2.3
Add, after the fourth paragraph, the following new paragraph:
The drcCoefficientsUniDrc() payload for ISO/IEC 14496-12 (see Table 69) for version=2 and
characteristicV1Override=1 carries essentially the same information as the extension UNIDRCCONFEXT_
V2. The corresponding bitstream fields are coded the same way as specified in Table A.10.

6.4.6
Add, after the fourth paragraph, the following new paragraph:
If the encoder-side characteristic is provided in the bitstream, it is recommended to use linear gain
interpolation. ISO/IEC 23091-3 (CICP) encoder characteristics in the range of 65 to 70 are only supported
by drcCoefficientsUniDrcV1() as part of a UNIDRCCONFEXT_V2 extension. These characteristics shall
not be used otherwise. When a CICP characteristic in this range is inverted in the decoder, loudness
normalization shall be applied after the inversion based on the available loudness metadata and encoder
normalization gain, if applicable. This is shown in the pseudo code of Table E.3, where the output of
the inverse characteristic is computed with an offset depending on the value of sourceLoudness and
encDrcNormGainDb. sourceLoudness is the integrated DRC input loudness at the encoder before any
normalization. The value of sourceLoudness is obtained from the loudness metadata for the DRC.
encDrcNormGainDb is the signal gain in dB applied at the encoder DRC input. This gain value is available
in a UNIDRCCONFEXT_V2 extension payload to support legacy devices when characteristicV1Override==1
(see also E.4). The value of drcInputLoudnessTarget is the target input loudness of the DRC characteristic
applied to generate the DRC gains in the decoder. The drcCoefficientsUniDrc() payload of the Base
Media File Format ISO/IEC 14496-12 supports CICP characteristics 65 to 70 only if version>=2 (see also
Table 69).

6.4.6
Replace Table 17 with the following table:
1
© ISO/IEC 2022 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
Table 17 — Conversion of a DRC gain sample and associated slope from dB to linear domain
(slopeIsNegative==1 if the source DRC characteristic has a negative slope)
toLinear (gainDb, slopeDb) {
 SLOPE_FACTOR_DB_TO_LINEAR = 0.1151f;   /* ln(10) / 20 */
  EFFECT_BIT_CLIPPING = 0x0100;       /* drcSetEffect 9 (Clip.Prev.) */
  EFFECT_BIT_FADE  = 0x0200;        /* drcSetEffect 10 (Fade) */
  EFFECT_BITS_DUCKING = 0x0400 | 0x0800;   /* drcSetEffect 11 or 12 (Ducking) */
  gainRatio = 1.0;
  gainDbMod = gainDb;
  if (((drcSetEffect & EFFECT_BITS_DUCKING) == 0) &&
          (drcSetEffect != EFFECT_BIT_FADE) &&
         (drcSetEffect != EFFECT_BIT_CLIPPING)) {
    if (drcCharacteristicTarget > 0) {
       gainDbMod = mapGain(gainDb); /* target characteristic from host */
    }
    else if (drcCoefficientsUniDrcV1Present == 1) {
      if (((gainDb >= 0.0) && (slopeIsNegative == 1)) || ((gainDb <= 0.0) && (slopeIsNegative == 0))) {
        if (targetCharacteristicLeftPresent == 1) {
          gainDbMod = mapGain(gainDb); /* target characteristic in payload */
        }
      }
      else if (((gainDb <= 0.0) && (slopeIsNegative == 1)) || ((gainDb >= 0.0) && (slopeIsNegative == 0))) {
        if (targetCharacteristicRightPresent == 1) {
           gainDbMod = mapGain(gainDb); /* target characteristic in payload */
        }
      }
    }
    if (gainDbMod < 0.0) {
      gainRatio *= compress;
    }
    else {
      gainRatio *= boost;
    }
  }
  if (gainScalingPresent) {
    if (gainDbMod < 0.0) {
      gainRatio *= attenuationScaling;
    }
    else {
      gainRatio *= amplificationScaling;
    }
  }
  if (duckingScalingPresent && (drcSetEffect & EFFECT_BITS_DUCKING)) {
    gainRatio *= duckingScaling;
  }
  gainLin = pow(2.0, gainRatio * gainDbMod / 6.0);
  slopeLin = SLOPE_FACTOR_DB_TO_LINEAR * gainRatio * gainLin * slopeDb;
  if (gainOffsetPresent) {
2
  © ISO/IEC 2022 – All rights reserved

---------------------- Page: 5 ----------------------
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
    gainLin *= pow(2, gainOffset/6.0);
  }
  /* The only drcSetEffect is "clipping prevention" */
  if (limiterPeakTargetPresent && (drcSetEffect == EFFECT_BIT_CLIPPING)) {
    gainLin *= pow(2, max(0.0, -limiterPeakTarget-loudnessNormalizationGainDb
         -loudnessNormalizationGainModificationDb)/6.0);
    if (gainLin >= 1.0) {
      gainLin = 1.0;
      slopeLin = 0.0;
    }
  }
  return (gainLin, slopeLin);
}
7.3
Replace Table 69 with the following table:
Table 69 — Syntax of drcCoefficientsUniDrc() payload for ISO/IEC 14496-12
aligned(8) class DRCCoefficientsUniDrc extends FullBox(‘udc2’, version, flags=0) {
  // N copies of this box, one of these per DRC_location, plus boxes with characteristicV1Override ==
1
  characteristicV1Override = 0;
  if (version >= 2) {
   bit(1) characteristicV1Override;
   if (characteristicV1Override == 1) {
     bit(4) reserved = 0;
     signed int(5)  DRC_location;
     unsigned int(6) gainSetCount;
     for (j=1; j<=gainSetCount; j++) {
       bit(3) reserved = 0;
       bit(1) characteristicOverridePresent;
       unsigned int(4) bandCount;
       if (characteristicOverridePresent == 1) {
           for (k=1; k<=bandCount; k++) {
              bit(3) reserved = 0;
              unsigned int(7) overrideCicpCharacteristic;
              unsigned int(6) bsEncDrcNormGain;
             }
          }
        }
      }
  }
  if (characteristicV1Override == 0) {
      if (version < 2) {
3
© ISO/IEC 2022 – All rights reserved

---------------------- Page: 6 ----------------------
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
        bit(1) reserved = 0;
      }
      bit(1)     reserved = 0;
      signed int(5)  DRC_location;
      bit(1)     drc_frame_size_present;
      if (drc_frame_size_present == 1) {
        bit(1)      reserved = 0;
        unsigned int(15)  bs_drc_frame_size;
      }
      if (version >= 1) {
        bit(5) reserved = 0;
        bit(1) drc_characteristic_left_present;
        bit(1) drc_characteristic_right_present;
        bit(1) shape_filters_present;
        if (drc_characteristic_left_present == 1) {
           bit(4)      reserved = 0;
           unsigned int(4) characteristic_left_count;
           for (k=1; k<=characteristic_left_count; k++) {
              bit(7)      reserved = 0;
              unsigned int(1) characteristic_format;
              if (characteristic_format==0) {
                 bit(1)      reserved = 0;
                 unsigned int(6) bs_gain_left;
                 unsigned int(4) bs_io_ratio_left;
                 unsigned int(4) bs_exp_left;
                 bit(1)     flip_sign_left;
             } else {
                 bit(6)      reserved = 0;
                 unsigned int(2)  bs_char_node_count;
                 for (n=1; n<=bs_char_node_count+1; n++) {
                 bit(3)      reserved = 0;
                 unsigned int(5)  bs_node_level_delta;
                 unsigned int(8)  bs_node_gain;
               }
            }
          }
       }
       if (drc_characteristic_right_present == 1) {
          bit(4)      reserved = 0;
          unsigned int(4) characteristic_right_count;
          for (k=1; k<=characteristic_right_count; k++) {
              bit(7)      reserved = 0;
              unsigned int(1)  characteristic_format;
              if (characteristic_format==0) {
4
  © ISO/IEC 2022 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
                   bit(1)     reserved = 0;
                unsigned int(6) bs_gain_right;
                unsigned int(4) bs_io_ratio_right;
                unsigned int(4) bs_exp_right;
                bit(1)     flip_sign_right;
              } else {
                bit(6)     reserved = 0;
                unsigned int(2) bs_char_node_count;
                for (n=1; n<=bs_char_node_count+1; n++) {
                    bit(3)     reserved = 0;
                    unsigned int(5) bs_node_level_delta;
                    unsigned int(8) bs_node_gain;
                  }
               }
             }
         }
         if (shape_filters_present==1) {
            bit(4) reserved = 0;
            unsigned int(4) shape_filter_count;
            for (k=1; k<=shape_filter_count; k++) {
                bit(4) reserved = 0;
                bit(1) LF_cut_filter_present;
                bit(1) LF_boost_filter_present;
                bit(1) HF_cut_filter_present;
                bit(1) HF_boost_filter_present;
            if (LF_cut_filter_present) {
                bit(3)     reserved = 0;
                unsigned int(3) LF_corner_freq_index;
                unsigned int(2) LF_filter_strength_index;
             }
             if (LF_boost_filter_present) {
                bit(3)     reserved = 0;
                unsigned int(3) LF_corner_freq_index;
                unsigned int(2) LF_filter_strength_index;
             }
             if (HF_cut_filter_present) {
                bit(3)     reserved = 0;
                unsigned int(3) HF_corner_freq_index;
                unsigned int(2) HF_filter_strength_index;
             }
             if (HF_boost_filter_present) {
                bit(3)     reserved = 0;
                unsigned int(3) HF_corner_freq_index;
                unsigned int(2) HF_filter_strength_index;
5
© ISO/IEC 2022 – All rights reserved

---------------------- Page: 8 ----------------------
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
             }
          }
       }
   }
   bit(1)     reserved = 0;
   unsigned int(1) delayMode;
   if (version >= 1} {
       bit(2)     reserved = 0;
       unsigned int(6) gain_sequence_count;
   }
   unsigned int(6) gain_set_count;
   for (i=1; i<=gain_set_count; i++) {
       bit(2)     reserved = 0;
       unsigned int(2) gain_coding_profile;
       unsigned int(1) gain_interpolation_type;
       unsigned int(1) full_frame;
       unsigned int(1) time_alignment;
       bit(1)     time_delta_min_present;
       if (time_delta_min_present == 1) {
          bit(5)      reserved = 0;
          unsigned int(11) bs_time_delta_min;
      }
      if (gain_coding_profile!=3) {
          bit(3)     reserved = 0;
          unsigned int(4) band_count;    // shall be >= 1
          unsigned int(1) drc_band_type;
          for (j = 1; j <= band_count; j++) {
             if (version>=1) {
                 unsigned int(6) bs_index;
                 bit(1)     drc_characteristic_present
                 bit(1)     drc_characteristic_format_is_CICP
                 if (drc_characteristic_present==1) {
                    if (drc_characteristic_format_is_CICP==1) {
                       bit(1)     reserved;
                       unsigned int(7) drc_characteristic;
                    } else {
                       unsigned int(4) drc_characteristic_left_index;
                       unsigned int(4) drc_characteristic_right_index;
                    }
                 }
             } else {
                 bit(1)     reserved = 0;
                 unsigned int(7) drc_characteristic;
             }
6
  © ISO/IEC 2022 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
          }
          for (j = 2; j <= band_count; j++){
             if (drc_band_type == 1) {
             bit(4)     reserved = 0;
             unsigned int(4) crossover_freq_index;
             } else {
             bit(6)      reserved = 0;
             unsigned int(10) start_sub_band_index;
             }
           }
        }
     }
  }
}
7.3
Replace Table 75 with the following table:
Table 75 — Syntax of uniDrcConfigExtension() payload
Syntax No. of bits Mnemonic

uniDrcConfigExtension()

{
   while (uniDrcConfigExtType != UNIDRCCONFEXT_TERM) { 4 uimsbf
       extSizeBits = bitSizeLen + 4; 4 uimsbf
       extBitSize = bitSize + 1; extSizeBits uimsbf

       switch (uniDrcConfigExtType) {

         case UNIDRCCONFEXT_PARAM_DRC:

            drcCoefficientsParametricDrc();
            parametricDrcInstructionsCount; 4 uimsbf

            for (i=0; i
               parametricDrcInstructions ();

            }

            break;

         case UNIDRCCONFEXT_V2:
            if (characteristicV1Override==1) { 1 bslbf
                              drcCoefficientsOverrideCount; 3 uimsbf

               for (i=0; i                   drcLocation; 4 uimsbf
                  gainSetCount; 6 uimsbf

                  for (j=0; j                       if (characteristicOverridePresent==1) { 1 bslbf
                         bandCount; 4 uimsbf

                         for (k=0; k                             overrideCicpCharacteristic; 7 uimsbf
7
© ISO/IEC 2022 – All rights reserved

---------------------- Page: 10 ----------------------
ISO/IEC 23003-4:2020/Amd. 1:2022(E)
Table 75 (continued)
Syntax No. of bits Mnemonic
                            bsEncDrcNormGain; 6 uimsbf


...
